Install the PA-800 Series Firewall in a Two-Post 19-inch Equipment Rack
The following procedure describes how to install
the PA-800 Series firewall in a two-post equipment rack.
When installing the firewall in a two-post
equipment rack, ensure the rack is properly anchored and it can
support the weight of the installed equipment.

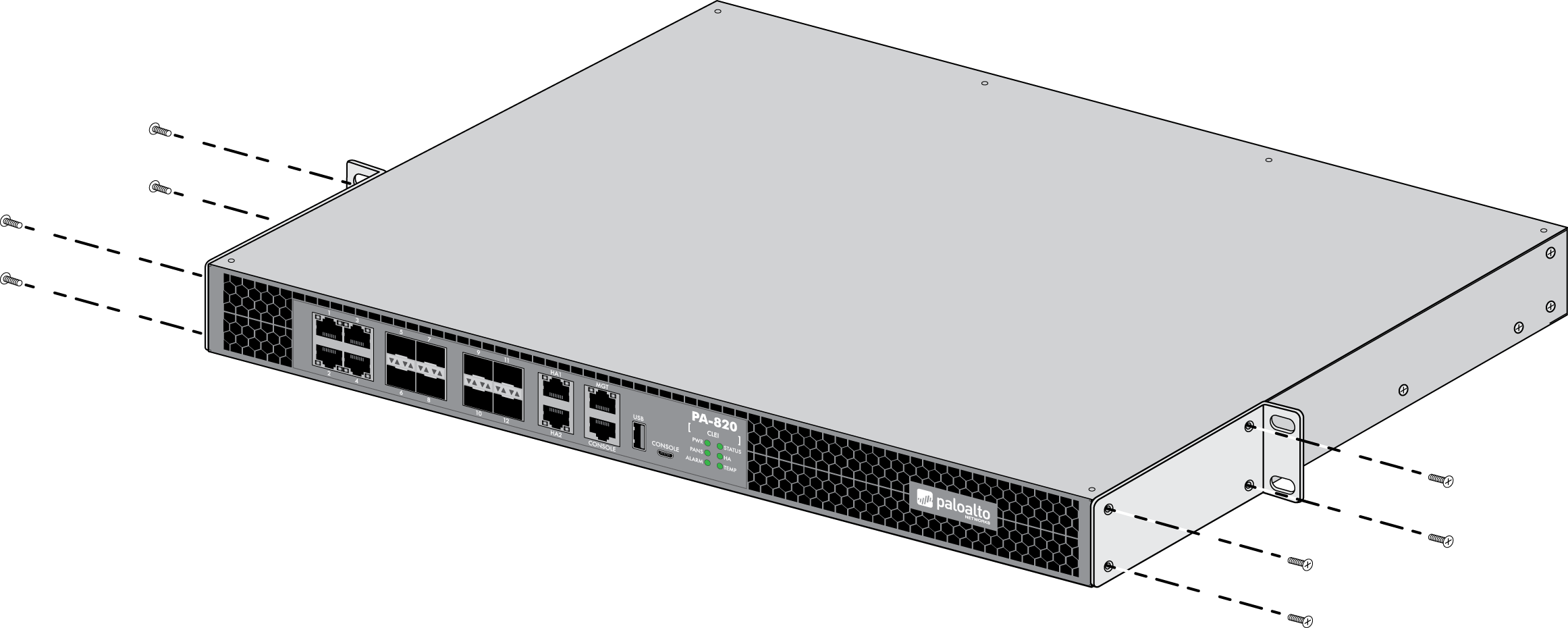

- Attach one rack-mount bracket to each side of
the firewall using four #6-32 x 5/16” screws for each bracket and
torque to 9 in-lbs. For a two-post rack, we recommend you can install
the front brackets in the mid-mount position as shown.
![]()

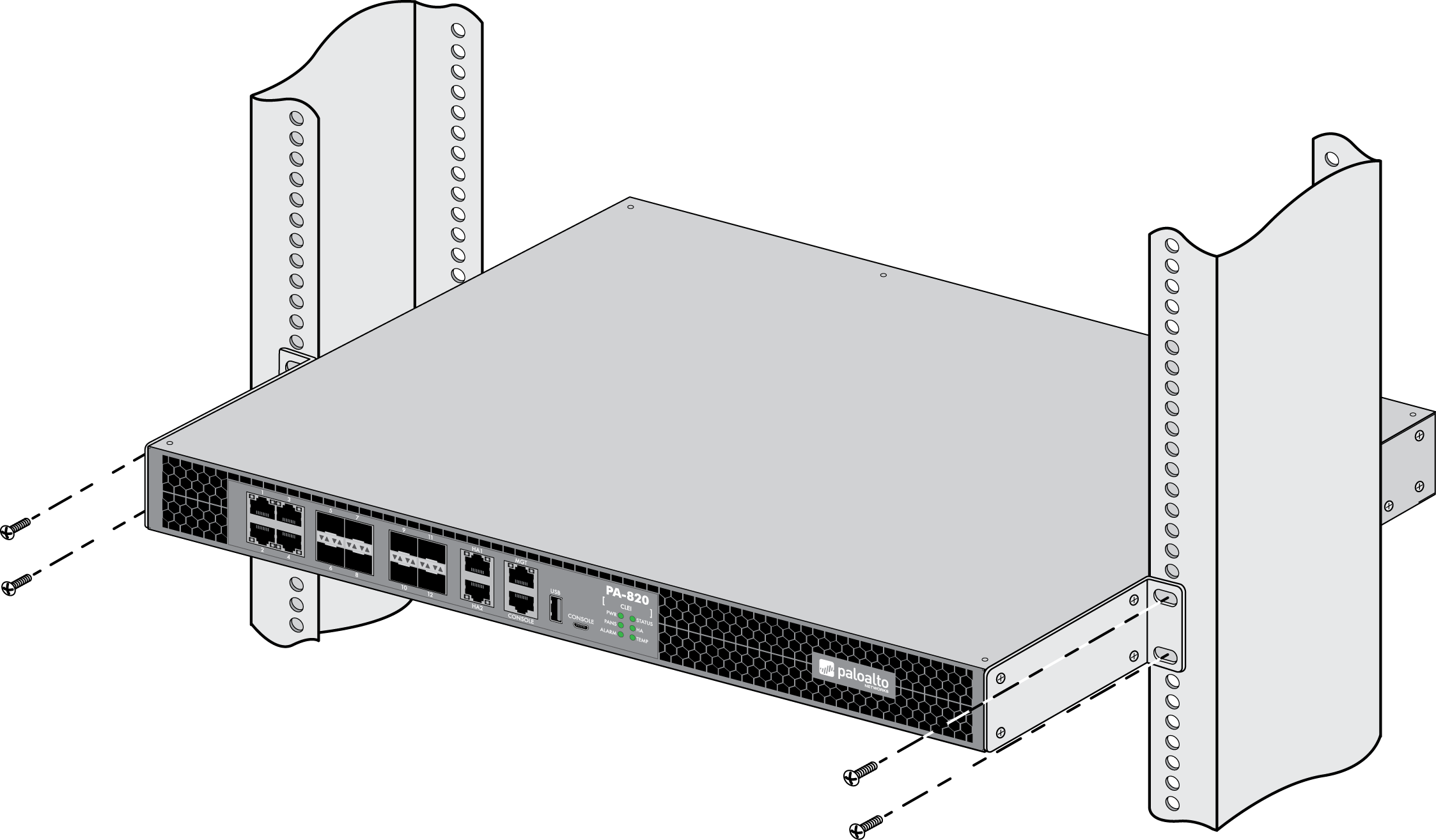

- With help from another person, hold the firewall in place
in the rack and secure the rack-mount brackets to the rack using
two screws for each bracket. Use the appropriate screws (#10-32 x
3/4” or #12-24 x 1/2”) for your rack and torque to 25 in-lbs. Use
cage nuts to secure the screws if the rack has square holes.
![]()
