Locate and install missing intermediate certificates to fix incomplete certificate
chains using the Decryption log.
Not all websites send their complete certificate chain even though the RFC
5246 TLSv1.2 standard requires authenticated servers to provide a valid
certificate chain leading to an acceptable certificate authority (CA). When you
enable decryption and apply a Forward Proxy Decryption profile that
blocks sessions with untrusted issuers
to a Decryption
policy rule, if an intermediate certificate is missing from the certificate list the
website’s server presents to the firewall, the firewall can’t construct the
certificate chain to the top (root) certificate. In these cases, the firewall
presents its Forward Untrust certificate to the client because trust can't be
established without the missing intermediate certificate.
The firewall also presents its Forward Untrust certificate
if traffic matches a Decryption profile that allows sessions with untrusted
If a website you need to communicate
with for business purposes has one or more missing intermediate certificates and the
Decryption profile blocks sessions with untrusted issuers, then you can find and
download the missing intermediate certificate and install it on the firewall as a
trusted root CA so that the firewall trusts the site’s server. (The alternative is
to contact the website owner and ask them to configure their server so that it sends
the intermediate certificate during the handshake.)
If you allow
sessions with untrusted issuers in the Decryption profile, the firewall can
establish sessions even if the issuer is untrusted. The firewall presents the
Forward Untrust certificate to the client and displays a warning message in the
browser, which enables users to accept the risk and continue to the site or not.
However, it's a best practice to block sessions with untrusted issuers for
Find websites that cause incomplete certificate chain errors.
Filter the Decryption log to identify Decryption sessions that failed
because of an incomplete certificate chain.
In the filter field, type the query
Certificate) and (error contains ‘http’)
. This query
filters the logs for Certificate errors that contain the string
“http”, which finds all of the error entries that contain the CA
Issuer URL (often called the URI). The CA Issuer URL is the
Authority Information Access (AIA) information for the CA
column entry that begins
“Received fatal alert UnknownCA from client. CA Issuer URL:” followed by
The firewall automatically adds the selected error to the query and
shows the full URI path (the full URI path may be truncated in the

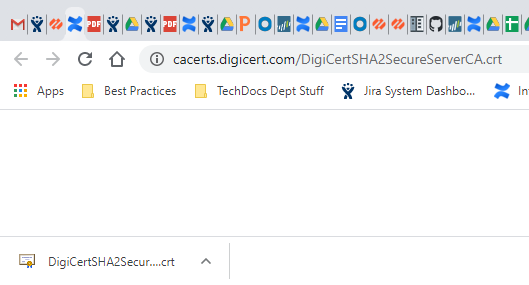

Copy and paste the URI into your browser and then press Enter to download the
missing intermediate certificate.

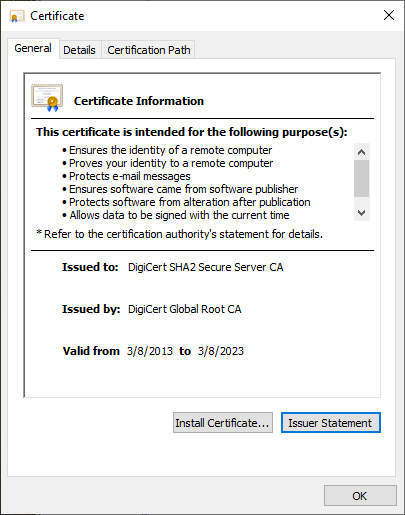

Click the certificate to open the dialog box.

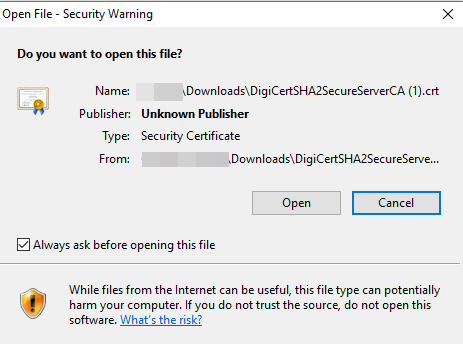

to open the certificate file.

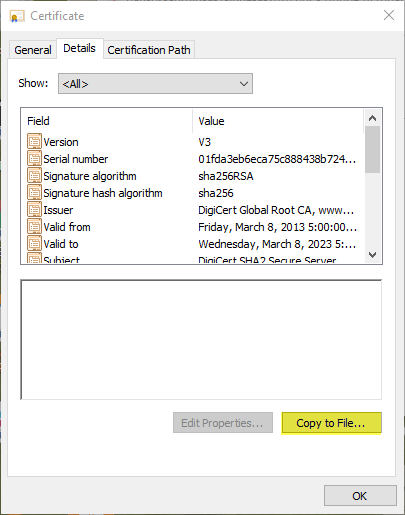

tab and then click
Follow the export directions. The certificate copies to the folder you
designated as your default download folder.

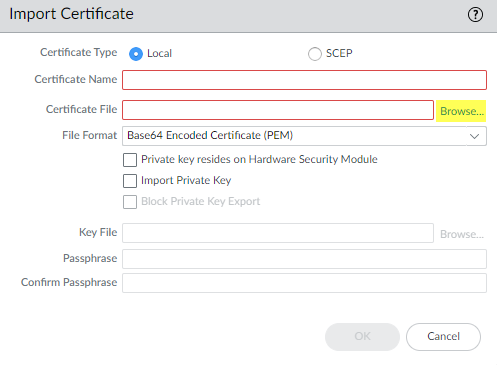

Import the certificate into the firewall.
and then select
to the folder where you stored the
missing intermediate certificate and select it. Leave the
Name the certificate, specify any other options you want to use, and

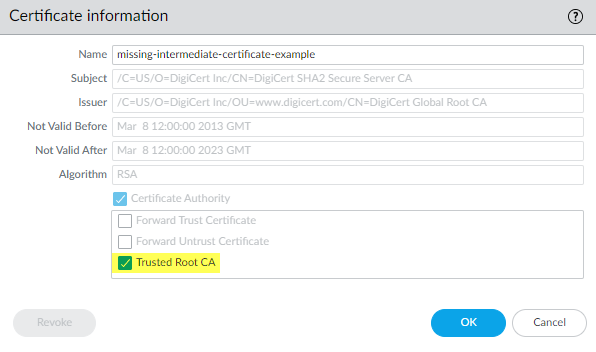

When the certificate has imported, select the certificate from the
list to open the Certificate
Trusted Root CA
to mark the certificate as a
trusted root CA, and then click
, the imported certificate now appears in the list of
certificates. Check the
column to confirm that
the status is
Trusted Root CA Certificate
You have now repaired the broken certificate chain.
The firewall doesn’t block the traffic because the CA issuer is now
trusted. Repeat this process for all missing intermediate certificates to
repair their certificate chains.
