Inline Cloud Analysis uses Precision AI to block zero-day C2, SQLi, and command injection
threats. It requires a persistent cloud connection and an Advanced Threat Prevention
license.
| Where Can I Use
This? | What Do I Need? |
|---|
Inline Cloud Analysis is an Advanced Threat Prevention feature that enables the detection of
advanced, highly-evasive zero-day command-and-control (C2) threats, command
injection, SQL injection vulnerabilities, and DNS relay threats in real-time by
querying the Advanced Threat Prevention cloud service. Inline Cloud Analysis
protection is delivered through your Anti-Spyware and Vulnerability Protection
security profiles, with advanced C2 (command-and-control) and spyware threats
handled by the former, and command injection and SQL injection vulnerabilities by
the latter.
Because this feature functions by performing real-time queries against the Advanced
Threat Prevention cloud service, it requires a persistent, active cloud connection
to analyze and mitigate threats effectively. Without a continuous connection to the
cloud service, the system cannot perform the live lookups necessary to identify
evolving zero-day attacks.
When the
Advanced Threat Prevention license is enabled, the firewall performs
PAN-DB URL categorization lookups as part of its internal processing,
independent of any URL Filtering license or explicit cloud inline configuration.
This is facilitated by the Cloud Content FQDN, which is enabled by default to
connect to hawkeye.services-edge.paloaltonetworks.com and then resolve to the
closest cloud services server. This is configured from:
If you experience service connectivity issues, verify that the configured
cloud content FQDN is not being blocked.
Supported firewalls operating PAN-OS 11.2 and later deployments can also access Local
Deep Learning for Advanced Threat Prevention. Local Deep Learning complements the
cloud-based Inline Cloud Analysis component of Advanced Threat Prevention by
providing a mechanism to perform fast, local deep learning-based analysis of
zero-day and other evasive threats. Updates to Local Deep Learning models are
delivered through content updates. Due to the additional system resources necessary
to run local Deep Learning detection modules, Local Deep Learning is only available
on the following platforms:
PA-5500 Series
PA-5400 Series, excluding the PA-5450 appliance.
VM-Series (must allocate at least 16GB of total memory)
VM-Series Public Cloud
VM-Series Private Cloud
To enable and configure Inline Cloud Analysis, and Local Deep Learning, you must activate your
Advanced Threat Prevention license and create (or modify) the Anti-Spyware and
Vulnerability Protection security profile. Then configure the policy settings for
each category analysis engine and then attach the profiles to a security policy
rule.
For more information on creating security policy rules, refer to the
Policy chapter of the PAN-OS®
Administrator’s Guide.
Configure Inline Cloud Analysis (Strata Cloud Manager)
To take advantage of inline cloud analysis, you must have an active
Prisma Access subscription, which provides access to Advanced Threat
Prevention features. For information about the applications and services offered
with
Prisma Access, refer to
All Available Apps and Services.
Use the credentials associated with your
Palo Alto Networks support account and
log in to the
Strata Cloud Manager on the
hub.
To take advanced of inline cloud analysis, you must have a persistent, active
cloud connection used by Prisma Access to handle inline cloud analysis service
requests. When the
Advanced Threat Prevention license is enabled, Prisma Access
performs PAN-DB URL categorization lookups as part of its internal processing,
independent of any URL Filtering license or explicit cloud inline configuration.
This is facilitated by the Cloud Content FQDN. The default FQDN connects to
hawkeye.services-edge.paloaltonetworks.com and then resolves to the closest
cloud services server. You can override the automatic server selection by
specifying a regional cloud content server that best meets your data residency
and performance requirements.
The Cloud Content FQDN is a globally used resource and affects how other
services that rely on this connection sends traffic payloads.
Verify that the firewall uses the correct Content Cloud FQDN () for your region and change the FQDN as necessary:
![]()
US Central (Iowa,
US)—us.hawkeye.services-edge.paloaltonetworks.com
Europe (Frankfurt,
Germany)—eu.hawkeye.services-edge.paloaltonetworks.com
APAC
(Singapore)—apac.hawkeye.services-edge.paloaltonetworks.com
India
(Mumbai)—in.hawkeye.services-edge.paloaltonetworks.com
UK (London,
England)—uk.hawkeye.services-edge.paloaltonetworks.com
France (Paris,
France)—fr.hawkeye.services-edge.paloaltonetworks.com
Japan (Tokyo,
Japan)—jp.hawkeye.services-edge.paloaltonetworks.com
Australia (Sydney,
Australia)—au.hawkeye.services-edge.paloaltonetworks.com
Canada (Montréal,
Canada)—ca.hawkeye.services-edge.paloaltonetworks.com
Switzerland (Zürich,
Switzerland)—ch.hawkeye.services-edge.paloaltonetworks.com
Israel (Tel Aviv,
Israel)—il.hawkeye.services-edge.paloaltonetworks.com
FedRAMP High—Refer to the
product entry
PanOS CC (Cloud Component)
FedRAMP (Moderate and High) currently does not support the
following
Advanced Threat Prevention features:
Update or create a new Anti-Spyware security profile to enable inline cloud
analysis (to analyze traffic for advanced C2 [command-and-control] and spyware
threats in real-time).
Select .

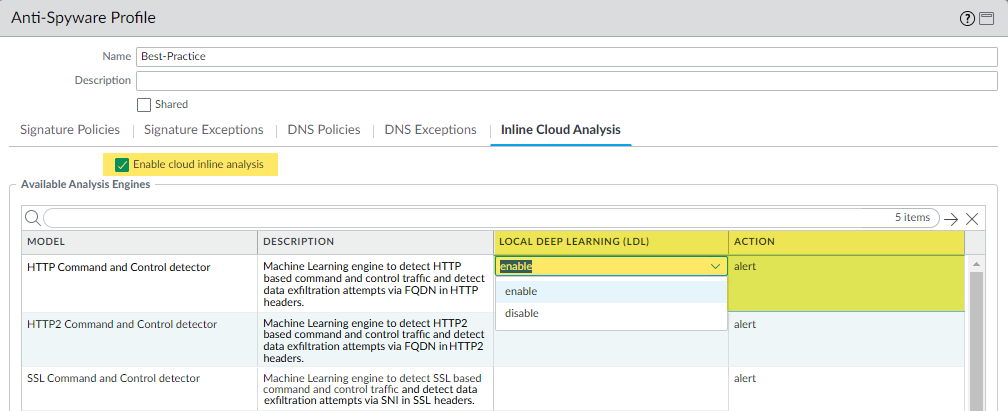

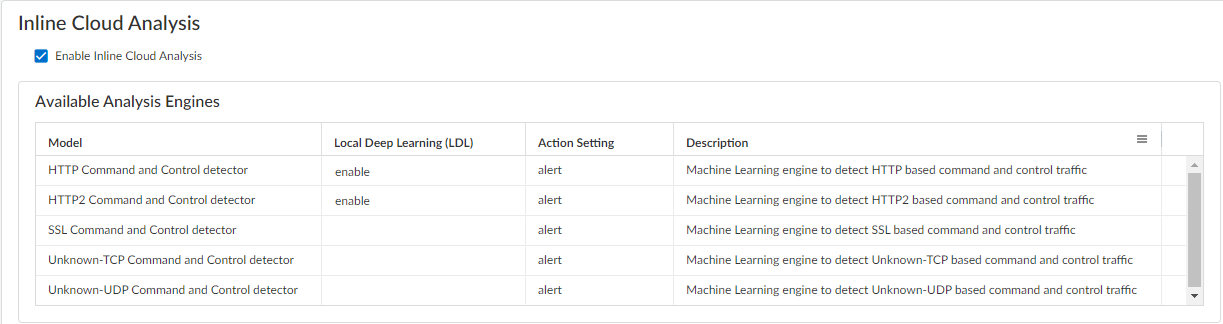

Select your Anti-Spyware security profile and navigate to the
Inline Cloud Analysis panel and
Enable Inline Cloud Analysis.
Select enable for each available analysis
engine with a Local Deep Learning (LDL)
option. There are currently two analysis engines available with an
optional LDL mode: HTTP Command and Control
detector and HTTP2 Command and Control
detector.
Specify an Action to take when a threat is
detected using a corresponding analysis engine.
The default action for each analysis engine is
alert, however, Palo Alto Networks
recommends setting all actions to
Reset-Both for the best security
posture.
Click Save to exit the Anti-Spyware security
profile configuration dialog and Commit your
changes.
(Optional) Add URL and/or IP address exceptions to your Anti-Spyware
profile if Inline Cloud Analysis produces false-positives. You can add
exceptions by specifying an EDL URL containing a series of URLs or a custom URL
category or an IP address list defined in an EDL or within an Address
object.

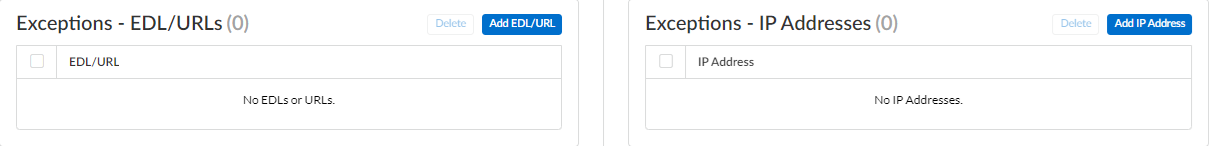

Add an External Dynamic Lists or [IP]
Addresses object exception.
Select .
Select an Anti-Spyware profile for which you want to exclude specific
URLs or IP addresses and then go to the Inline Cloud
Analysis pane.
Add EDL/URL or
Add IP
Address, depending on the type of exception you want
to add, and then select a preexisting URL or IP address external
dynamic list. If none is available, create a new
external dynamic list policy
object. For IP address exceptions, you can, optionally,
select an
Addresses object list.
Click Save to save the Anti-Spyware profile
and Commit your changes.
Update or create a new Vulnerability Protection Security profile to enable
inline cloud analysis (to analyze traffic for command injection and SQL
injection vulnerabilities in real-time).
Select an existing Vulnerability Protection security profile or
Add Profile to create a new one ().

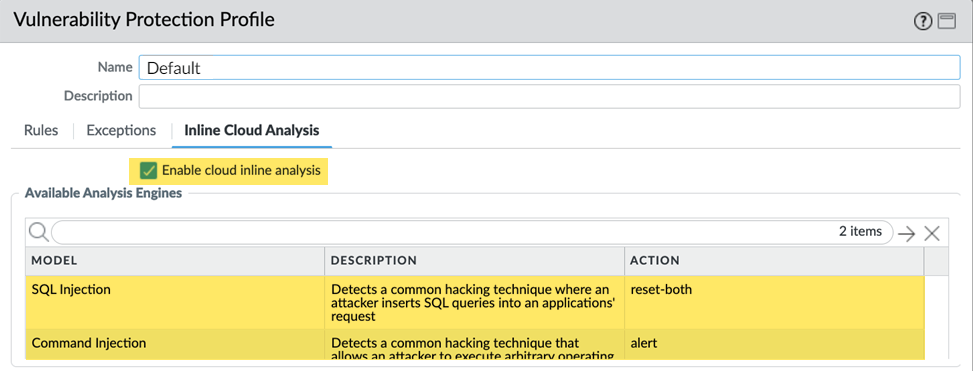

Select your Vulnerability Protection profile and then go to
Inline Cloud Analysis and
Enable cloud inline analysis.
Specify an Action to take when a vulnerability
exploit is detected using a corresponding analysis engine. There are
currently two analysis engines available: SQL
Injection and Command
Injection.
Click Save to exit the Vulnerability
Protection Profile configuration dialog and
Commit your changes.
Add URL and/or IP address exceptions to your Vulnerability Protection profile
if Inline Cloud Analysis produces false-positives. You can add exceptions by
specifying an EDL URL containing a series of URLs or a custom URL category or an
IP address list defined in an EDL or within an Address object.

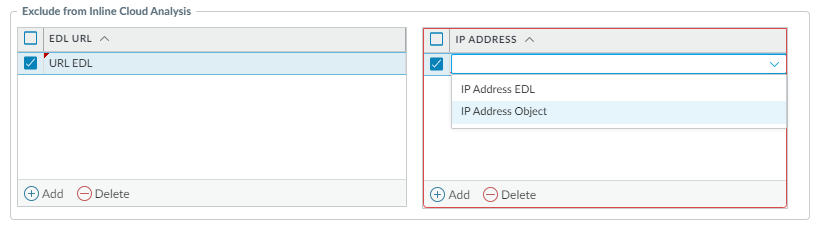

Add an External Dynamic Lists or [IP]
Addresses object exception.
Select to return to your Vulnerability Protection
profile.
Select a Vulnerability profile for which you want to exclude specific
URLs and/or IP addresses and then select Inline Cloud
Analysis.
Add an EDL/URL or
IP Address, depending on the type of
exception you want to add, and then select a pre-existing URL or IP
address external dynamic list. If none are available, create a new
external dynamic list. For IP address exceptions, you can
optionally, select an Addresses object
list.
Vulnerability profiles that are configured as
Shared on Panorama-managed firewalls
cannot have IP address objects added to the Inline Cloud
Analysis exceptions list.
Click Save to save the Vulnerability
Protection profile and Commit your
changes.
Configure the timeout latency and action to take when the request exceeds the
max latency.
Select and Customize.
Specify the timeout value and the associated action to take when
latency limits are reached for inline cloud analysis requests. Use
the Log Traffic Not Scanned function to
fine-tune your Max Latency settings. By
testing various threshold values, you can identify the optimal
balance for your network environment. If the latency setting is too
low, Prisma Access bypasses (does not scan) using inline cloud
analysis and, instead, generates a threat log entry to notify you
that the scan was skipped.
Max Latency (ms)—Specify the maximum acceptable processing
time, in milliseconds, for Inline Cloud Analysis to return a
result. The default value is 200ms.
Allow on Max Latency—Enables the Prisma Access to take the
action of allow, when the maximum latency is reached.
De-selecting this option sets the action to block.
Log Traffic Not Scanned— Enables the Prisma Access to log
traffic requests that exhibit anomalous traits indicating
the presence of advanced evasive command-and-control (C2)
threats and zero-day exploits, but have not been processed
by Advanced Threat Prevention Inline Cloud analyzers.
The threat logs generated by Log Traffic Not
Scanned are defined by the following
characteristics:
Threat
Category—inline-cloud-c2
Application—Either
unknown-udp or
unknown-tcp
Does not generate a cloud report.
Click Save to confirm your changes.
-
Configure Inline Cloud Analysis (PAN-OS & Panorama)
Advanced Threat Prevention Inline Cloud Analysis supports multiple detection
engines, which require different minimum PAN-OS releases to enable:
- Detection of advanced C2 (command-and-control) and spyware threats requires
PAN-OS 10.2 and later.
- Detection of zero-day exploit threats requires PAN-OS 11.0 and later.
- Support for LDL (Local Deep Learning) requires PAN-OS 11.2 and later.
- Detection of DNS relay attacks
requires PAN-OS 11.1 and later, with content update 8948-9284 and
later.
- Detection of Encrypted Sliver C2 requires PAN-OS 11.2.7 and later, with
content update 9006-9569 and later.
Install a Device Certificate Repeat
for all NGFWs enabled for inline cloud analysis, as well as other cloud
services.
Log in to the NGFW web
interface. To take advanced of inline cloud analysis, you must have a persistent, active
cloud connection used by the firewall to handle inline cloud analysis service
requests. When the
Advanced Threat Prevention license is enabled, the firewall
performs PAN-DB URL categorization lookups as part of its internal processing,
independent of any URL Filtering license or explicit cloud inline configuration.
This is facilitated by the Cloud Content FQDN. The default FQDN connects to
hawkeye.services-edge.paloaltonetworks.com and then resolves to the closest
cloud services server. You can override the automatic server selection by
specifying a regional cloud content server that best meets your data residency
and performance requirements.
The Cloud Content FQDN is a globally used resource and affects how other
services that rely on this connection sends traffic payloads.
Verify that the firewall uses the correct Content Cloud FQDN () for your region and change the FQDN if necessary:
If your NGFW is configured inline to facilitate a SaaS Security
deployment, please note that the FQDNs located in France and Japan do
not currently support SaaS Security functionality.
US Central (Iowa,
US)—us.hawkeye.services-edge.paloaltonetworks.com
Europe (Frankfurt,
Germany)—eu.hawkeye.services-edge.paloaltonetworks.com
APAC
(Singapore)—apac.hawkeye.services-edge.paloaltonetworks.com
India
(Mumbai)—in.hawkeye.services-edge.paloaltonetworks.com
UK (London,
England)—uk.hawkeye.services-edge.paloaltonetworks.com
France (Paris,
France)—fr.hawkeye.services-edge.paloaltonetworks.com
Japan (Tokyo,
Japan)—jp.hawkeye.services-edge.paloaltonetworks.com
Australia (Sydney,
Australia)—au.hawkeye.services-edge.paloaltonetworks.com
Canada (Montréal,
Canada)—ca.hawkeye.services-edge.paloaltonetworks.com
Switzerland (Zürich,
Switzerland)—ch.hawkeye.services-edge.paloaltonetworks.com
Israel (Tel Aviv,
Israel)—il.hawkeye.services-edge.paloaltonetworks.com
FedRAMP High—Refer to the
product entry
PanOS CC (Cloud Component)
FedRAMP (Moderate and High) currently does not support the
following
Advanced Threat Prevention features:
To take advantage of inline cloud analysis, you must have an active Advanced
Threat Prevention subscription. For information about subscriptions, refer to:
Activate Subscription Licenses.

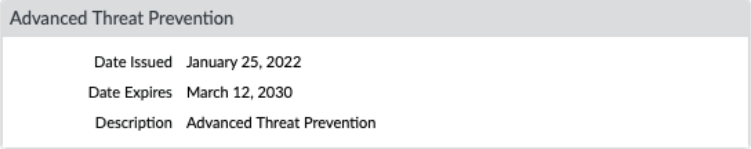

To verify subscriptions for which you have currently-active licenses, select and verify that the appropriate licenses are available and
have not expired.
Update or create a new Anti-Spyware Security profile to enable inline cloud
analysis (to analyze traffic for advanced C2 (command-and-control), spyware, and
DNS relay threats in real-time).
Select an existing Anti-Spyware Profile or
Add a new one ().
Select your Anti-Spyware profile and then go to Inline
Cloud Analysis and Enable inline cloud
analysis.
(Local Deep Learning [Supported in PAN-OS 11.2 and later])
Select enable for each available analysis
engine with a Local Deep Learning (LDL)
option. The following analysis engines are available with an
optional LDL mode: HTTP Command and Control
detector and HTTP2 Command and Control
detector.
While the HTTP Command and Control
detector and HTTP2 Command and
Control detector supports detection of data
exfiltration attempts (DNS relay attacks) as part of the model,
the data exfiltration functionality is not supported by LDL.
Specify an Action to take when a threat is
detected using a corresponding analysis engine.
The default action for each analysis engine is
alert, however, Palo Alto Networks
recommends setting all actions to
Reset-Both for the best security
posture.
Click OK to exit the Anti-Spyware Profile
configuration dialog and Commit your
changes.
(Optional) Add URL and/or IP address exceptions to your Anti-Spyware
profile if Inline Cloud Analysis produces false-positives. You can add
exceptions by specifying an EDL URL containing a series of URLs or a custom URL
category or an IP address list defined in an EDL or within an Address
object.
Add an External Dynamic Lists or [IP]
Addresses object exception.
Select Objects > Security Profiles >
Anti-Spyware.
Select an Anti-Spyware profile for which you want to exclude specific
URLs and/or IP addresses and then select Inline Cloud
Analysis.
Add an EDL URL or
IP Address, depending on the type of
exception you want to add, and then select a pre-existing URL or IP
address external dynamic list. If none are available, create a new
external dynamic list. For IP address exceptions, you can,
optionally, select an Addresses object
list.
Anti-spyware profiles that are configured as
Shared on Panorama-managed firewalls
cannot have IP address objects added to the Inline Cloud
Analysis exceptions list.
Click OK to save the Anti-Spyware profile and
Commit your changes.
(Supported in PAN-OS 11.0 and later) Update or create a new
Vulnerability Protection Security profile to enable inline cloud analysis (to
analyze traffic for command injection and SQL injection vulnerabilities in
real-time).
Select an existing Vulnerability Protection security profile or
Add a new one ().
Select your Vulnerability Protection profile and then go to
Inline Cloud Analysis and
Enable cloud inline analysis.
Specify an Action to take when a vulnerability
exploit is detected using a corresponding analysis engine. There are
currently two analysis engines available: SQL
Injection and Command
Injection.
Click OK to exit the Vulnerability Protection
Profile configuration dialog and Commit your
changes.
Add URL and/or IP address exceptions to your Vulnerability Protection profile
if Inline Cloud Analysis produces false-positives. You can add exceptions by
specifying an EDL URL containing a series of URLs or a custom URL category or an
IP address list defined in an EDL or within an Address object.
Add an External Dynamic Lists or [IP]
Addresses object exception.
Select Objects > Security Profiles >
Vulnerability to return to your Vulnerability
Protection profile.
Select a Vulnerability profile for which you want to exclude specific
URLs and/or IP addresses and then select Inline Cloud
Analysis.
Add an EDL URL or
IP Address, depending on the type of
exception you want to add, and then select a pre-existing URL or IP
address external dynamic list. If none are available, create a new
external dynamic list. For IP address exceptions, you can,
optionally, select an Addresses object
list.
Vulnerability profiles that are configured as
Shared on Panorama-managed firewalls
cannot have IP address objects added to the Inline Cloud
Analysis exceptions list.
Click OK to save the Vulnerability Protection
profile and Commit your changes.
Configure the timeout latency and action to take when the request exceeds the
max latency.
Select .
Specify the timeout value and the associated action to take when
latency limits are reached for inline cloud analysis requests. Use
the Log Traffic Not Scanned function to
fine-tune your Max Latency settings. By
testing various threshold values, you can identify the optimal
balance for your network environment. If the latency setting is too
low, the NGFW bypasses (does not scan) using inline cloud analysis
and, instead, generates a threat log entry to notify you that the
scan was skipped.
Max Latency (ms)—Specify the maximum acceptable processing
time, in milliseconds, for Inline Cloud Analysis to return a
result. The default value is 200ms.
Allow on Max Latency—Enables the NGFW to take the action of
allow, when the maximum latency is reached. De-selecting
this option sets the NGFW action to block.
Log Traffic Not Scanned— Enables the NGFW to log traffic
requests that exhibit anomalous traits indicating the
presence of advanced evasive command-and-control (C2)
threats and zero-day exploits, but have not been processed
by Advanced Threat Prevention Inline Cloud analyzers.
The threat logs generated by Log Traffic Not
Scanned are defined by the following
characteristics:
Threat
Category—inline-cloud-c2
Application—Either
unknown-udp or
unknown-tcp
Does not generate a cloud report.
Click OK to confirm your changes.
(Required when the firewall is deployed with an explicit proxy server)
Configure the proxy server used to access the servers that facilitate requests
generated by all configured inline cloud analysis features. A single proxy
server can be specified and applies to all
Palo Alto Networks update services,
including all configured inline cloud and logging services.
(PAN-OS 11.2.3 and later) Configure the proxy server through
PAN-OS.
Select and edit the Services
details.

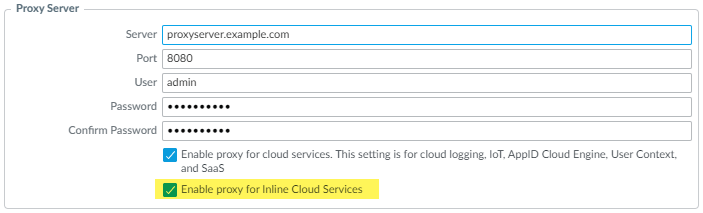

Specify the Proxy Server settings and
Enable proxy for Inline Cloud
Services. You can provide either an IP
address or FQDN in the Server
field.
You must provide full credentials (username and
password) to connect to an explicit proxy server.
Credential-less connections are not currently
supported.
The proxy server password must contain a minimum
of seven characters.
Click OK.
(For the following releases only: PAN-OS 10.2.11 and later and
PAN-OS 11.1.5 and later) Configure the proxy server through the
firewall CLI.
Configure the base proxy server settings using the following
CLI commands:
set deviceconfig system secure-proxy-server <FQDN_or_IP>
set deviceconfig system secure-proxy-port <1-65535>
set deviceconfig system secure-proxy-user <value>
set deviceconfig system secure-proxy-password <value>
You must provide full credentials (username and
password) to connect to an explicit proxy server.
Credential-less connections are not currently
supported.
The proxy server password must contain a minimum
of seven characters.
Enable the proxy server to send requests to the inline cloud
service servers using the following CLI command:
debug dataplane mica set inline-cloud-proxy enable
View the current operational status of proxy support for
inline cloud services using the following CLI command:
debug dataplane mica show inline-cloud-proxy
For example:
debug dataplane mica show inline-cloud-proxy
Proxy for Advanced Services is Disabled
(Optional) Verify the status of your firewall
connectivity to the
Advanced Threat Prevention cloud service.
Use the following CLI command on the firewall to view the
connection status.
show ctd-agent status security-client
For
example:
show ctd-agent status security-client
...
Security Client AceMlc2(1)
Current cloud server: hawkeye.services-edge.paloaltonetworks.com
Cloud connection: connected
...
CLI output shortened for brevity.
If you are unable to connect to the Advanced Threat Prevention cloud service, verify that the
following domains and ports are not blocked:
-
