    Migrate Prisma Access from Panorama to Strata Cloud Manager

    Migrate your Prisma Access deployment from Panorama to Strata Cloud Manager.
    Where Can I Use This?What Do I Need?
    • Prisma Access (Managed by Panorama)
    • Prisma Access license
      To begin the migration from Prisma Access (Managed by Panorama) to Prisma Access (Managed by Strata Cloud Manager), reach out to your Palo Alto Networks account team.
    If you have an existing Prisma Access Deployment for which the configuration is managed by Panorama and want to migrate to Strata Cloud Manager for configuration management, Palo Alto Networks offers an in-product workflow that lets you migrate your existing Prisma Access configuration to Strata Cloud Manager.
    Managing your Prisma Access configuration using Strata Cloud Manager instead of Panorama can offer you benefits such as:
    • Continuous best practice assessments
    • Secure default configurations
    • Machine Learning (ML)-based configuration optimization
    • Streamlined web security workflows
    • An interactive visual summary (Command Center) that helps you to assess the health, security, and efficiency of the network
    • Intuitive workflows for complex tasks
    • Simple and secure management APIs
    • Cloud-native architecture provides scalability, resilience, and global reach
    • No hardware to manage or software to maintain

    Prepare to Migrate to Prisma Access (Managed by Strata Cloud Manager)

    Before you start your migration, you should be aware of the minimum software requirements and the types of Prisma Access (Managed by Panorama) deployments you can migrate.
    • One-Way Migration from Panorama to Prisma Access (Managed by Strata Cloud Manager)—You can only migrate from a Prisma Access (Managed by Panorama) to a Prisma Access (Managed by Strata Cloud Manager) deployment. After you migrate to Strata Cloud Manager, you cannot return to managing your Prisma Access deployment using Panorama.
    • Minimum Panorama Version—A minimum Panorama version of 10.0 is required.
    • Required Administrator Role—You must be logged in as a superuser in Strata Cloud Manager to begin the migration.
    • Licensing Requirements—A valid Prisma Access license is required.
    • Cloud Identity Engine—You must have integrated the Directory Sync component of the Cloud Identity Engine with the current Prisma Access (Managed by Panorama) tenant before migrating.
    • Unsupported Functionalities—The migration program does not support the following Prisma Access functionalities:
    • Config Diff Issues—When you run the config diff during the migration, ignore any diffs that show the following object names because they don't affect your configuration:
      • Clientless-vpn crypto-settings
      • Hip-profiles rename
      • Mobile-user-redundancy
      • Exclude-video-traffic

    Migrate Your Prisma Access (Managed by Panorama) Deployment to Strata Cloud Manager

    To migrate your Prisma Access (Managed by Panorama) to a Prisma Access (Managed by Strata Cloud Manager) deployment, complete the following steps.
    At a high level, you:
    1. Make sure that you have successfully pushed the latest configuration to Prisma Access, have saved the latest configuration, and have exported an .xml configuration file from the Panorama that manages Prisma Access.
    2. Start the migration program from Strata Cloud Manager.
    3. Check the configuration differences (diffs) between the Panorama configuration and the migrated Strata Cloud Manager configuration.
    4. Resolve the diffs and complete the migration.
    1. Prepare your Panorama for the migration.
      1. Log in to the Panorama that manages Prisma Access with an administrative account that is assigned the superuser role.
      2. (Optional) If you have configured a custom Master Key for your Panorama and for Prisma Access, make a note of it.
        If your deployment uses the default Master Key, this step isn't required.

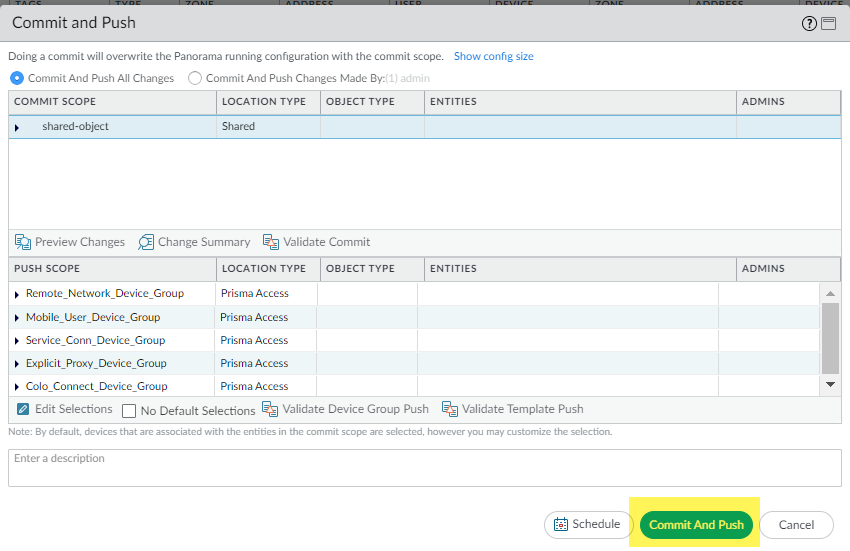

      3. Make sure that your current Panorama configuration is up to date and you have committed and pushed all your changes to Panorama and to Prisma Access by going to CommitCommit & Push and Preview Changes.

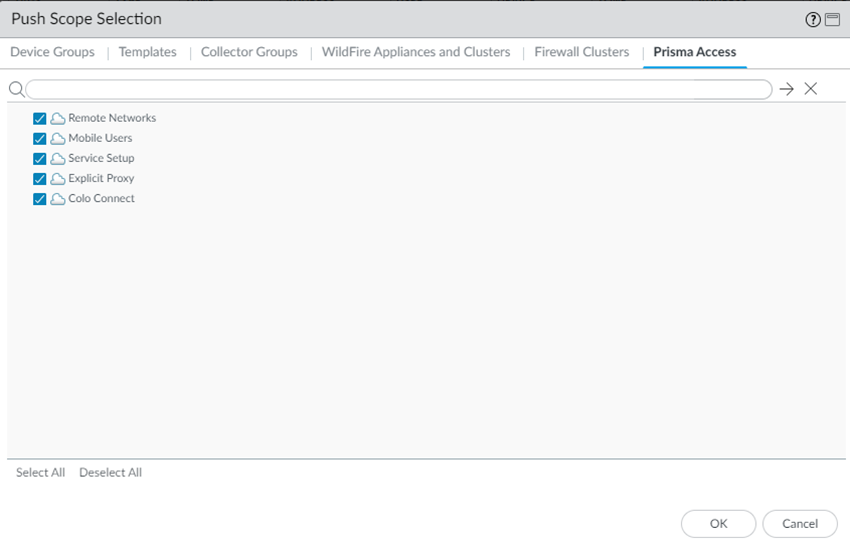

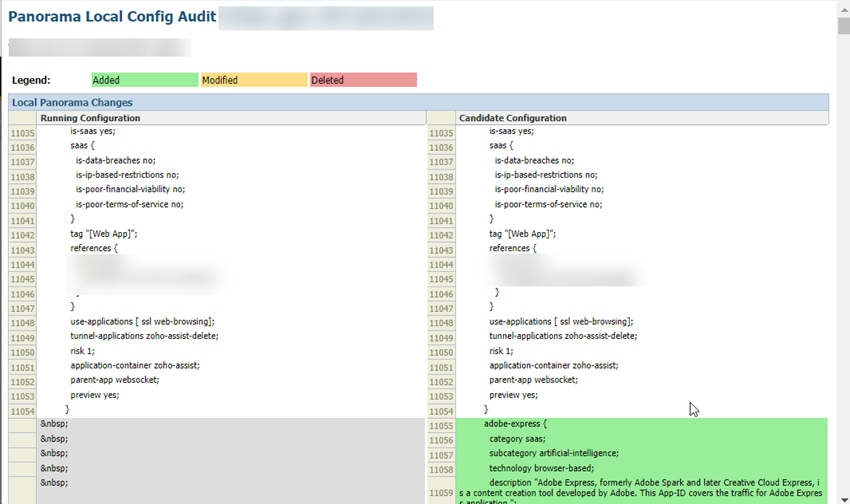

      4. (Optional) Check the diffs between the running config and the candidate config and determine whether you want to push those changes. If you want to commit and push the changes, Edit Selections and select the Prisma Access components you want to push in the Push Scope.
      5. (Optional) Commit and Push your changes.
      6. Go to PanoramaSetupOperations and Export named Panorama configuration snapshot.
        This .xml file is required to upload to Strata Cloud Manager during the migration process. Don't upload a techsupport file or any other file except an .xml configuration file.

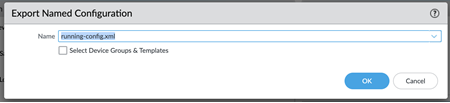

      7. Select the running-config.xml configuration file and OK.
    2. Log in to Strata Cloud Manager as an administrator with a Superuser role and go to ManageConfigurationNGFW and Prisma Access.
      The migration program detects that you have a Panorama managed deployment.

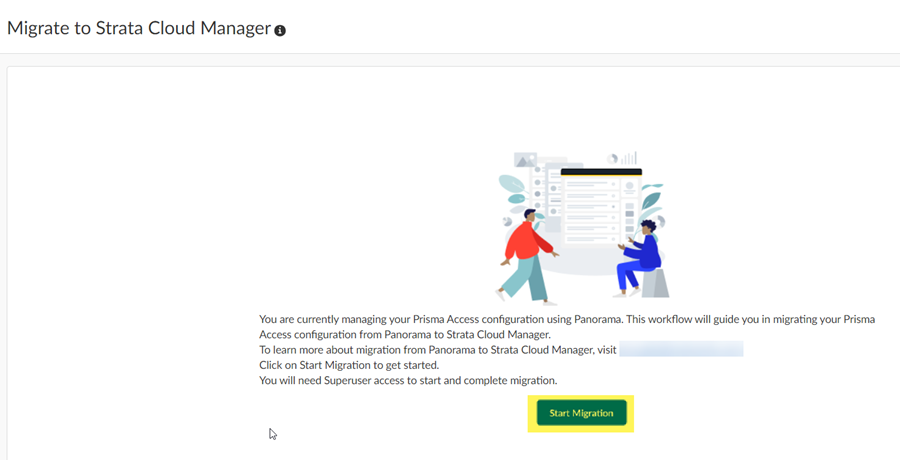

    3. Start Migration.

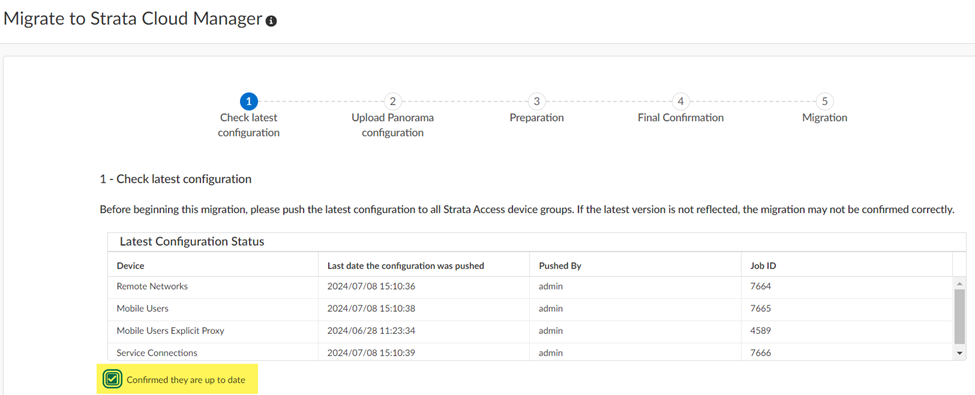

    4. The migration program asks you to make sure that your configuration is up to date and shows you the last user who updated it. After you have verified that this configuration has the latest changes, select Confirmed they are up to date and click Next.
    5. Select the Panorama configuration .xml file you downloaded in an earlier step by dragging and dropping it or Choose File.
    6. Input your Master Key, or if you did not create a custom master key, ask Strata Cloud Manager to use the Default one and click Next.

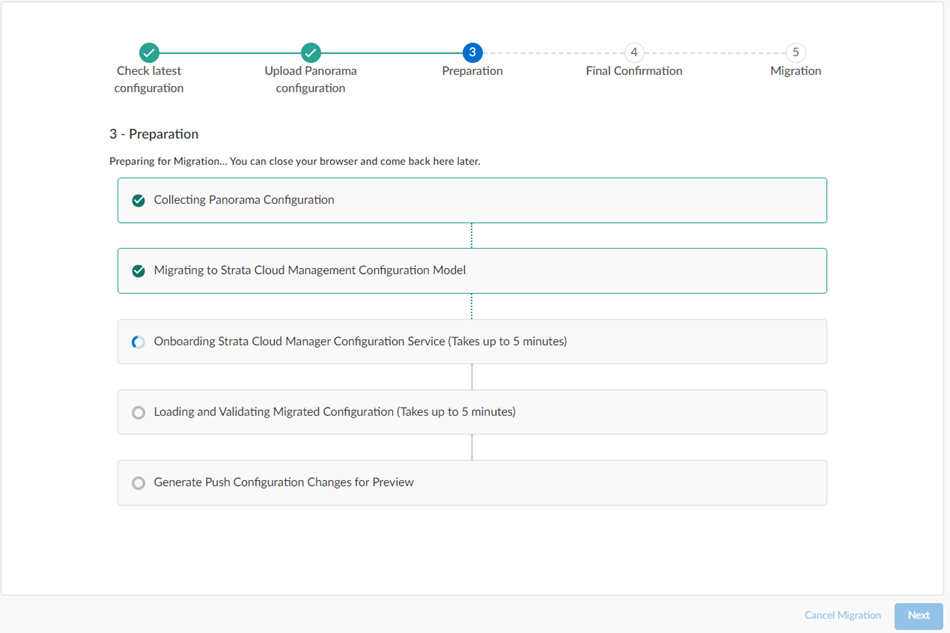

      The migration program begins.
      Wait for all the steps to complete.

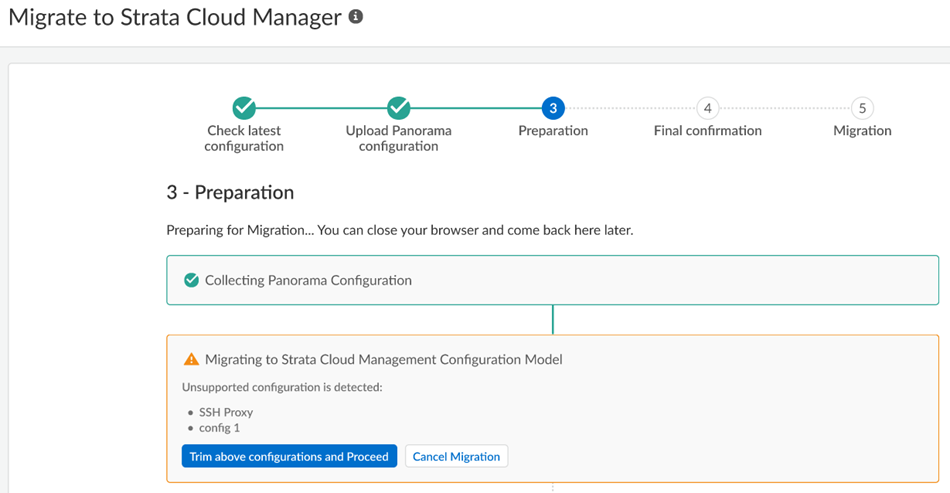

    7. If, during migration, the program indicates that it encountered an unsupported configuration, you can Trim the above configurations and proceed or Cancel migration.
      Some unsupported configurations (such as a multitenant configuration) cancel the migration and the migration program can't resolve the issue; in this case, Cancel Migration.
    8. After migration completes, click Next.

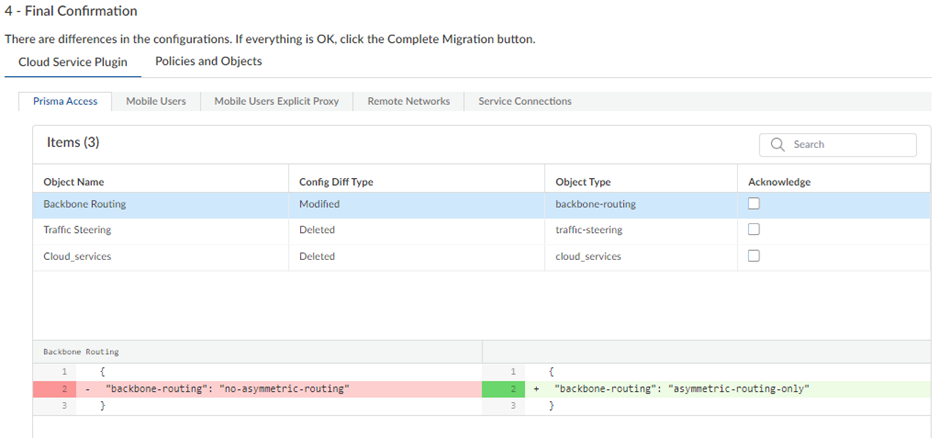

    9. If the migration program made changes, review them in the final confirmation screen.
      The migration program might make changes to your configuration to account for differences in the Panorama and the Strata Cloud Manager configuration or to fix unsupported functionality. If changes are required, the migration program shows those changes in a diff view with the new lines in green and the deleted lines in red.
      Ignore any diffs that show the following object names; they don't affect your configuration:
      • Clientless-vpn crypto-settings
      • Hip-profiles rename
      • Mobile-user-redundancy
      • Exclude-video-traffic
    10. (Optional) Make changes to the diffs.
      1. Navigate to the area in Strata Cloud Manager where you found the diffs and make changes to the configuration.

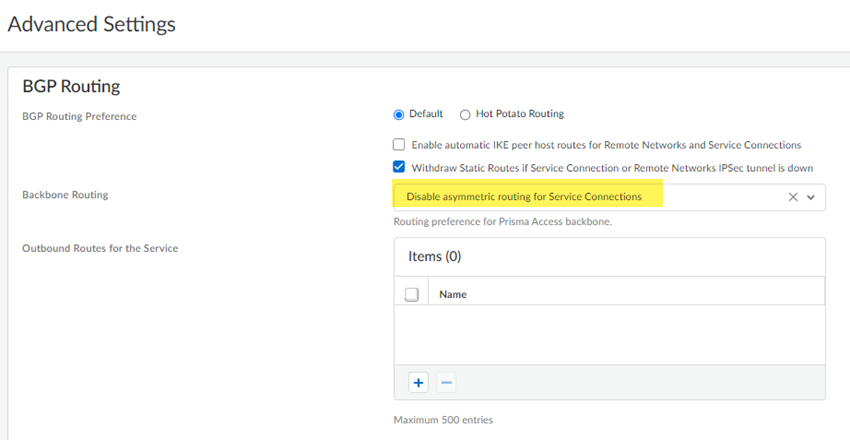

        For the example in the previous step, the migration program made a change to Backbone Routing (from no-asymmetric-routing to asymmetric-routing-only). To change this, go to WorkflowsPrisma Access SetupService ConnectionsAdvanced Settings and change the Backbone Routing configuration to Disable Asymmetric Routing for Service Connections.
      2. (Optional) To keep track of your changes, Acknowledge them as you complete them.
        While not required, it can be useful to acknowledge each change as you make them, so you can keep track of them.
      3. Continue to review the changes and make changes and acknowledge them.

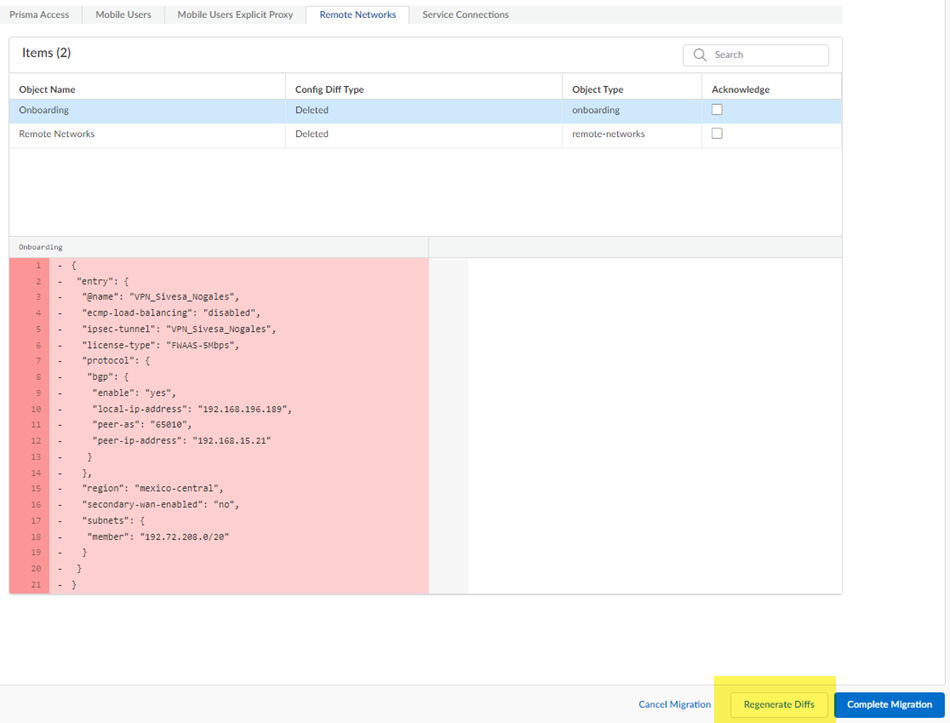

    11. (Optional) If you have made any changes to the configuration, Regenerate Diffs to see the updated diffs.

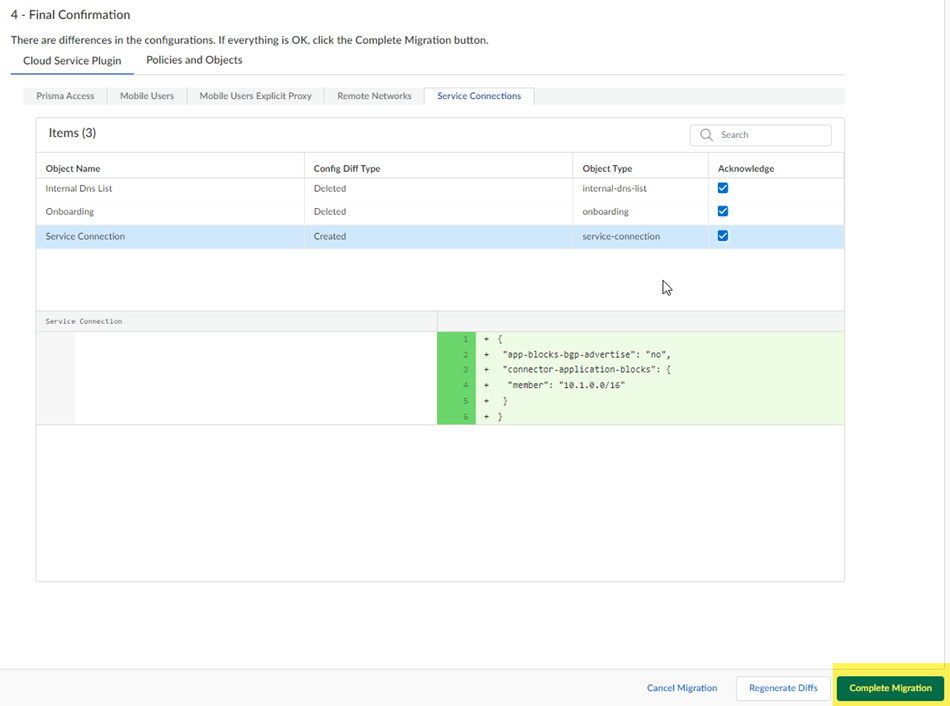

    12. Complete Migration.
      While not required, you can also Acknowledge your changes.
    13. Confirm your migration by clicking OK.

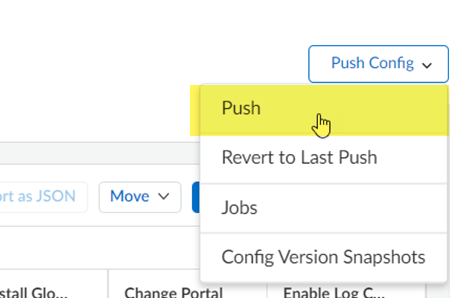

      You can choose to push your configuration now, or push your configuration after the migration completes.
      After you Complete Migration, you can't go back to a Panorama managed deployment and your deployment permanently uses Strata Cloud Manager for its management.
      A progress screen displays.

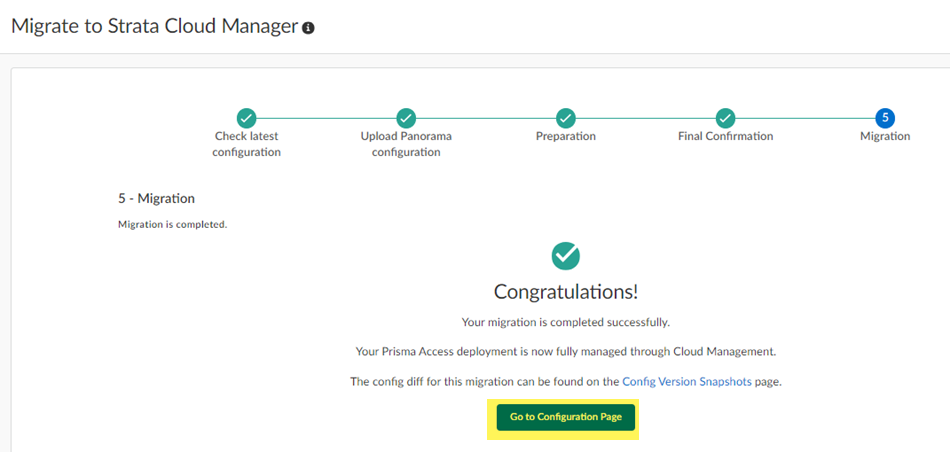

      After migration completes, a screen displays indicating that migration is complete.

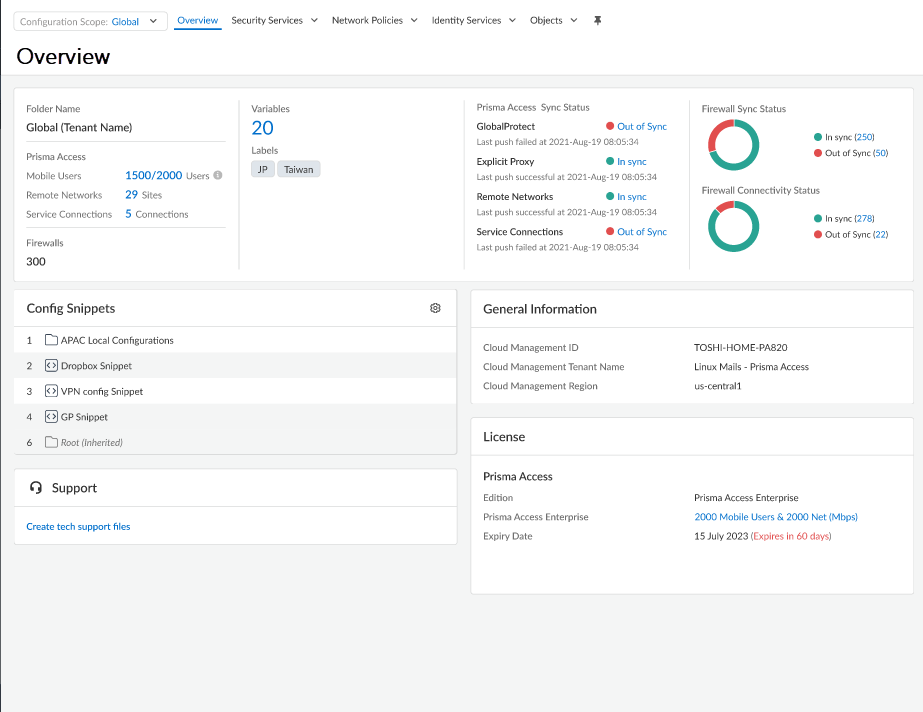

    14. (Optional) Go to Configuration Page to see your migrated configuration.
      Your migrated deployment displays.
