Overview of ION 3200 and ION 3200H
Lets learn more about the new ION 3200 device series with next-generation
software-defined firewalls in Prisma SD-WAN.
Prisma SD-WAN ION 3200 is a next generation software-defined device that can be
deployed in a branch or a data center. With the introduction of ION 3200, accelerate
your SASE deployment to a branch or a DC by applying WAN connectivity without installing
additional hardware to enable rapid deployments.
The new high-performance ION 3200 device comes with fiber optic ports
offering RJ-45/SFP Combo WAN ports, higher power SFP ports to support smart SFPs, wired
LAN switching, wireless LAN Access points, PoE to power external cellular gateways, and
other PoE powered devices such as Internet Protocol phones or cameras or Wireless Access
Points.
When the ION 3200 device runs in Layer 2 mode, it will support
features like the ION 1200-S device. When the ION 3200 device runs in Layer 3 mode, it
will be the current ION 3200 device.
The variants of the ION 3200 series are:

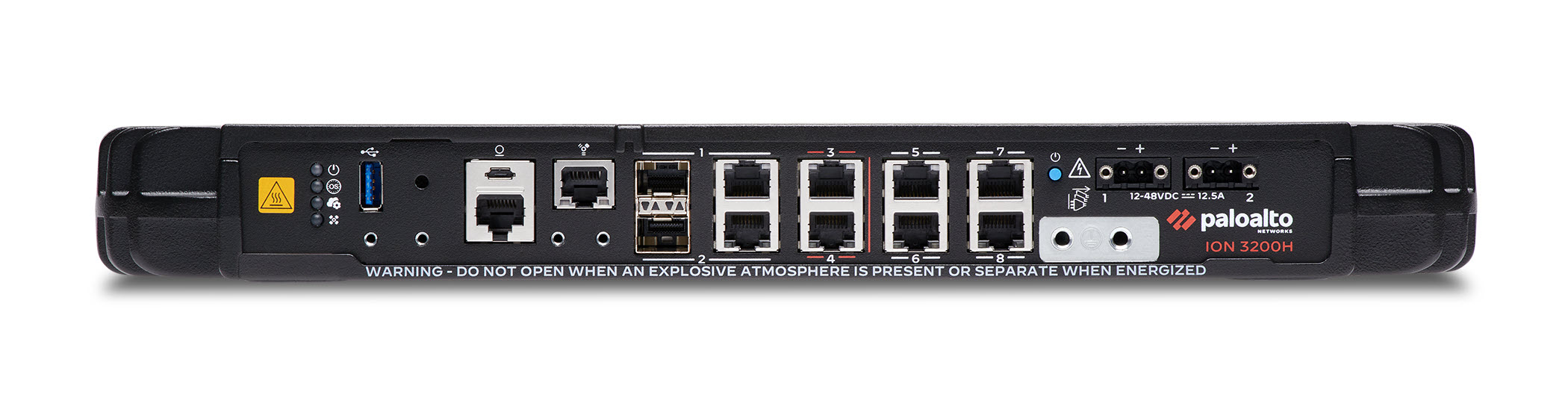

- ION 3200HEnterprise small branch Hardened device and have the following main features:
- a TPM module for key storage and security
- Active/passive and active/active high availability (HA)
- 5G capability for select models

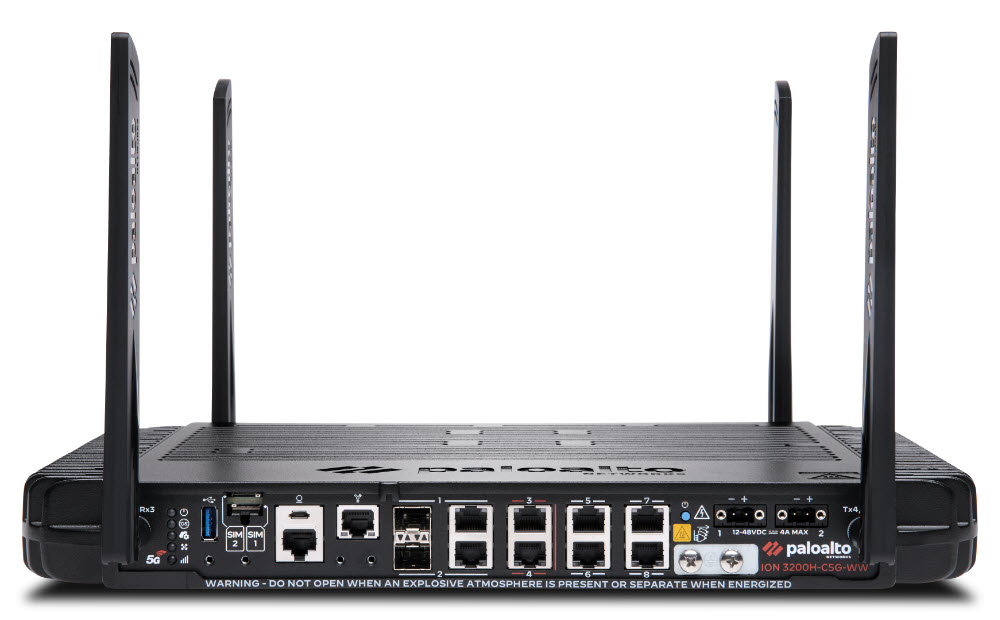

- ION 3200H-C5G-WWEnterprise small branch Hardened device integrated with L2 switch ports and 5G for world wide.
![]()
