    View DNS Security Logs

    Table of Contents

    View DNS Security Logs

    Where Can I Use This?What Do I Need?
    • Prisma Access (Managed by Strata Cloud Manager)
    • Prisma Access (Managed by Panorama)
    • NGFW (Managed by Strata Cloud Manager)
    • NGFW (Managed by PAN-OS or Panorama)
    • VM-Series
    • CN-Series
    • Advanced DNS Security License (for enhanced feature support) or DNS Security License
    • Advanced Threat Prevention or Threat Prevention License
    You can browse, search, and view DNS Security logs that are automatically generated when DNS Security encounters a qualifying event. Typically, this includes any domain category that DNS Security analyzes unless it is specifically configured with a log severity level of none. Log entries provide numerous details about the event, including the threat level and, if applicable, the nature of threat.
    DNS Security logs are accessible directly on the firewall or through Strata Logging Service-based log viewers (AIOps for NGFW Free, Cloud Management, Strata Logging Service, etc). While the firewall allows you to access malicious threat log entries that are generated when users make DNS queries, benign DNS requests are not recorded. DNS Security data is also forwarded to Strata Logging Service through log forwarding (as threat logs) and DNS Security telemetry (as DNS Security logs), which are then referenced by various activity log viewer applications. DNS Security telemetry operates with minimal overhead, which limits the amount of data sent to Strata Logging Service; as a result, only a subset of DNS queries are forwarded to Strata Logging Service as DNS Security log entries, regardless of the severity level, threat type, or category. The threat logs for malicious DNS requests that are forwarded to Strata Logging Service using log forwarding are available in their entirety. As a result, Palo Alto Networks recommends viewing logs for malicious DNS requests as threat logs instead of DNS Security logs.

    View DNS Security Logs (Strata Cloud Manager)

    Benign DNS queries that have been analyzed by DNS Security are not displayed in the log viewer. Log in to your Strata Logging Service app to access benign DNS log entries.
    1. Use the credentials associated with your Palo Alto Networks support account and log in to the Strata Cloud Manager on the hub.
    2. Search for DNS queries that have been processed using DNS Security.
      1. Select Incidents and AlertsLog Viewer.
      2. Constrain your search using the threat filter and submit a log query based on the DNS category, for example, threat_category.value = 'dns-c2' to view logs that have been determined to be a C2 domain. To search for other DNS types, replace c2 with another supported DNS category (ddns, parked, malware, etc). Adjust the search criteria as necessary for your search, including additional query parameters (such as the severity level and subtype) along with a date range.
      3. Select a log entry to view the details of a detected DNS threat.
      4. The threat Category is displayed in the General pane of the detailed log view. Other relevant details about the threat are displayed in their corresponding windows.
      5. For stockpiled domains and DNS tunneling domains, including tunneling-based APTs (advanced persistent threats), you can view the various tools used in the attack, as well as the attack campaigns associated with the domain. This is reflected in the Threat ID/Name field for the log entry for a given domain. The Threat ID/Name for DNS domains with attributions use the following format; in this example, for DNS tunnel domains: Tunneling:<tool_name>,<tool_name>,<tool_name>,...:<domain_name>, whereby the tool_name refers to the DNS tunneling tools used to embed data into the DNS queries and responses, but also the cyber threat campaign name, in a comma-separated list. These campaigns can be industry accepted incidents and use the same naming conventions or might be one identified and named by Palo Alto Networks and described in the Unit 42 Threat Research blogs. A blog of such a campaign, in this case, one leveraging DNS tunneling techniques, can be found here: Leveraging DNS Tunneling for Tracking and Scanning.
        The associated tool and campaign attributions might take some time after the initial detection has completed to become viewable in the logs as well as the Palo Alto Networks ThreatVault and Test-A-Site. When the attribution component finishes and has been verified, the complete DNS tunneling tools and campaign details display as expected in the Threat ID/Name and campaign fields.

    View DNS Security Logs (NGFW (Managed by PAN-OS or Panorama))

    1. Log in to the PAN-OS web interface.
    2. Search for activity on the firewall for queries that have been processed using DNS Security.

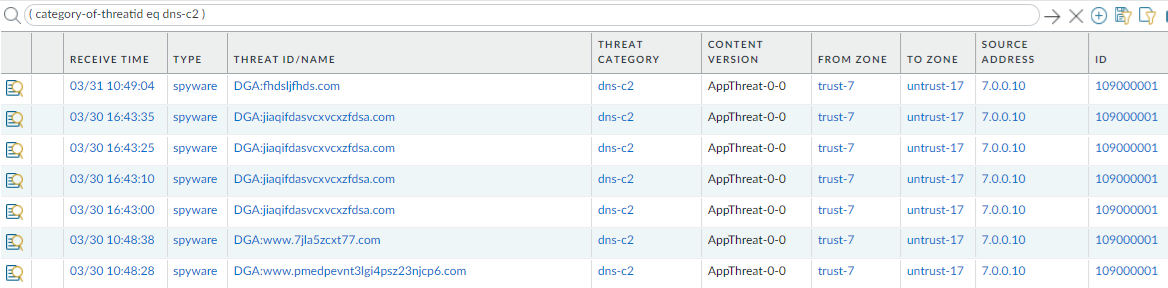

      1. Select MonitorLogsThreat and filter based on the DNS category.
        Consider the following examples:
        • ( category-of-threatid eq dns-c2 ) to view logs that have been determined to be a C2 domain by DNS Security.
        • ( category-of-threatid eq adns-hijacking ), whereby the variable adns-hijacking indicates DNS queries that have been categorized as a malicious DNS hijacking attempt by Advanced DNS Security.
        To search for other DNS types, replace c2 with another supported DNS category (ddns, parked, malware, etc).

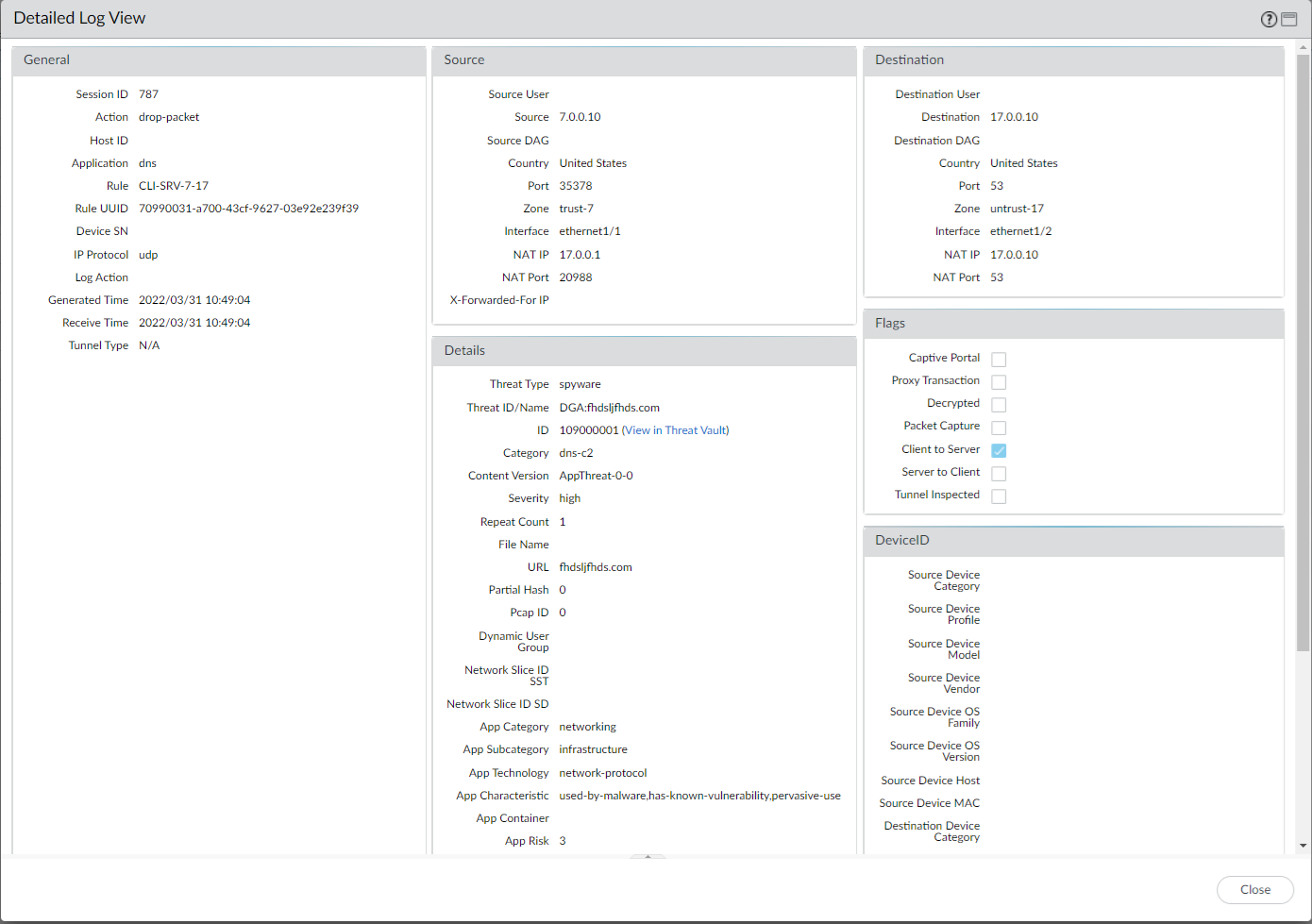

      2. Select a log entry to view the details of a detected DNS threat.
      3. The threat Category is displayed in the Details pane of the detailed log view. Other relevant details about the threat are displayed in their corresponding windows.
      4. For stockpiled domains and DNS tunneling domains, including tunneling-based APTs (advanced persistent threats), you can view the various tools used in the attack, as well as the attack campaigns associated with the domain. This is reflected in the Threat ID/Name field for the log entry for a given domain. The Threat ID/Name for DNS domains with attributions use the following format; in this example, for DNS tunnel domains: Tunneling:<tool_name>,<tool_name>,<tool_name>,...:<domain_name>, whereby the tool_name refers to the DNS tunneling tools used to embed data into the DNS queries and responses, but also the cyber threat campaign name, in a comma-separated list. These campaigns can be industry accepted incidents and use the same naming conventions or might be one identified and named by Palo Alto Networks and described in the Unit 42 Threat Research blogs. A blog of such a campaign, in this case, one leveraging DNS tunneling techniques, can be found here: Leveraging DNS Tunneling for Tracking and Scanning. Alternatively, you can also view the attribution information from the Palo Alto Networks ThreatVault and the URL Filtering Test A Site.
        The associated tool and campaign attributions might take some time after the initial detection has completed to become viewable in the logs as well as the Palo Alto Networks ThreatVault and Test-A-Site. When the attribution component finishes and has been verified, the complete DNS tunneling tools and campaign details display as expected in the Threat ID/Name and campaign fields.
        Consider the following examples:
        • DNS Tunneling Domain APT Attribution

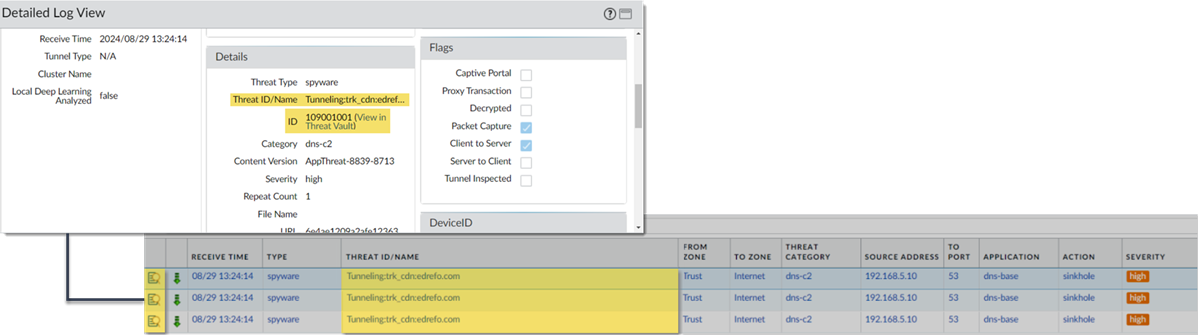

          1. PAN-OS

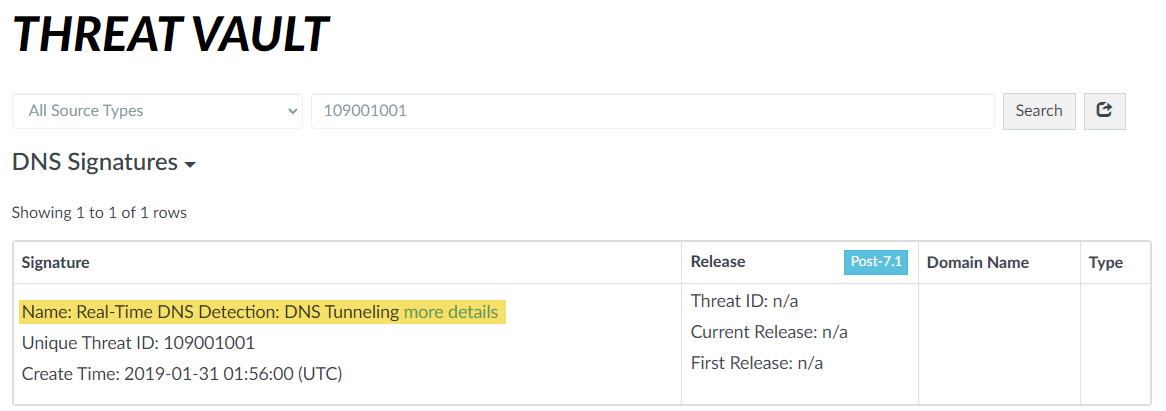

          2. ThreatVault

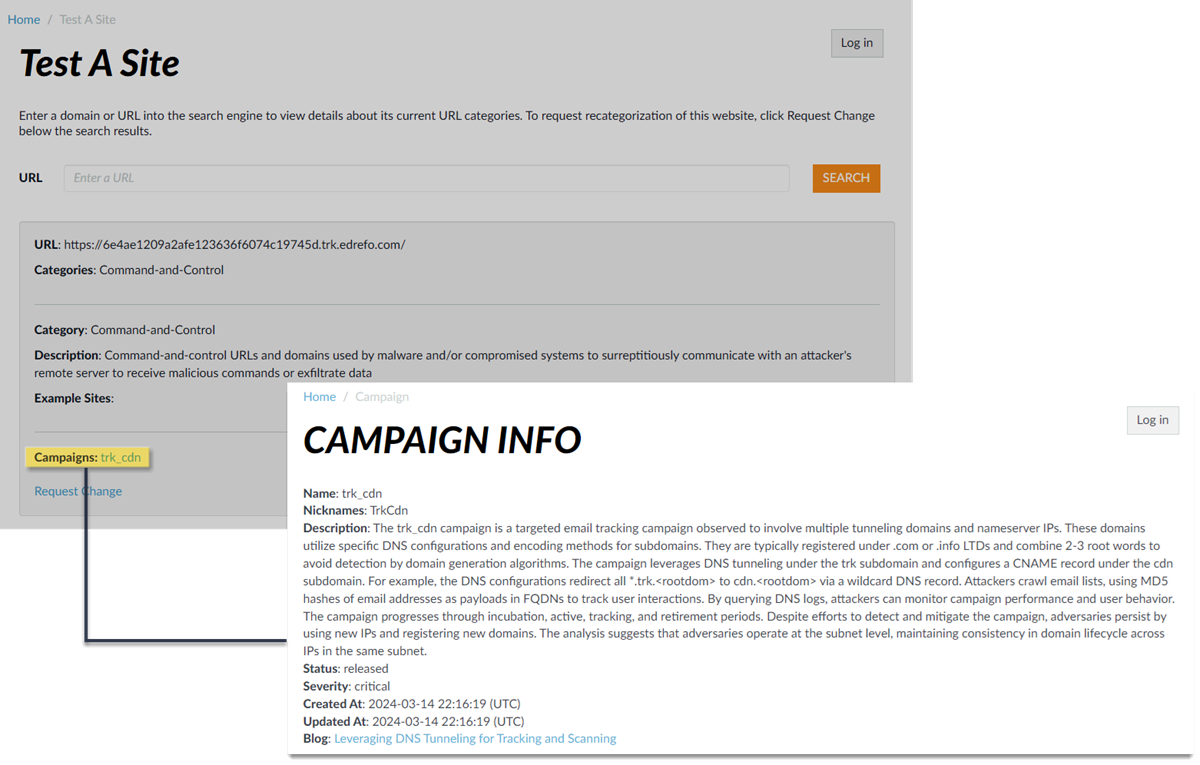

          3. URL Filtering Test-A-Site

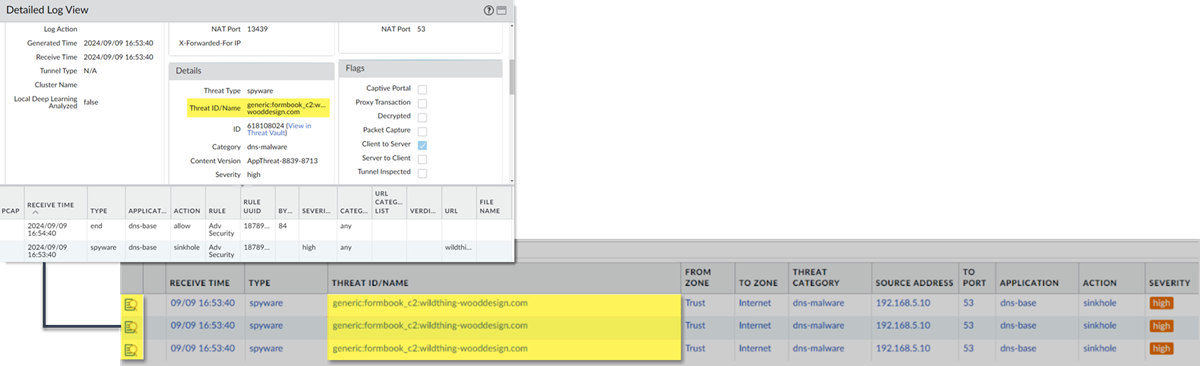

        • Stockpiled Domain APT Attribution
          1. PAN-OS

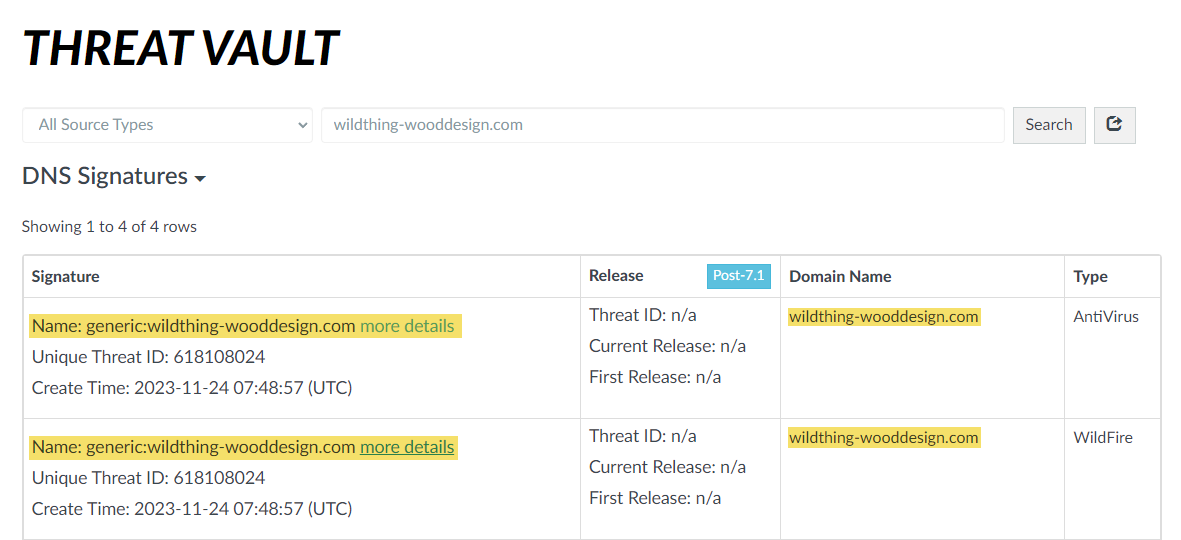

          2. ThreatVault

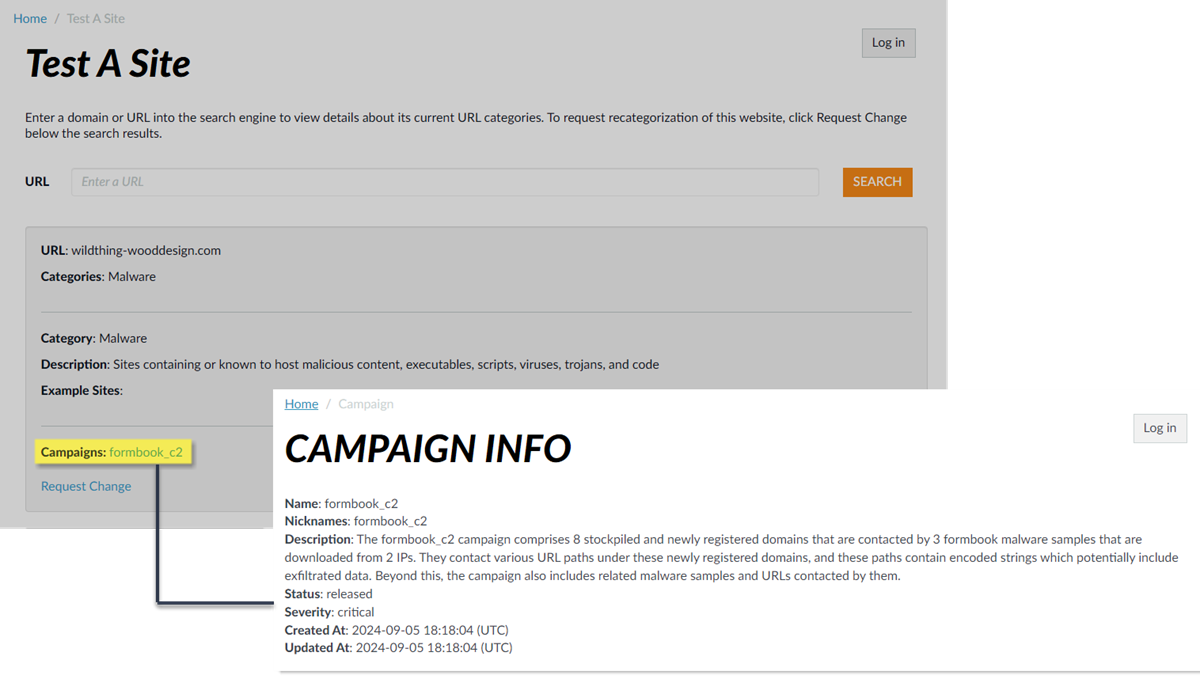

          3. URL Filtering Test-A-Site

    View DNS Security Logs (AIOps for NGFW Free)

    Benign DNS queries that have been analyzed by DNS Security are not displayed in the AIOps for NGFW Free log viewer. Log in to your Strata Logging Service app to access benign DNS log entries.
    1. Use the credentials associated with your Palo Alto Networks support account and log in to the AIOps for NGFW Free application on the hub.
    2. Search for DNS queries that have been processed using DNS Security in AIOps for NGFW Free.
      1. Select Incidents and AlertsLog Viewer.
      2. Constrain your search using the threat filter and submit a log query based on the DNS category, for example, threat_category.value = 'dns-c2' to view logs that have been determined to be a C2 domain. To search for other DNS types, replace c2 with another supported DNS category (ddns, parked, malware, etc). Adjust the search criteria as necessary for your search, including additional query parameters (such as the severity level and subtype) along with a date range.
      3. Select a log entry to view the details of a detected DNS threat.
      4. The threat Category is displayed in the Details pane of the detailed log view. Other relevant details about the threat are displayed in their corresponding windows.

    View DNS Security Logs (Strata Logging Service)

    1. Use the credentials associated with your Palo Alto Networks support account and log in to the Strata Logging Service application on the hub.
    2. Allocate Storage Based on Log Type. If storage space has not been allocated for DNS Security logs on Strata Logging Service, logging entries will not be viewable through Strata Logging Service.
    3. Search for DNS queries that have been processed using DNS Security in Strata Logging Service.

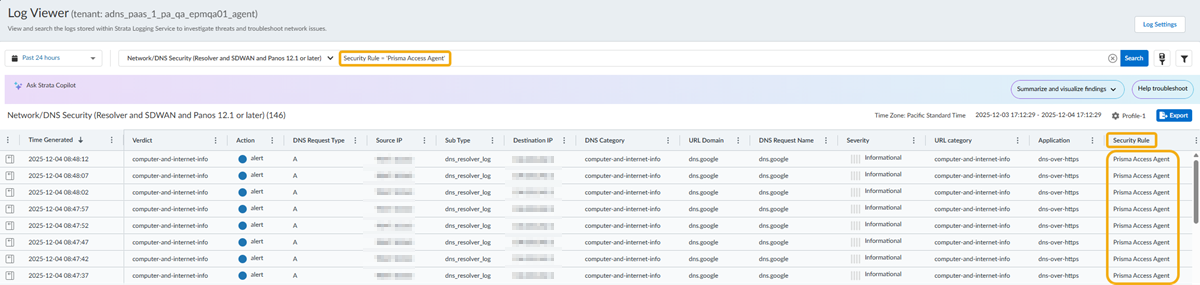

      1. Select Explore to open the Strata Logging Service log viewer.
      2. Constrain your search using the threat filter and submit a log query based on the DNS category, for example, threat_category.value = 'dns-c2' to view logs that have been determined to be a C2 domain. To search for other DNS types, replace c2 with another supported DNS category (ddns, parked, malware, etc). Adjust the search criteria as necessary for your search, including additional query parameters (such as the severity level and subtype) along with a date range.
      3. Select a log entry to view the details of a detected DNS threat.

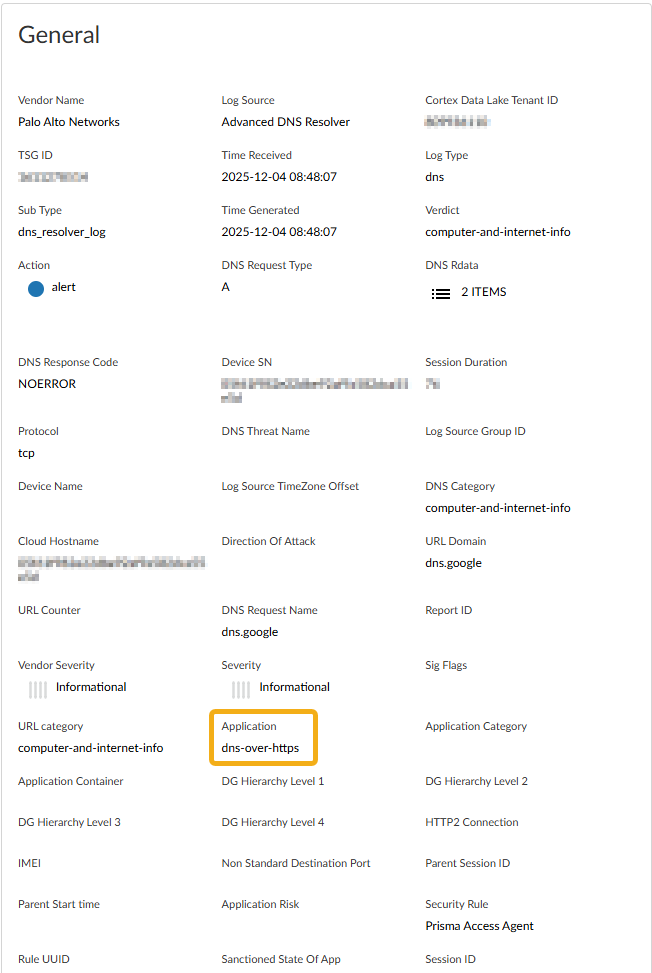

      4. The threat Category is displayed in the Details pane of the detailed log view. Other relevant details about the threat are displayed in their corresponding windows.
