Onboard Devices to Your Strata Logging Service Instance
Manage the devices connected to Strata Logging Service from the Inventory
tab.
Where Can I Use This? | What Do I Need? |
---|---|
| One of these:
|
The procedure to onboard devices to your Strata Logging Service tenant
depends on the device type and the Strata Logging Service
license
scheme you are using. You must have enough licenses to add devices to
tenant.
All the devices (except VM-Flex devices) are onboarded through the Device Associations
page, which can be accessed in two ways:
- From the standalone app Inventory menu
- From the Strata Cloud Manager Settings > Device Associations menu.
If you are using Strata Cloud Manager to manage Strata Logging Service, click Settings > Device Associations page to
add or remove devices onboarded to your Strata Logging Service instance.
After you add devices to your Strata Logging Service tenant, continue to
associate the devices to your Strata Logging Service license. You also have the
option to remove the device associated with your Strata Logging Service tenant
and add it to another tenant containing the desired Strata Logging Service
instance.
Panorama
Onboard Panorama devices
The devices are not onboarded automatically while activating Panorama. Use the Strata Logging Service standalone app or Strata Cloud Manager to onboard
Panorama devices.
You can perform the following actions:
- Add a Panorama appliance to your Strata Logging Service
instance.
- Log in to hub and launch Strata Logging Service app.
- Select the Strata Logging Service instance to which you would like to move the devices.
- Click InventoryAdd.If you are using Strata Cloud Manager to manage Strata Logging Service, click Settings > Device Associations page to add devices to your Strata Logging Service instance.
- In the Device Associations page, click Add Device.
- Select the device you want to onboard and save changes.
- Continue to associate product with devices:
- In the Device Association page, select Associate Products.
- In the Licensed Products selection column, select Strata Logging Service.
- Select the devices you want to associate with the product and save the changes.
- Generate OTP to create the one-time password used to onboard Panorama-managed firewalls to your Strata Logging Service instance.Panorama uses this OTP to install the logging service certificate. Alternatively, for Panorama 10.1 or later, go to the Customer Support Portal to get the OTP for installing the device certificateYou can Generate OTP and Add devices only in Standalone Strata Logging Service app. When you select these options in Strata Cloud Manager, you will be automatically redirected to Strata Logging Service app.
- Move a Panorama appliance from one Strata Logging Service to
another- remove the associated appliance from the tenant and add it to the
new tenant.
- Navigate to Strata Cloud ManagerSettingsDevice Associations
- Select the device you want to disassociate with Strata Logging Service and other products.
- Click Remove Associations Remove product association and click Remove.
- Select the device you want to disassociate from the tenant.
- Click Remove Associations Remove tenant association and click Remove.
- View the onboarded Panorama appliances- This list does not show the
mapping of a Panorama to its managed firewalls.
Name The name under which the Customer Support Portal registered the Panorama. If unnamed, then the name appears as Panorama. You can change this name in the Customer Support Portal.Model The model of the Panorama Serial Number The unique serial number of the Panorama PAN-OS Version The version of PAN-OS that the Panorama is running Last Contact Time The last time that the Panorama communicated with Strata Logging Service to query logs. Certificate Status Whether the Panorama has the certificate necessary to connect to Strata Logging Service. Hover over the certificate status to see which certificate the Panorama is using to connect to Strata Logging Service: logging service certificate or device certificate. - Needs Certificate—The certificate is missing. This device can't connect to Strata Logging Service.
- Activated—This device has the certificate necessary to connect to Strata Logging Service
- Expired—The certificate has expired. The device is unable to connect to Strata Logging Service until you renew the certificate.
- Expiring in 7 Days—The certificate will expire in 7 days. Renew the certificate as soon as possible to remain connected to Strata Logging Service
You can have up to 20 Panorama devices associated with your instance at a time.
Firewalls
Onboard firewalls to Strata Logging Service.
You can onboard both software firewalls and hardware firewalls. The process to
onboard hardware firewalls and software firewalls varies for qualifying and
non-qualifying users of the new Strata Logging Service and Strata Cloud
Manager Pro licenses. You can perform the following actions:
- Check only show firewalls that are storing logs to hide the firewalls that send data to Strata Logging Service only for ingestion and further streaming to other Palo Alto Networks applications.You can Generate PSK and Add devices only in Standalone Strata Logging Service app. When you select these options in Strata Cloud Manager, you will be automatically redirected to Strata Logging Service app.
- Generate PSK to create the pre-shared key used to onboard a firewall running PAN-OS 10.0 or earlier to your Strata Logging Service instance.
- Add a hardware device to your Strata Logging Service instance. Use the centralized Device Associations page to onboard devices. Navigate to this page either from the standalone app (Inventory > Manage Firewall Inventory > Manage other firewalls > Add) or from the Strata Cloud Manager(Strata Cloud Manager > Settings > Device Associations > Add Device)
- Add a VM-Flex device to your Strata Logging Service
instance.
- For qualifying user of Strata Logging Service - VM-Flex devices are automatically onboarded when you select Strata Logging Service or Strata Cloud Manager Pro (new license) on the deployment profile and have associated the deployment profile to the TSG in which Strata Logging Service resides.
- If you are a non-qualifying user and are not enabling the new Strata Logging Service or Strata Cloud Manager Pro services
on the deployment profile, use the Inventory > Manage Firewall
Inventory > Manage flexible VM-Series firewalls option to
add VM-Flex devices. Onboarding of VM-Flex device is not enabled from the Strata Cloud Manager Device Associations page.
- Move a hardware device from one Strata Logging Service to another- remove the associated device from the tenant and add it to the new tenant.
- Navigate to Strata Cloud ManagerSettingsDevice Associations
- Select the device you want to disassociate with Strata Logging Service and other products.
- Click Remove Associations Remove product association and click Remove.
- Select the device you want to disassociate from the tenant.
- Click Remove Associations Remove tenant association and click Remove.
- Move a VM-Flex device from one Strata Logging Service to another-
- For qualifying user of Strata Logging Service - refer to the VM-series deployment guide.
- For non-qualifying user of Strata Logging Service-
- In Strata Logging Service standalone app, navigate to InventoryFirewallsManage Firewall Inventory Manage flexible VM-Series Move
- Select the firewall you want to connect to your Strata Logging Service instance.
- Submit the changes.

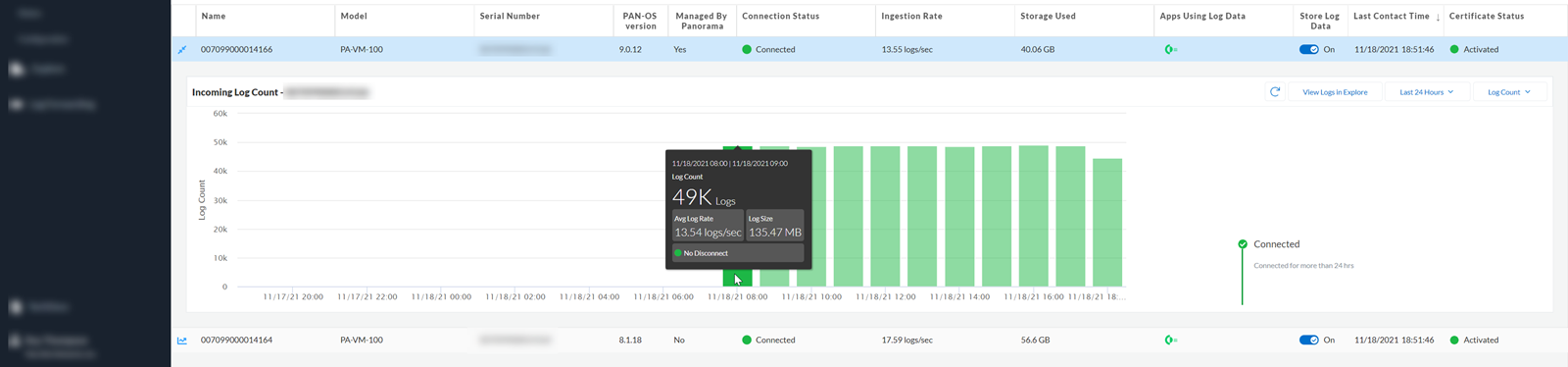

- Check the connection status- Above the firewalls table, you can see the number of firewalls with each connection status. Select the chart icon (
Name The name under which the Customer Support Portal registered the Firewall. If unnamed, then the name appears as Firewall. You can change the firewall name in the Customer Support Portal.Model The model of the firewall Serial Number The unique serial number of the firewall PAN-OS Version The version of PAN-OS that the firewall is running Managed By Panorama Whether a Panorama manages the firewall or not Connection StatusWhether the firewall can connect to Strata Logging Service. This can have four different values:- Connected—The firewall has an active channel through which it's sending session logs to Strata Logging Service.
- Partially Connected—The firewall does not have an active channel through which it's sending session logs to Strata Logging Service. However, it's sending Enhanced Application logs on a second channel.
- Disconnected—The firewall does not have an active channel through which to send sessions logs to Strata Logging Service, and it's not sending Enhanced Application logs.
- Need Certificate—The firewall does not have the certificate to connect to Strata Logging Service
Ingestion Rate The rate, in logs per second, at which the firewall is sending logs to Strata Logging Service(Non-qualifying users only) Storage Used The amount of your Strata Logging Service storage capacity that a firewall is using at this point in timeApps Using Log Data All apps that consume data from the firewall (Non-qualifying users only)Store Log Data Choose whether Strata Logging Service stores firewall data or only ingests it. - On—Strata Logging Service will store the log data.
- Off—Strata Logging Service will only ingest the log data.
After you toggle On, Strata Logging Service can take up to 15 minutes to start storing log data for the firewall.If toggled On and grayed out, this switch means that the IoT Security package to which you subscribe requires that you store log data.You can set log retention policy for your entire Strata Logging Service instance from StorageConfiguration.Last Contact Time The last time that the device communicated with Strata Logging Service, either to send logs or to report telemetry Certificate Status Whether the firewall has the certificate necessary to connect to Strata Logging Service. Hover over the certificate status to see which certificate the Panorama is using to connect to Strata Logging Service: logging service certificate or device certificate - Needs Certificate—The certificate is missing. This device can't connect to Strata Logging Service.
- Activated—This device has the certificate necessary to connect to Strata Logging Service
- Expired—The certificate has expired. The device is unable to connect to Strata Logging Service until you renew the certificate.
- Expiring in 7 Days—The certificate will expire in 7 days. Renew the certificate as soon as possible to remain connected to Strata Logging Service
Cloud NGFW
View Cloud NGFW resources associated with your Strata Logging Service
instance.
View Cloud NGFW resources associated with your
Strata Logging Service instance.
ID | The ID of the Cloud NGFW resource. |
Ingestion Rate |
The rate, in logs per second, at which Strata Logging Service is ingesting logs from a Cloud
NGFW resource. This is a sum across all devices with the same
resource ID.
|
(Non-qualifying users only) Storage Used |
The amount of your Strata Logging Service storage capacity
that the Cloud NGFW resource is using. This is a sum across all
devices with the same resource ID.
|
Last Contact Time | The last time that the Cloud NGFW resource communicated with Strata Logging Service |
Prisma Access
View Prisma Access instances associated with your Strata Logging Service.
View the Prisma Access instances associated with your Strata Logging Service instance.
Instance Name | The name under which the Customer Support Portal registered the Prisma Access instance. If unnamed, then the name appears as Prisma Access. |
Ingestion Rate |
The rate, in logs per second, at which Prisma Access is
sending logs to Strata Logging Service
|
(Non-qualifying users only) Storage Used |
The amount of your Strata Logging Service storage capacity
that the Prisma Access instance is using at this point
in time.
|
Last Contact Time | The last time that the Prisma Access instance communicated with Strata Logging Service |
