Configure the Network Interfaces
Configure an aggregate Ethernet interface,
member interfaces, and subinterface that your firewall uses to connect
to the ACI leaf switches. If you are using a VM-Series firewall,
use discreet interfaces instead of aggregate interfaces.
The
VM-Series firewall does not support aggregate Ethernet groups.

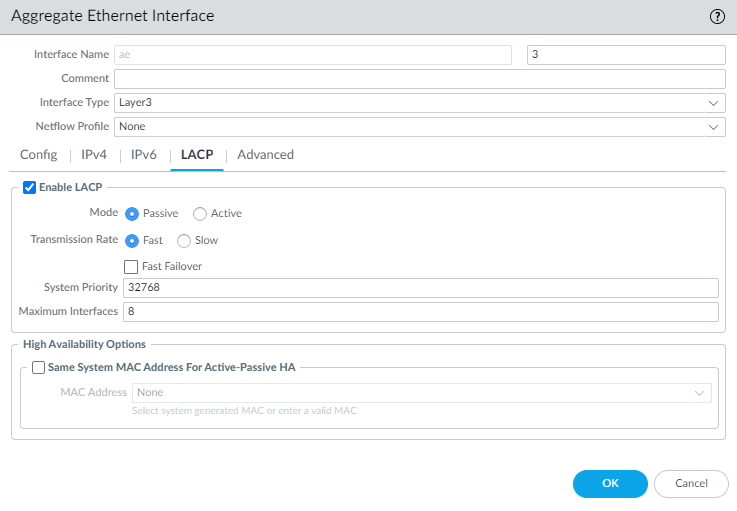

- Select NetworkInterfacesEthernet and click Add Aggregate Group.
- Enter a number for the aggregate group in the second Interface Name field.
- Select Layer 3 from the Interface Type drop-down.
- Select the LACP tab and click Enable LACP.
- Select Fast as the Transmission Rate.
- Under High Availability Options, select Enable
in HA Passive State.Do not select Same System MAC Address for Active-Passive HA. This option makes the firewall pair appear as a single device to the switch, so traffic will flow to both firewalls instead of just the active firewall.
- Click OK.
![]()

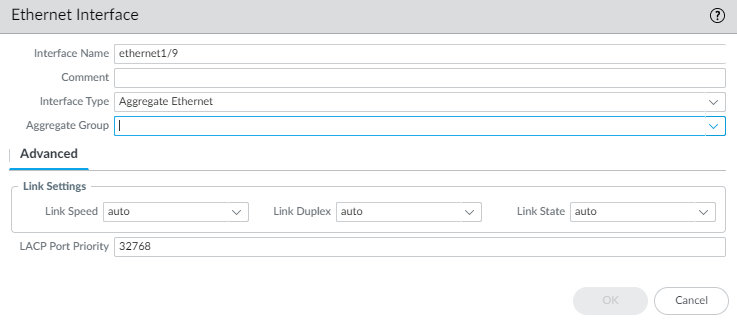

- Click on the name of an Ethernet interface to configure
it and add it to the aggregate group.
- Select Aggregate Ethernet from the Interface Type drop-down.
- Select the interface you defined in the aggregate Ethernet group configuration.
- Click OK.
- Repeat this step for each other member interface of
the aggregate Ethernet group.
![]()
- Add a subinterface on the aggregate Ethernet interface
for the tenant and VRF.
- Select the row of your aggregate Ethernet group and click Add Subinterface.
- In the second Interface Name field, enter a numerical suffix to identify the subinterface.
- In the Tag field, enter the VLAN tag of the subinterface.
- Select the virtual router you configured previously from the Virtual Router drop-down.
- Select the zone you configured previously from the Zone drop-down.
- Select the IPv4 tab.
- Select the Static Type.
- Click Add and enter the subinterface IP address and network mask in CIDR notation.
- Click OK.
