Enable Azure Application Insights on the VM-Series Firewall
Publish firewall performance metrics to Application Insights.
The VM-Series firewall on Azure can publish
custom PAN-OS metrics natively to Azure Application Insights that
you can use to monitor the firewalls directly from the Azure portal.
These metrics allow you to assess performance and usage patterns that
you can use to set alarms and take action to automate events such
as launching or terminating instances of the VM-Series firewalls.
See Custom
PAN-OS Metrics Published for Monitoring for a description
on the metrics that are available.

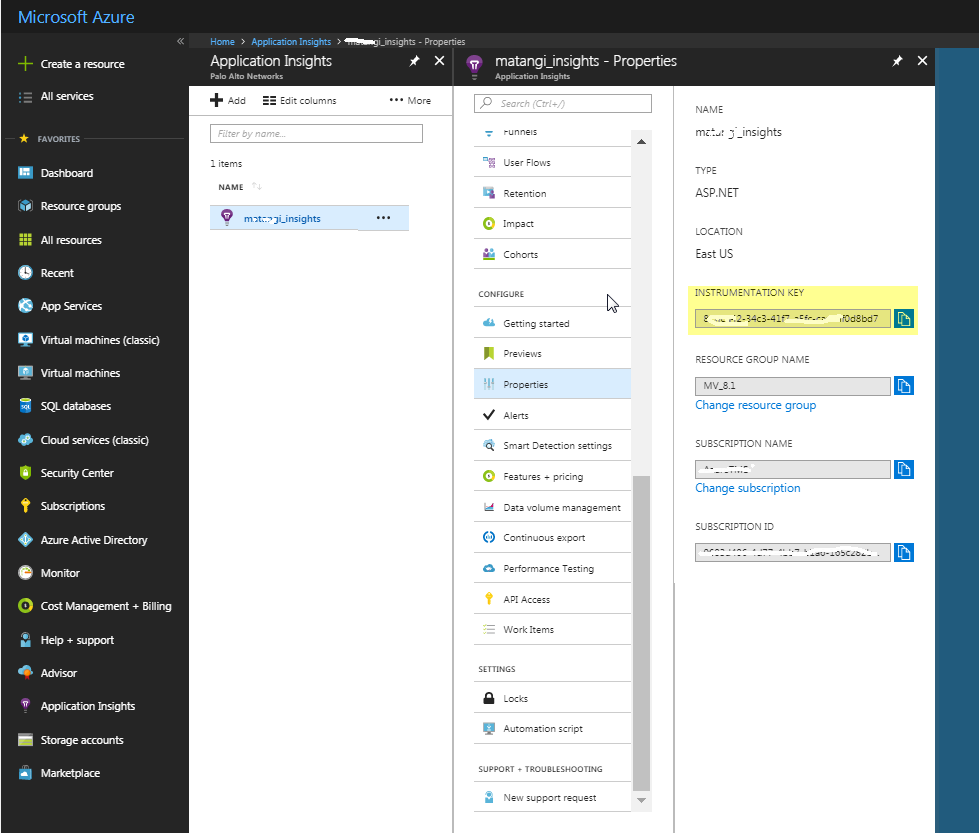

- On the Azure portal, create your Application Insights instance to monitor
the firewall and copy the Instrumentation Key from ConfigureProperties.The firewall needs this key to authenticate to the Application Insights instance and publish metrics to it. Make sure to review the permissions required for the service principal in VM-Series on Azure Service Principal Permissions.
![]()
- Enable the firewall to publish metrics to your Application
Insights instance.
- Log in to the VM-Series firewall on Azure.

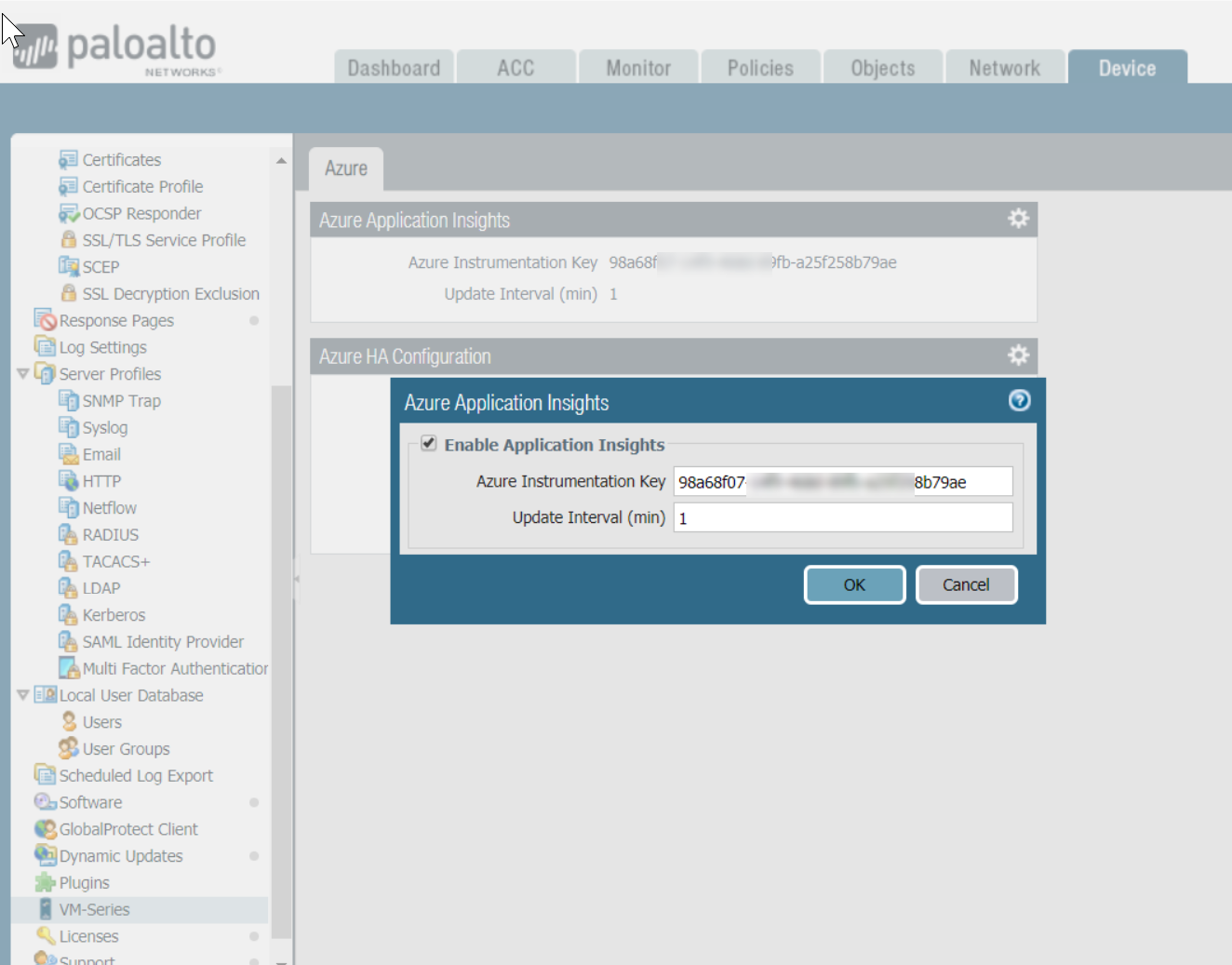

- Select DeviceVM-SeriesAzure.
- Edit Azure Application Insights and
enter the Instrumentation Key you copied earlier.The default interval for publishing metrics is five minutes. You can change this to vary from 1-60 minutes.
![]()
- Commit your changes.The firewall generates a system log to it record the success or failure to authenticate to Azure Application Insights.
- Verify that you can view the metrics on the Azure Application
Insights dashboard.

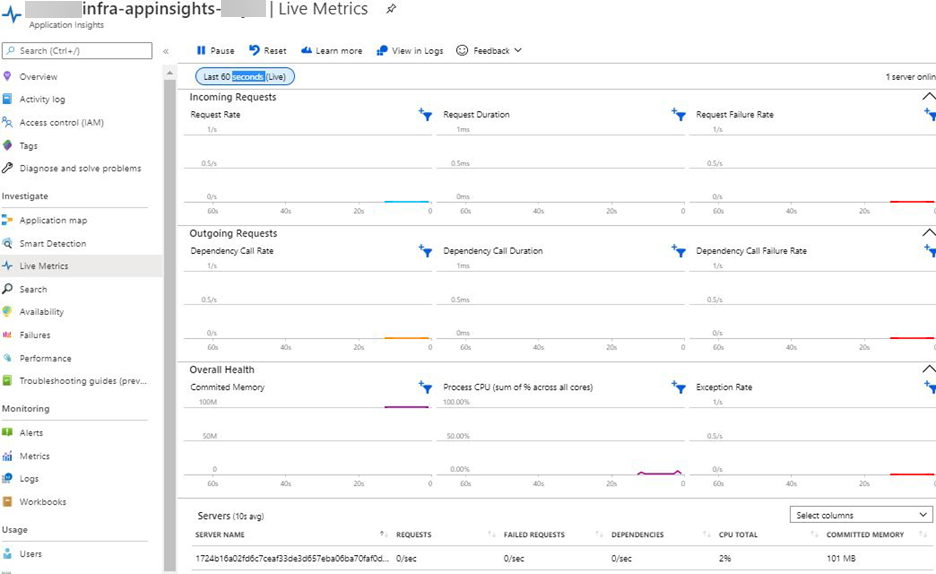

- On the Azure portal, select the Application
insights instance, and select OverviewLive Metrics to view the PAN-OS
custom metrics.
![]()
If your connected VMs do not have Application Insights enabled, Application Insights displays the message Not Available: your app is offline or using an older SDK, and shows a screen labeled Demo. - Select the metric(s) that you want to monitor for trends and trigger alerts. Refer to the Microsoft Azure documentation for details on exploring metrics on Application Insights.
- On the Azure portal, select the Application
insights instance, and select OverviewLive Metrics to view the PAN-OS
custom metrics.
