Enable Multiple Virtual Systems Support on VM-Series Firewall
PAN-OS 11.1.3 and later releases After you install the virtual system
license on your firewall, perform the following steps to enable the multiple virtual
systems support on VM-Series:

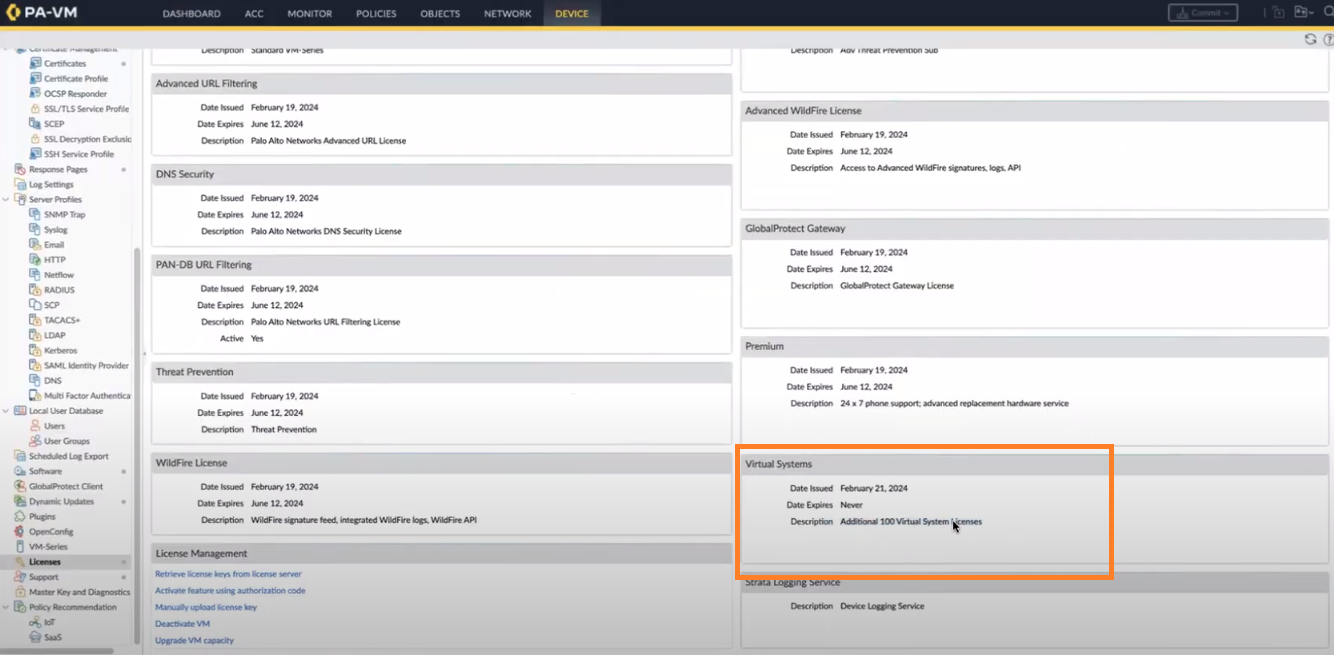

- Log in to the firewall web interface and navigate to Device > Licenses.

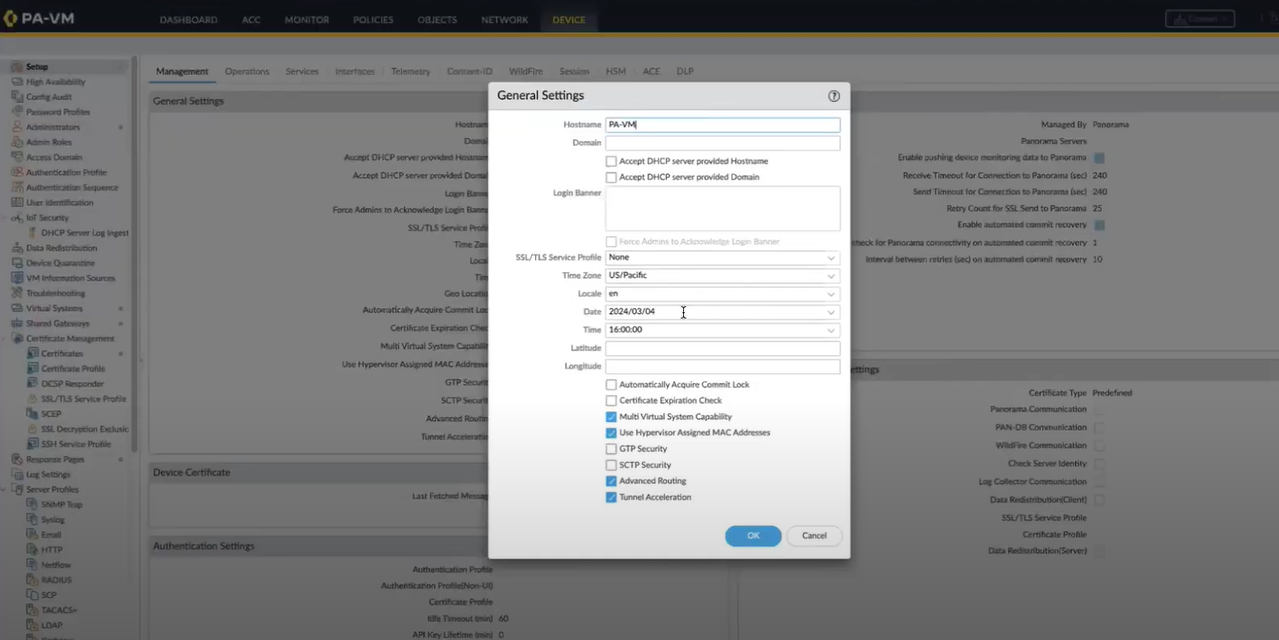

- Go to General Settings, and then select the Multi virtual system Capability check-box.
- Click OK.

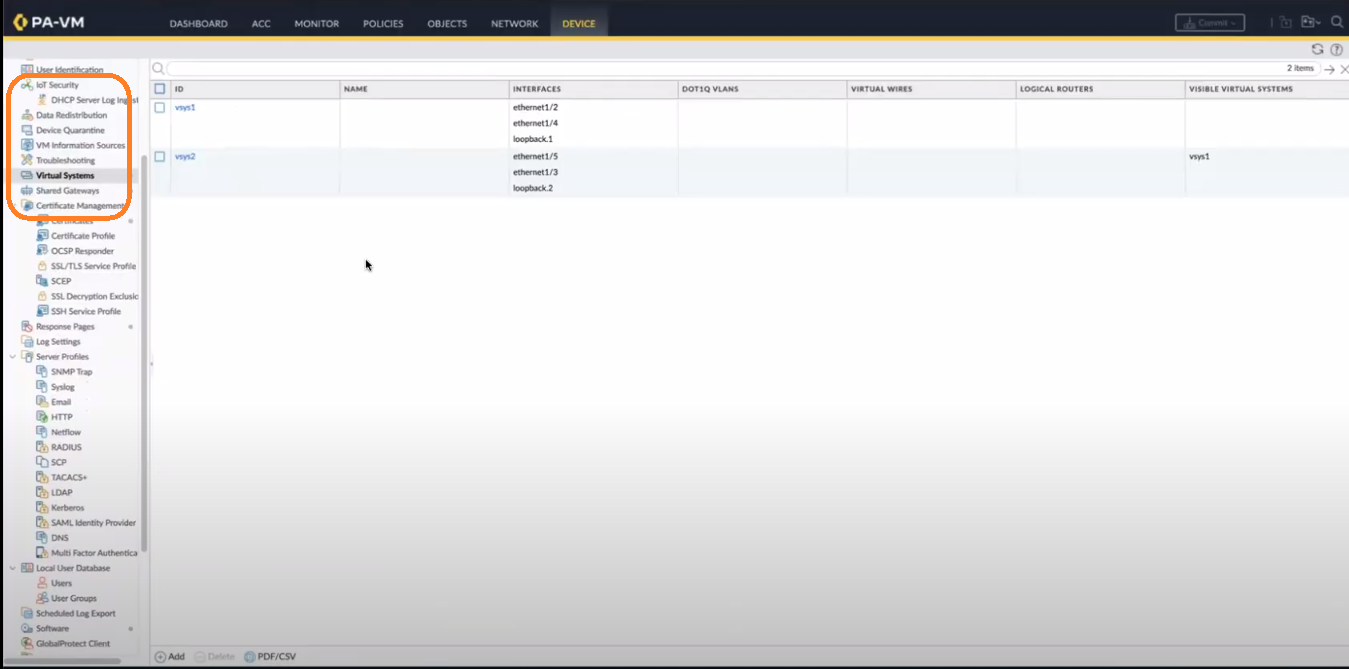

- You can now see the Virtual Systems option on the left pane.
- Click Add to create multiple virtual systems based on the number of vsys that you have on your virtual system license.To update the number of vsys on your virtual system license, Edit Deployment Profile and change the number of vsys license, and then update the deployment profile
