Upgrade the VM-Series Plugin
When a plugin update is released independent
of PAN-OS, you can independently upgrade the plugin version from
your VM-Series firewall (like software or content updates) or from
a bootstrap file.
Each plugin version provides PAN-OS compatibility
information and includes new features or bug fixes for one or more
cloud environments.
- Before upgrading, check the latest Release Notes
for details on whether a new VM-Series plugin affects your environment.For example, suppose a new VM-Series plugin version only includes AWS features. To take advantage of the new features, you must update the plugin on your VM-Series firewall instances on AWS.Do not install an upgrade that does not apply to your environment.

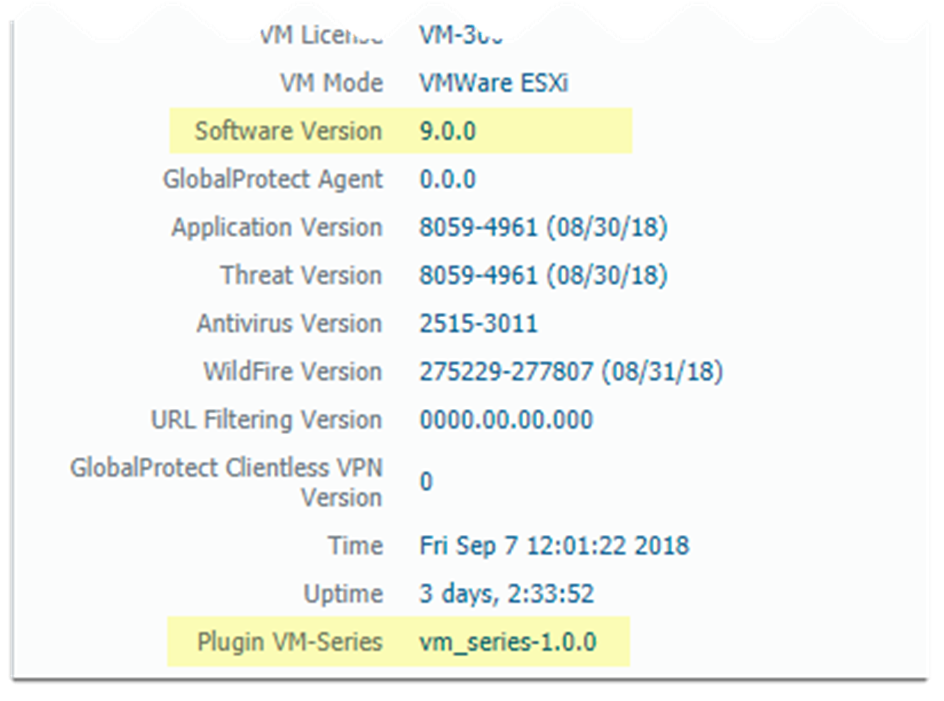

- Log in to the VM-Series firewall and check the dashboard
to view the plugin version.
![]()

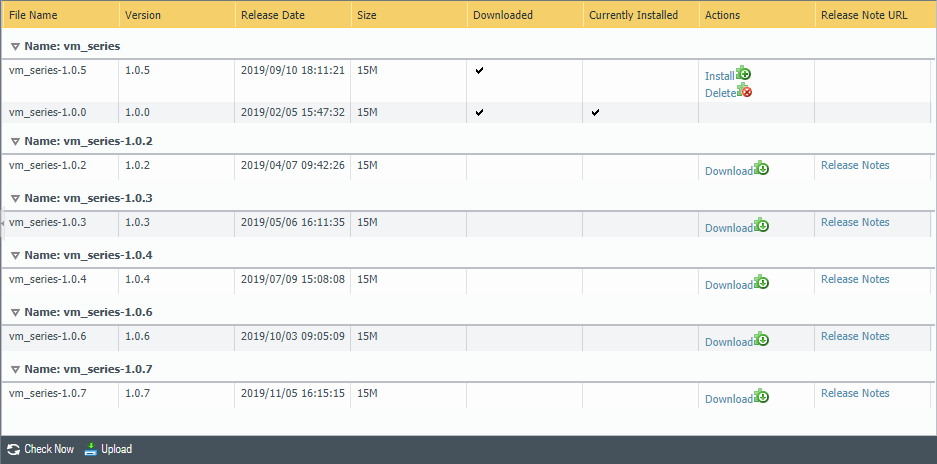

- Select DevicePlugins to view the plugin version. Use Check Now to check for updates.
![]()
![]()
- Choose the VM-Series plugin version and click Download.
![]()

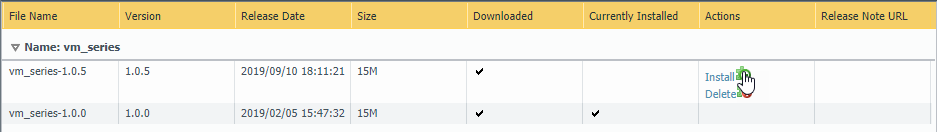

- When the download finishes, click Install.
The firewall automatically uninstalls the previously installed version
of the plugin.
![]()

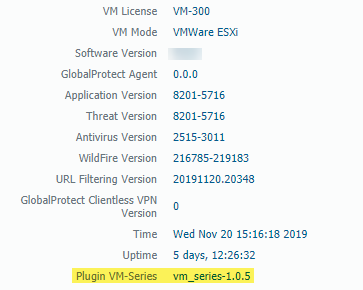

- View the Dashboard to verify that
the plugin upgraded successfully
![]()
