Create and Apply a Service Graph Template
Create a service graph template that uses
the device cluster representing the firewall in a policy-based redirect
integration. After creating the service graph, you must apply it
to EPGs to protect traffic. A contract and contract filter rules
define the traffic that can be forwarded to the firewall.

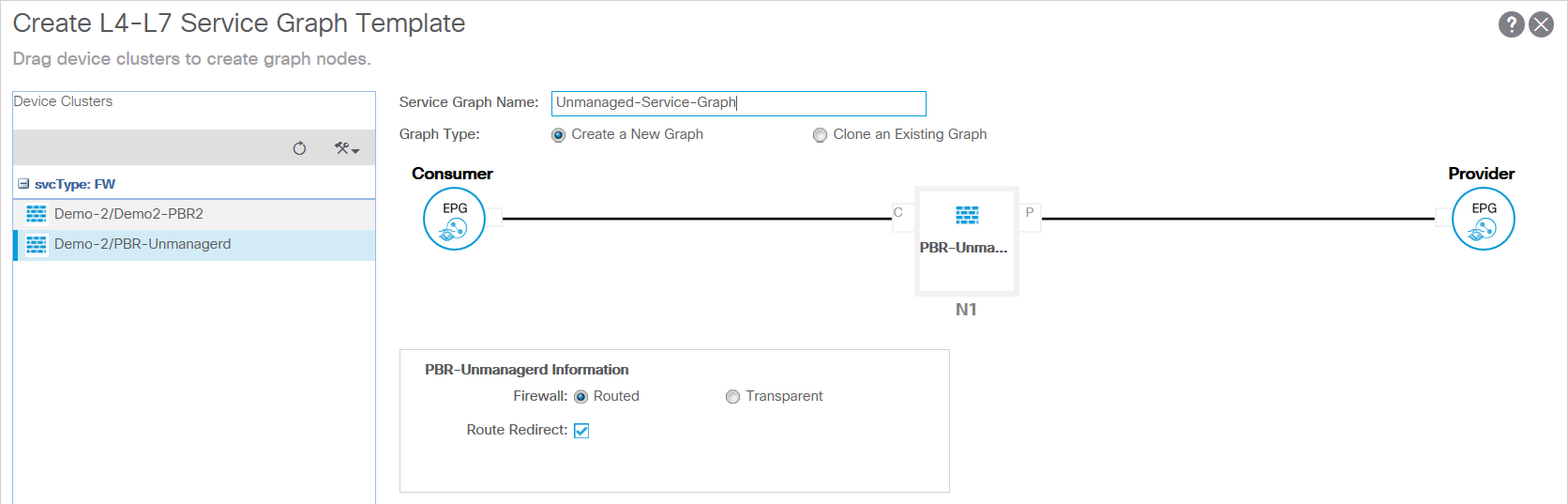

- Create a service graph template.
- On theTenantstab, double-click on the name of your tenant.
- Select.ServicesL4-L7L4-L7 Service Graph Templates
- Right-clickL4-L7 Service Graph Templateand selectCreate L4-L7 Service Graph Template.
- Enter a descriptiveGraph Namefor your service graph template.
- SelectCreate a New OneforGraph Type.
- Click and drag the L4-L7 device you created in the previous procedure between the consumer and provider EPGs.
- SelectRoutedforFirewall.
- SelectRouted Redirect.
- ClickSubmit.

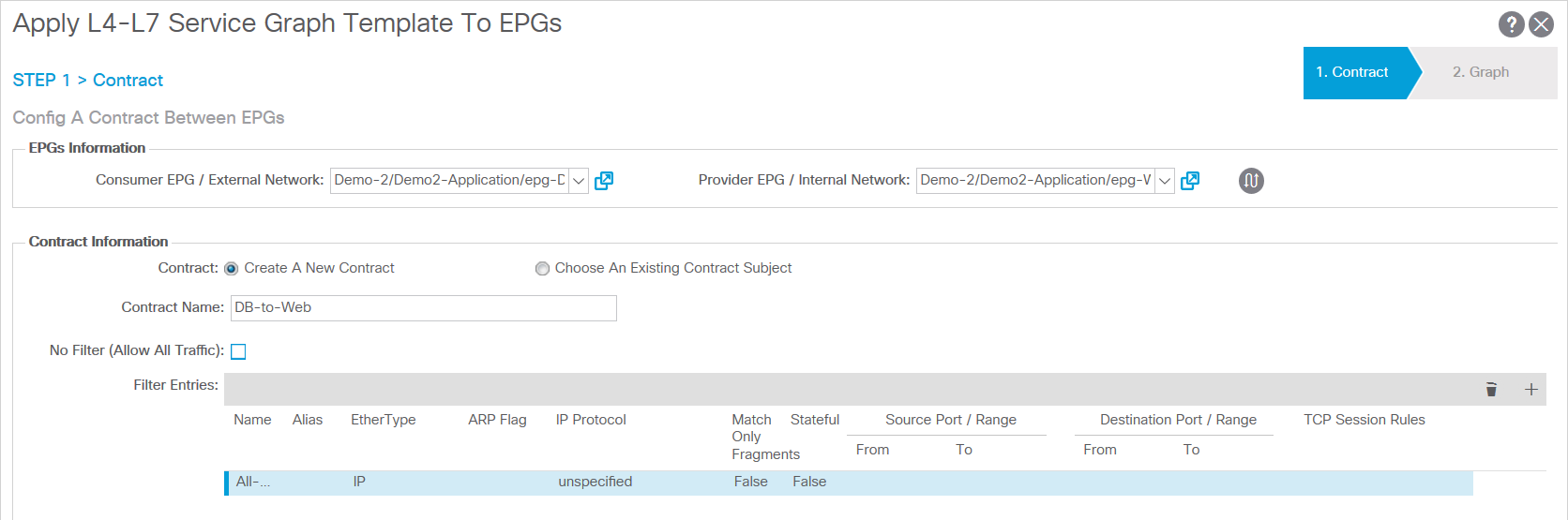

- Apply the service graph template.
- On theTenantstab, double-click on the name of your tenant.
- Select.ServicesL4-L7
- In theEPGs Informationpane, select your consumer and provider EPGs from theConsumer EPGandProvider EPGdrop-downs.
- SelectCreate a New Contract.
- Enter a descriptiveContract Name.
- Clear No Filter(Allow All Traffic). Using this option is not recommended. To allow all traffic between the EPGs to be redirected to the firewall, it is recommended that you create a filter to do this.
- Click the plus (+) icon to the right ofFilter Entries.
- Create a rule (or rules) to define what traffic is allowed to pass between the EPGs and redirected to the firewall.
- ClickNext.

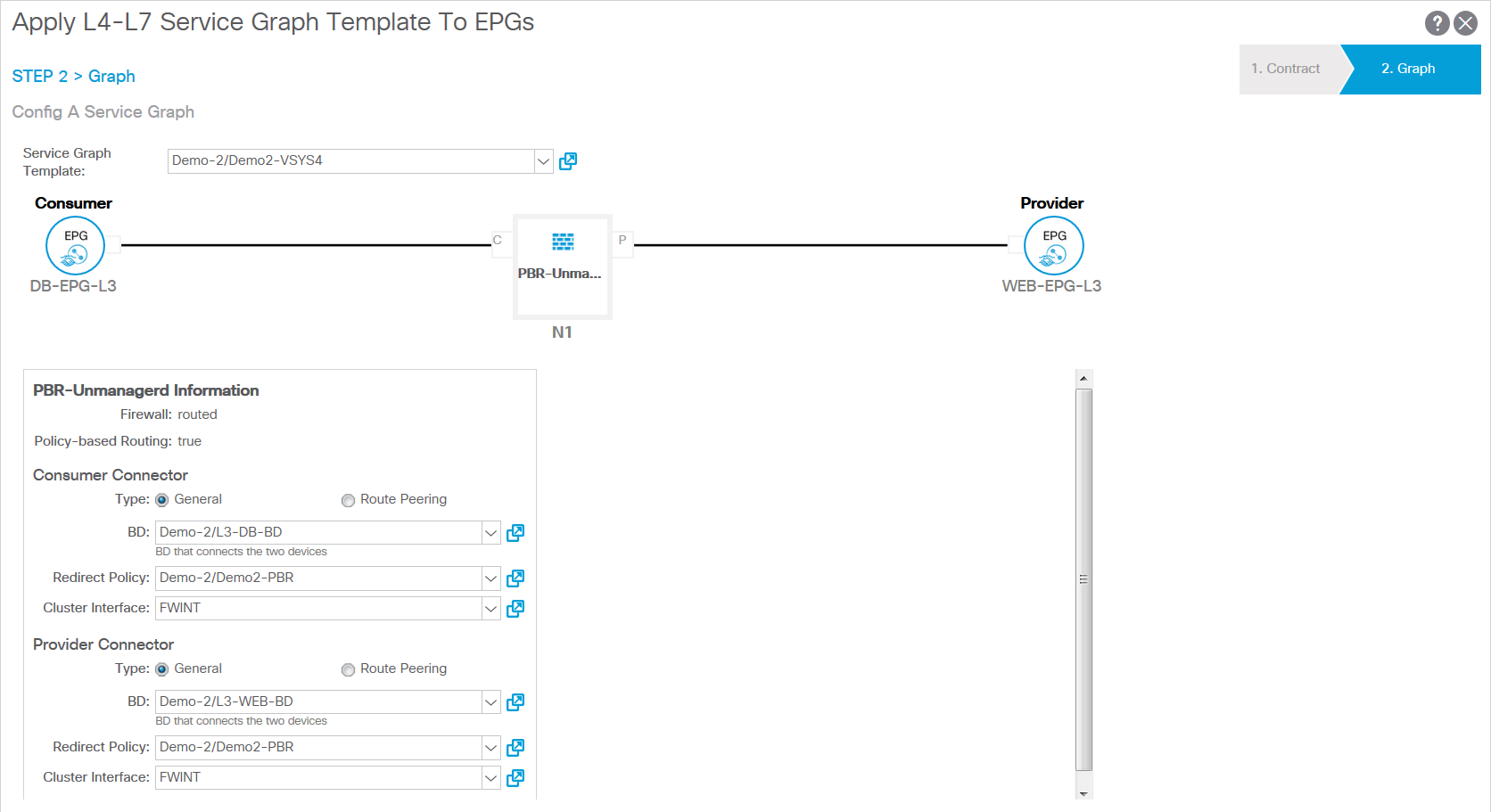

- Select the service graph template you created in the previous procedure from theService Graph Templatedrop-down.
- In the consumer and provider pane, select the bridge domain containing your firewall from theBDdrop-downs.
- Select the policy based redirect you created previously from theRedirect Policydrop-downs.
- Select the cluster interface you created with you L4-L7 device from theCluster Interfacedrop-downs.
