Extend Security Policy from NSX-V to NSX-T
If
you are moving from an NSX-V deployment to an NSX-T deployment or
combining an NSX-T deployment with an NSX-V deployment, you can
extend your existing security policy from NSX-V to NSX-T without
having to recreate the policy rules. This is achieved by leveraging
your existing device groups and sharing them between the NSX-V and
NSX-T service definitions. After migrating your policy to NSX-T,
you can continue using the VM-Series for NSX-V or remove your NSX-V
deployment.
- Install the Panorama Plugin for VMware NSX 3.2.0 or later. See the Panorama Plugin for VMware NSX 3.2.0 Release Notes before upgrading.

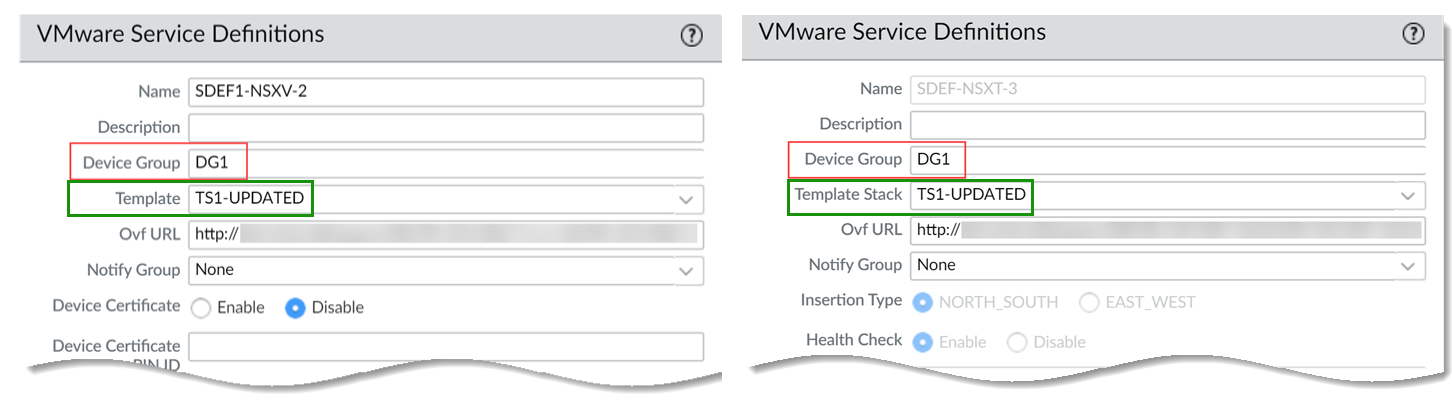

- Configure an NSX-T
service definition for each NSX-V service definition in your deployment.
Do not create new device groups; instead use your existing NSX-V device
groups. Using the existing device groups allows you to apply the
same security policy rules used on NSX-V to the VM-Series firewalls
deployed on NSX-T. If you have policy that reference a particular
zone, add the same template stack from your NSX-V service definition
to your NSX-T service definition. Additionally, if your device group
references a particular template, ensure that you select the template stack
that includes the template referenced in the device group.
![]()

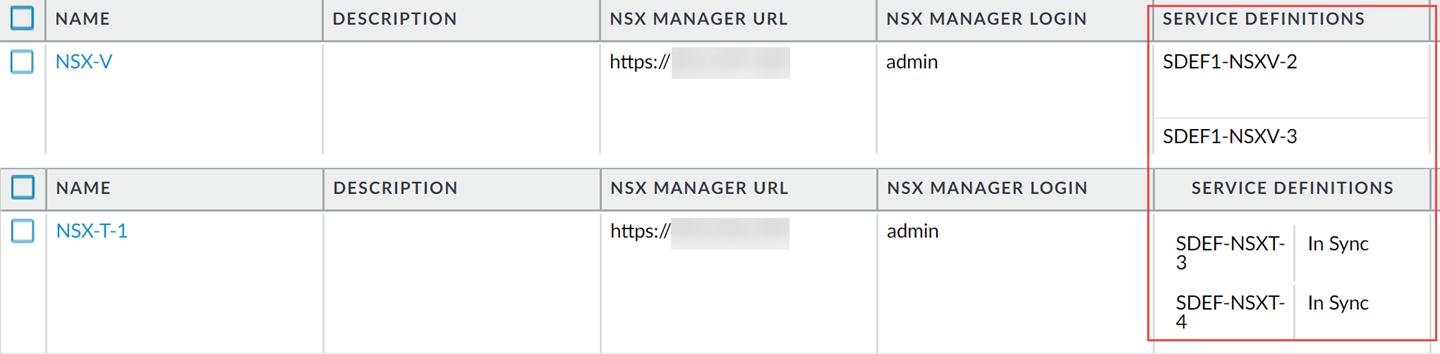

- Configure an NSX-T service manager and associate the
NSX-T service definitions to the service manager.
![]()
- Prepare your NSX-T environment and deploy the VM-Series firewall. You must create your security groups, service chains, and traffic redirection policy before launching the VM-Series firewall.

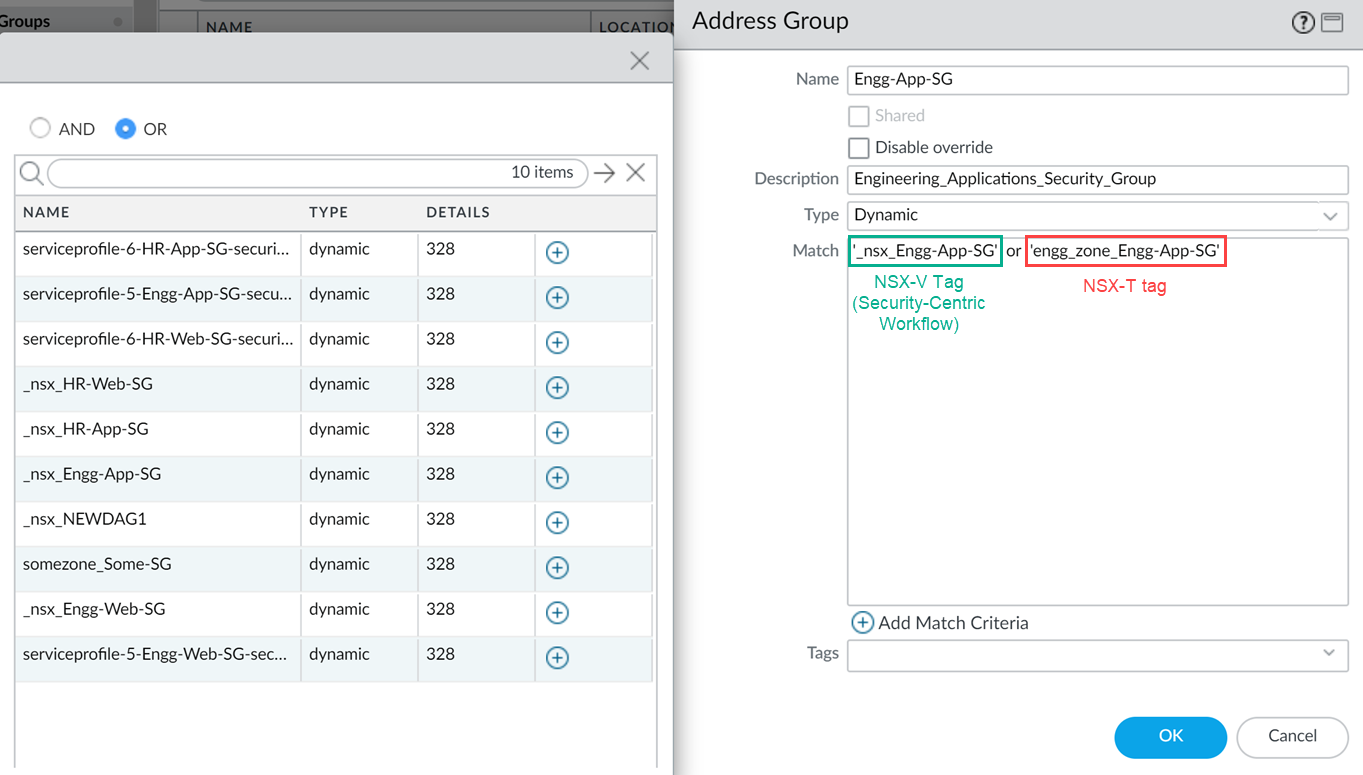

- Add the NSX-T tags to you existing dynamic address groups.
- Select PanoramaObjectsAddress Groups.
- Click on the name of an existing NSX-V dynamic address group.
- Click Add Match Criteria to display the tags from NSX-V and NSX-T.
- Add the NSX-T tag to the dynamic address groups. Be sure to use the OR operator between the tags.
- When you have added all the necessary tags, click OK.
- Commit your changes.
![]()
- After your VM workloads have successfully migrated from NSX-V to NSX-T, you remove the NSX-V tags from your dynamic address groups if you plan to discontinue use of NSX-V. All NSX-V tags and corresponding IP addresses are unregistered after all NSX-V related configuration is removed from the Panorama plugin for NSX and VM-Series firewall configuration is removed from NSX-V manager.
