Connect Ethernet Cables to the PA-400R Series Firewall
Learn how to connect Ethernet cables to the PA-400R Series Firewall and install the
secure panel.
This topic describes how to connect Ethernet cables to the PA-410R or PA-410R-5G firewall using the provided cable
glands.

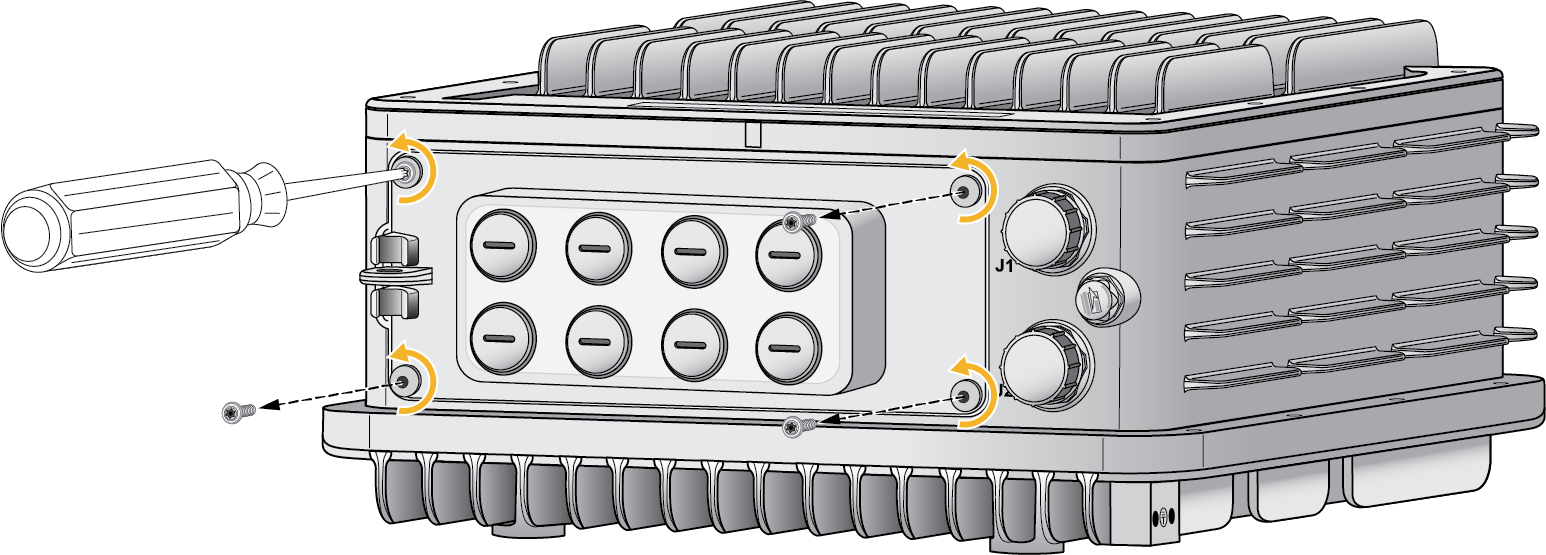

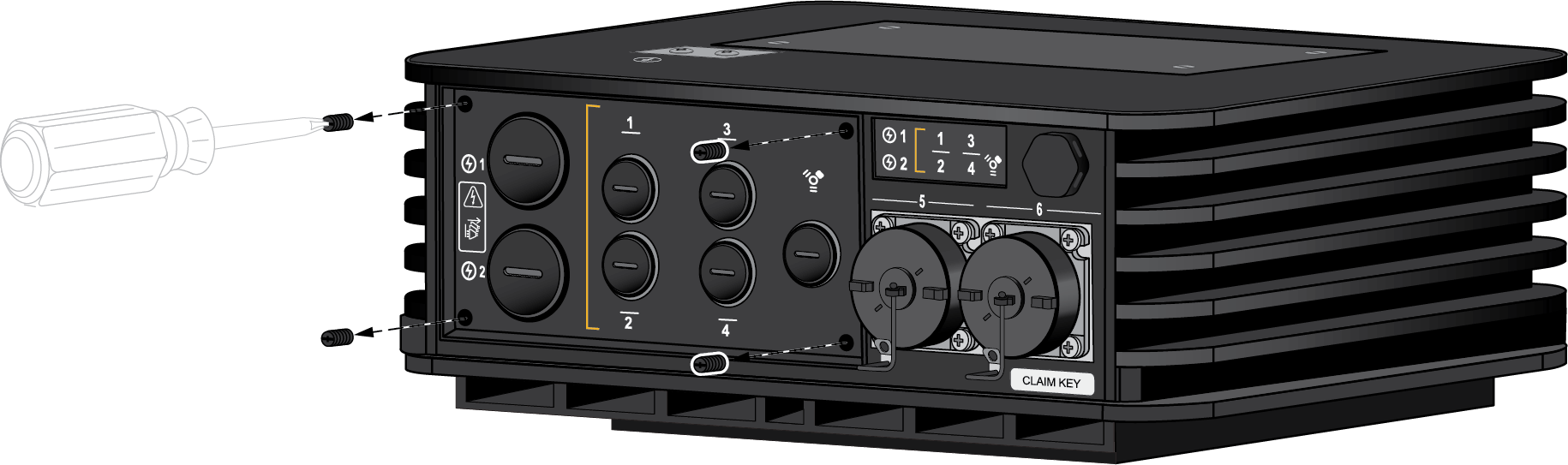

Using a flat head screwdriver, unscrew the four screws on the bottom panel of the
firewall.

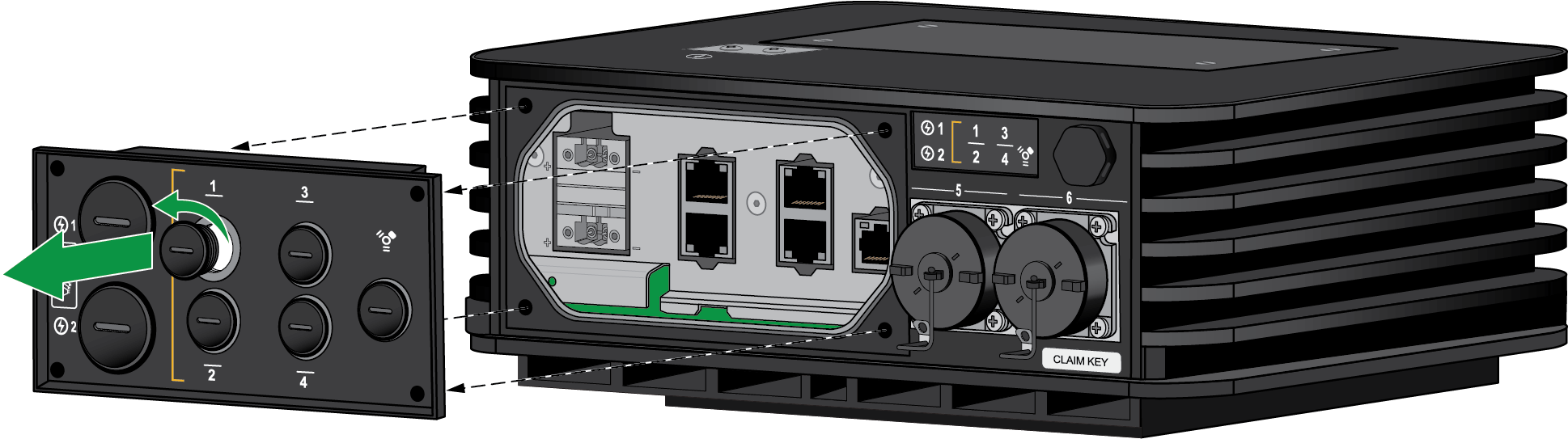

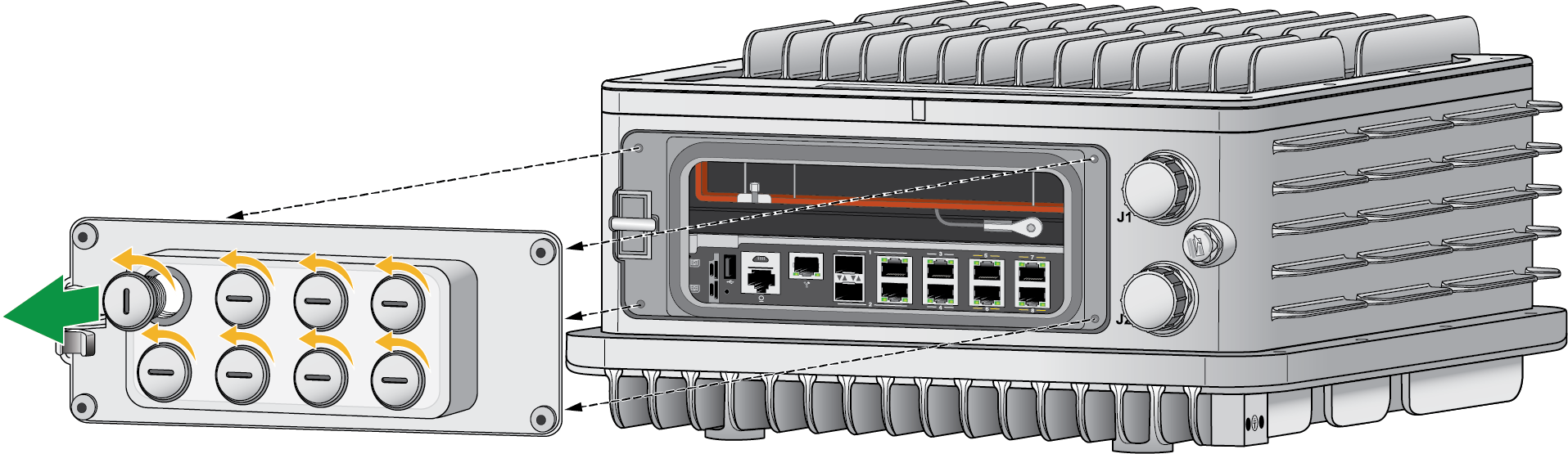

On the removed panel, unscrew the stopping plug that lines up with the Ethernet
port you are connecting to.

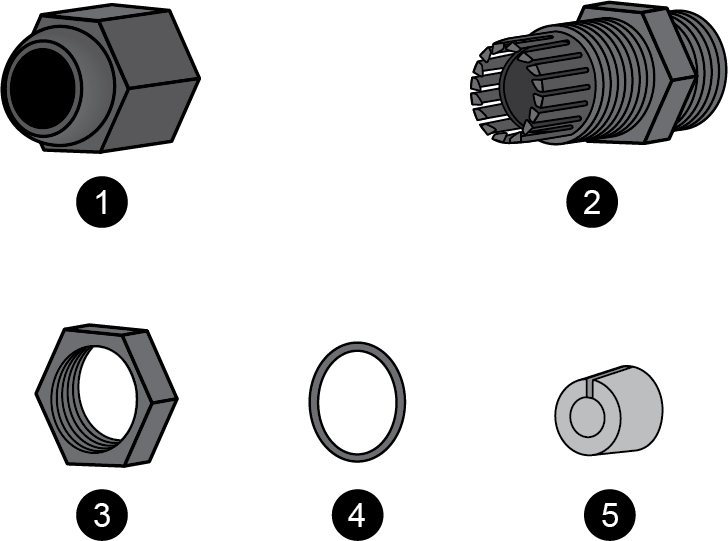

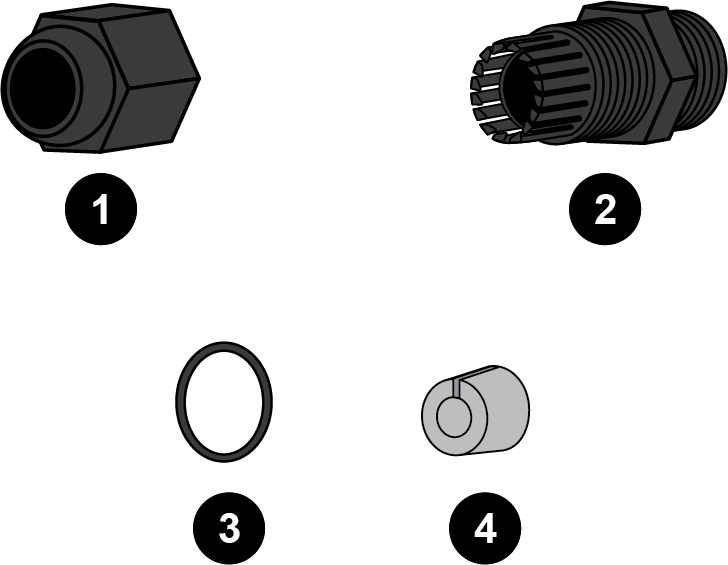

Unpack the Ethernet cable glands. There are five items — an end cap, panel
connector, lock nut, seal, and grommet.

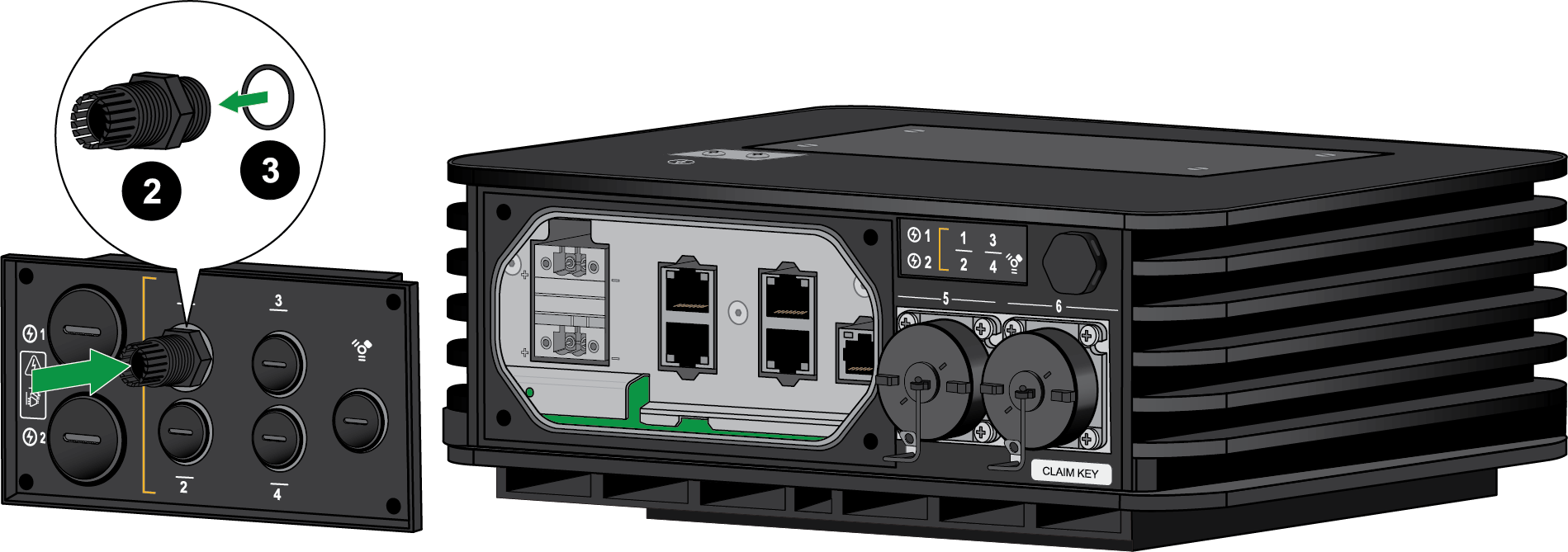

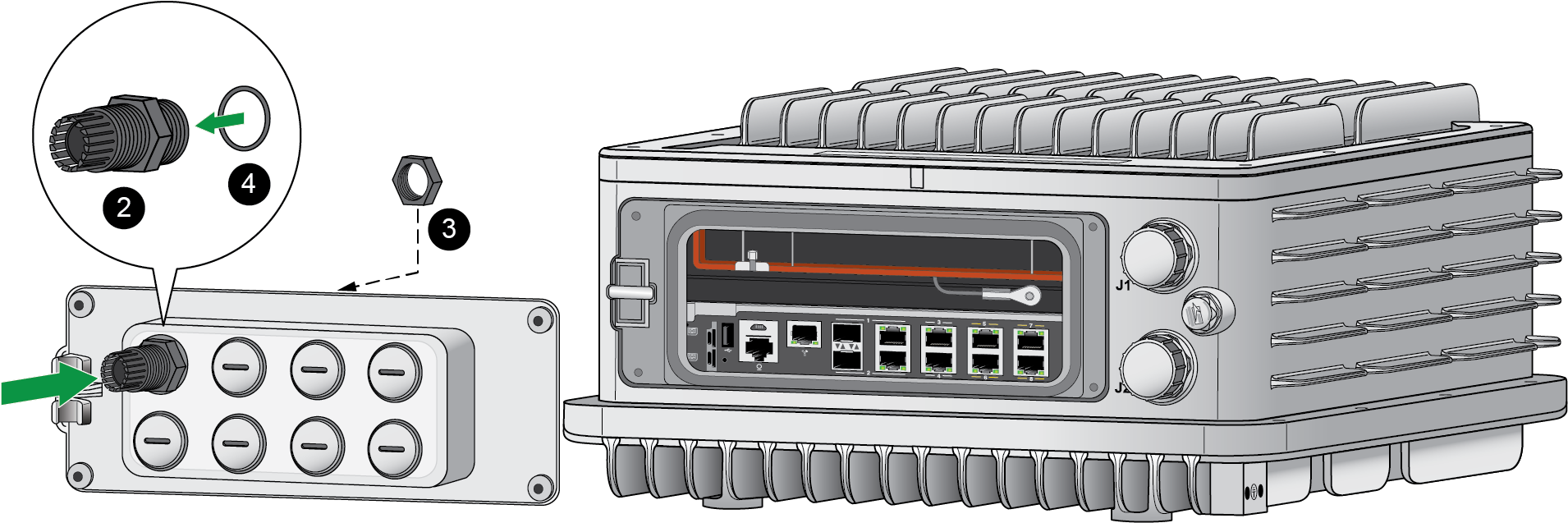

Install the seal onto the shorter end of the panel connector. Make sure to push
the seal until it is flush against the nut. Screw the shorter end of the panel
connector into the hole that corresponds to the Ethernet port being connected.
Make sure that the connector is secure by torquing to 1.5 Nm.

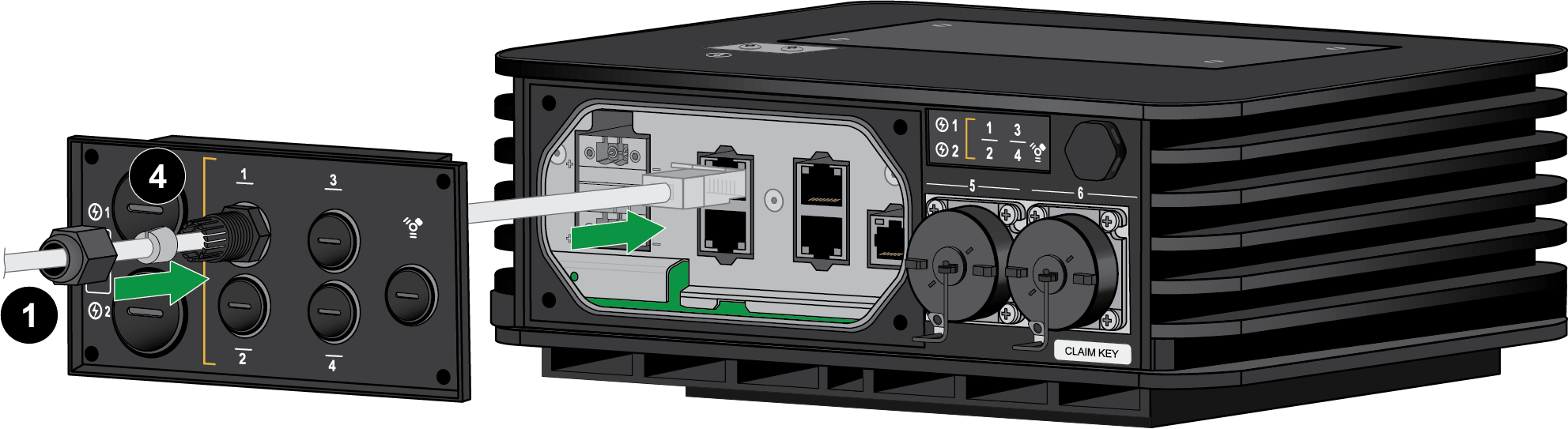

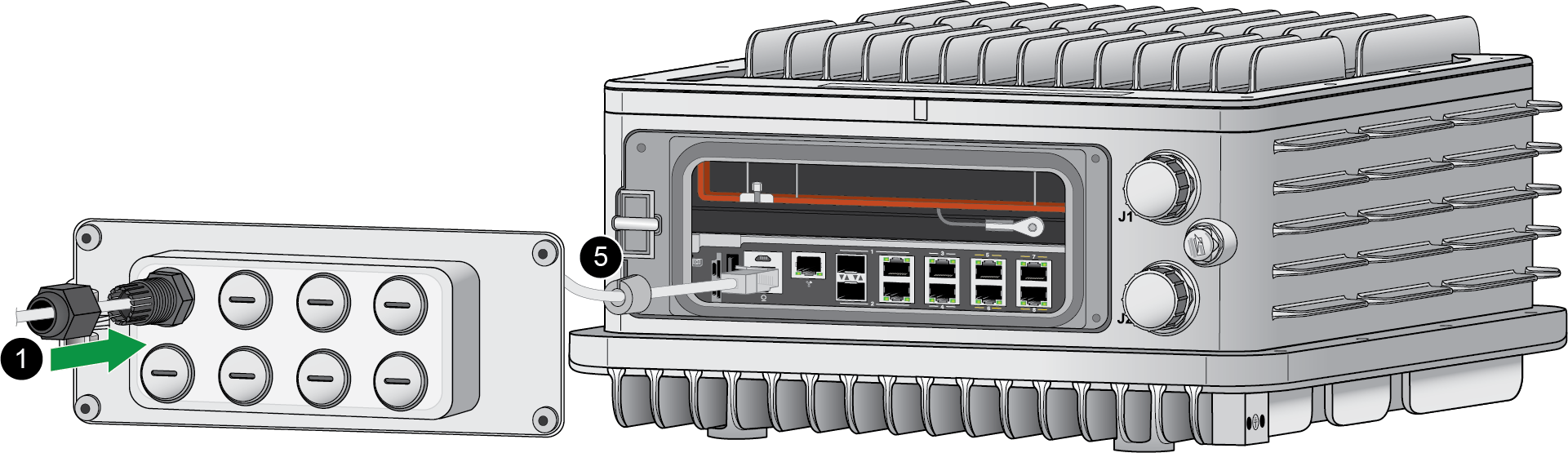

Thread the Ethernet cable through the end cap. This is used to secure the cable
gland once the panel is reattached at the end of the procedure. Feed the
Ethernet cable through the gray grommet. Move the Ethernet cable through the
panel connector and gently push the end into the Ethernet port until you hear a
click.
Repeat Steps 4 and 5 for any additional Ethernet cables.
Once all Ethernet and power cables are connected, make sure that any unused
ports have a stopping plug in the corresponding panel slot.

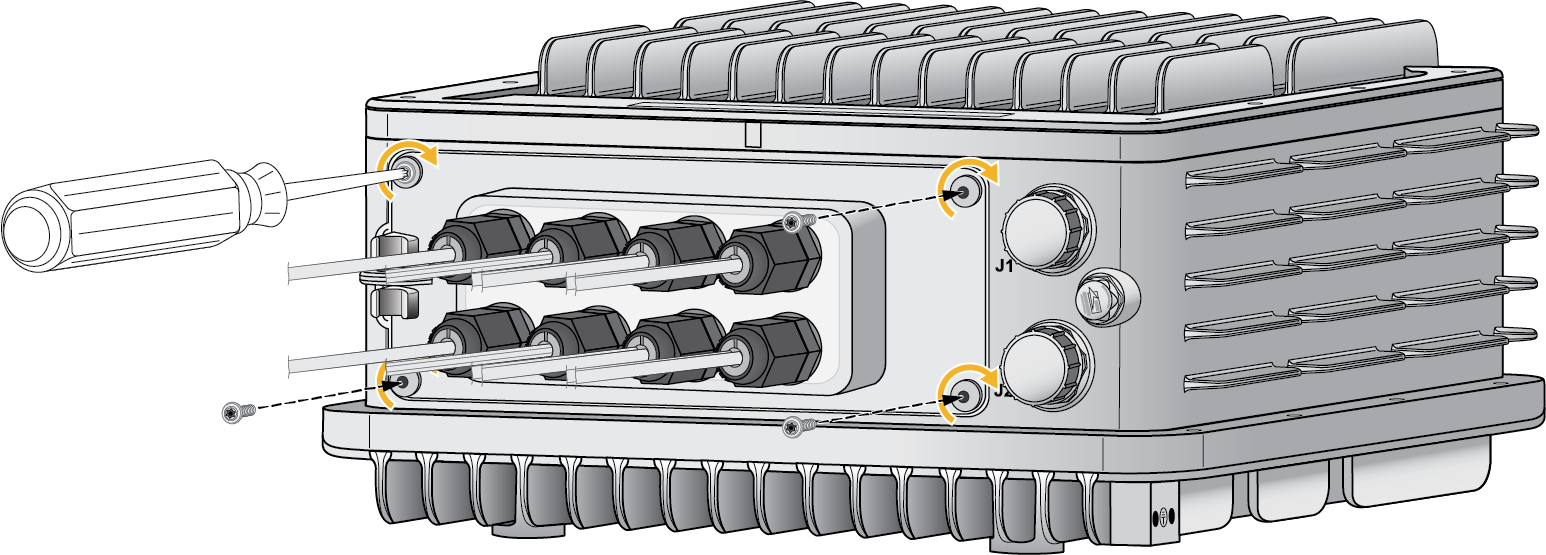

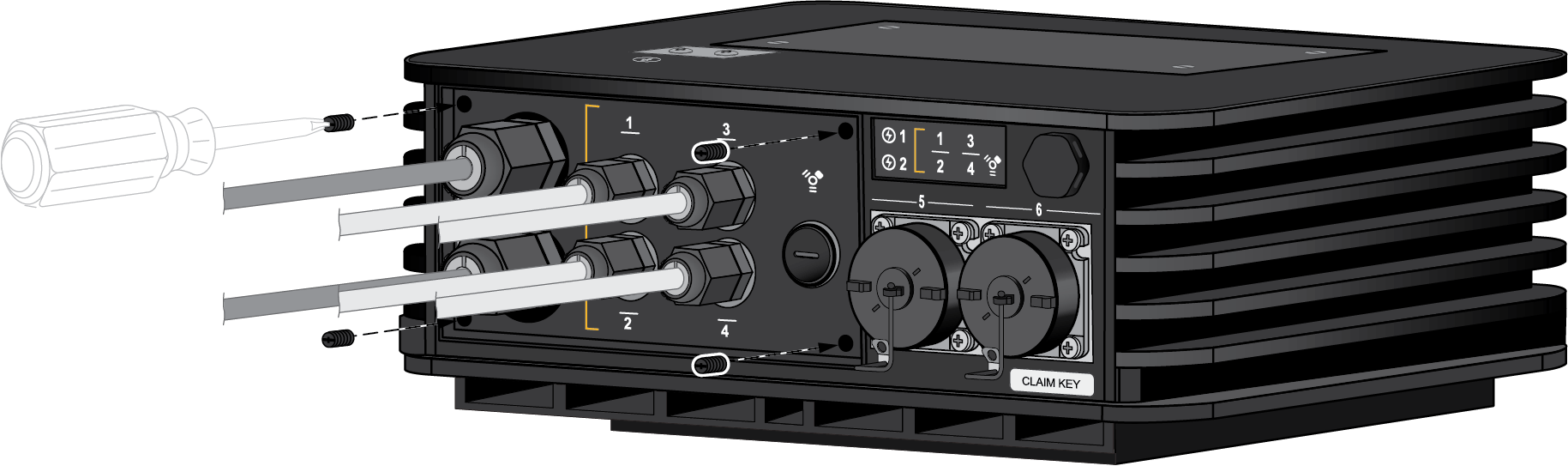

Align the panel with the four screw holes on the firewall. Using a flat head
screwdriver, screw the panel back into its original place.

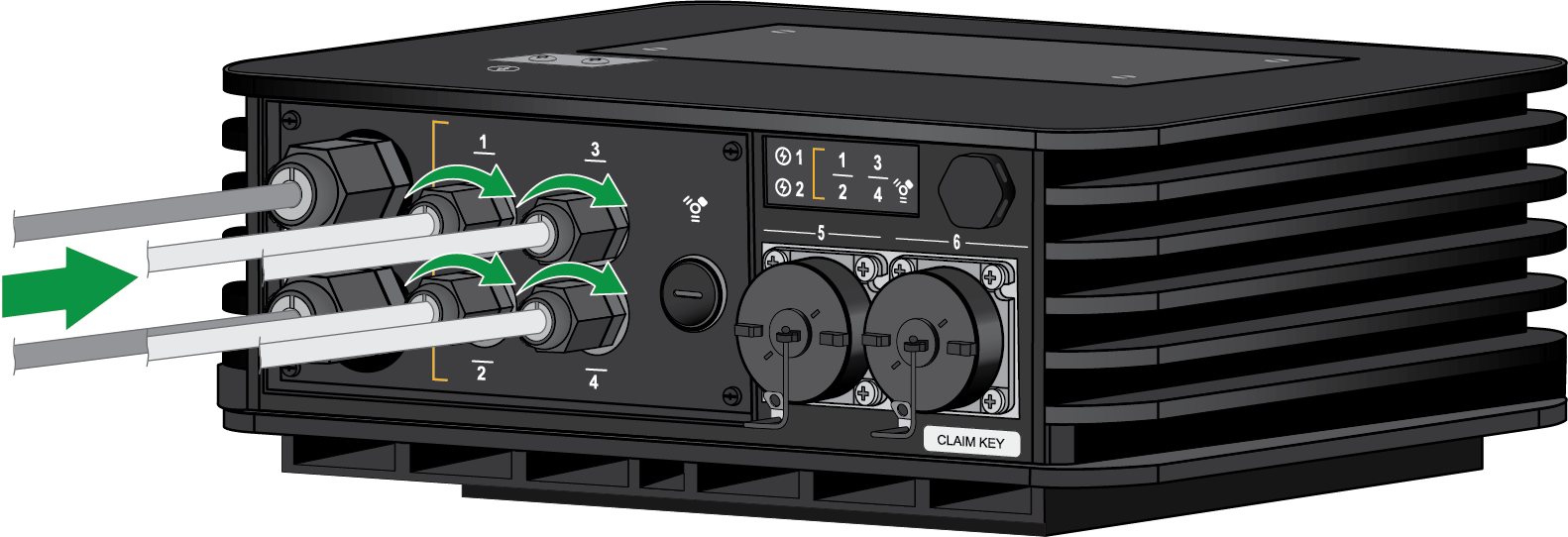

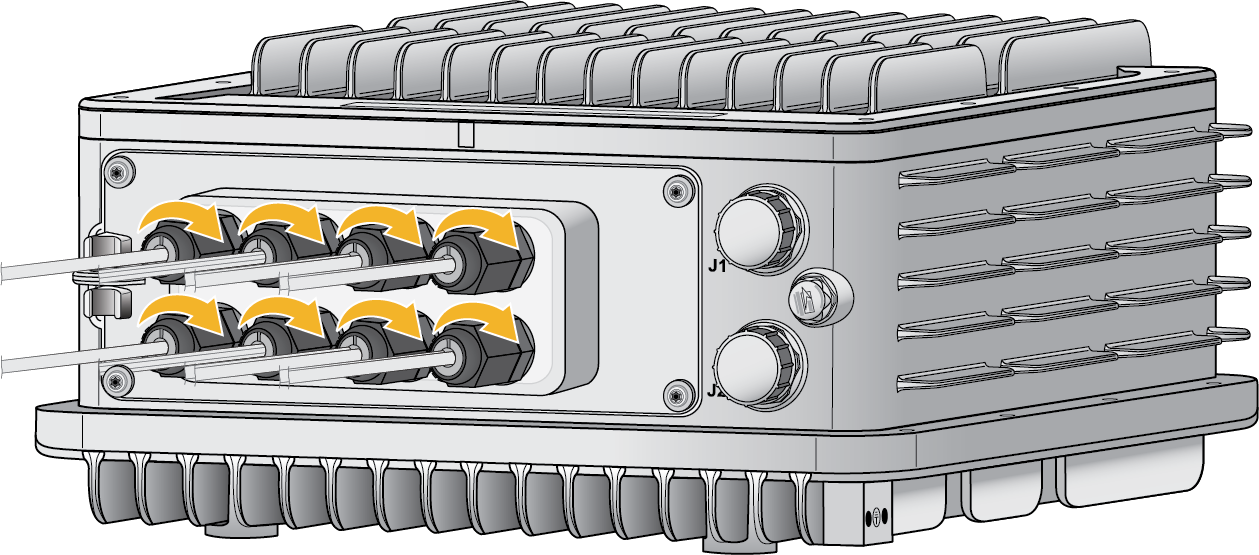

Push the end caps along each Ethernet and power cable until the end caps reach
their respective panel connector. Screw the end caps onto each panel connector
and torque to 4 Nm.
