Insert a SIM Card into a PA-400R Series Firewall
Learn how to insert a SIM card into a PA-400R 5G firewall to establish a mobile
network connection.
The PA-410R-5G supports two nano SIM cards to
enable mobile network connectivity. The SIM slot is located on the top panel of the
device. See PA-400R Series Top and Bottom Panels.
The PA-450R-5G supports two nano SIM cards to enable mobile network
connectivity. The SIM slots are located on the PA-400R Series Front Panel. SIM 1 is the bottom slot and SIM 2
is the top slot.
You must use industrial grade SIM cards rated
for -40° to 105° C.

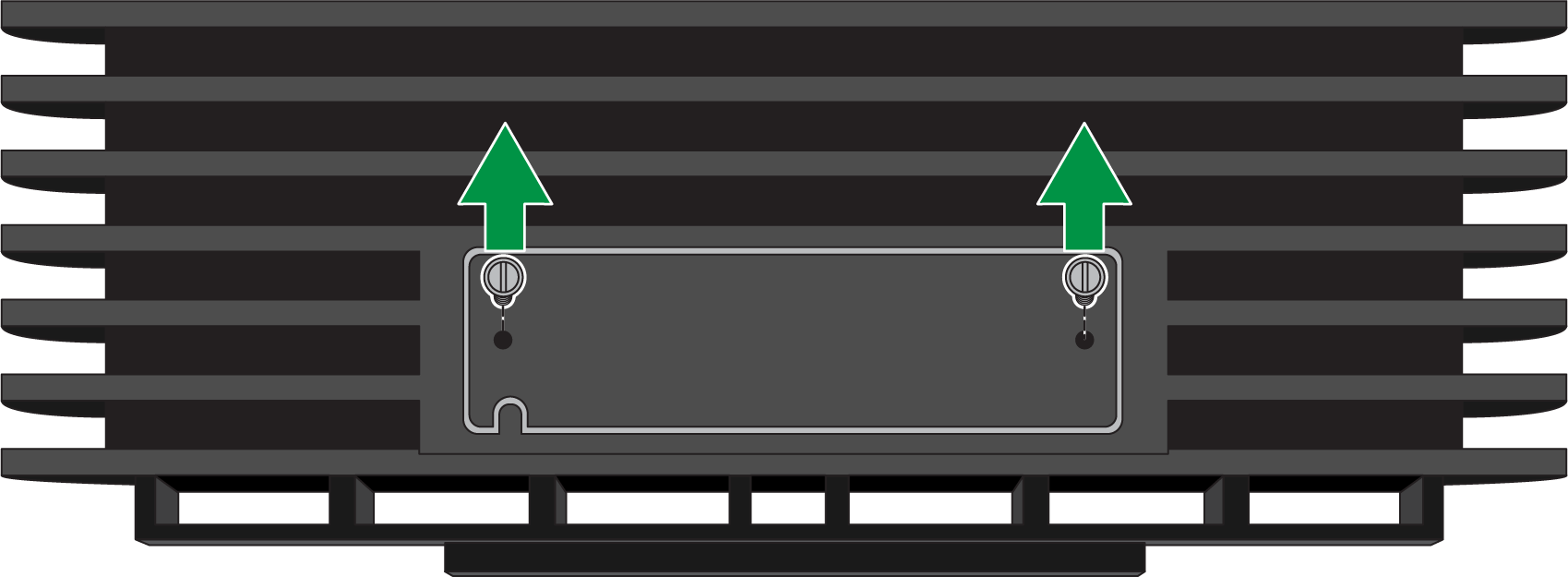

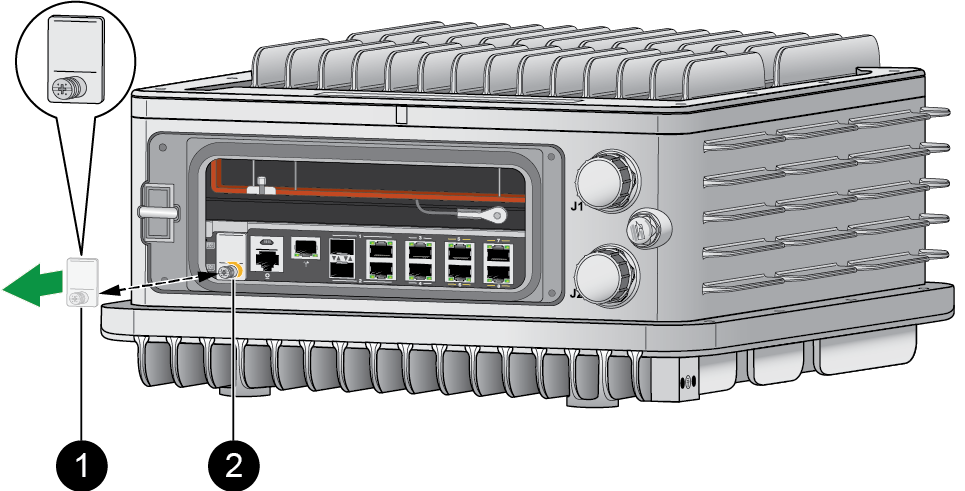

- Remove the SIM cover by unfastening the two screws. Use a flat head screwdriver for the PA-410R-5G and a
Phillips head screwdriver for the PA-450R-5G. (PA-410R-5G)
![]()
(PA-450R-5G)![]()

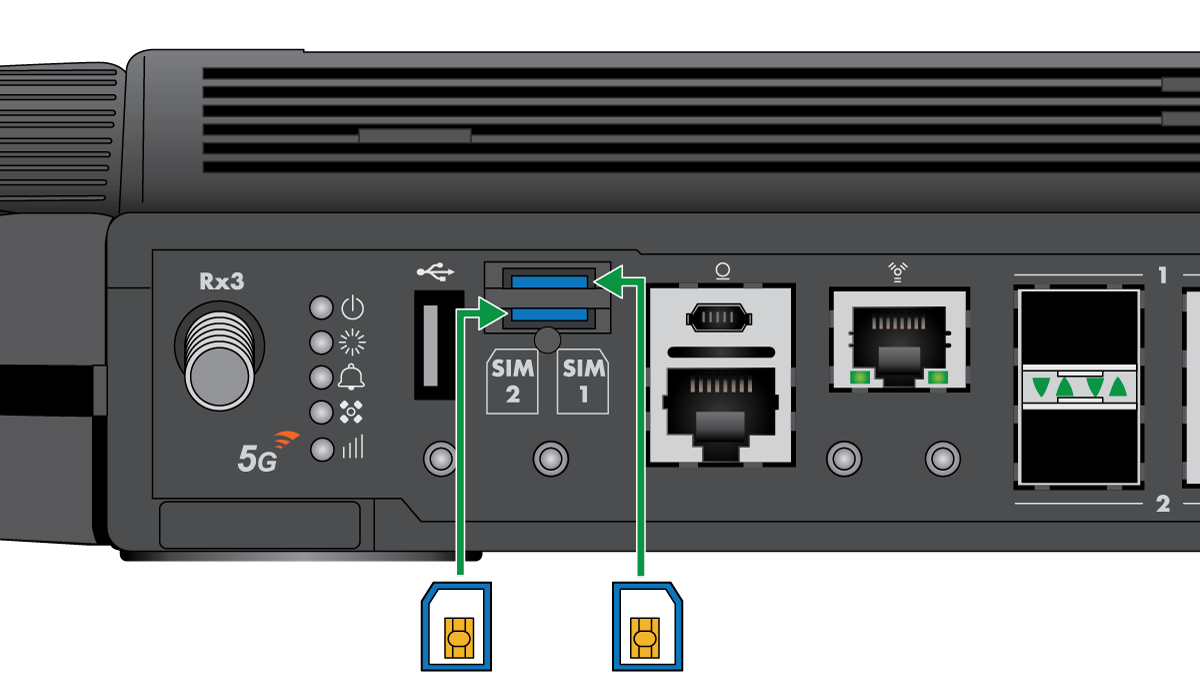

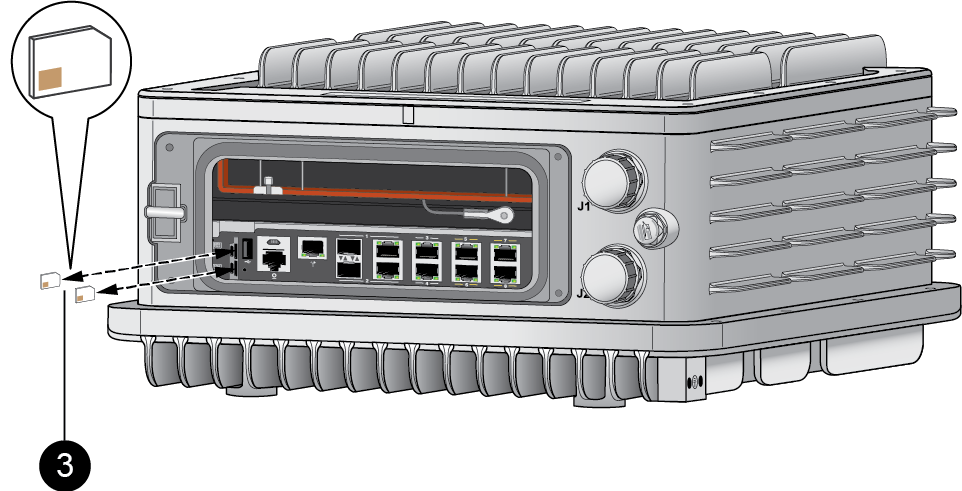

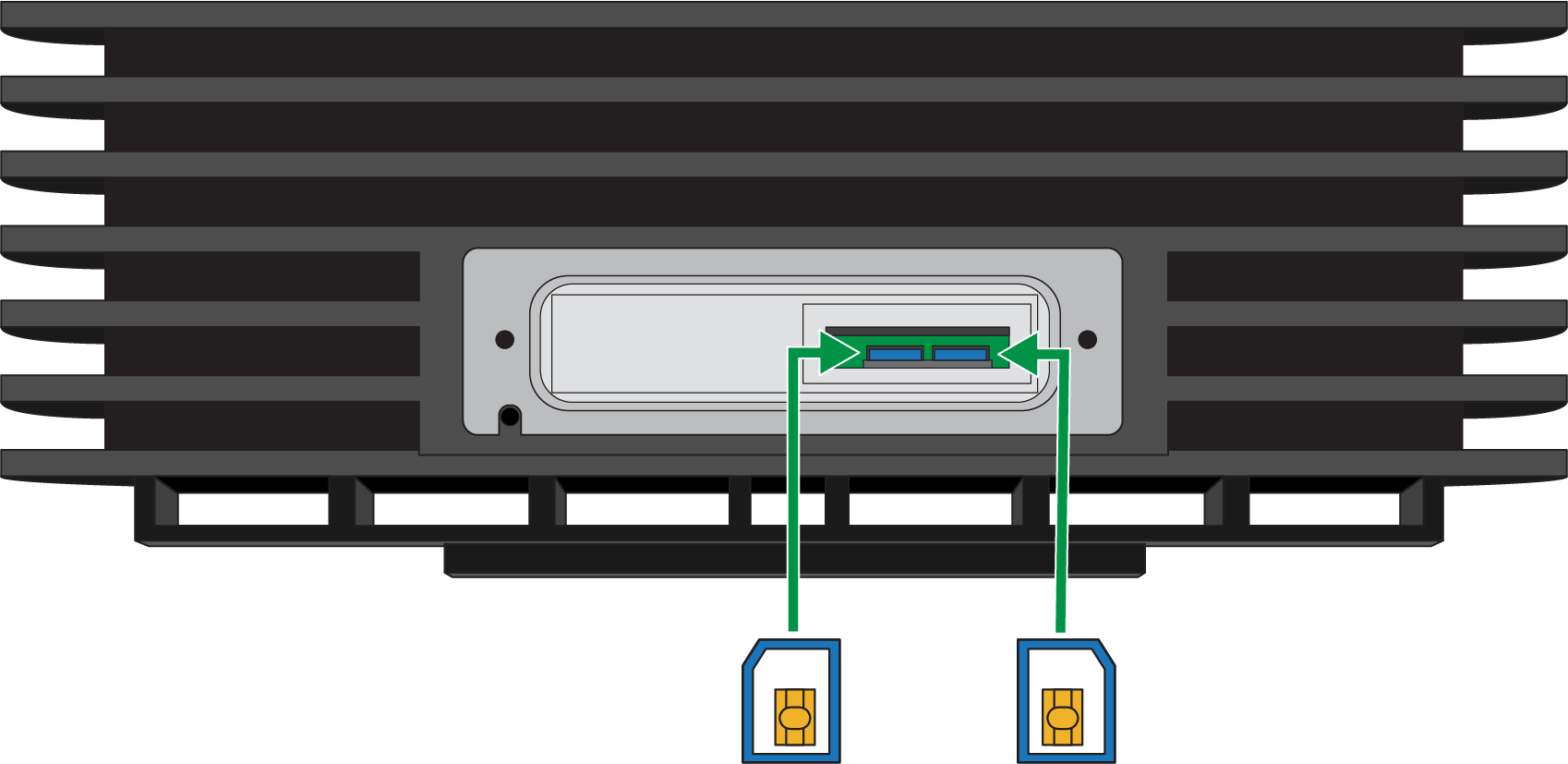

- With the chamfered corner (sloping edge) of the SIM facing towards the slot,
gently push the SIM into the SIM 1 or SIM 2 slot until the SIM clicks into
position.The SIM may get damaged if you attempt to insert it into the slot by the wrong end.Tweezers may be required to install the SIM cards.SIM 1 is the primary SIM slot by default. If you intend to use only one SIM, it is recommended to use SIM 1 as the primary slot. If you want to use SIM 2 as the primary slot, you must manually configure SIM 2 as the primary SIM slot using the Web Interface.(PA-410R-5G)
![]()
(PA-450R-5G)![]()
- After inserting the SIM, place the SIM cover back onto the device and fasten
the two screws.To eject the SIM from the device, gently push the SIM inward using your fingertip. Release your fingertip and pull out the SIM. It is recommended that you use tweezers to extract the SIM.
