App Scope Network Monitor Report

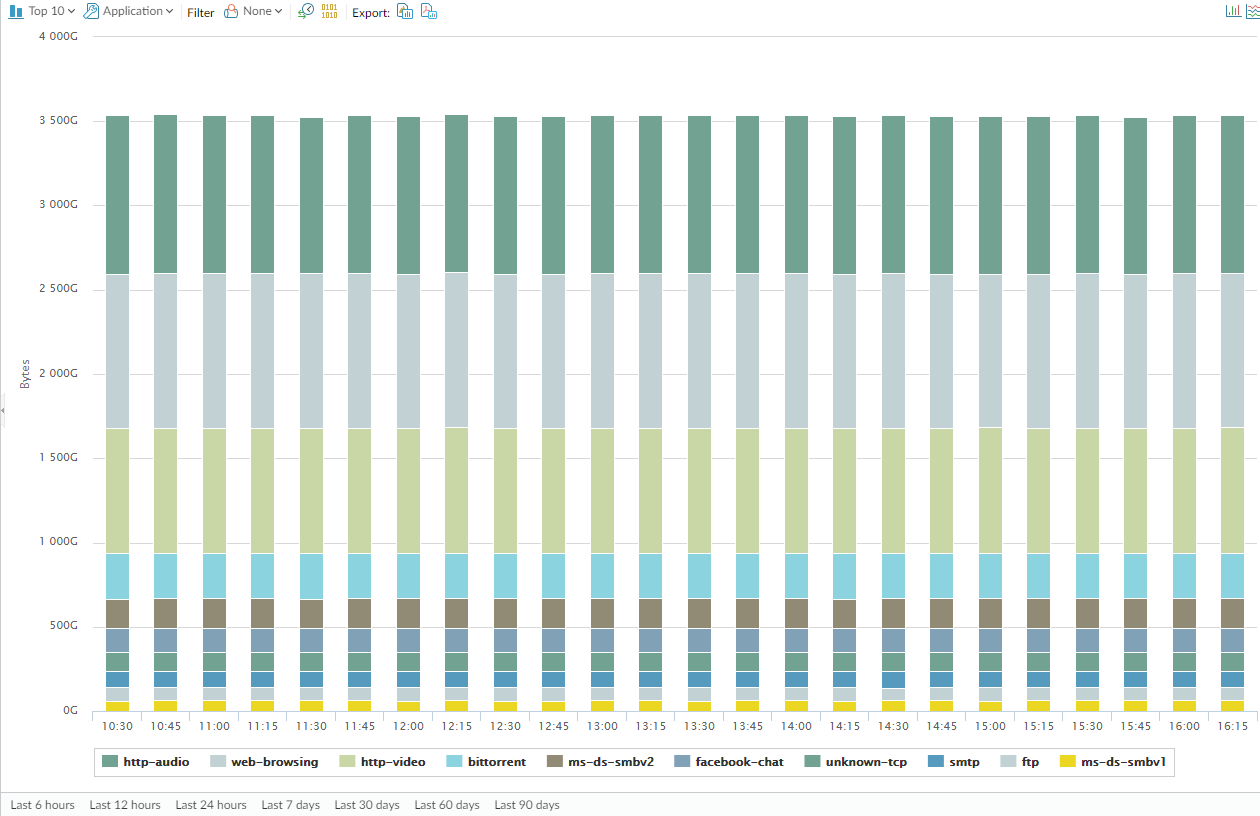

The Network Monitor report displays the bandwidth dedicated to different network functions over the specified period of time. Each network function is color-coded as indicated in the legend below the chart. For example, the image below shows application bandwidth for the past 7 days based on session information.
App Scope Network Monitor Report
The report contains the following options.
Network Monitor Report Options
Top Bar
Top 10
Determines the number of records with the highest measurement included in the chart.
Determines the type of item reported: Application, Application Category, Source, or Destination.
Applies a filter to display only the selected item.
displays all entries.
Count Sessions and Count Bytes
Determines whether to display session or byte information.
Determines whether the information is presented in a stacked column chart or a stacked area chart.
Exports the graph as a .png image or as a PDF.
Bottom Bar
Indicates the period over which the change measurements are taken.
