Enable Advanced WildFire Inline ML
Focus
Focus
Advanced WildFire

Enable Advanced WildFire Inline ML

Table of Contents

Enable Advanced WildFire Inline ML

Where Can I Use This?
What Do I Need?
  • Prisma Access (Cloud Management)
  • Prisma Access (Panorama Managed)
  • NGFW (Cloud Managed)
  • NGFW (PAN-OS or Panorama Managed)
  • VM-Series
  • CN-Series
  • Advanced WildFire License
    For
    Prisma Access
    , this is usually included with your
    Prisma Access
    license.
You can prevent malicious variants of portable executables and PowerShell scripts from entering your network in real-time using machine learning (ML) based analytics on the firewall dataplane. By utilizing WildFire® Cloud analysis technology on your security platform, Advanced WildFire Inline ML dynamically detects malicious files of a specific type by evaluating various file details, including decoder fields and patterns, to formulate a high probability classification of a file. This protection extends to currently unknown as well as future variants of threats that match characteristics that Palo Alto Networks identified as malicious. Advanced WildFire inline ML complements your existing Antivirus profile protection configuration. Additionally, you can specify file hash exceptions to exclude any false-positives that you encounter, which enables you to create more granular rules in your profiles to support your specific security needs.
To enable Advanced WildFire Inline ML, you must have an active Advanced WildFire or WildFire subscription, create (or modify) an Antivirus (or WildFire and Antivirus for
Prisma Access
) security profile to configure and enable the service, and then attach the Antivirus profile to a security policy rule.
Advanced WildFire Inline ML is not currently supported on the VM-50 or VM50L virtual appliance.

Cloud Management

If you’re using Panorama to manage
Prisma Access
:
Toggle over to the
PAN-OS
tab and follow the guidance there.
If you’re using
Prisma Access
Cloud Management, continue here.
  1. To take advantage of WildFire Inline ML, you must have an active WildFire subscription as part of your
    Prisma Access
    subscription.
  2. Create a new or update your existing
    WildFire and Antivirus
    security profile to use the real-time WildFire inline ML models.
    1. Select an existing
      WildFire and Antivirus
      security profile or create a new one (select
      Manage
      Configuration
      NGFW and
      Prisma Access
      Security Services
      WildFire and Antivirus
      and
      Add Profile
      .
    2. Configure your WildFire and Antivirus profile to forward samples for analysis.

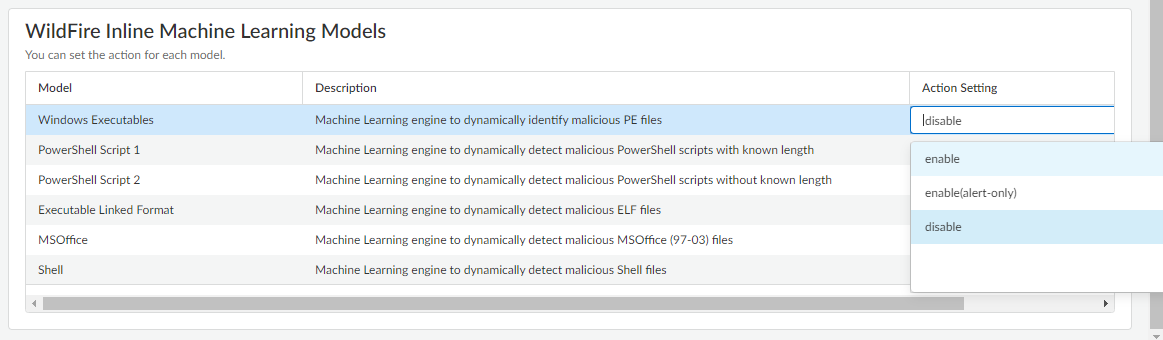

    3. Select
      WildFire Inline Machine Learning Models
      and apply an
      Action Setting
      for each WildFire Inline ML model. This enforces the WildFire Inline ML Actions settings configured for each protocol on a per model basis.
      The following classification engines available:
      • Windows Executables
      • PowerShell Scripts 1
      • PowerShell Scripts 2
      • Executable Linked Format
      • MSOffice
      • Shell Scripts
      • enable
        —WildFire inspects traffic according to your selections in the WildFire Inline ML Action column in the decoders section of the
        Action
        tab.
      • enable(alert-only)
        —WildFire inspects traffic according to your selections in the WildFire Inline ML Action column in the decoders section of the
        Action
        tab and overrides any action with a severity level higher than
        alert
        (
        drop
        ,
        reset-client
        ,
        reset-server
        ,
        reset-both
        )
        alert
        , which allows traffic to pass while still generating and saving an alert in the threat logs.
      • disable
        —WildFire allows traffic to pass without any policy action.
  3. (Optional)
    Add file exceptions to your WildFire and Antivirus security profile if you encounter false-positives. This is typically done for users who are not forwarding files to WildFire for analysis. You can add the file exception details directly to the exception list or by specifying a file from the threat logs.
    If your WildFire Analysis security profile is configured to forward the filetypes analyzed using WildFire inline ML, false-positives are automatically corrected as they are received. If you continue to see ml-virus alerts for files that have been classified as benign by WildFire Analysis, please contact Palo Alto Networks Support.

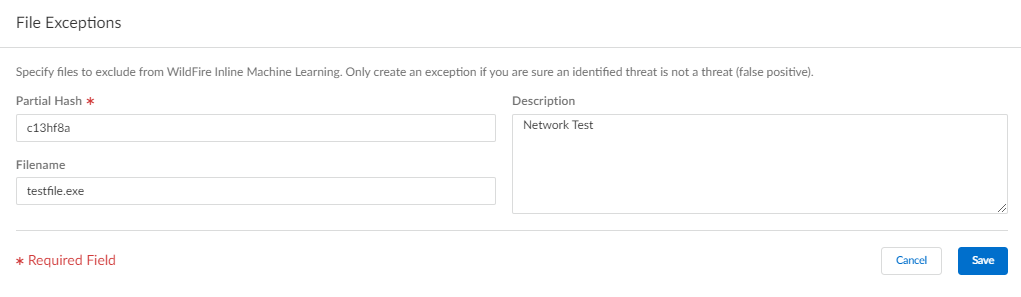

    • Add file exceptions directly to the exception list.
      1. Select
        Advanced Settings
        and
        Add Exception
        in the
        File Exceptions
        pane.
      2. Add the hash, filename, and description of the file that you want to exclude from enforcement.
      3. When finished,
        Save
        your file exceptions.
  4. Save
    your WildFire and Antivirus profile configuration and push configuration changes.

PAN-OS & Panorama

To enable your WildFire inline ML configuration, attach the Antivirus profile configured with the inline ML settings to a security policy rule.
WildFire inline ML is not currently supported on the VM-50 or VM50L virtual appliance.
  1. To take advantage of WildFire inline ML, you must have an active WildFire subscription to analyze Windows executables.

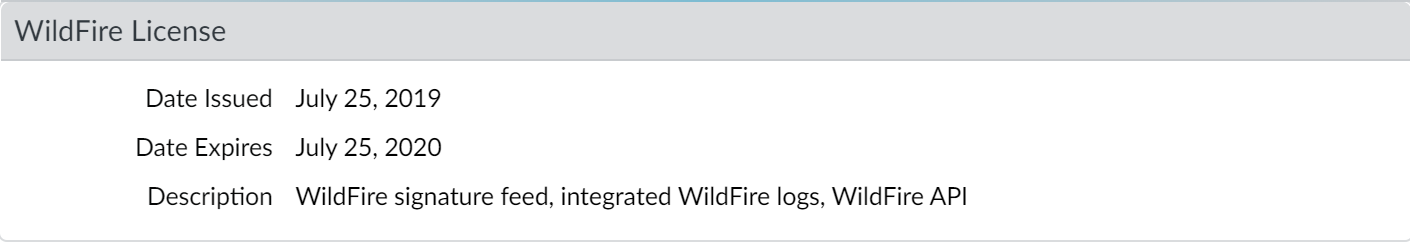

    Verify that you have a WildFire subscription. To verify which subscriptions that you currently have licenses for, select
    Device
    Licenses
    and verify that the appropriate licenses display and have not expired.
  2. Create a new or update your existing Antivirus security profile(s) to use the real-time WildFire inline ML models.
    1. Select an existing
      Antivirus Profile
      or create a new one (select
      Objects > Security Profiles > Antivirus
      and
      Add
      a new profile.
    2. Configure your Antivirus profile.
    3. Select the
      WildFire Inline ML
      tab and apply an
      Action Setting
      for each WildFire Inline ML model. This enforces the WildFire Inline ML Actions settings configured for each protocol on a per model basis. The following classification engines available:
      • Windows Executables
      • PowerShell Scripts 1
      • PowerShell Scripts 2
      • Executable Linked Format (available with installation of PAN-OS content release 8367 and later)
      • MSOffice (available with installation of PAN-OS content release 8434 and later)
      • Shell Scripts (available with installation of PAN-OS content release 8543 and later)
      • enable (inherit per-protocol actions)
        —WildFire inspects traffic according to your selections in the WildFire Inline ML Action column in the decoders section of the
        Action
        tab.
      • alert-only (override more strict actions to alert)
        —WildFire inspects traffic according to your selections in the WildFire Inline ML Action column in the decoders section of the
        Action
        tab and overrides any action with a severity level higher than
        alert
        (
        drop
        ,
        reset-client
        ,
        reset-server
        ,
        reset-both
        )
        alert
        , which allows traffic to pass while still generating and saving an alert in the threat logs.
      • disable (for all protocols)
        —WildFire allows traffic to pass without any policy action.
    4. Click
      OK
      to exit the Antivirus Profile configuration window and
      Commit
      your new settings.
  3. (Optional)
    Add file exceptions to your Antivirus security profile if you encounter false-positives. This is typically done for users who are not forwarding files to WildFire for analysis. You can add the file exception details directly to the exception list or by specifying a file from the threat logs.
    If your WildFire Analysis security profile is configured to forward the filetypes analyzed using WildFire inline ML, false-positives are automatically corrected as they are received. If you continue to see ml-virus alerts for files that have been classified as benign by WildFire Analysis, please contact Palo Alto Networks Support.

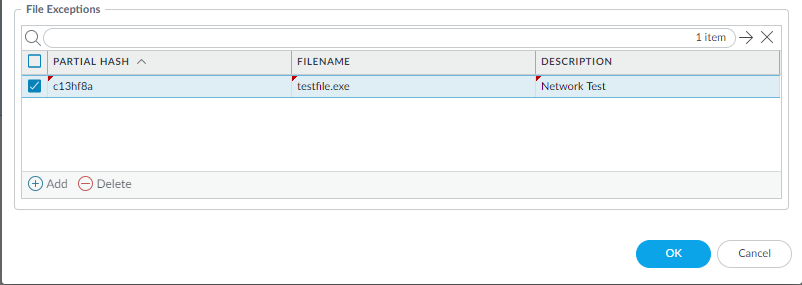

    • Add file exceptions directly to the exception list.
      1. Select
        Objects > Security Profiles > Antivirus
        .
      2. Select an Antivirus profile for which you want to exclude specific files and then select
        WildFire Inline ML
        .
      3. Add the hash, filename, and description of the file that you want to exclude from enforcement.
      4. Click
        OK
        to save the Antivirus profile and then
        Commit
        your updates.
    • Add file exceptions from threat logs entries.
      1. Select
        Monitor > Logs > Threat
        and filter the logs for the
        ml-virus
        threat type. Select a threat log for a file that you wish to create a file exception for.
      2. Go to the
        Detailed Log View
        and scroll down to the
        Details
        pane then select
        Create Exception
        .
      3. Add a
        Description
        and click
        OK
        to add the file exception.
      4. The new file exception can be found
        File Exceptions
        list under
        Objects > Security Profiles > Antivirus > WildFire Inline ML
        .
  4. (Optional)
    Verify the status of your firewall’s connectivity to the Inline ML cloud service.
    Use the following CLI command on the firewall to view the connection status.
    show mlav cloud-status
    For example:
    show mlav cloud-status MLAV cloud Current cloud server: ml.service.paloaltonetworks.com Cloud connection: connected
    If you are unable to connect to the Inline ML cloud service, verify that the following domain is not being blocked: ml.service.paloaltonetworks.com.
To view information about files that have been detected using WildFire Inline ML, examine the threat logs (
Monitor > Logs > Threat
, then select the log type from the list). Files that have been analyzed using WildFire inline ML are labeled with the threat type
ml-virus
:
