    Configure MSDP

    Configure MSDP for IPv4 multicast on an Advanced Routing Engine.
    Advanced Routing mode supports Multicast Source Discovery Protocol (MSDP) in PIM Sparse Mode (PIM-SM). MSDP-enabled firewalls in one domain peer with MDSP-enabled devices in a different domain or autonomous system. The peers exchange control information and discover multicast sources outside their own domain. MSDP tracks active sources and shares them with configured peers. MSDP reduces the complexity of interconnecting multiple PIM-SM domains by allowing the domains to use an interdomain source tree.
    In the sample MSDP topology, the multicast source and receiver are in separate domains. In each multicast domain is a single RP for a given multicast group. Using MSDP, RP_1 informs RP_2 of the active sources for which RP_1 acts as Rendezvous Point. RP_2 is able to create the multicast tree across the domain border.
    MSDP uses well-known TCP port 639 for peering. The peer with the higher IP address listens on port 639; the peer with the lower IP address attempts an active connection to port 639. Before you configure MSDP, be familiar with RFC 3618. The following task assumes you have IPv4 multicast configured already.
    Supported MSDP message types are:
    • Source Active (SA)
      —Contains the IP address of the originating rendezvous point (RP) and one or more (S,G) pairs being advertised. Can also contain an encapsulated data packet.
    • Keepalive
      —Sent to keep the MSDP session active. If no keepalive or SA message is received during the holdtime interval, the MSDP session is reset.
    • Notification
      —Sent if an error is detected.
    MSDP TCP connections between RP routers require an underlying IP unicast network. BGP IPv4 unicast must participate to confirm the reverse-path forwarding (RPF) check with a peer, thus keeping loop-free forwarding between domains.
    You can Create Multicast Routing Profiles before configuration or while in the process of configuring MSDP.
    2. Select
      Network
      Routing
      Logical Routers
       and select a logical router.
    3. Select
      Multicast
       and
      enable multicast protocol
      .

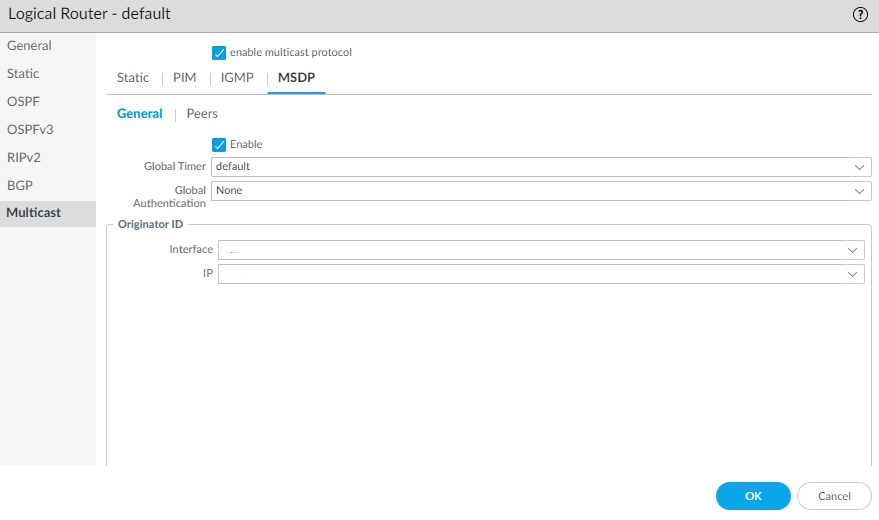

    4. Select
      MSDP
      General
       and
      Enable
       MSDP.
    5. Select the
      Global Timer
       profile, or select the
      default
       profile (this is the default setting), or create a new timer profile. If you select
      default
      , Keep Alive Interval is set to 60, Message Timeout is set to 75, and Connection Retry Interval is set to 30. If you select
      None
      , the default values apply.
    6. Select the
      Global Authentication
       profile or create a new one. Default is
      None
      .
    7. For the Originator ID, select the
      Interface
       that the logical router uses as the RP interface in Source-Active (SA) messages.
    8. Select or enter the
      IP Address
       (with prefix length) that the logical router uses as the RP address in SA messages. If no Originator IP address is configured, the logical router uses the PIM RP address to encapsulate the SA message.
    9. Click
      OK
      .

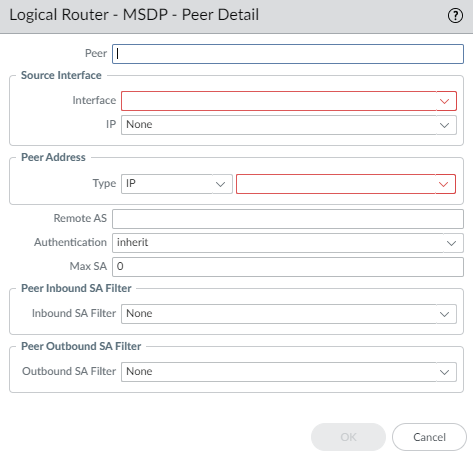

    10. Select
      Peers
       and
      Add
       a
      Peer
       name (maximum of 63 characters). The name must start with an alphanumeric character, underscore (_), hyphen (-), or dot (.) and can contain a combination of alphanumeric characters, underscore, or hyphen or dot. No space is allowed.
    11. Enter the Source
      Interface
       used to establish the MSDP connection over TCP with its MSDP peer.
    12. Select the
      IP
       address of the source interface. Default is
      None
      .
    13. Select the
      Type
       of Peer Address:
      • IP
        —(default) and select an address object or enter an IP address.
      • FQDN
        —Select or enter the Fully Qualified Domain Name of the peer. The dropdown list displays all FQDN names configured as address objects.
    14. Enter the BGP autonomous system number of the
      Remote AS
       where the MSDP peer is located.
    15. For
      Authentication
      , do one of the following:
      • Select an authentication profile to apply to this peer, which overrides the Global Authentication Profile you applied to MSDP on the General page.
      • inherit (inherit from global authentication)
         (default) the global authentication profile.
      • Select
        None
         to disable authentication to this peer, which overrides the Global Authentication Profile.
    16. For
      Max SA
      , enter the maximum number of Source-Active (SA) entries the SA cache will accept from this MSDP peer. Range is 0 to 1,024; default is 0 (unlimited). After this maximum is reached, new SA messages from this peer are dropped.
    17. For
      Peer Inbound SA Filter
      , select an access list or create a new access list to filter incoming SA messages (block unwanted groups) from this peer. Default is
      None
      .
      The access list can specify source addresses in an (S,G) pair to filter, or destination (group) addresses in an (S,G) pair to filter, or both.
    18. For
      Peer Outbound SA Filter
      , select an access list or create a new access list to filter outgoing SA messages (block unwanted groups) being propagated to this peer. Default is
      None
      .
      The access list can specify source addresses in an (S,G) to filter, or destination (group) addresses in an (S,G) to filter, or both.
    19. Click
      OK
      .
    21. Commit
      .
    22. View MSDP information.
      1. Select
        Network
        Routing
        Logical Routers
         and in the row for the logical router you configured, select
        More Runtime Stats
        .

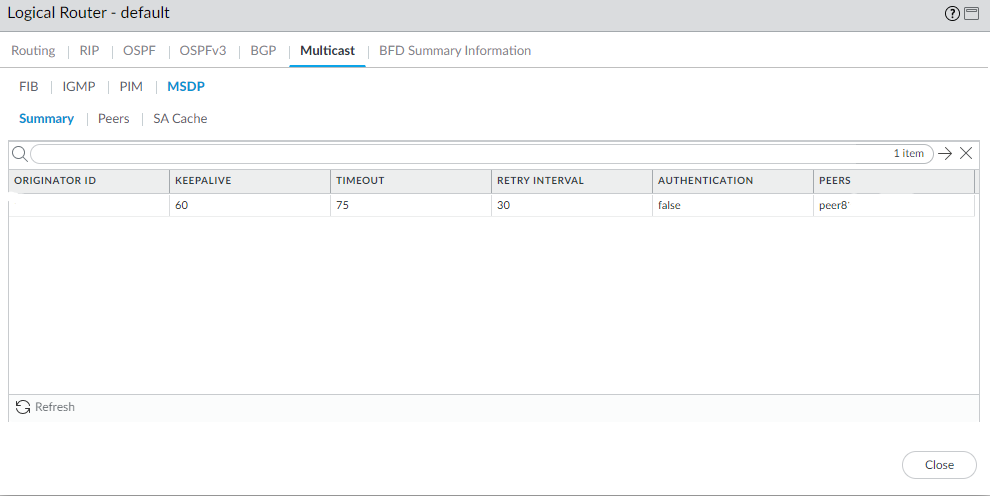

      2. Select
        Multicast
        MSDP
        Summary
         to see general MSDP information, such as originator IP address, timers, authentication, and peer name.

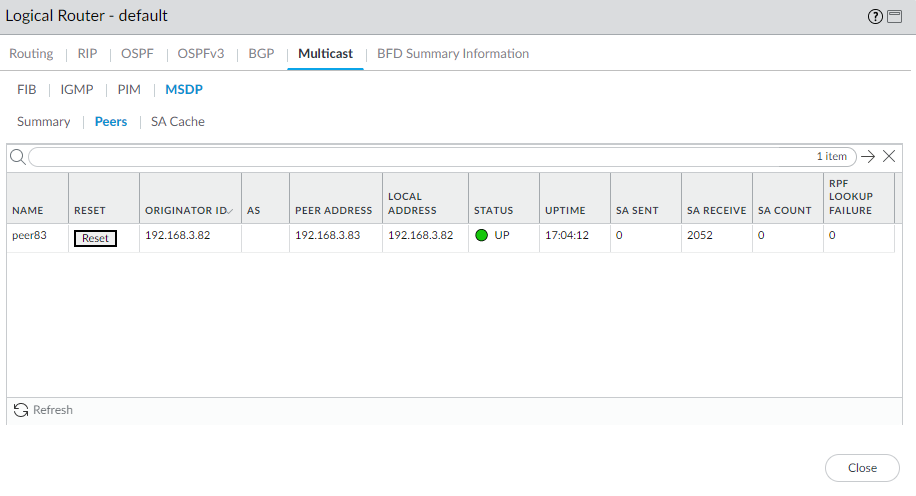

      3. Select
        Peers
         to view information about the MSDP peers.

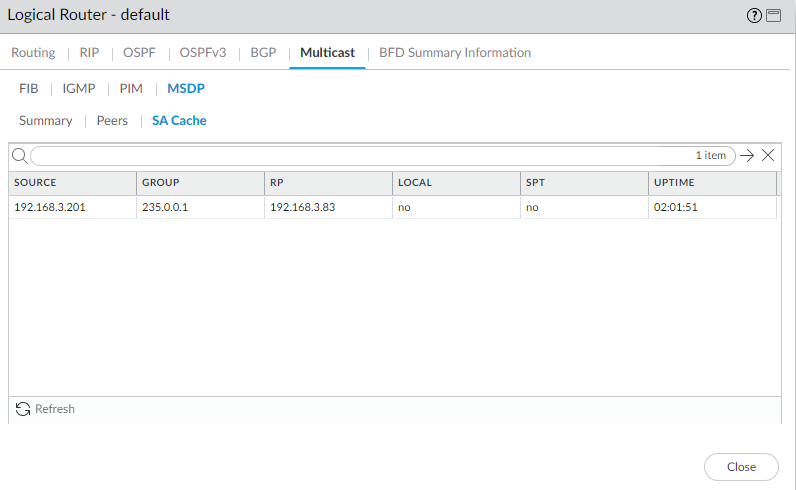

      4. Select
        SA Cache
         to view Source-Active entries in the cache.
      5. Refresh
         or
        Close
         the runtime stats.
