Configure Authentication for Explicit Web Proxy
When you configure an explicit web proxy, configure
one of the following user authentication methods:
- Configure Kerberos Authentication
- Configure SAML Authentication
- Configure Cloud Identity Engine Authentication
If you want to exempt traffic from specific devices, such as printers, from
authentication, you can Configure Exemptions for Explicit Proxy Authentication.
If you don't need to configure authentication for your web proxy traffic, you can
Exclude All Explicit Proxy Traffic From Authentication.
Configure Kerberos Authentication
- Create a service account for the directory (if it is not already configured) and enable support for AES128 and AES256 encryption in the service account properties.
- Register the service principal name (SPN) for the proxy FQDN and create a keytab file for the Kerberos single sign-on
(SSO).The Kerberos keytab principal name must match the hostname that resolves to the proxy interface IP address.
- On the firewall, create a server profile for the Kerberos server.
- Configure an authentication profile to use Kerberos and import the keytab to the authentication profile.
- (Optional but recommended) If you use Panorama to manage your firewalls,
configure a log forwarding profile to forward
logs to Strata Logging Service, Panorama, or both.By default, the firewall does not forward logs to Strata Logging Service or Panorama. Forwarding the logs ensures that the complete authentication log information is available to assist in troubleshooting any potential authentication issues.As a best practice, if you are using Panorama to manage the web proxy firewall, configure any objects the proxy uses in a shared Panorama location and configure the web proxy firewall in a separate device group that contains no other firewalls or virtual systems. If the firewall is already a member of a device group, create a child device group as a sub-group and move the firewall to the child device group.If you experience issues with the browser challenge when using the Chrome browser, we recommend using an alternate browser.
- In the Explicit Proxy Configuration (NetworkProxyExplicit Proxy Configuration), select Kerberos Single Sign On as the Authentication service type.
- (Optional but recommended) If you are using a decryption policy for the
traffic, select Strip ALPN to remove the value in the
Application-Layer Protocol Negotiation (ALPN).This option requires HTTPS.
- Select the Authentication Profile you created in Step 4.
- Complete the remaining steps to Configure a Web Proxy.
Configure SAML Authentication
SAML authentication for explicit web proxy
requires Panorama and the Cloud Services plugin version 3.2.1 (and
later versions).
To simplify
configuration for SAML-based authentication for the explicit web proxy, the
firewall or Panorama automatically generates the following rules to allow the
necessary traffic. If you are using Panorama, you must select an individual
firewall to view the rules.
-

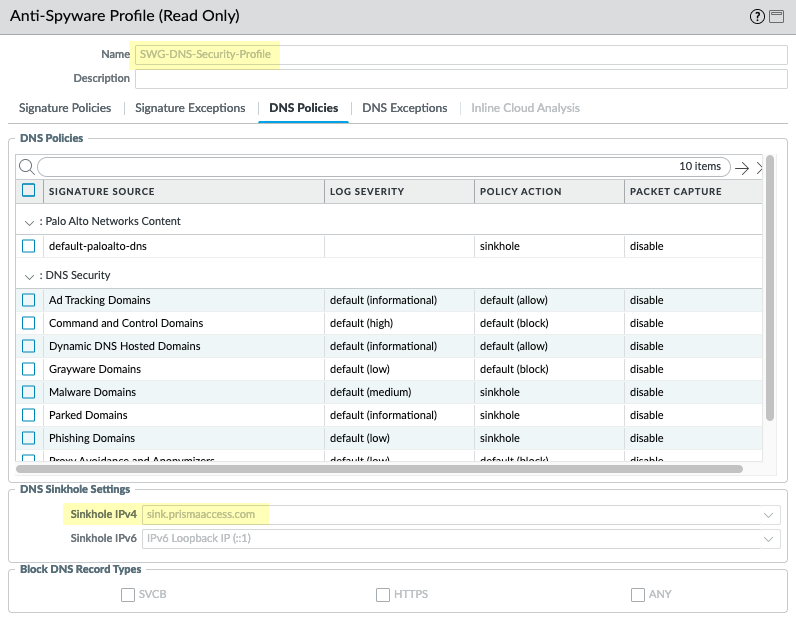

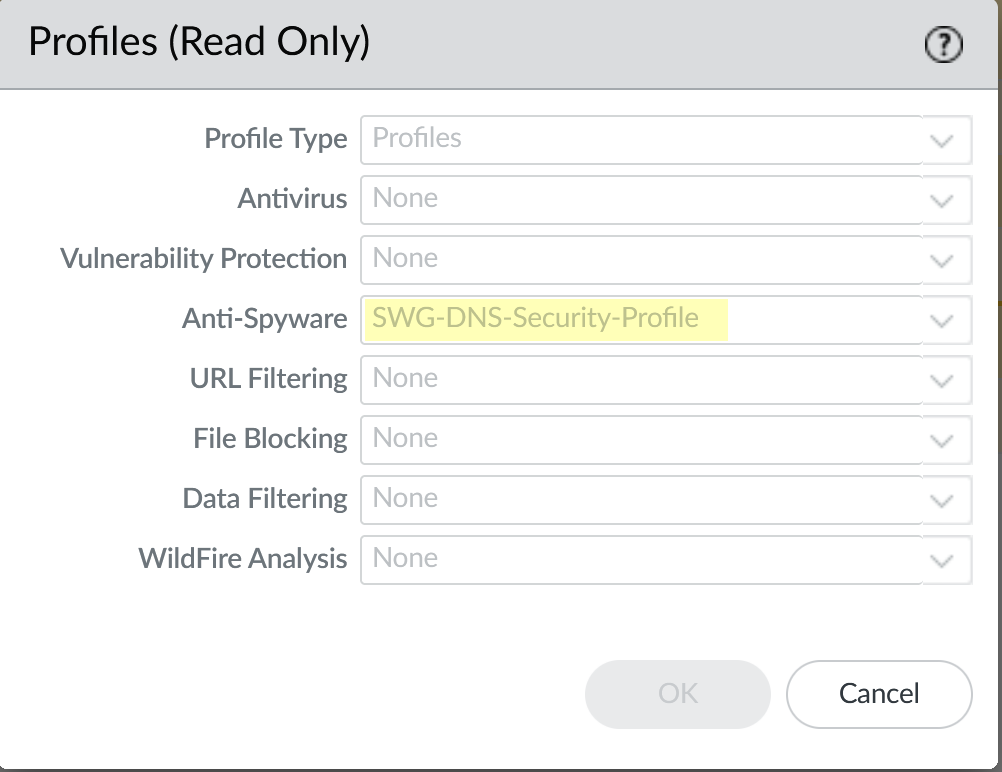

SWG-allow-vpc-dns-rule — Allows traffic from the zone where the web proxy upstream interface is located to the primary and secondary DNS server addresses for the web proxy.The firewall also generates an anti-spyware profile, SWG-DNS-Security-Profile, to allow the required traffic.The autogenerated rule SWG-allow-vpc-dns-rule applies this profile to the applicable traffic.
- SWG-block-unsolicited-dns-rule —Blocks unauthorized traffic to the primary and secondary DNS server addresses for the web proxy.

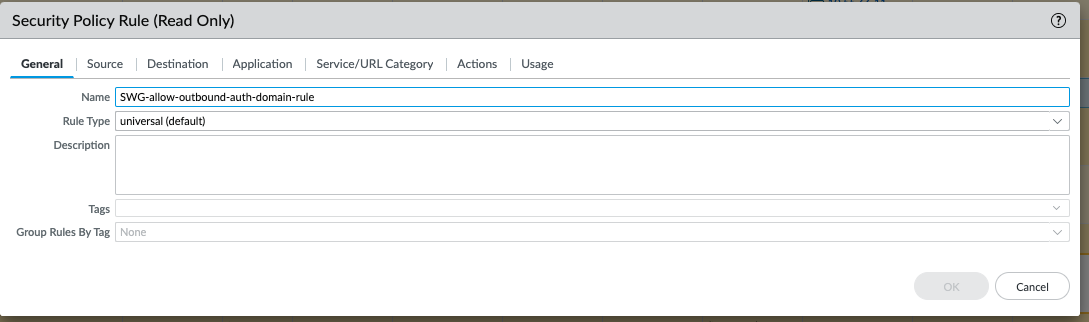

- SWG-allow-outbound-auth-domain-rule — (Explicit proxy with SAML authentication only) Allows traffic from the zone where the web proxy upstream interface is located to the Cloud Services plugin.The autogenerated rule SWG-allow-outbound-auth-domain-rule applies the hybrid-swg-authdomain-bypass URL category to the applicable traffic.The URL category,hybrid-swg-authdomain-bypass contains the necessary predefined entries for the required domains.
- If you have not already done so, configure Explicit Proxy for mobile users.This is a typical authentication method for on-premises web proxy authentication and Prisma Access Explicit Proxy, which requires a license. Prisma Access Explicit Proxy settings for cookie and timeout values apply to an explicit web proxy configuration as well. You must commit the changes and push them to the relevant firewalls before continuing.
- If you have not already done so, configure a SAML Authentication profile.
- (Required for XAU only) If the downstream proxy
sends the XAU header, configure a trusted source address for the
downstream proxy.

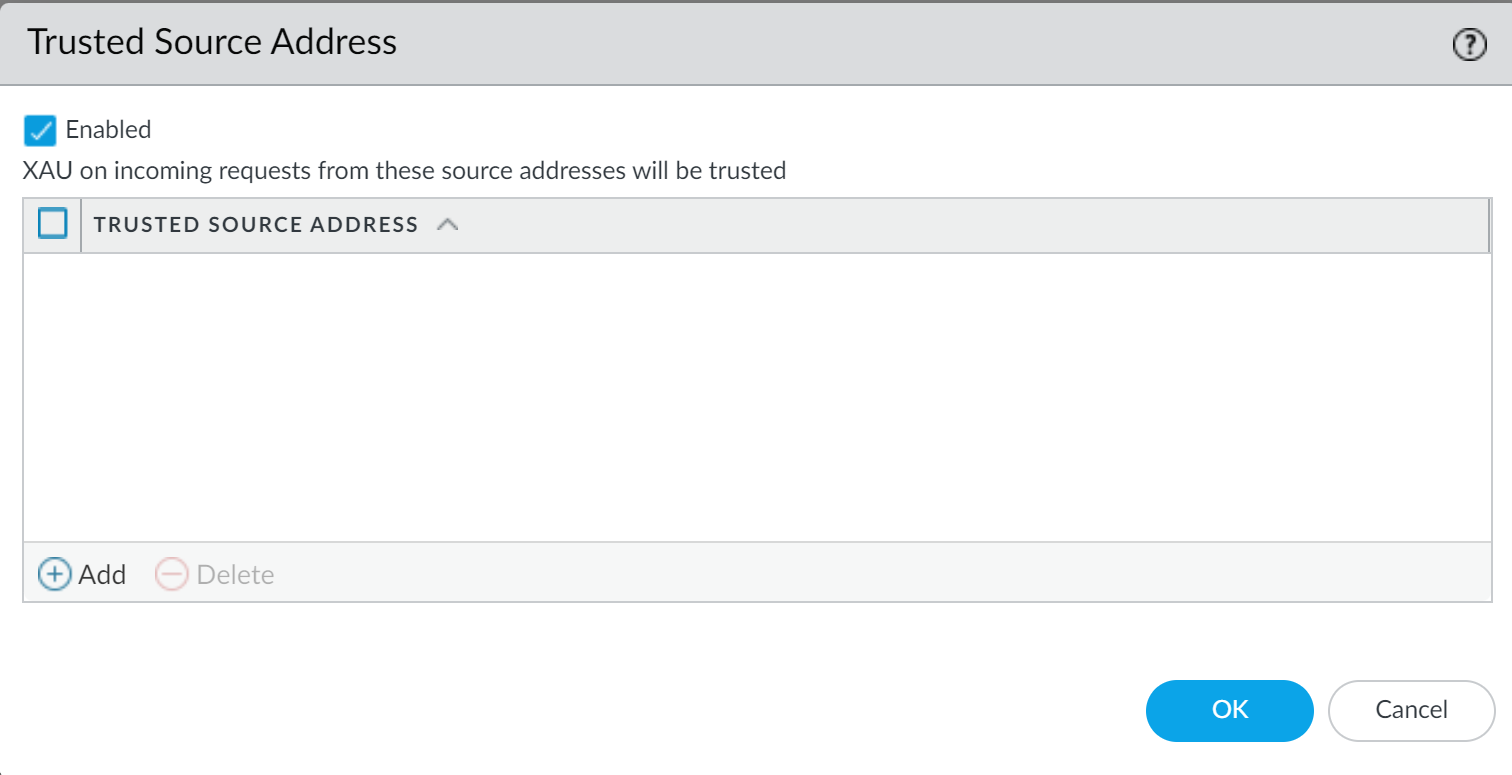

- Select DeviceUser IdentificationTrusted Source Address.
- Edit the settings for the trusted source address to change the status to Enabled.
- Add any address objects you
want to allow X-Authenticated User (XAU).Explicit web proxy requires an IP address object for the trusted source address.
- Click OK.

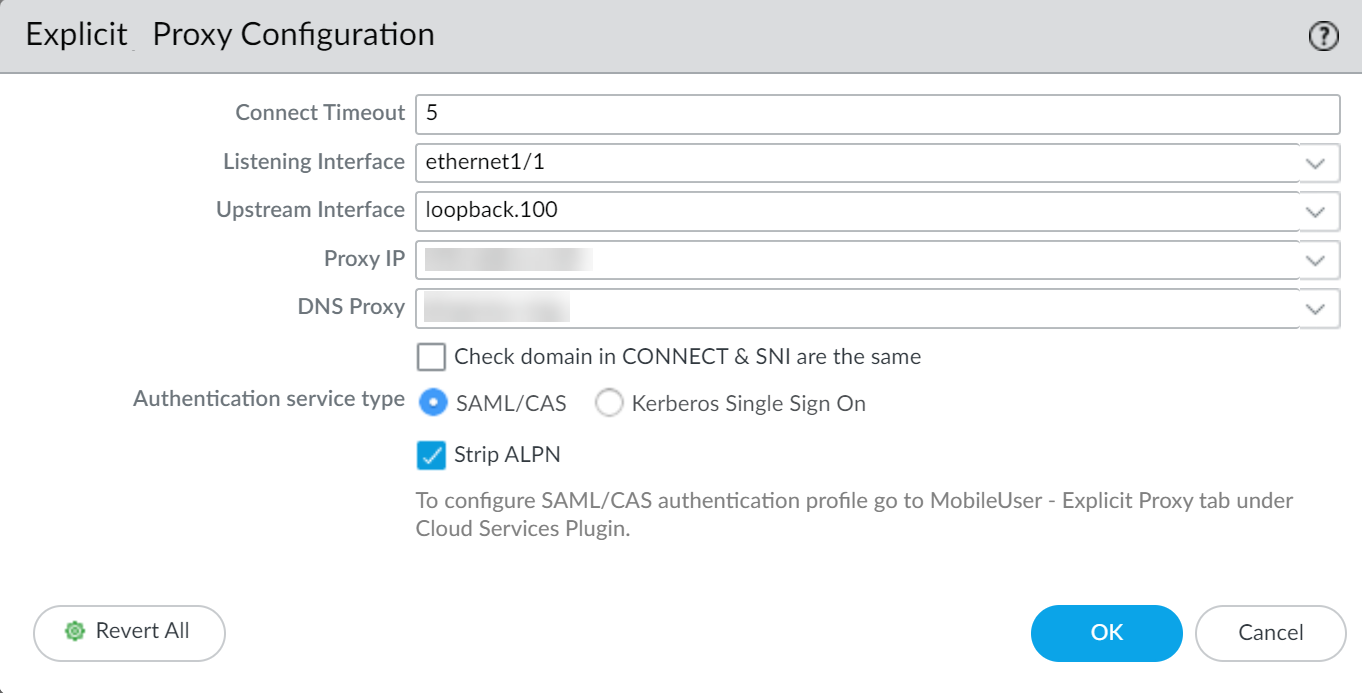

- In the Explicit Proxy Configuration (NetworkProxyExplicit Proxy Configuration), select SAML/CAS as the Authentication service type.
- (Optional but recommended) If you are using a decryption policy for the
traffic, select Strip ALPN to remove the value in the
Application-Layer Protocol Negotiation (ALPN).This option requires HTTPS.
- Complete the remaining steps to configure the Configure a Web Proxy.
Configure Cloud Identity Engine Authentication
To simplify
configuration for SAML-based authentication for the explicit web proxy, the
firewall or Panorama automatically generates the following rules to allow the
necessary traffic. If you are using Panorama, you must select an individual
firewall to view the rules.
-
SWG-allow-vpc-dns-rule — Allows traffic from the zone where the web proxy upstream interface is located to the primary and secondary DNS server addresses for the web proxy.The firewall also generates an anti-spyware profile, SWG-DNS-Security-Profile, to allow the required traffic.The autogenerated rule SWG-allow-vpc-dns-rule applies this profile to the applicable traffic.
-
SWG-block-unsolicited-dns-rule —Blocks unauthorized traffic to the primary and secondary DNS server addresses for the web proxy.
-
SWG-allow-outbound-auth-domain-rule — (Explicit proxy with SAML authentication only) Allows traffic from the zone where the web proxy upstream interface is located to the Cloud Services plugin.The autogenerated rule SWG-allow-outbound-auth-domain-rule applies the hybrid-swg-authdomain-bypass URL category to the applicable traffic.The URL category,hybrid-swg-authdomain-bypass contains the necessary predefined entries for the required domains.
- If you have not already done so, configure Explicit Proxy for mobile users.You must commit the changes and push them to the relevant firewalls before continuing.
- If you have not already done so, configure authentication using the Cloud Identity Engine and configure a Cloud Identity Engine authentication profile.
- (Required for XAU only) If the downstream proxy
sends the XAU header, configure a trusted source address for the
downstream proxy.
- Select DeviceUser IdentificationTrusted Source Address.
- Edit the settings for the trusted source address to change the status to Enabled.
- Add any address objects you
want to allow X-Authenticated User (XAU).Explicit web proxy requires an IP address object for the trusted source address.
- Click OK.
- In the Explicit Proxy Configuration (NetworkProxyExplicit Proxy Configuration), select SAML/CAS as the Authentication service type.
- (Optional but recommended) Select Strip ALPN to
remove the value in the Application-Layer Protocol Negotiation (ALPN).This option requires HTTPS.
- Complete the remaining steps to configure the Configure a Web Proxy.
