    Set Up the Email DLP Host

    Table of Contents

    Set Up the Email DLP Host

    Create a route from Gmail to the Enterprise Data Loss Prevention (E-DLP) Email DLP host.
    Where Can I Use This?What Do I Need?
    • Data Security
    • One of the following licenses that include the Enterprise DLP license
      Review the Supported Platforms for details on the required license for each enforcement point.
      • Prisma Access CASB license
      • Next-Generation CASB for Prisma Access and NGFW (CASB-X) license
      • Data Security license
    • Email DLP license
    Enterprise Data Loss Prevention (E-DLP) requires you set up routing from Gmail to the Enterprise DLP Email DLP Host to allow Gmail to forward emails to Enterprise DLP for inspection and verdict rendering to prevent exfiltration of sensitive data.
    1. Log in to the Google Admin portal.
    2. In the Dashboard, select AppsGoogle WorkspaceGmailHosts.
    3. Click Add Route.

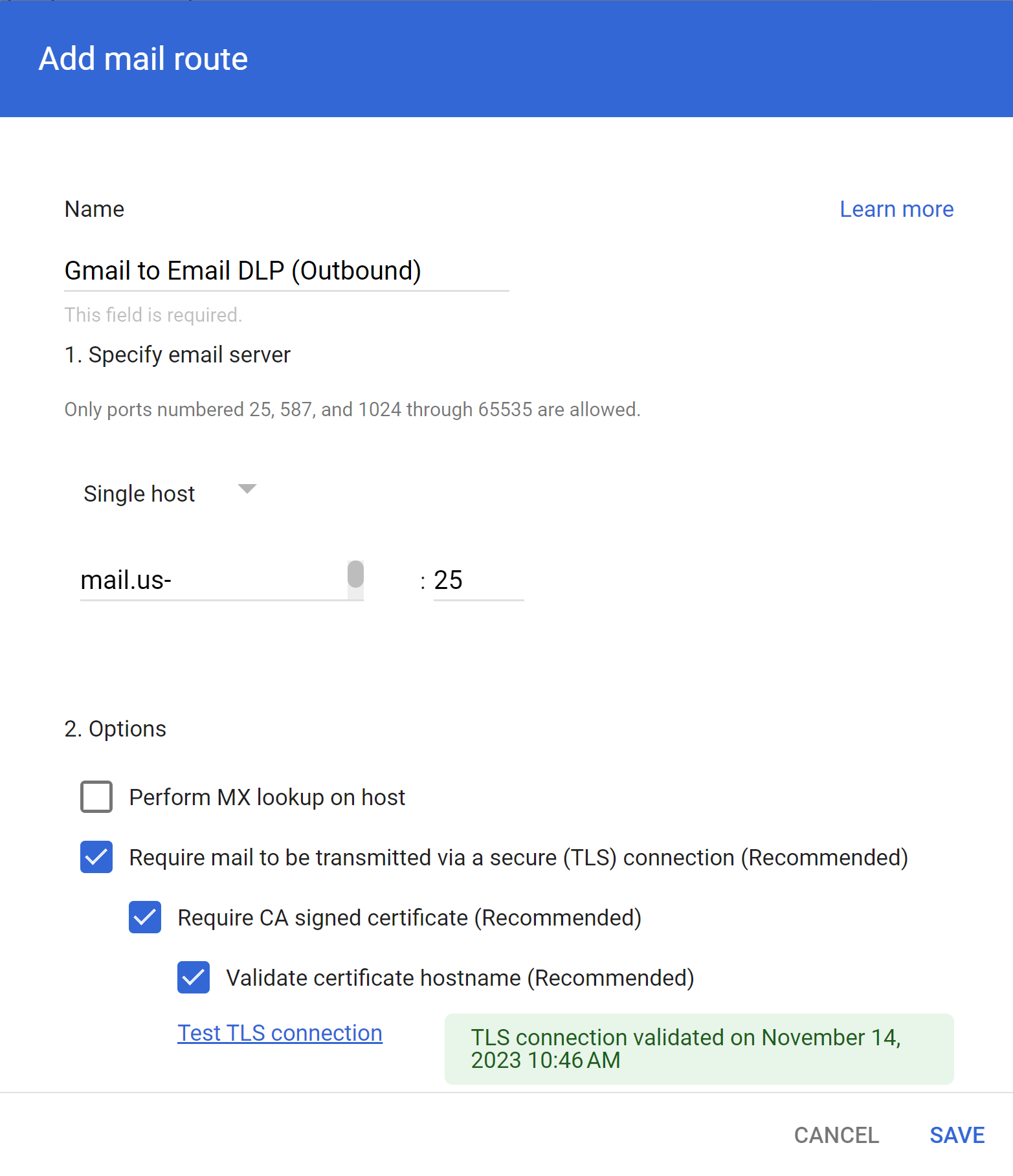

    4. Configure the Email DLP host.
      1. Enter a descriptive Name.
      2. In Specify email server, select Single host if not already selected.
      3. Enter the host name and port.
        Enterprise DLP requires adding the Email DLP host name for positive identification of the Enterprise DLP cloud service. The CA issuer FQDN you add must match the email routing FQDN you added in the previous step.
        • APAC
          mail.asia-southeast1.email.dlp.paloaltonetworks.com
        • Australia
          mail.australia-southeast1.email.dlp.paloaltonetworks.com
        • Europe
          mail.europe-west3.email.dlp.paloaltonetworks.com
        • India
          mail.asia-south1.email.dlp.paloaltonetworks.com
        • Japan
          mail.asia-northeast1.email.dlp.paloaltonetworks.com
        • United Kingdom
          mail.europe-west2.email.dlp.paloaltonetworks.com
        • United States
          mail.us-west1.email.dlp.paloaltonetworks.com
      4. For the Options, enable the following settings if not already enabled.
        • Require mail to be transmitted via a secure (TLS) connection
        • Require CA signed certificate
        • Validate certificate hostname
      5. Click Test TLS connection to verify Gmail can successfully connect to Enterprise DLP.
      6. Click Save.

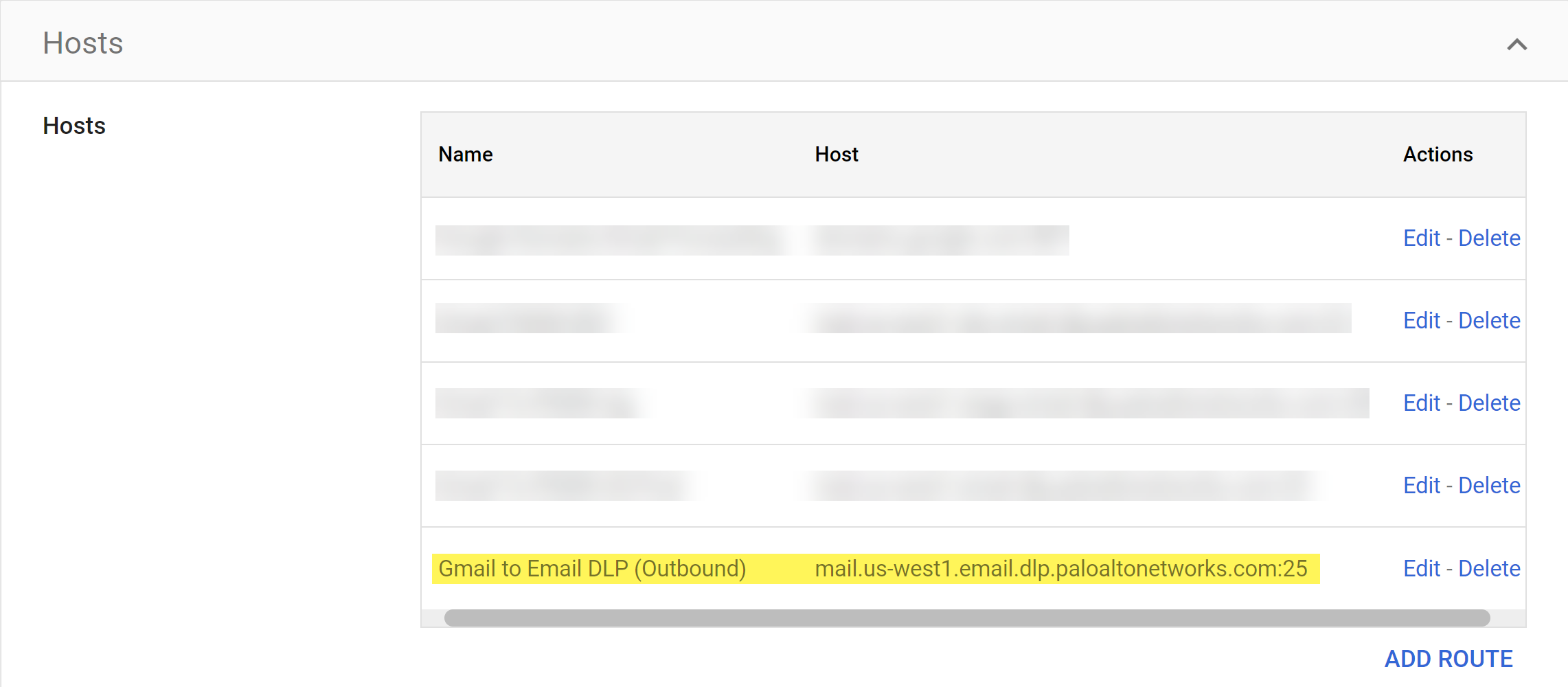

    5. Back in the Hosts page, verify that you successfully created the Email DLP host.
    6. (Optional) Set up a Proofpoint server for email encryption. See Set Up a Proofpoint Server for Email Encryption.
      Gmail requires a Proofpoint server to encrypt outbound email inspected by Enterprise DLP when inspected emails match your encryption Email DLP policy rule.
      Skip this step if you already configured routing to your Proofpoint server or don't use Proofpoint as your email security gateway to encrypt emails.
    7. Create Gmail transport rules. See Create a Gmail Email Transport Rule.
      After you successfully set up the Email DLP host on Gmail, you must create the Gmail transports rule to instruct Gmail to forward emails to Enterprise DLP and establish the actions Gmail takes based on verdicts rendered by Enterprise DLP.
      If your Email DLP policy action is set to Monitor, only the Email Transport rule is required. You don't need to create Quarantine, Block, or Encrypt transport rules.
      In this case, Enterprise DLP adds x-panw-action - monitor to the email header, creates a DLP incident, and sends the email to its intended recipient.
