Perform a Vulnerability Scan Using Qualys

Use IoT Security integration with Qualys to perform a vulnerability scan.
Because active scanning can be disruptive to the services running on a scanned device, only account owners have permission to perform vulnerability scans by default. Owners can also set scanning permissions per administrator account, thereby delegating it to just a few individuals.
By default, vulnerability scanning is disabled for new administrator accounts. To enable it, log in to the IoT Security portal as an owner, click
User Accounts
, and then click the email address (username) of an administrator for whom you want to enable vulnerability scanning. Slide the
Allow device vulnerability scans
toggle from
and then
The ability to do vulnerability scanning is only available to owners and administrators. There is no option to enable vulnerability scanning for deployment and read-only users.
  1. Initiate a Qualys vulnerability scan from IoT Security.
    1. Log in as an owner or administrator who has vulnerability scanning enabled, click
      , and then click the entry in the Device Name column for the device you want to scan.
    2. Because IoT Security only supports one vulnerability scan of a device at a time, make sure no other scans of this device are currently in progress.

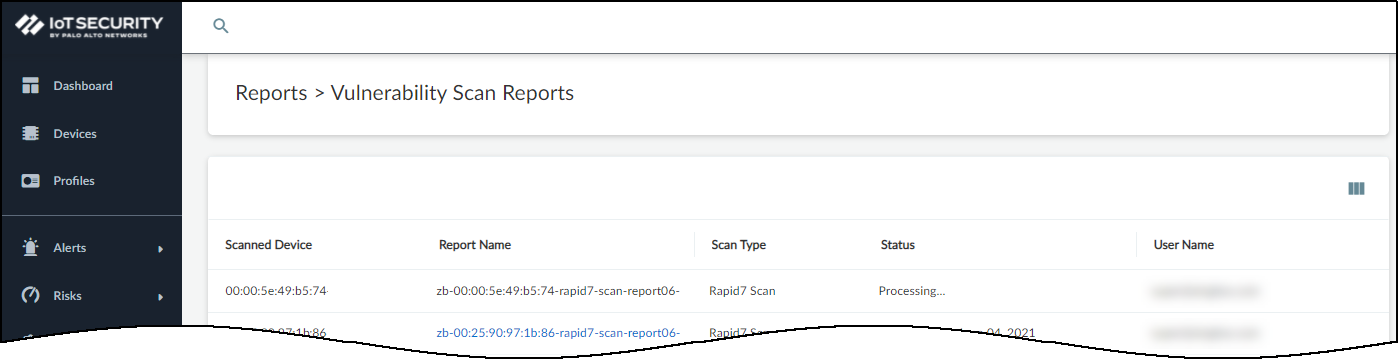

      Vulnerability Scan Reports
      and check the Status column. If you see
      for the device you want to scan, wait until the current scan finishes before starting a new one.
      When you see that the device isn’t already being scanned, you can continue with a new scan.
      Only initiate a scan of a device that’s in the Qualys inventory and that’s not currently active (and will remain inactive until the scan completes).
    3. Click
      and then click the entry in the Device Name column for the device you want to scan.

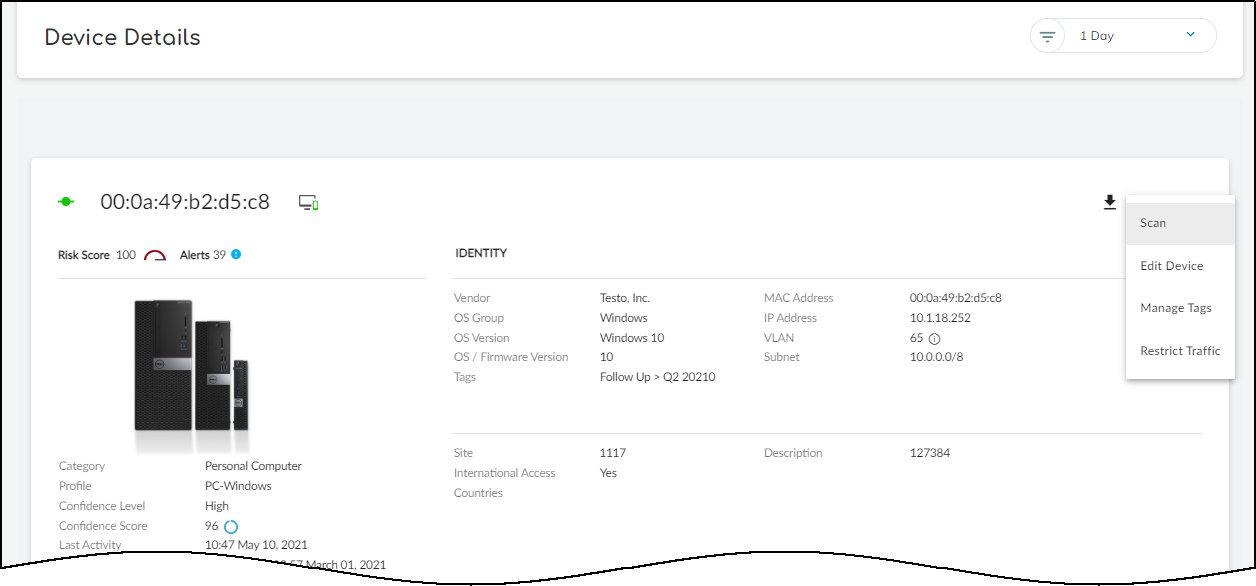

    4. At the top of the Device Details page, click the
      menu (three vertical dots) and then click

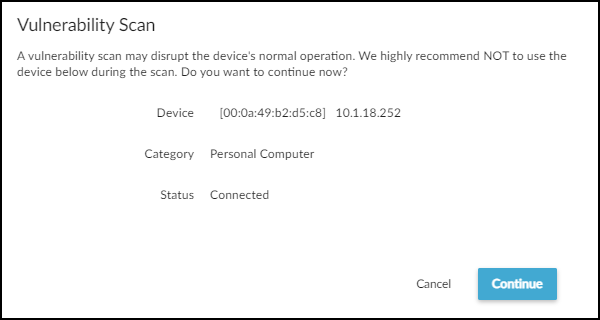

    5. Read the caution about scanning active devices and, if the device is currently inactive,

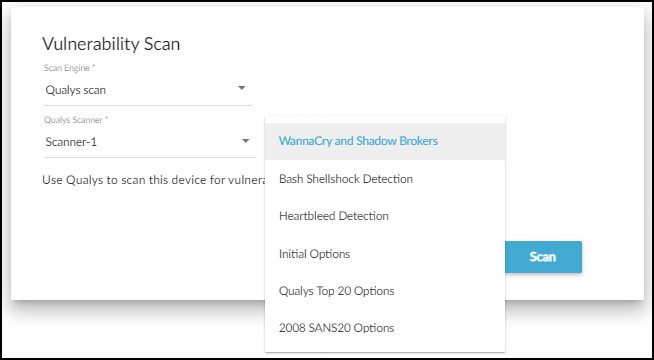

  2. Set parameters for the vulnerability scan you want Qualys to perform.
    Select the scan engine to perform the vulnerability scan and a profile to define the type of scan to run. Qualys provides a set of predefined profiles. You can also define and use your own.
  3. Click
    While the scan is in progress, a label appears at the top of the Device Details page indicating its status.
    When done, the label changes to show that the scan either failed or succeeded. You also receive an email alerting you that the report is ready.
  4. Download the vulnerability scan report, which is in PDF format.
    You have three options for viewing the report:
    • Click the
      Vulnerability Report Ready
      label at the top of the Device Details page.
    • Navigate to
      Vulnerability Scan Reports
      and then click the report name.
    • Click
      Download Report
      in the email message. This opens the
      Vulnerability Scan Reports
      page where you can download the report.

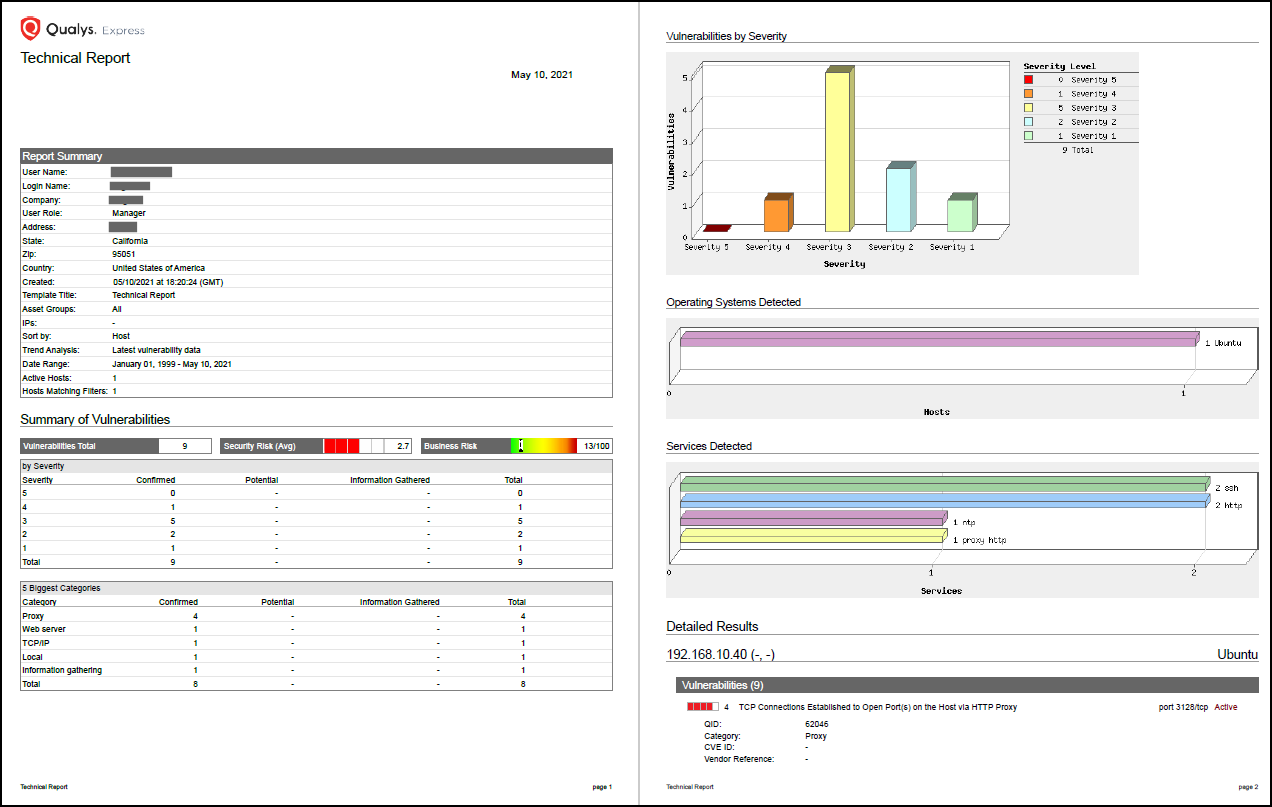

  5. Open the report in a PDF viewer.
    The report consists of three major sections: Report Summary, Summary of Vulnerabilities, and Detailed Results.
    IoT Security incorporates the results of the vulnerability scan into the risk score calculations for the device. In addition, any CVEs included in the scan report are made available in the Risks section on the Device Details page and on the
    page. IoT Security immediately updates the risk score and CVEs on the Device Details page. Updates to the CVEs on the
    page are not made immediately and can take up to 24 hours to appear.
