    Create an Advanced Data Profile

    Create an advanced
    Enterprise Data Loss Prevention (E-DLP)
     data profile containing any combination of custom and file property data patterns, and advanced detection methods such as EDM and custom document types.
    Where Can I Use This?
    What Do I Need?
    • NGFW (Managed by Panorama or Strata Cloud Manager)
    • Prisma Access (Managed by Panorama or Strata Cloud Manager)
    • Enterprise Data Loss Prevention (E-DLP)
       license
      Review the Supported Platforms for details on the required license for each enforcement point.
    Or any of the following licenses that include the
    Enterprise DLP
     license
    • Prisma Access
       CASB license
    • Next-Generation CASB for Prisma Access and NGFW (CASB-X)
       license
    • Data Security
       license
    Advanced data profiles are data profiles that can any combination of predefined, custom regex, or file property data pattern and advanced detection methods such EDM data sets and custom document types. Advanced data profiles are synchronized are with
    Panorama
    ,
    Prisma Access (Managed by Panorama)
    ,
    Strata Cloud Manager
    , and the DLP app on the hub.
    When you create a data profile using predefined data patterns, be sure to consider the detection types used by the predefined data patterns because the detection type determines how
    Enterprise DLP
     arrives at a verdict for scanned files.
    Updating an advanced data profile to include only data patterns isn’t supported if the advanced data profile includes at least one data pattern and advanced detection method when it was initially created. However, updating a data profile that includes data patterns and advanced detection methods to only include advanced detection methods is supported.
    Create a Classic Data Profile to create a data profile containing only predefined or custom data patterns.

    Strata Cloud Manager

    Create an advanced
    Enterprise Data Loss Prevention (E-DLP)
     data profile containing any combination of custom and file property data patterns, and advanced detection methods on
    Strata Cloud Manager
    .
    1. Log in to
      Strata Cloud Manager
      .
    2. Select
      Manage
      Configuration
      Data Loss Prevention
      Data Profiles
       and
      Add Data Profile
      Advanced Data Profile
      .
      You can also create a new data profile by copying an existing data profile. This allows you to quickly modify an existing data profile with additional match criteria while preserving the original data profile from which the new data profile was copied.
      Data profiles created by copying an existing data profile are appended with
      Copy - <name_of_original_data_profile>
      . This name can be edited as needed.
      Adding an EDM data set to a copied data profile is supported only if the original data profile had an EDM data set to begin with. Adding an EDM data set to a data profile that doesn’t already have an EDM data set isn’t supported.
    3. Configure the Primary Rule for the data profile.
      Data pattern match criteria for traffic that you want to allow must be added to the Primary Rule. Data pattern match criteria for traffic that you want to block can be added to either Primary Rule or Secondary Rule.
      1. Enter a descriptive
        Data Profile Name
        .
      2. Select the data pattern operator (
        AND
         or
        OR
        ).
      3. Add Data Pattern
        .
      4. Define the data profile match criteria
        • Data Patterns
          Select
          Add
          Data Pattern
           and define the data pattern match criteria.
          • Data Pattern
            —Select a custom or predefined data pattern.
          • Occurrence Condition
            —Specify the occurrences condition required to trigger a Security policy rule action.
            • Any
              —Security policy rule action triggered if
              Enterprise DLP
               detects at least one instance of matched traffic.
            • Less than or equal to
              —Security policy rule action triggered if
              Enterprise DLP
               detects instances of matched traffic, with the maximum being the specified
              Count
              .
            • More than or equal to
              —Security policy rule action triggered if
              Enterprise DLP
               detects instances of matched traffic, with a minimum being the specified
              Count
              .
            • Between (inclusive)
              —Security policy rule action triggered if
              Enterprise DLP
               detects any number of instances of matched traffic between the specific
              Count
               range.
          • Count
            —Specify the number of instances of matched traffic required to trigger a Security policy rule action. Range is
            1
             -
            500
            .
            For example, to match a pattern that appears three or more times in a file, select
            More than or equal to
             as the
            Occurrence Condition
             and specify
            3
             as the
            Threshold
            .
          • Confidence
            —Specify the confidence level required for a Security policy rule action to be taken (
            High
             or
            Low
            ).
          • Unique Occurrences
            —Check (enable) to detect only unique instances of traffic matches. Only unique occurrences of traffic matches are counted toward the specified
            Count
            .
            This setting is disabled by default. Keep
            Unique Occurrences
             disabled if you want all instances of traffic matches to count toward the specified
            Count
            .
        • Data Dictionary
          Select
          Add
          Dictionary
           and define the data dictionary match criteria.
          • Dictionary
            —Select a custom or predefined data pattern.
          • Occurrence Condition
            —Specify the occurrences condition required to trigger a Security policy rule action.
            • Any
              —Security policy rule action triggered if
              Enterprise DLP
               detects at least one instance of matched traffic.
            • Less than or equal to
              —Security policy rule action triggered if
              Enterprise DLP
               detects instances of matched traffic, with the maximum being the specified
              Count
              .
            • More than or equal to
              —Security policy rule action triggered if
              Enterprise DLP
               detects instances of matched traffic, with a minimum being the specified
              Count
              .
            • Between (inclusive)
              —Security policy rule action triggered if
              Enterprise DLP
               detects any number of instances of matched traffic between the specific
              Count
               range.
          • Count
            —Specify the number of instances of matched traffic required to trigger a Security policy rule action. Range is
            1
             -
            500
            .
            For example, to match a pattern that appears three or more times in a file, select
            More than or equal to
             as the
            Occurrence Condition
             and specify
            3
             as the
            Threshold
            .
          • Confidence
            —Specify the confidence level required for a Security policy rule action to be taken (
            High
             or
            Low
            ).
          • Unique Occurrences
            —Check (enable) to detect only unique instances of traffic matches. Only unique occurrences of traffic matches are counted toward the specified
            Count
            .
            This setting is disabled by default. Keep
            Unique Occurrences
             disabled if you want all instances of traffic matches to count toward the specified
            Count
            .
        • Custom Document Types
          Select
          Add
          Document Types
           and define the custom document type match criteria.
          • Document Type
            —Select a predefined or custom document type you uploaded to
            Enterprise DLP
            .
          • Overlapping Score Condition
            —Specify the custom document overlapping score required to trigger a Security policy rule action.
            • Greater Than or Equal To
              —Security policy rule triggered if
              Enterprise DLP
               detects an instance of matched traffic with the specified minimum overlapping score.
            • Between (Inclusive)
              —Security policy rule action triggered if
              Enterprise DLP
               detects an instance of matched traffic with an overlapping score between the specified
              min
               and
              max
               overlapping scores.
        • EDM
          Select
          Add
          EDM Dataset
           and define the EDM match criteria.
          • EDM Dataset
            —Select an EDM data set uploaded to the DLP cloud service.
          • Occurrence Condition
            —Specify the occurrences condition required to trigger a Security policy rule action.
          • Count
            —Specify the number of instances of matched traffic required to trigger a Security policy rule action. Range is
            1
             -
            500
            .
          • Configure EDM data set
            Primary Fields
             values to specify whether a Security policy rule action is taken if
            Any (OR)
             or
            All (AND)
             primary fields are matched and if
            Any (OR)
             or
            All (AND)
             secondary fields are matched.
          • (
            Any(OR) only
            ) Enter the
            Count
             to specify the number of instances of matched traffic required to trigger a Security policy rule action. Range is
            1
             -
            500
            .
            When you select
            Any (OR)
            , the maximum
            Count
             setting is one less than the total number of fields included in the
            Primary Field
             or
            Secondary Field
            .
          • Select the
            Primary Fields
             values.
            The list of available values is populated from the selected EDM data set. You must select at least one primary field value.
            You’re required to add at least one column where the column values occurs up to 12 times in the selected EDM data set for the
            Primary Field
            . For example, if the EDM data set contains columns for first name, last name, social security number, and credit card number, add social security number and credit card in the primary field.
        • Group
          Select
          Add
          Group
           to nest and group additional match criteria so you can more accurately define your compliance rules.
          When you click add a new
          Group
          , the new match criteria group is nested under the most recently added data pattern or EDM data set. You can’t nest a new match criteria group between existing data patterns or EDM data sets. If multiple data patterns or EDM data sets are added, you must remove the data patterns or EDM data sets that follow the data pattern or EDM data set for which you want to add the nested match criteria. For example, you added
          EDM_Dataset1
          ,
          Data_Pattern2
          , and
          EDM_Dataset3
           to the Primary Rule. If you wanted to added nested match criteria to
          Data_Pattern2
          , you must first remove
          EDM_Dataset3
           from the Primary Rule.
          You can select the same data pattern or EDM data set or a different data pattern EDM data set to more accurately define your compliance rules. Nesting match criteria is supported only when the data profile includes an EDM data set.
          Enterprise DLP
           supports up to three level of additional nesting groups for each data pattern or EDM data set. You can nest additional data patterns or EDM data sets under a data pattern or EDM data set added to the Primary or Secondary Rule.
          Nested match criteria support the
          AND
          ,
          OR
          , and
          NOT
           operators. Refer to the descriptions above to configure the nested match criteria.
    4. (
      Optional
      ) Configure a Secondary Rule.
      Data pattern match criteria added to the Secondary Rule block all traffic that meets the match criteria for the data patterns by default and can’t be modified. If you want to allow traffic that matches a data pattern match criteria, add it to the Primary Rule.
    5. Review the
      Data Profile Preview
       to verify the data profile match criteria.
    6. Save
       the data profile.
    7. Create a Security policy rule and associate the data profile.

    DLP App

    Create an advanced
    Enterprise Data Loss Prevention (E-DLP)
     data profile containing any combination of custom and file property data patterns, and advanced detection methods on the DLP app on the Hub.
    1. Log in to the DLP app on the hub.
      If you don’t already have access to the DLP app on the hub, see the hub Getting Started Guide. Only Superusers can access the hub.
    2. Select
      Data Profiles
      Add Data Profile
      Advanced Data Profile
      .
      You can also create a new data profile by copying an existing data profile. This allows you to quickly modify an existing data profile with additional match criteria while preserving the original data profile from which the new data profile was copied.
      Data profiles created by copying an existing data profile are appended with
      Copy - <name_of_original_data_profile>
      . This name can be edited as needed.
      Adding an EDM data set to a copied data profile is supported only if the original data profile had an EDM data set to begin with. Adding an EDM data set to a data profile that doesn’t already have an EDM data set isn’t supported.

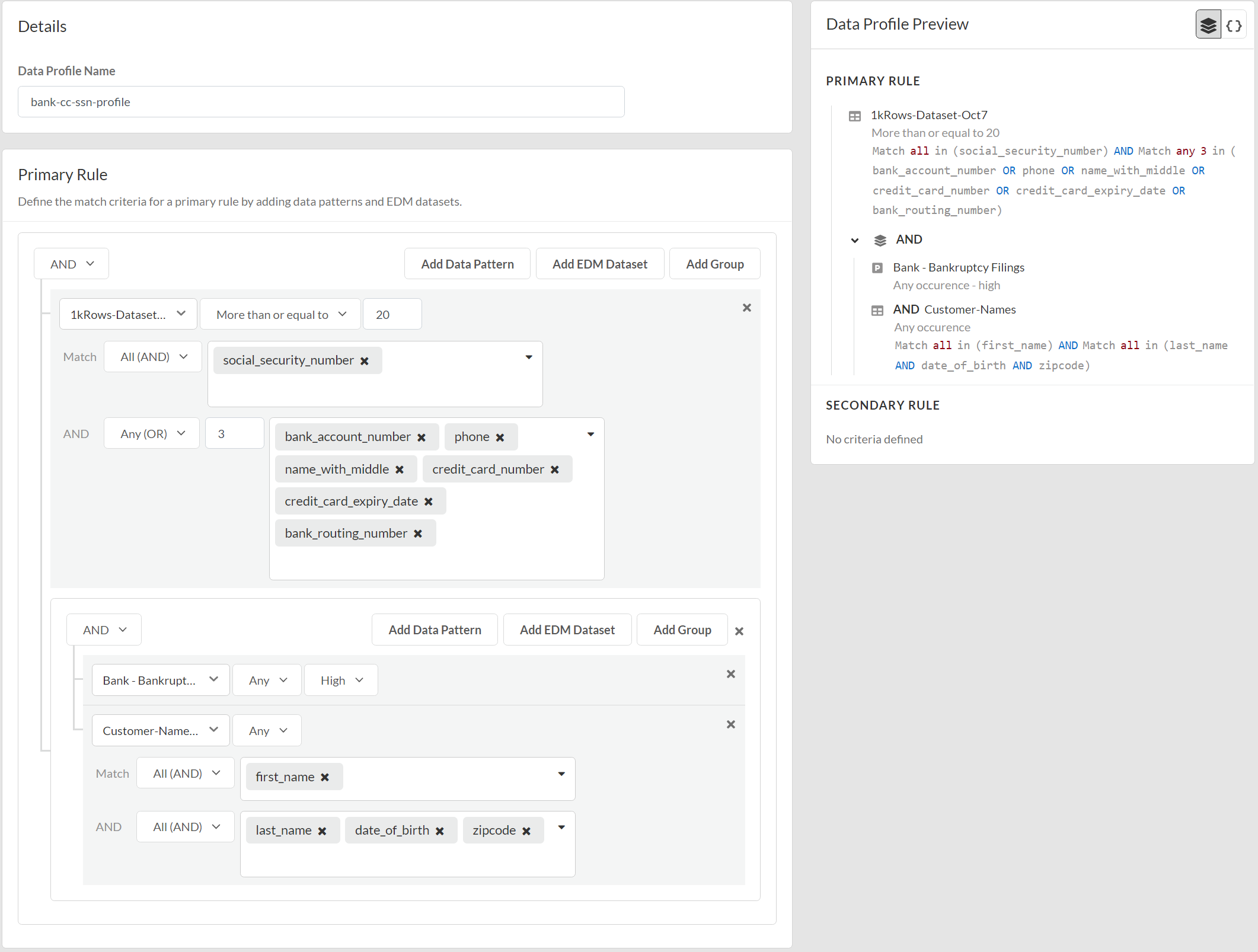

    3. Configure the Primary Rule for the data profile.
      Data pattern match criteria for traffic that you want to allow must be added to the Primary Rule. Data pattern match criteria for traffic that you want to block can be added to either Primary Rule or Secondary Rule.
      1. Enter a descriptive
        Data Profile Name
        .
      2. Select the data pattern operator (
        AND
         or
        OR
        ).
      3. Add Data Pattern
        .
      4. Define the data profile match criteria
        • Data Patterns
          Select
          Add
          Data Pattern
           and define the data pattern match criteria.
          • Data Pattern
            —Select a custom or predefined data pattern.
          • Occurrence Condition
            —Specify the occurrences condition required to trigger a Security policy rule action.
            • Any
              —Security policy rule action triggered if
              Enterprise DLP
               detects at least one instance of matched traffic.
            • Less than or equal to
              —Security policy rule action triggered if
              Enterprise DLP
               detects instances of matched traffic, with the maximum being the specified
              Count
              .
            • More than or equal to
              —Security policy rule action triggered if
              Enterprise DLP
               detects instances of matched traffic, with a minimum being the specified
              Count
              .
            • Between (inclusive)
              —Security policy rule action triggered if
              Enterprise DLP
               detects any number of instances of matched traffic between the specific
              Count
               range.
          • Count
            —Specify the number of instances of matched traffic required to trigger a Security policy rule action. Range is
            1
             -
            500
            .
            For example, to match a pattern that appears three or more times in a file, select
            More than or equal to
             as the
            Occurrence Condition
             and specify
            3
             as the
            Threshold
            .
          • Confidence
            —Specify the confidence level required for a Security policy rule action to be taken (
            High
             or
            Low
            ).
          • Unique Occurrences
            —Check (enable) to detect only unique instances of traffic matches. Only unique occurrences of traffic matches are counted toward the specified
            Count
            .
            This setting is disabled by default. Keep
            Unique Occurrences
             disabled if you want all instances of traffic matches to count toward the specified
            Count
            .
        • Data Dictionary
          Select
          Add
          Dictionary
           and define the data dictionary match criteria.
          • Dictionary
            —Select a custom or predefined data pattern.
          • Occurrence Condition
            —Specify the occurrences condition required to trigger a Security policy rule action.
            • Any
              —Security policy rule action triggered if
              Enterprise DLP
               detects at least one instance of matched traffic.
            • Less than or equal to
              —Security policy rule action triggered if
              Enterprise DLP
               detects instances of matched traffic, with the maximum being the specified
              Count
              .
            • More than or equal to
              —Security policy rule action triggered if
              Enterprise DLP
               detects instances of matched traffic, with a minimum being the specified
              Count
              .
            • Between (inclusive)
              —Security policy rule action triggered if
              Enterprise DLP
               detects any number of instances of matched traffic between the specific
              Count
               range.
          • Count
            —Specify the number of instances of matched traffic required to trigger a Security policy rule action. Range is
            1
             -
            500
            .
            For example, to match a pattern that appears three or more times in a file, select
            More than or equal to
             as the
            Occurrence Condition
             and specify
            3
             as the
            Threshold
            .
          • Confidence
            —Specify the confidence level required for a Security policy rule action to be taken (
            High
             or
            Low
            ).
          • Unique Occurrences
            —Check (enable) to detect only unique instances of traffic matches. Only unique occurrences of traffic matches are counted toward the specified
            Count
            .
            This setting is disabled by default. Keep
            Unique Occurrences
             disabled if you want all instances of traffic matches to count toward the specified
            Count
            .
        • Custom Document Types
          Select
          Add
          Document Types
           and define the custom document type match criteria.
          • Document Type
            —Select a predefined or custom document type you uploaded to
            Enterprise DLP
            .
          • Overlapping Score Condition
            —Specify the custom document overlapping score required to trigger a Security policy rule action.
            • Greater Than or Equal To
              —Security policy rule triggered if
              Enterprise DLP
               detects an instance of matched traffic with the specified minimum overlapping score.
            • Between (Inclusive)
              —Security policy rule action triggered if
              Enterprise DLP
               detects an instance of matched traffic with an overlapping score between the specified
              min
               and
              max
               overlapping scores.
        • EDM
          Select
          Add
          EDM Dataset
           and define the EDM match criteria.
          • EDM Dataset
            —Select an EDM data set uploaded to the DLP cloud service.
          • Occurrence Condition
            —Specify the occurrences condition required to trigger a Security policy rule action.
          • Count
            —Specify the number of instances of matched traffic required to trigger a Security policy rule action. Range is
            1
             -
            500
            .
          • Configure EDM data set
            Primary Fields
             values to specify whether a Security policy rule action is taken if
            Any (OR)
             or
            All (AND)
             primary fields are matched and if
            Any (OR)
             or
            All (AND)
             secondary fields are matched.
          • (
            Any(OR) only
            ) Enter the
            Count
             to specify the number of instances of matched traffic required to trigger a Security policy rule action. Range is
            1
             -
            500
            .
            When you select
            Any (OR)
            , the maximum
            Count
             setting is one less than the total number of fields included in the
            Primary Field
             or
            Secondary Field
            .
          • Select the
            Primary Fields
             values.
            The list of available values is populated from the selected EDM data set. You must select at least one primary field value.
            You’re required to add at least one column where the column values occurs up to 12 times in the selected EDM data set for the
            Primary Field
            . For example, if the EDM data set contains columns for first name, last name, social security number, and credit card number, add social security number and credit card in the primary field.
        • Group
          Select
          Add
          Group
           to nest and group additional match criteria so you can more accurately define your compliance rules.
          When you click add a new
          Group
          , the new match criteria group is nested under the most recently added data pattern or EDM data set. You can’t nest a new match criteria group between existing data patterns or EDM data sets. If multiple data patterns or EDM data sets are added, you must remove the data patterns or EDM data sets that follow the data pattern or EDM data set for which you want to add the nested match criteria. For example, you added
          EDM_Dataset1
          ,
          Data_Pattern2
          , and
          EDM_Dataset3
           to the Primary Rule. If you wanted to added nested match criteria to
          Data_Pattern2
          , you must first remove
          EDM_Dataset3
           from the Primary Rule.
          You can select the same data pattern or EDM data set or a different data pattern EDM data set to more accurately define your compliance rules. Nesting match criteria is supported only when the data profile includes an EDM data set.
          Enterprise DLP
           supports up to three level of additional nesting groups for each data pattern or EDM data set. You can nest additional data patterns or EDM data sets under a data pattern or EDM data set added to the Primary or Secondary Rule.
          Nested match criteria support the
          AND
          ,
          OR
          , and
          NOT
           operators. Refer to the descriptions above to configure the nested match criteria.
    4. (
      Optional
      ) Configure a Secondary Rule.
      Data pattern match criteria added to the Secondary Rule block all traffic that meets the match criteria for the data patterns by default and can’t be modified. If you want to allow traffic that matches a data pattern match criteria, add it to the Primary Rule.
    5. Review the
      Data Profile Preview
       to verify the data profile match criteria.
    6. Save
       the data profile.
    7. Verify that the data profile you created.
      • DLP App on the hub—
        Log in to the DLP app on the hub as a Superuser and select
        Data Profiles
         to view the data profile you created.
      • Strata Cloud Manager
        —Log in to
        Strata Cloud Manager
         and select
        Manage
        Configuration
        Security Services
        Data Loss Prevention
         and search for the data profile you created.
      • Panorama
         and
        Prisma Access (Managed by Panorama)
        See Update a Data Profile for more information on which data profile settings are editable on
        Panorama
         for a data profile created on
        Strata Cloud Manager
        .
      1. Log in to the
        Panorama
         web interface.
      2. Select
        Objects
        DLP
        Data Filtering Profiles
         and navigate to the data profile you created.
      3. (
        Optional
        ) Edit the data profile Action to block traffic.
        The Action for a data profile created on
        Strata Cloud Manager
         is configured to
        Alert
         by default.
        If the data profile has both Primary and Secondary Patterns, changing the data profile Action on
        Panorama
         deletes all Secondary Pattern match criteria.
        1. Select the data profile created on
          Strata Cloud Manager
          .
        2. Set the data profile Action to
          Block
           traffic that matches the data profile match criteria.
        3. Select
          Commit
          Commit to
          Panorama
           and
          Commit
          .
        4. Click
          OK
          .
        5. Select
          Commit
          Push to Devices
           and
          Edit Selections
          .
        6. Select
          Device Groups
           and
          Include Device and Network Templates
          .
        7. Push
           your configuration changes to your managed firewalls that are using
          Enterprise DLP
          .
    8. Attach the data profile to a Security policy rule.
      1. Log in to the
        Panorama
         web interface.
      2. Select
        Policies
        Security
         and specify the
        Device Group
        .
      3. Select the Security policy rule to which you want to add the data profile.
      4. Select
        Actions
         and set the
        Profile Type
         to
        Profiles
        .
      5. Select the
        Data Filtering
         profile you created.
      6. Click
        OK
        .
      7. Select
        Commit
         and
        Commit and Push
        .

    Recommended For You

    © 2024 Palo Alto Networks, Inc. All rights reserved.
