Enable and Verify FIPS-CC Mode Using the Windows Registry

Enable and Verify FIPS-CC Mode Using the Windows Registry

1. Enable FIPS mode for the Windows operating system.
   To enable FIPS-CC mode for GlobalProtect, you must first enable FIPS mode for the Windows operating system to ensure that your Windows endpoint is FIPS 140-2 compliant.
   1. Launch the Command Prompt.
   2. Enter regedit to open the Windows Registry.
   3. In the Windows Registry, go to: HKEY_LOCAL_MACHINE\System\CurrentControlSet\Control\Lsa\FipsAlgorithmPolicy\.
   4. Right-click the Enabled registry value and Modify it.
   5. To enable FIPS mode, set the Value Data to 1. The default value of 0 indicates that FIPS mode is disabled.



   6. Click OK.
   7. Restart your endpoint.
2. Enable FIPS-CC mode for GlobalProtect.
   You cannot disable FIPS-CC mode after you enable it. To run GlobalProtect in non-FIPS-CC mode, end users must uninstall and then reinstall the GlobalProtect app. This clears all FIPS-CC mode settings from the Windows Registry.
   1. Launch the Command Prompt.
   2. Enter regedit to open the Windows Registry.
   3. In the Windows Registry, go to: HKEY_LOCAL_MACHINE\SOFTWARE\Palo Alto Networks\GlobalProtect\Settings\.
   4. Click Edit and then select NewString Value.
   5. When prompted, specify the Name of the new registry value as enable-fips-cc-mode.
   6. Right-click the new registry value and Modify it.
   7. To enable FIPS-CC mode, set the Value Data to yes.
   8. Click OK.


3. Restart GlobalProtect.
   To enable the GlobalProtect app to initialize in FIPS-CC mode, you must restart GlobalProtect using one of the following methods:
   • Reboot your endpoint.

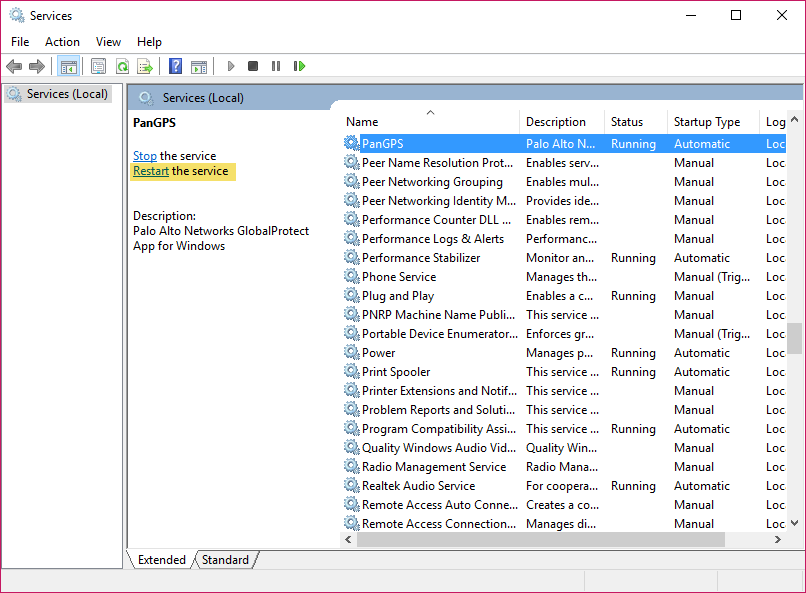

   • Restart the GlobalProtect application and GlobalProtect service (PanGPS):
     1. Launch the Command Prompt.
     2. Enter services.msc to open the Windows Services manager.
     3. From the Services list, select PanGPS.
     4. Restart the service.


4. Verify that FIPS-CC mode is enabled on your GlobalProtect app.
   1. Launch the GlobalProtect app.
   2. From the status panel, open the settings dialog (

      ).
   3. Select About.
   4. Verify that FIPS-CC mode is enabled. If FIPS-CC mode is enabled, the About dialog displays the FIPS-CC Mode Enabled status.
