: Creating and Managing Policies
Focus
Focus

Creating and Managing Policies

Table of Contents
End-of-Life (EoL)

Creating and Managing Policies

Select the
Policies
Security
page to add, modify, and manage security policies:
Task
Description
Add
Add
a new policy rule or select a rule on which to base a new rule and
Clone Rule
. The copied rule, “rulen” is inserted below the selected rule, where n is the next available integer that makes the rule name unique. For details on cloning, see Move or Clone a Policy Rule.
Modify
Select a rule to modify its settings.
If the rule is pushed from Panorama, the rule is read-only on the firewall and you cannot edit it locally.
Override
and
Revert
actions pertain only to the default rules displayed at the bottom of the Security rulebase. These predefined rules—allow all intrazone traffic and deny all interzone traffic—instruct the firewall about how to handle traffic that does not match any other rule in the rulebase. Because they are part of the predefined configuration, you must
Override
them to edit select policy settings. If you are using Panorama, you can also
Override
the default rules and then push them to firewalls in a Device Group or Shared context. You can also
Revert
the default rules, which restores the predefined settings or the settings pushed from Panorama. For details, see Overriding or Reverting a Security Policy Rule.
Move
Rules are evaluated from the top down and as they are enumerated on the
Policies
page. To change the order in which the rules are evaluated against network traffic, select a rule and
Move Up
,
Move Down
,
Move Top
,
Move Bottom
, or
Move to a different rulebase or device group
. For details, see Move or Clone a Policy Rule.
Copy UUID
Copy the UUID of the rule to the clipboard for use when searching the configuration or the logs.
Delete
Select and
Delete
an existing rule.
Enable/Disable
To disable a rule, select and
Disable
it; to enable a rule that is disabled, select and
Enable
it.
Monitor Rule Usage

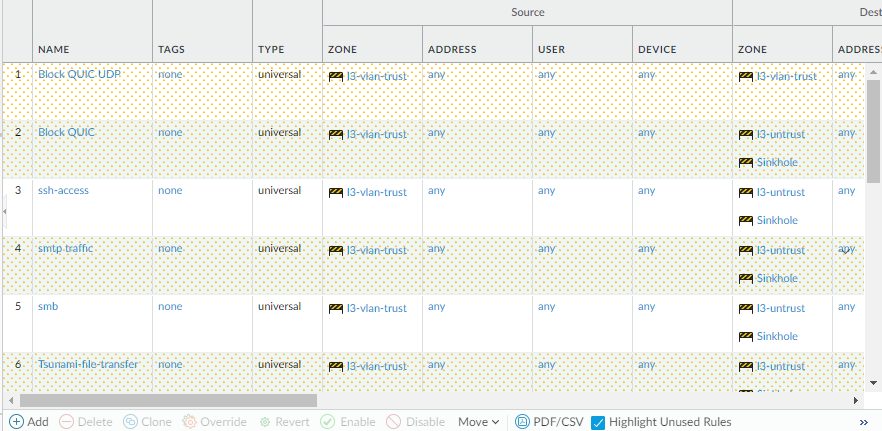

To identify rules that have not been used since the last time the firewall was restarted,
Highlight Unused Rules
. Unused rules have a dotted background. You can then decide whether to
Disable
a rule or
Delete
it. Rules not currently in use are displayed with a dotted yellow background. When policy rule hit count is enabled, the Hit Count data is used to determine whether a rule is unused.
Each firewall maintains a traffic flag for the rules that have a match. Because the flag is reset when a dataplane reset occurs on a reboot or a restart, it is best practice to monitor this list periodically to determine whether the rule had a match since the last check before you delete or disable it.
Reset rule Hit count
The
Hit Count
tracks the total traffic hits for the policy rule. The total traffic hit count persists through reboot, upgrade, and data plane restart.

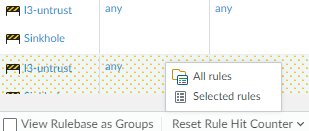

Alternatively,
Reset Rule Hit Counter
(bottom menu). To clear the hit count statistics, select
All Rules
or select specific rules and reset hit count statistics only for the
Selected rules
.
View the
First Hit
to identify when the Security policy was first hit. The date is formated as date hh:mm:ss year. You cannot reset this value.
View the
Last Hit
to identify when the Security policy was last used. The date is formated as date hh:mm:ss year. You cannot reset this value.

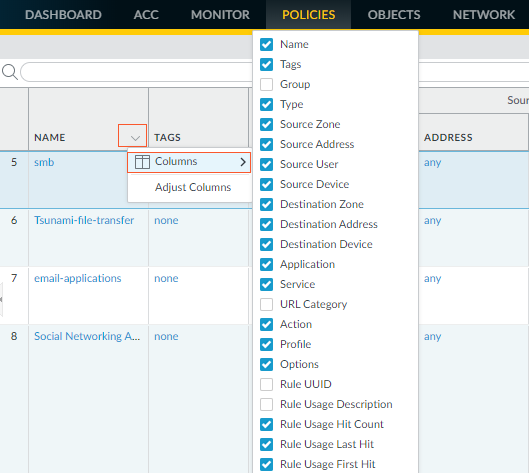

Show/Hide columns
Show or hide the columns that display under
Policies
. Select the column name to toggle the display.
Apply filters
To apply a filter to the list, select from the
Filter Rules
drop-down. To define a filter, choose
Filter
from the item drop-down.
The default rules are not part of rulebase filtering and always show up in the list of filtered rules.
To view the network sessions that were logged as matches against the policy, choose
Log Viewer
from the rule name drop-down.
To display the current value, choose
Value
from the entry drop-down. You can also edit, filter, or remove items directly from the column menu. For example, to view addresses included in an address group, hover over the object in the
Address
column and select
Value
from the drop-down. This allows you to quickly view the members and the corresponding IP addresses for the address group without having to navigate to the
Object
tab.

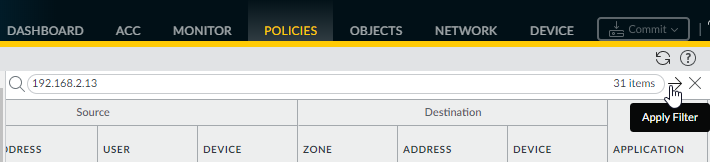

To find objects used within a policy based on their name or IP address, use the filter. After you apply the filter, you will see only the items that match the filter. The filter also works with embedded objects. For example, when you filter on 10.1.4.8, only the policy that contains that address is displayed:
Preview rules (
Panorama only
)
Preview Rules
to view a list of the rules before you push the rules to the managed firewalls. Within each rulebase, the hierarchy of rules is visually demarcated for each device group (and managed firewall) to make it easier to scan through a large numbers of rules.
Export Configuration Table
Administrative roles with a minimum of read-only access can export the policy rulebase as
PDF/CSV
. You can apply filters to create more specific table configuration outputs as needed, such as for audits. Only visible columns in the web interface will be exported. See Configuration Table Export.
Highlight Unused Rule
Highlight any policy rule with no traffic matches in the
Rule Usage
column.
Group
Manage tag groups when you have the
View Rulebase as Groups
box checked. You can perform the following actions:
  • Move rules in group to different rulebase or device group
    —Move the selected tag group to a different device group.
  • Change group of all rules
    —Move the rules in the selected tag group to a different tag group in the rulebase.
  • Delete all rules in group
    —Deletes all rules in the selected tag group.
  • Clone all rules in group
    —Clones the rules in the selected tag group to a device group.
View Rulebase as Groups
View Rulebase as Groups
to view the policy rulebase using the tag used in
Group Rules by Tag
. The visible policy rules are those which belong to the selected tag group.
Test Policy Match
Perform a test of the protection policies for the selected policy rulebase to verify that the correct traffic is denied and allowed.
