Create a VRF and Bridge Domain

A tenant requires a VRF for all bridge domains and subnets. In this example, you will create a single, common VRF for the firewall and endpoints. Then configure a dedicated bridge domain for your firewall and disable dataplane learning. Disabling dataplane learning is required to use Policy Based Redirect in a bridge domain.

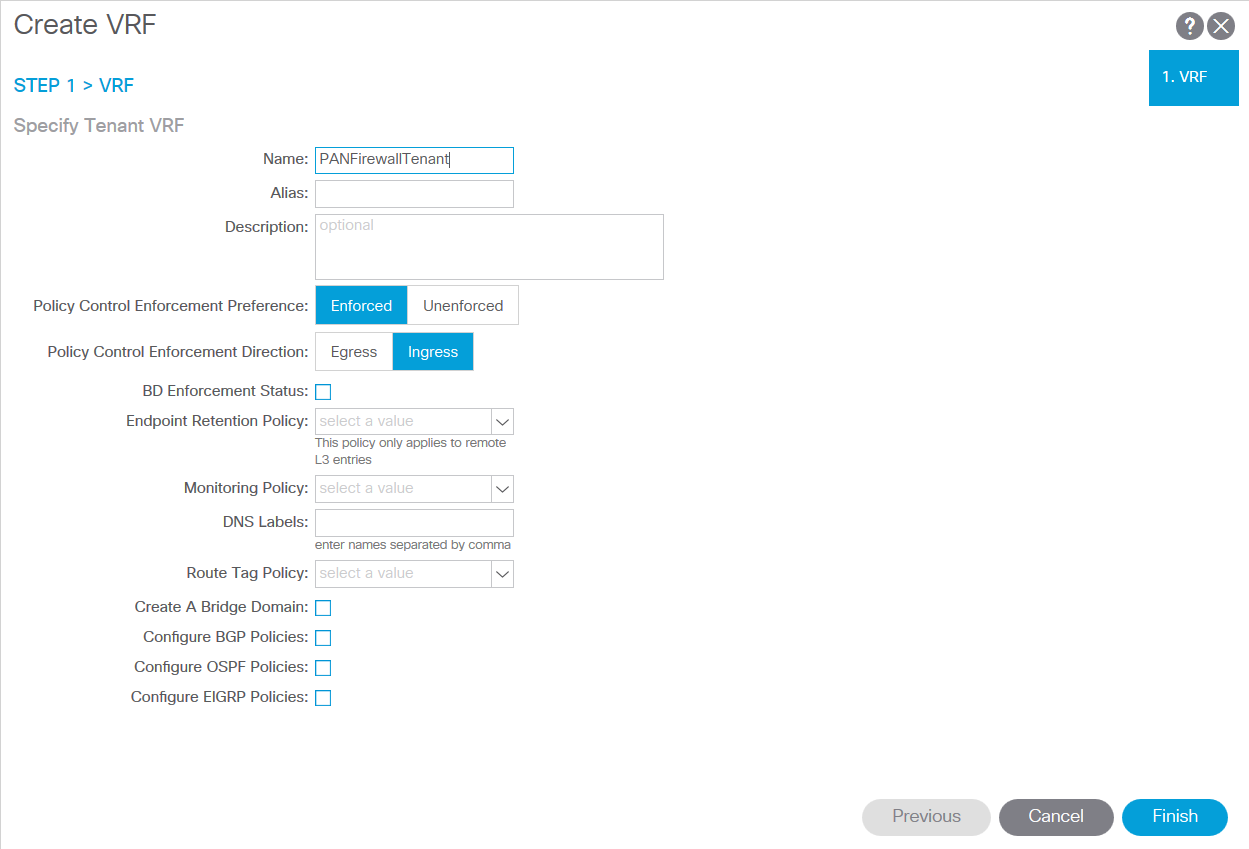

  1. Create a VRF.
    1. On the
      Tenants
      tab, double-click on the name of your tenant.
    2. Select
      Networking
      VRFs
      .
    3. Right-click
      VRFs
      and select
      Create VRF
      .
    4. Enter a descriptive
      Name
      for your VRF.
    5. Clear the
      Create A Bridge Domain
      check box.
    6. Click
      Finish
      .

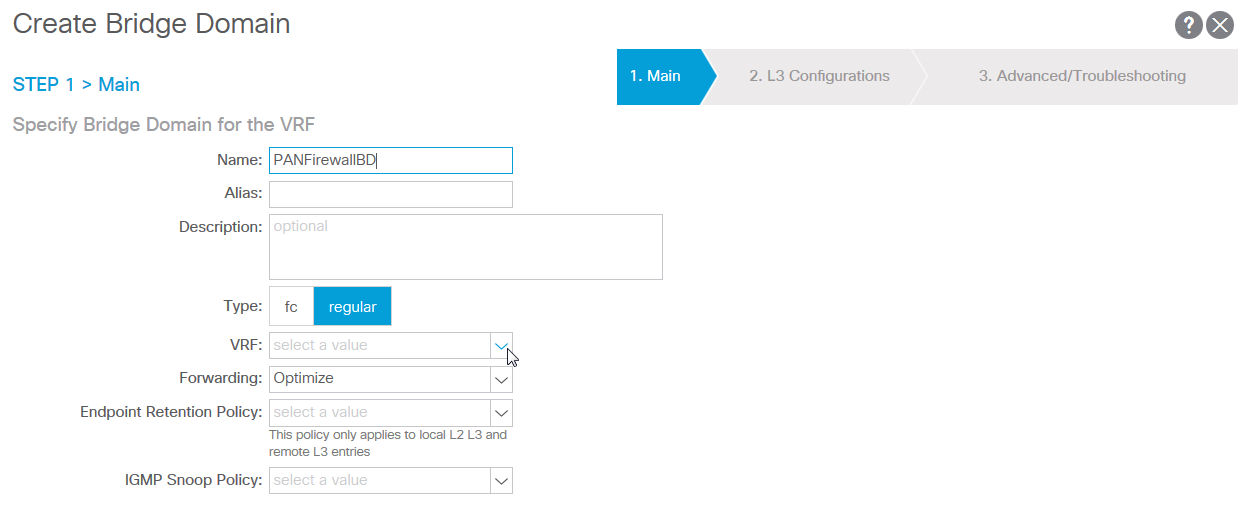

  2. Create a bridge domain for the firewall.
    1. On the
      Tenants
      tab, double-click on the name of your tenant.
    2. Select
      Networking
      Bridge Domains
      .
    3. Right-click
      Bridge Domains
      and select
      Create Bridge Domain
      .
    4. Enter a descriptive
      Name
      for your bridge domain.
    5. Select the VRF you created in the previous procedure from the
      VRF
      drop-down.
    6. Click
      Next
      .
