Deploy the VM-Series Firewall From the Oracle Cloud Marketplace

Complete the following procedure to deploy the VM-Series firewall in OCI from the Oracle Cloud Marketplace.
All VM-Series firewall interfaces must be assigned an IPv4 address when deployed in a public cloud environment. IPv6 addresses are not supported.
  1. Log in to the Oracle Cloud Marketplace.
  2. Find the VM-Series firewall application in the Oracle Cloud Marketplace.
    1. Search for Palo Alto Networks and a list of offerings for the VM-Series firewall will display.
    2. Select an offering.
    3. Click
      Get App
      .
    4. Select your
      Region
      and click
      Sign In
      .
    5. Select the
      Version
      and
      Compartment
      .
    6. Accept the Oracle and Partner terms.
    7. Click
      Launch Instance
      .
  3. Enter a descriptive
    Name
    for your VM-Series firewall instance.
  4. Select an
    Availability Domain
    .
  5. Select
    Virtual Machine
    under
    Shape Type
    .

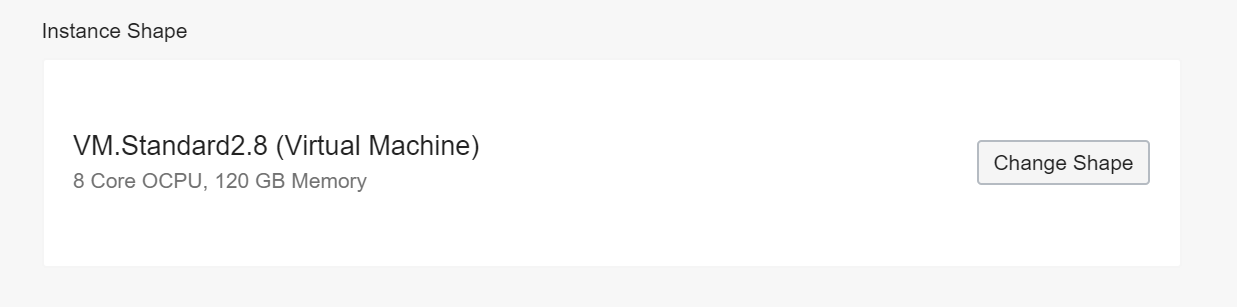

  6. Select the shape with the number of CPUs, amount of RAM, and number of interfaces required for the VM-Series firewall model. See the Compute Shapes page for the amount resources provided by the different compute shapes. See VM-Series System Requirements for more information about the resources required for each VM-Series firewall model.
  7. Under Networking, select your
    Virtual cloud network compartment
    ,
    Virtual cloud network
    ,
    Subnet compartment
    , and
    Subnet
    for your management interface. You can only add one interface when creating the VM-Series firewall instance. You will add additional interfaces later.
  8. (
    Optional
    ) Set the boot volume to a size larger than the default. By default, the boot volume is set to 60GB. Complete this procedure if you require a larger boot volume to support features such as attaching logs.
    1. Select
      Custom boot volume size (in GB)
      .
    2. Enter 60 or greater. 60 GB is the minimum hard drive size required by the VM-Series firewall.

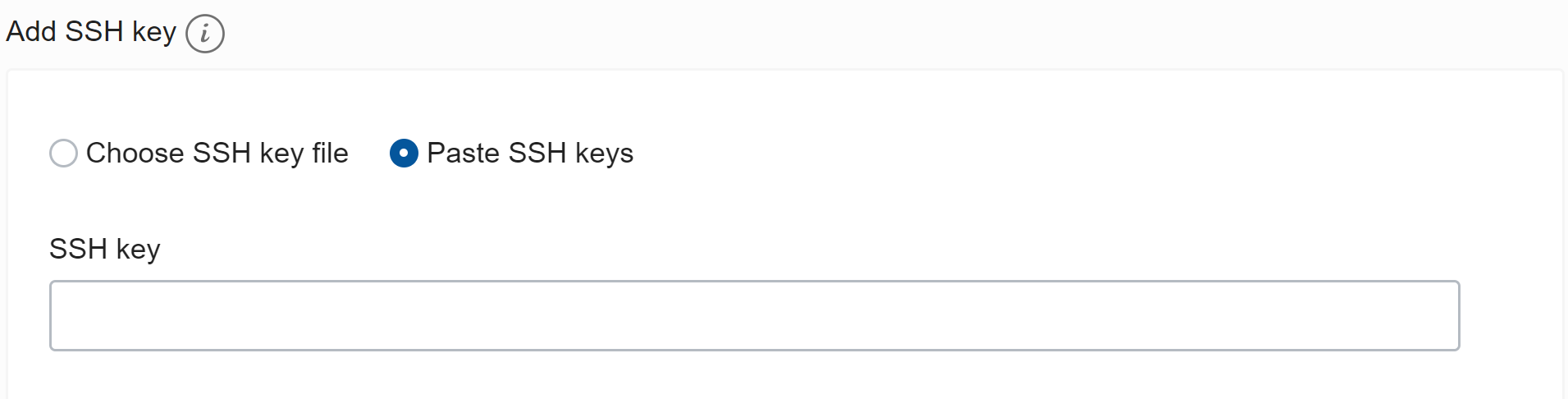

  9. Add your SSH key.
    1. Under
      Add SSH Key
      , select
      Paste SSH Key
      .
    2. Paste your SSH key into the field provided.

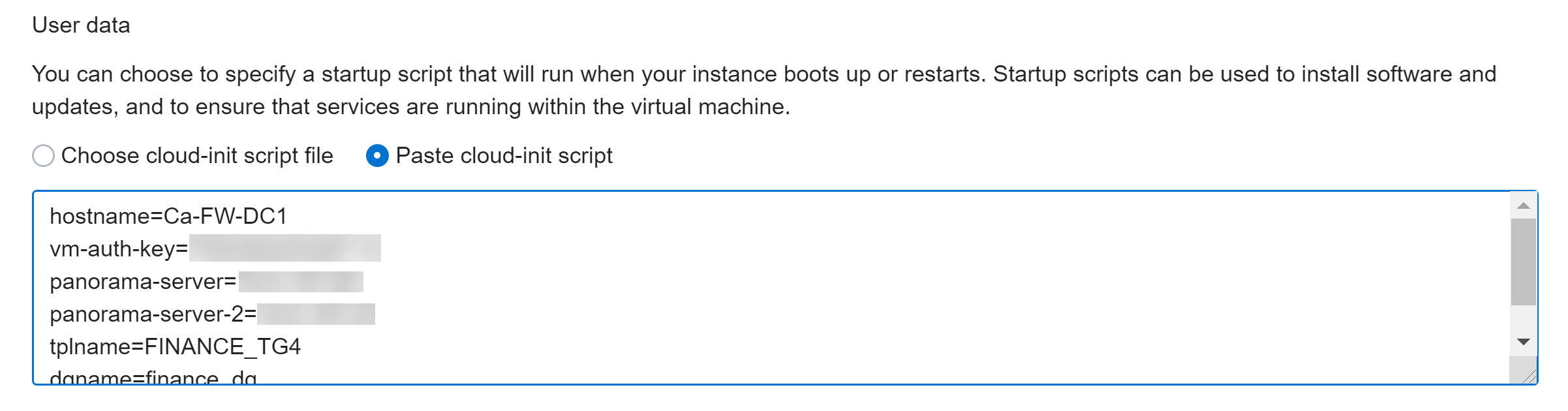

  10. Add the bootstrapping parameters.
    1. Click
      Show Advanced Options
      .
    2. Under
      User data
      , select
      Paste cloud-init script
      .
    3. Paste the boostrap parameters into the field provided.
      hostname=<
      fw-hostname
      >
      vm-auth-key=<
      auth-key
      >
      panorama-server=<
      panorama-ip
      >
      panorama-server-2=<
      panorama2-ip
      >
      tplname=<
      template-stack-name
      >
      dgname=<
      device-group-name
      >
      authcodes=<
      firewall-authcode
      >
      op-command-modes=jumbo-frame
  11. Click
    Create
    .
    When the VM-Series firewall is launched, OCI creates and attaches a primary VNIC to the instance. This VNIC resides in the subnet you specified in the instance network setting and connects to the VM-Series firewall’s management interface.
  12. Configure a new administrative password for the firewall.
    1. Use the management IP address to SSH into the command line interface (CLI) of the VM-Series firewall.
    2. Enter the following command to log in to the firewall:
      ssh-i
      <private_key.pem>
      admin@
      <public-ip_address>
    3. Configure a new password, using the following command and follow the onscreen prompts:
      configure
      set mgt-config users admin password
  13. Attach a vNIC to your VM-Series firewall instance for each data interface. You must attach at least two data interfaces to your firewall instance—untrust and trust.
    1. Select your newly launched VM-Series firewall instance and select
      Attached VNICs
      Create VNIC
      .
    2. Enter a descriptive
      Name
      for your vNIC.
    3. Select your VCN from the
      Virtual Cloud Network
      drop-down.
    4. Select your subnet from the
      Subnet
      drop-down.
    5. Specify a
      Private IP Address
      . This is only required if your want to choose a particular IP for the vNIC. If you do not specify an IP, OCI will assign an IP address from the CIDR block you assigned to the subnet.
    6. Select
      Assign Public IP Address
      for public facing vNICs such as your untrust subnet.
    7. Click
      Create VNIC
      .
    8. Repeat this procedure for each vNIC your deployment requires.
  14. Configure the dataplane network interfaces as Layer 3 interfaces on the firewall.
    1. Log in to the firewall.
    2. Select
      Network
      Interfaces
      Ethernet
      .
    3. Click the link for
      ethernet 1/1
      and configure as follows:
      • Interface Type
        :
        Layer3
      • On the
        Config
        tab, assign the interface to the default router.
      • On the
        Config
        tab, expand the
        Security Zone
        drop-down and select
        New Zone
        . Define a new zone, for example untrust-zone, and then click
        OK
        .
      • On the
        IPv4
        tab, select either
        Static
        .
      • Click
        Add
        in the IP section and enter the IP address and network mask for the interface. Make sure that the IP address matches the IP address that you assigned to the corresponding subnet in VCN. For example, if you add this interface to your untrust zone, make sure you assign the untrust vNIC IP address configured in your VCN.
    4. Repeat this procedure for each vNIC configured in your VCN except your management vNIC.
    Always only delete interfaces at the bottom of the interface list. Deleting firewall interfaces in the wrong order results in a interface mismatch between the firewall and OCI. For example, say you have five data interfaces, then delete interface two on the firewall and add a new interface at the bottom. After rebooting the firewall, the newly added interface will take the place of the deleted interface two instead of taking a place at the bottom of the list.
