Dynamically Quarantine Infected Guests

Threat and traffic logs in PAN-OS include the source or destination universally unique identifier (UUID) of guest VMs in your NSX-V deployment. This allows the VM-Series for NSX-V to support the tagging of guest VMs with NSX-V security tags. With the guest VMs’ UUID now included in the log events, the firewall, based on the filtered log events, can tag the affected guest VM via NSX-V Manager API. This allows for automatic location of compromised VMs in the NSX-V environments. NSX-V can then put all associated UUIDs under policies to quarantine those VMs from the rest of the network.
Panorama includes predefined payload formats for threat and traffic logs in the HTTP Server Profile. These payload formats correspond to predefined security tags in NSX-V. When a guest VM is found in the threat or traffic logs, Panorama makes an API call to NSX-V Manager telling NSX-V Manager to tag the guest VM with the tag specified in the HTTP Server Profile. When the guest VM becomes tagged, NSX-V Manager dynamically moves the tagged guest VM into the quarantine security group, which places the guest VM into the quarantine dynamic address group.
  1. Confirm that you have content update version 636 or later installed on Panorama.

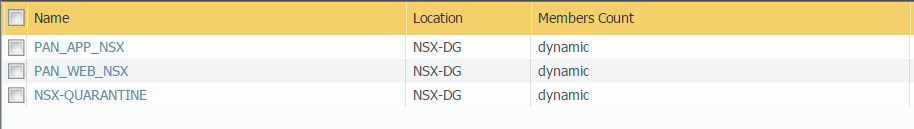

  2. Create a dynamic address group to be your quarantine dynamic address group.
  3. Create an HTTP Server Profile to send API calls to NSX-V Manager.
    1. Select
      Panorama
      Server Profiles
      HTTP
      and
      Add
      a new HTTP Server Profile.

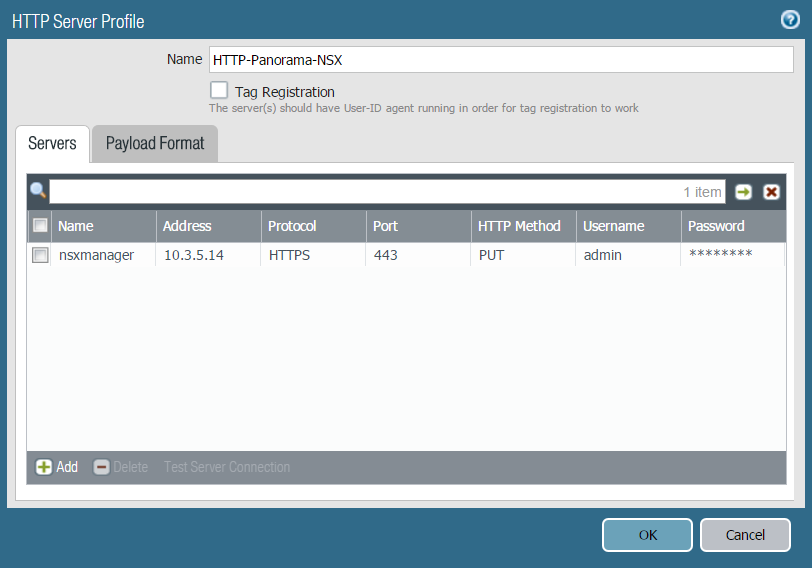

    2. Enter a descriptive
      Name
      .
    3. Select
      Add
      to provide the details of NSX-V Manager.
    4. Enter a
      Name
      for NSX-V Manager.
    5. Enter the
      IP Address
      of NSX-V Manager.
    6. Select the Protocol (HTTP or HTTPS). The default Port is 80 or 443 respectively.
    7. Select PUT under the HTTP Method column.
    8. Enter the username and password for NSX-V Manager.
    9. Select
      Payload Format
      and choose an NSX-V payload format from the Pre-defined Formats drop-down. This populates the URI Format, HTTP Headers, and Payload fields with the correct information to send the HTTP API call to NSX-V Manager. Additionally, the chosen format determines which security tag NSX-V Manager applies to infected guest VMs. In the example below,
      NSX-V Anti-Virus Threat High
      is selected which corresponds to the
      ANTI_VIRUS.VirusFound.threat=high
      security tag on NSX-V Manager.
  4. Define the match criteria for when Panorama will forward logs to the NSX-V Manager, and attach the HTTP server profile to use.
    1. Select
      Panorama
      Collector Groups
      Collector Log Forwarding
      for Threat or Traffic logs.
    2. Click
      Traffic
      or
      Threat
      and
      Add
      .

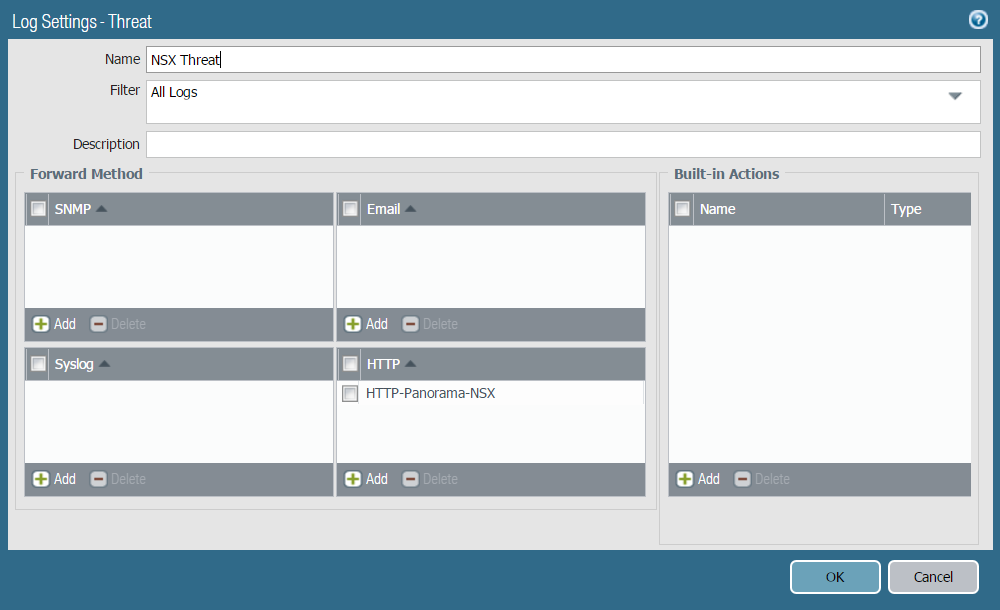

    3. Enter a descriptive name for the new log settings.
    4. (
      Optional
      ) Under Filter, you can add filters such as severity to narrow the logs that are forwarded to NSX-V Manager. If All Logs is selected, all threat or traffic logs that meet the criteria set in the HTTP Server profile are sent to NSX-V Manager.
    5. Click
      Add
      under HTTP and select the HTTP Server Profile configured in Step 3.
    6. Click
      OK
      .
  5. Configure an NSX-V server certificate for Panorama to forward logs to NSX-V manager.
    1. Select
      Panorama
      Certificate Management
      Certificates
      .
    2. Create a root CA certificate with CN=IP address of Panorama.
    3. Create a signed certificate with CN=IP address of NSX-V Manager.
    4. Export the root CA certificate in PEM format without a private key.
    5. Export the signed certificate in PEM format with a private key.
    6. Using a tool such as OpenSSL, concatenate the exported certificates into a single PEM file for upload to NSX-V manager. Use the following commands in OpenSSL to complete this step.
      cat cert_NSX_Root_CA.crt cert_NSX_Signed1.pem > cert_NSX_cert_chain.pem
      openssl pkcs12 -export -in cert_NSX_cert_chain.pem -out cert_NSX_cert.p12
    7. Log in to NSX-V Manager and select
      Manage Appliance Settings
      SSL Certificates
      Upload PKC#12 Keystore
      . Click
      Choose File
      , locate the p12 file you created in the previous step, and click
      Import
      .
  6. Associate a security group with a security tag in vCenter.
    1. Log in to vCenter.
    2. Select
      Networking & Security
      Service Composer
      Security Groups
      .
    3. Select a security group that is counterpart to the quarantine dynamic address group you created previously and click
      Edit Security Group
      .
    4. Select Define dynamic membership and click the + icon.
    5. Click
      Add
      .
    6. Set the criteria details to Security Tag Contains and then enter the NSX-V security tag that corresponds to the NSX payload format you chose in 3. Each of the predefined NSX-V payload formats corresponds to an NSX-V security tag. To view the NSX-V security tags in NSX-V, select
      Networking & Security
      NSX Managers
      NSX Manager IP
      Manage
      Security Tags
      .
      In this example,
      NSX Anti-Virus Threat High
      is used in the HTTP Server Profile so
      ANTI_VIRUS.VirusFound.threat=high
      is the NSX-V Security Tag that is used here.
    7. Click Finish.
  7. After the guest VM is cleared for removal from quarantine, manually remove the NSX-V security tag from the guest VM in NSX-V.
    1. Log in to vCenter.
    2. Select
      VMs and Templates
      and choose the quarantined guest.
    3. Select
      Summary
      Security Tags
      Manage
      .
    4. Uncheck the security tag used by the quarantine security group and click OK.
    5. Refresh the page and the quarantine security will no longer be listed under
      Summary
      Security Group Membership
      .
    Source and destination UUID fields in threat and traffic logs may be blank after a guest VM is removed from quarantine. This can occur when running NSX-V 6.2.3 or earlier or if NSX-V steering rules do not use the inout direction. You can resolve this by upgrading NSX-V to 6.2.4 or issue an NSX Config-sync under
    Panorama
    VMware
    NSX-V
    Service Manager
    and reboot the PA-VM to resolve this issue.
