The Prisma SD-WAN Subscription Usage feature offers the users access to comprehensive reports on both site and tenant bandwidth consumption. This capability allows users to effectively monitor their bandwidth usage and facilitate the tracking and trending of monthly bandwidth utilization across all branch sites to ensure compliance with licensing agreements.

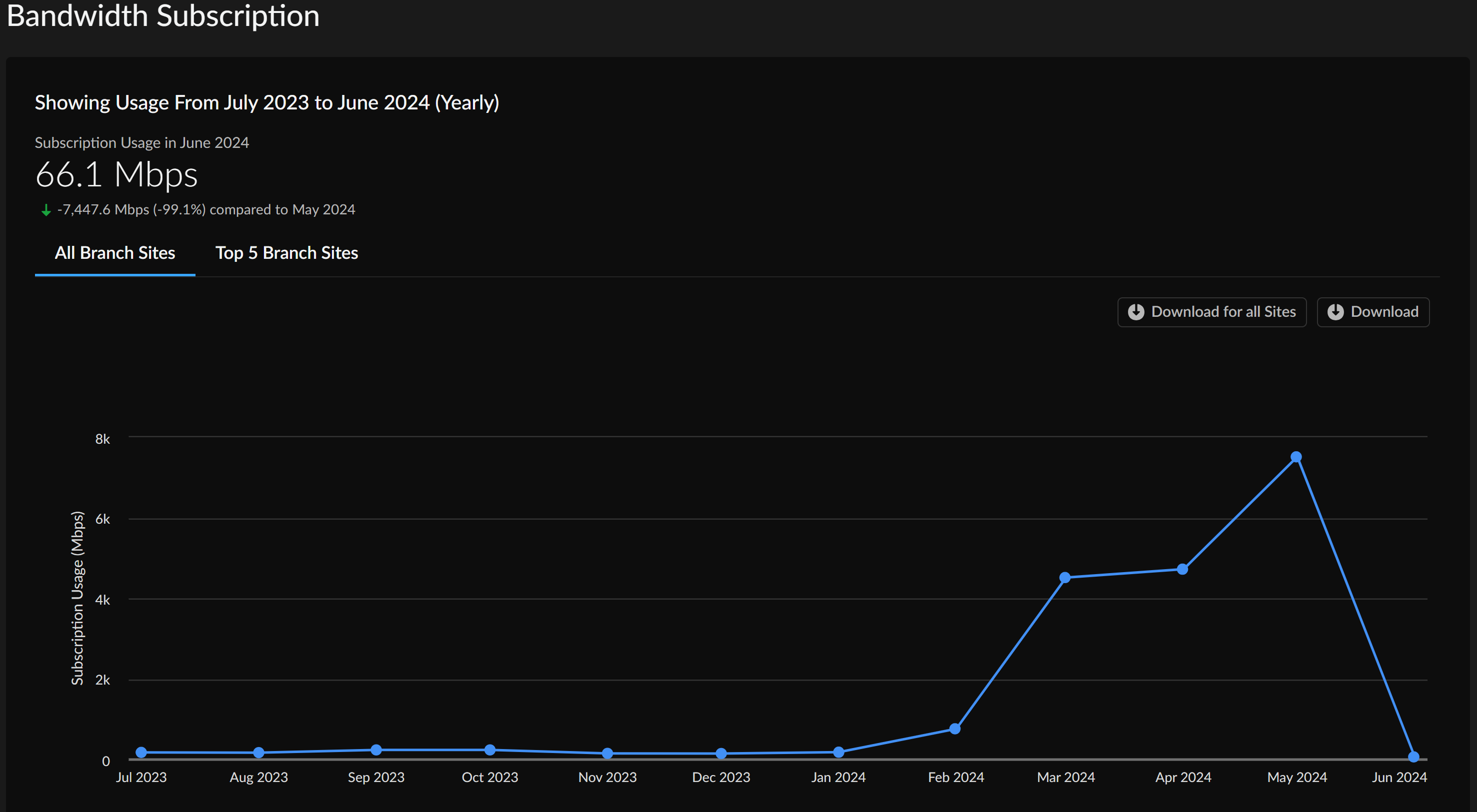

Go to Strata Cloud ManagerMonitor Subscription Usage to view a graphical representation of the yearly bandwidth utilization (rolling), measured by maximum bandwidth (Mbps) consumed per month across All Branch Sites. The feature allows you to view the bandwidth consumption for a current month up until the previous month.

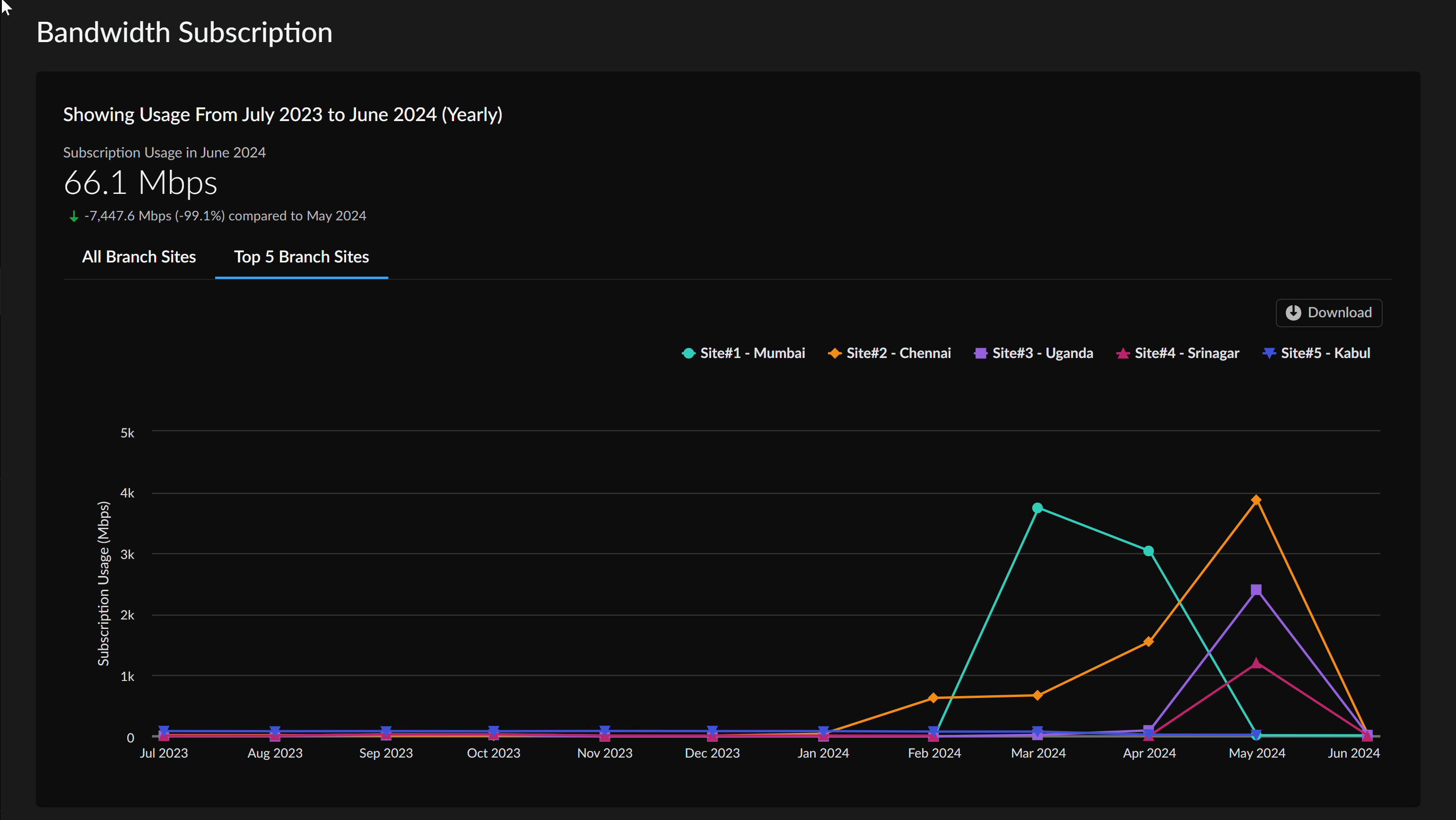

View the subscription usage of the Top 5 Branch Sites for each month. Select the site name or hover over the chart to view the consolidated subscription usage of the sites for any month. Download .CSV files to view detailed subscription usage for all branch sites for a tenant and the summary subscription yearly usage for consolidated insights.

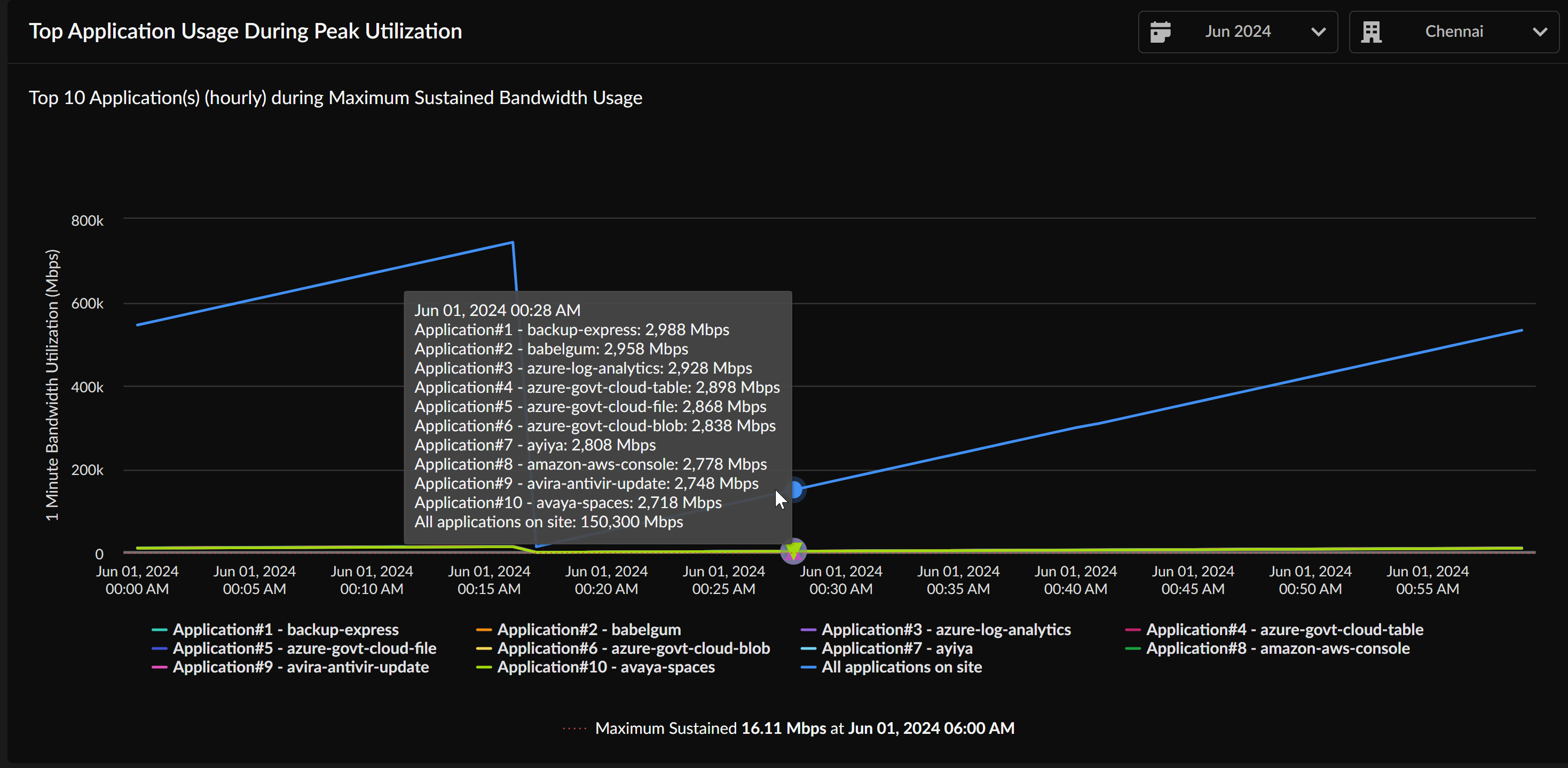

The Top Application Usage During Peak Utilization chart displays the bandwidth usage of the top 10 applications for a site during the peak utilization period. Select the month and site from the drop-down menu to view the top 10 applications with the highest bandwidth usage for that time period.

Hover over a time interval in the graph to view the top 10 applications for that period. Refer to the color legend in the chart to see the list of the top 10 applications for the selected time period at the site.
