Applications - Applications Tab
This tab gives you an overview of all
the applications that are in use throughout your organization.
Traffic Distribution by Application
Get an understanding of the application traffic usage
based on real user or remote site traffic going through Prisma Access
(split tunnel traffic for mobile users and traffic sent over secure
fabric, direct access from remote sites are not included in total
bandwidth usage count).
View the bandwidth usage for all applications used in your organization
along with the percentage of the total bandwidth used by the most
used applications. The ring is color coded to represent data for
some of the most used applications in your organization. The number
in the center indicates the aggregate amount of application traffic
(for all applications used in your organization) that has passed
through Prisma Access during the selected Time Range.

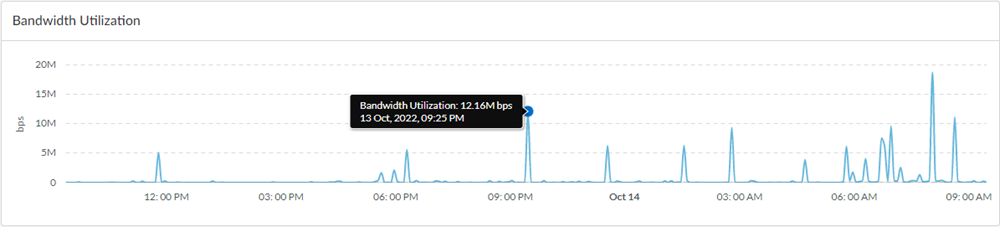

Bandwidth Utilization
View the trend of the bandwidth utilization for all
applications being monitored within your organization during the
selected Time Range.
Total Applications
This widget shows you the total applications, both monitored
and unmonitored applications, that are running across your organization.
The gray dots next to the experience scores indicate that no app
tests have been set up for the application.
An application on which you are running synthetic tests will
show the experience score for it. You can immediately see which
applications are experiencing performance issues for users or remote
sites from the color of the experience score for the app.
You can Add New App Test to set up synthetic
tests for an application. Refer to Set up an Autonomous DEM Application Test for instructions
on how to create an app test.
| Column Name | Description |
|---|---|
| Application Name | App-ID of the application. ADEM analyzes the real user traffic passing through Prisma Access and uses the AppID of an application to identify the application in use. |
| Mobile User Experience Score | The average score of all the experience scores for all mobile users using the application. |
| Remote Site Experience Score | The average score of all the experience scores for all remote sites using the application. |
| Usage | Aggregate data usage by the application. A high usage number is an indication that a lot of users are using the application, hence it would be good to monitor the application with app tests for the it. |
Click on an Application Name to open the
application details page which gives you more granular information
about the application, such as its individual experience score,
number of users or remote sites, and the performance trend.
