Policy Enforcement using Dynamic Address Groups
Unlike the other versions of the VM-Series firewall,
because both virtual wire interfaces (and subinterfaces) belong
to the same zone, the VM-Series firewall for NSX-V uses dynamic
address groups as the traffic segmentation mechanism. A security
policy rule on the VM-Series firewall for NSX-V must have the same
source and destination zone, therefore to implement different treatment
of traffic, you use dynamic address groups as source or destination
objects in security policy rules.
Dynamic address groups offer a way to automate the process of
referencing source and/or destination addresses within security
policies because IP addresses are constantly changing in a data
center environment. Unlike static address objects that must be manually
updated in configuration and committed whenever there is an address
change (addition, deletion, or move), dynamic address groups automatically
adapt to changes.
Any dynamic address groups created in a device group belonging
to NSX-V configuration and configured with the match criterion _nsx_<dynamic address group name> trigger the
creation on corresponding security groups on the NSX-V Manager.
In an ESXi cluster with multiple customers or tenants, the ability
to filter security groups for a service profile (zone on Panorama)
on the NSX-V Manager allows you to enforce policy when you have overlapping
IP addresses across different security groups in your virtual environment.

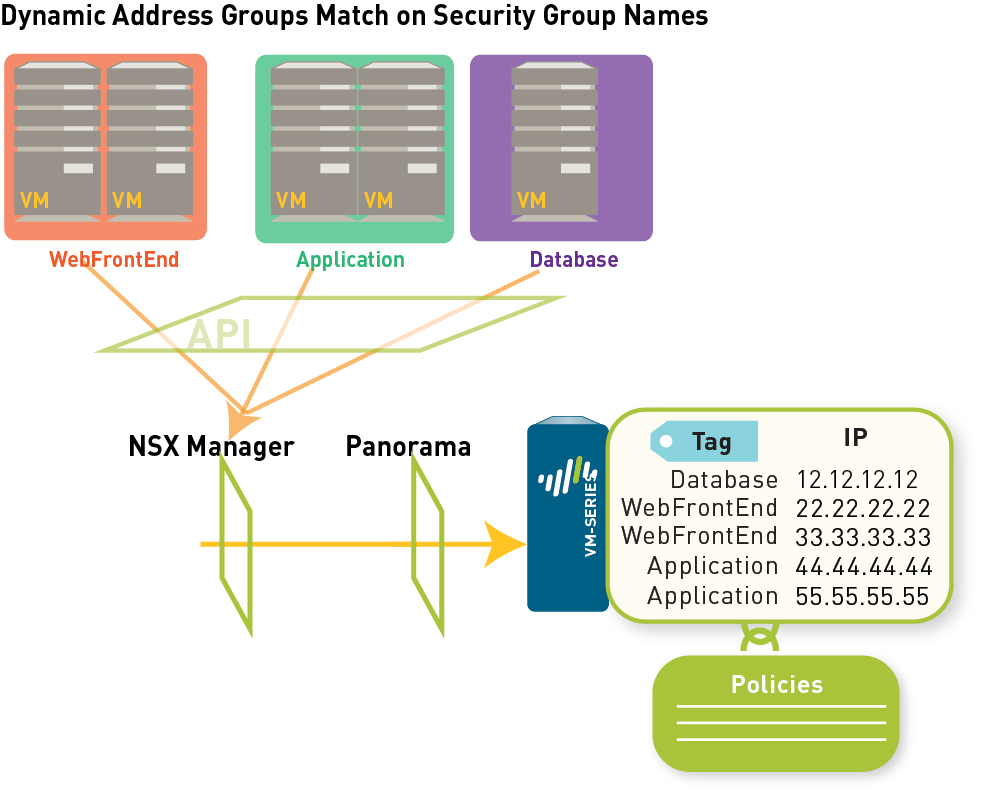

If, for example, you have a multi-tier architecture for web applications,
on Panorama you create three dynamic address groups for the WebFrontEnd
servers, Application servers and the Database servers. When you
commit these changes on Panorama, it triggers the creation of three
corresponding security groups on NSX-V Manager.
On NSX-V Manager, you can then add individual guest VMs or IP
sets (IP ranges or subnets) to the appropriate security groups.
Then, in security policy you can use the dynamic address groups
as source or destination objects, define the applications that are permitted
to traverse these servers, and push the rules to the VM-Series firewalls.

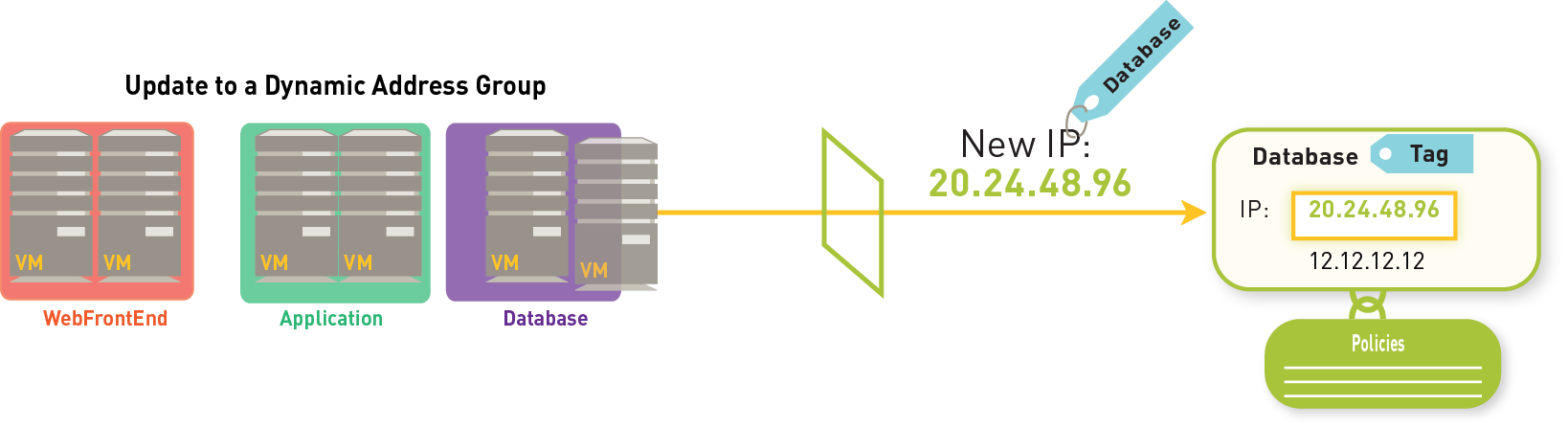

Each time a guest is added or modified in the ESXi cluster or
a security group is updated or created, the NSX-V Manager uses the
PAN-OS REST-based XML API to update Panorama with the IP address,
and the security group to which the guest belongs. To trace the
flow of information, see Dynamic
Address Groups—Information Relay from NSX Manager to Panorama.
To ensure that the name of each security group is unique,
the vCenter server assigns a Managed Object Reference (MOB) ID to
the name you define for the security group. The syntax used to display
the name of a security group on Panorama is serviceprofileid-specified_name-securitygroup-number; for
example, serviceprofile13-WebFrontEnd-securitygroup-47.
When Panorama receives the API notification, it verifies/updates
the IP address of each guest and the security group and the service
profile to which that guest belongs. Then, Panorama pushes these
real-time updates to all the firewalls that are included in the device
group and notifies device groups in the service manager configuration
on Panorama.
On each firewall, all policy rules that reference these dynamic
address groups are updated at runtime. Because the firewall matches
on the security group tag to determine the members of a dynamic
address group, you do not need to modify or update the policy when
you make changes in the virtual environment. The firewall matches
the tags to find the current members of each dynamic address group
and applies the security policy to the source/destination IP address
that are included in the group.
