Deploy Scripts Using the Windows Registry
Enable deployment of custom scripts to Windows endpoints that run before and after
tunnel establishment or before disconnecting the tunnel
You can enable deployment of custom scripts
to Windows endpoints using the Windows Registry.
You can configure
the GlobalProtect app to initiate and run a script for any or all
of the following events: before and after establishing the tunnel,
and before disconnecting the tunnel. To run the script at a particular
event, reference the batch script from a command registry entry
for that event.
Depending on the configuration settings, the
GlobalProtect app can run a script before and after the app establishes
a connection to the gateway, and before the app disconnects. Use
the following workflow to use the Windows Registry to customize
app settings for Windows endpoints.
The registry settings
that enable you to deploy scripts are supported on endpoints running
GlobalProtect App 2.3 and later releases.
- Open the Windows registry, and locate the GlobalProtect app customization settings.Open the Windows registry (enterregeditin the command prompt) and go to one of the following key locations, depending on when you want to execute scripts (pre/post connect or pre disconnect):HKEY_LOCAL_MACHINE\SOFTWARE\Palo Alto Networks\GlobalProtect\Settings\pre-vpn-connectHKEY_LOCAL_MACHINE\SOFTWARE\Palo Alto Networks\GlobalProtect\Settings\post-vpn-connectHKEY_LOCAL_MACHINE\SOFTWARE\Palo Alto Networks\GlobalProtect\Settings\pre-vpn-disconnectIf the key does not exist within theSettingskey, create it by right-clickingSettingsand selecting ).
- Enable the GlobalProtect app to run scripts by creating a new String Value namedcommand.The batch file specified here should contain the specific script (including any parameters passed to the script) that you want run on the device.
- If thecommandstring does not already exist, create it by right-clicking thepre-vpn-connect,post-vpn-connect, orpre-vpn-disconnectkey, selecting , and naming itcommand).

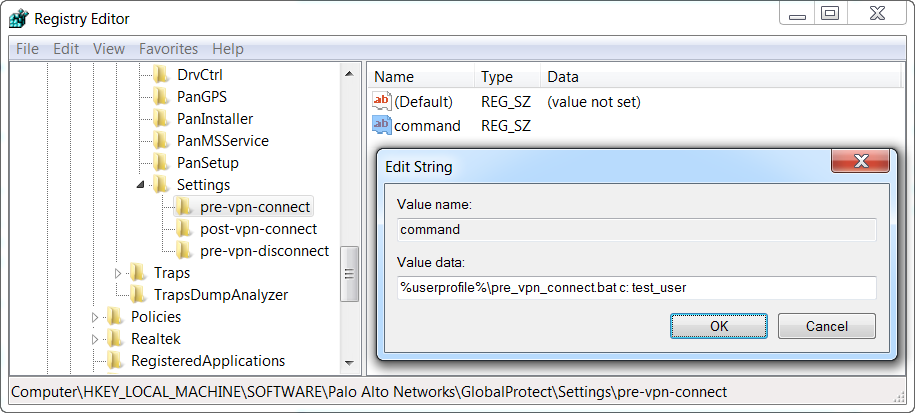

- Right clickcommand, and then selectModify.
- Enter the commands or script that the GlobalProtect app should run. For example:%userprofile%\pre_vpn_connect.bat c:test_user
- (Optional) Add additional registry entries as needed for each command.Create or modify registry strings and their corresponding values, includingcontext,timeout,file,checksum, orerror-msg. For additional information, see Customizable App Settings.
