    Configure Intelligent Portal Selection

    Learn all about Intelligent Portal.
    Where Can I Use This?
    What Do I Need?
    • Prisma Access
    • PAN-OS
    • Prisma Access Mobile Users license (for use with Prisma Access)
    • GlobalProtect gateway license (for use with PAN-OS)
    • GlobalProtect app 6.3 and later
      OS Support: Windows and macOS
      Content release version: 8833-8679 and later

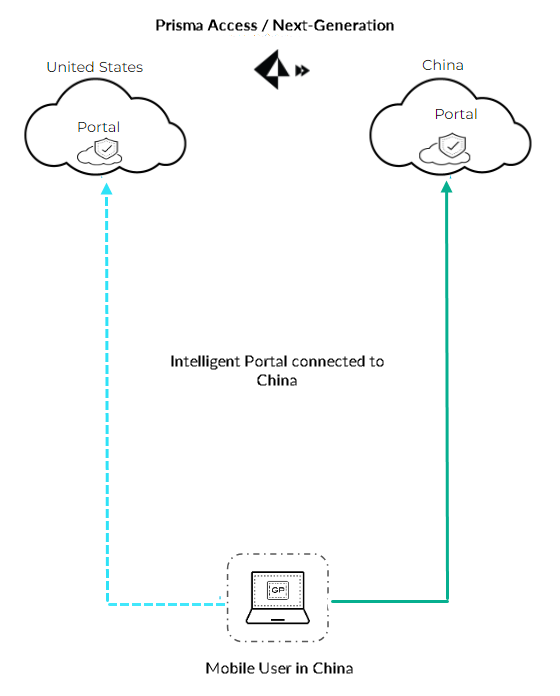

    The intelligent portal selection feature enables automatic selection of the appropriate portal when a user travels across multiple countries for seamless and secure connectivity. After you configure intelligent portal in your environment, you're automatically routed to the appropriate Prisma Access portal based on your country location. For example, when you travel to China, you are directed to the China Prisma Access portal and to the North America portal when you're in the United States. This eliminates the need for manual selection of portals and improves the end user experience.
    The intelligent portal feature is supported for the following modes.
    • Always-On and Always-On (Pre-logon)
    • Connect Before Logon if there are no portal addresses defined
    Intelligent portal is not supported for Connect Before Logon if a portal list is defined and for On-Demand mode.
    Follow the steps below to configure and use the intelligent portal feature in your environment.
    1. Configure intelligent portal.
      Current Environment
      Deployment Steps
      Fresh install of GlobalProtect 6.3 and later on Windows and macOS
      Deploy GlobalProtect with a command line option to add the intelligent portal feature:
      msiexec.exe /i "GlobalProtect64.msi" PORTALCOUNTRYMAP="
      portal1_address
      (
      country1_code
      );
      portal_2_address
      (
      country2_code
      "
      For example, the following command deploys GlobalProtect with intelligent portal and defines the portals for USA and Canada. You can define multiple portals for a country.
      msiexec.exe /i "GlobalProtect64.msi" PORTALCOUNTRYMAP="xxx.com(US);yyy.clom(CN)"
      Existing installation of GlobalProtect 6.3 and later for Windows
      If GlobalProtect 6.3 or higher is already installed in your environment, you can add the following keys to the Windows Registry (path HKEY_LOCAL_MACHINE\SOFTWARE\Palo Alto Networks\GlobalProtect\Settings\).
      • (Required)
        REG ADD "HKLM\Software\Palo Alto Networks\GlobalProtect\Settings" /v portal-country-map /t REG_SZ /d
        portal_1
        (
        country1_code
        );
        portal_2
        (
        country2_code
        )
      • (Optional)
        REG ADD "HKLM\Software\Palo Alto Networks\GlobalProtect\Settings" /v intelligent-portal /t REG_SZ /d yes
        This entry enables the intelligent portal feature the first time the end user logs in to the GlobalProtect app.
      • (Optional)
        REG ADD "HKLM\Software\Palo Alto Networks\GlobalProtect\Settings" /v intelligent-portal-service /t REG_SZ /d "geoip.gpcloudservice.com/getIPLocation"
        Add this entry if you want to host the API to receive the user location.
      Existing installation of GlobalProtect 6.3 and later for macOS
      If GlobalProtect 6.3 or higher is already installed in your environment, you can define the following entries in the macOS plist.
      1. Type
        sudo vi /Library/Preferences/com.paloaltonetworks.GlobalProtect.settings.plist
        .
      2. Navigate to the
        /Palo Alto Networks/GlobalProtect/Settings
         dictionary.
      3. Add the following entries.
        <key>intelligent-portal</key>
<string>yes</string>
<key>portal-country-map</key>
<string>
        portal1_address
        (
        country1_code
        );
        portal2_address
        (
        country2_code
        )</string>
<key>intelligent-portal-service</key>
<string>geoip.gpcloudservice.com/getIPLocation</string>
      Upgrade to GlobalProtect 6.3 and later
      If you uninstall the previous GlobalProtect release and do a fresh install, follow the fresh install procedure describes above.
      If you upgrade GlobalProtect through the portal, add the intelligent portal settings to the Windows Registry or macOS plist.
      For additional information on app settings, see Customizable App Settings.
    2. Enable the intelligent portal feature on the portal. See step 6 in the Customize the GlobalProtect App.
      You must enable intelligent portal on the portal even if you defined the optional key
      REG ADD "HKLM\Software\Palo Alto Networks\GlobalProtect\Settings" /v intelligent-portal /t REG_SZ /d yes
       in the Windows Registry or macOS plist.
    The following section describes how intelligent portal works after it is configured.
    • When the end user logs in to the GlobalProtect app, GlobalProtect automatically selects the portal defined in the portal country map for that location. If there are multiple portals defined for a country, GlobalProtect selects the first portal for that country.
    • If the user manually selects a different portal for that country from the portal map, GlobalProtect directs the user to this portal for subsequent sessions. The portal is retained when the app is refreshed or the computer goes to sleep.
    • If the user manually selects a portal that isn't defined in the country map, this portal is retained for the session. When the GlobalProtect app is refreshed or the computer wakes up from sleep, GlobalProtect automatically directs them to the portal defined in the portal country map for that location. If there are multiple portals defined for that portal, GlobalProtect selects the first portal for that country.

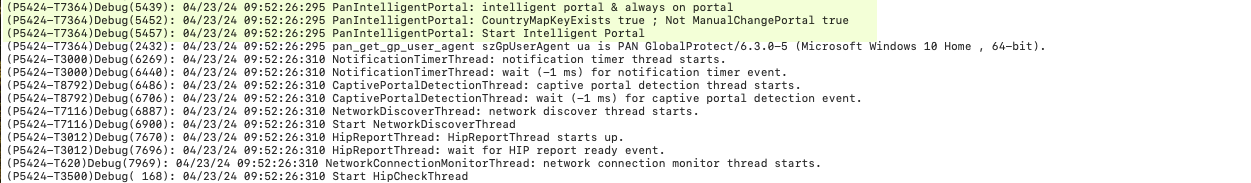

    Logs for the intelligent portal feature are included in the
    GlobalProtectLogs.tgz
     file. See the highlighted rows in the screenshot below.
    For information on how to access the log file, see View and Collect GlobalProtect App Logs.
