Customize the GlobalProtect Portal Login, Welcome, and Help Pages
GlobalProtect provides default login, welcome,
and/or help pages. However, you can create your own custom pages
with your corporate branding, acceptable use policies, and links
to your internal resources.
You can alternatively disable
browser access to the portal login page in order to prevent unauthorized
attempts to authenticate to the GlobalProtect portal (configure
the option
from . With the portal login
page disabled, you can instead use a software distribution tool,
such as Microsoft’s System Center Configuration Manager (SCCM),
to allow your users to download and install the GlobalProtect app.
Portal Login Page
Disable
Network
GlobalProtect
Portals
<portal_config
General)
- Export the default portal login, home, welcome, or help page.
- Select.DeviceResponse Pages
- Select the link for the corresponding GlobalProtect portal page, such asGlobalProtect Portal Login Page.
- Select the predefinedDefaultpage and clickExport.
- Edit the exported page.
- Use the HTML text editor of your choice to open and edit the page.
- To edit the login or home page, configure any of the following variables:

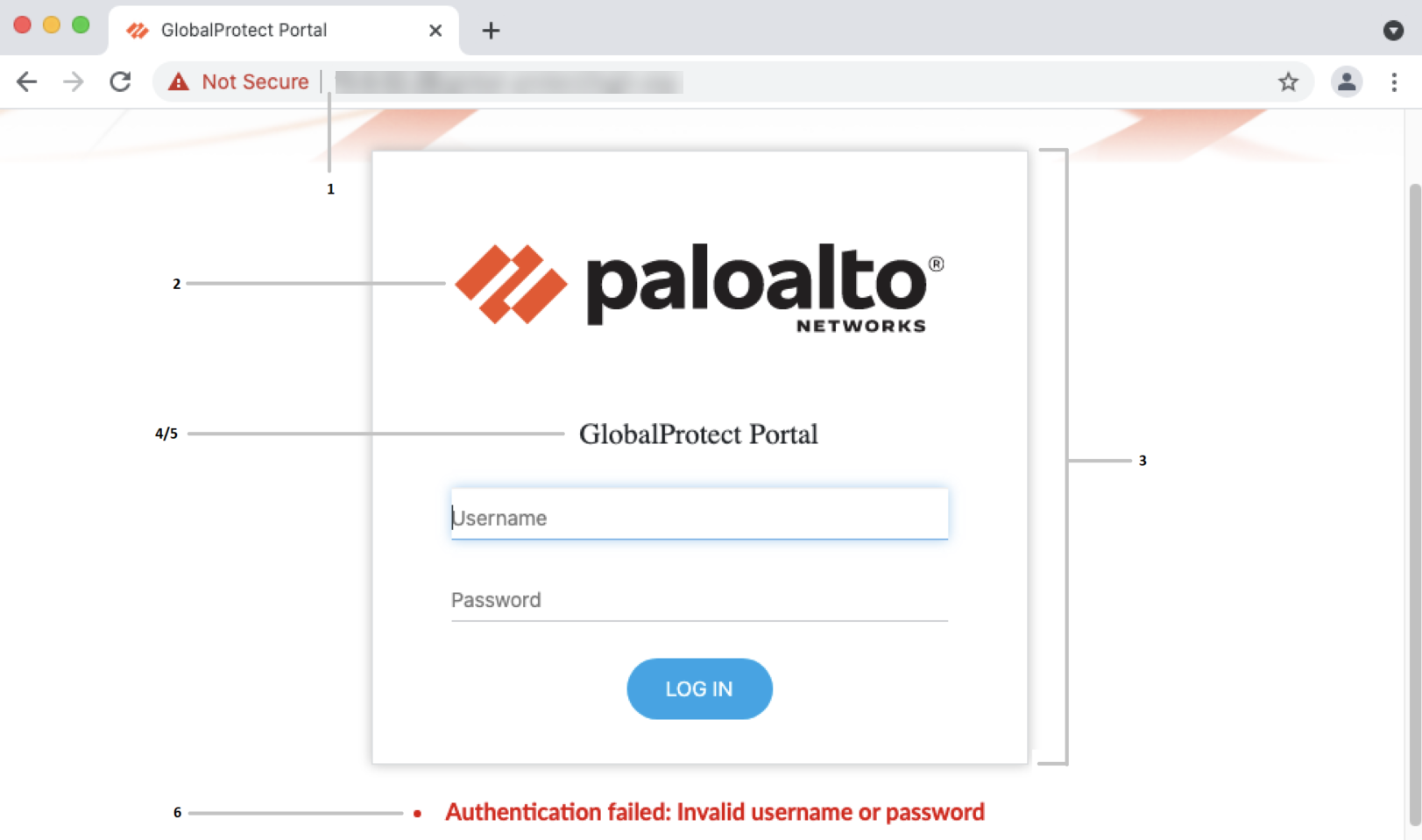

- GlobalProtect Portal Login Page:Label NumberVariableDescriptionExample1faviconURL of the icon displayed in the address bar of the web browser.var favicon = 'http:// cdn.slidesharecdn. com/logo-24x24. jpg?3975762018';2logoURL of the company logo.var logo = 'http:// cdn.slidesharecdn. com/logo-96x96. jpg?1382722588';3bg_colorLogin page background color.var bg_color = '#D3D3D3';4gp_portal_nameText displayed under the company logo.var gp_portal_name = 'GlobalProtect Portal';5gp_portal_name_colorColor of the text displayed under the company logo.var gp_portal_name_ color = '#000000';6error_text_colorText color for logon failure messages.var error_text_ color = '#196390';

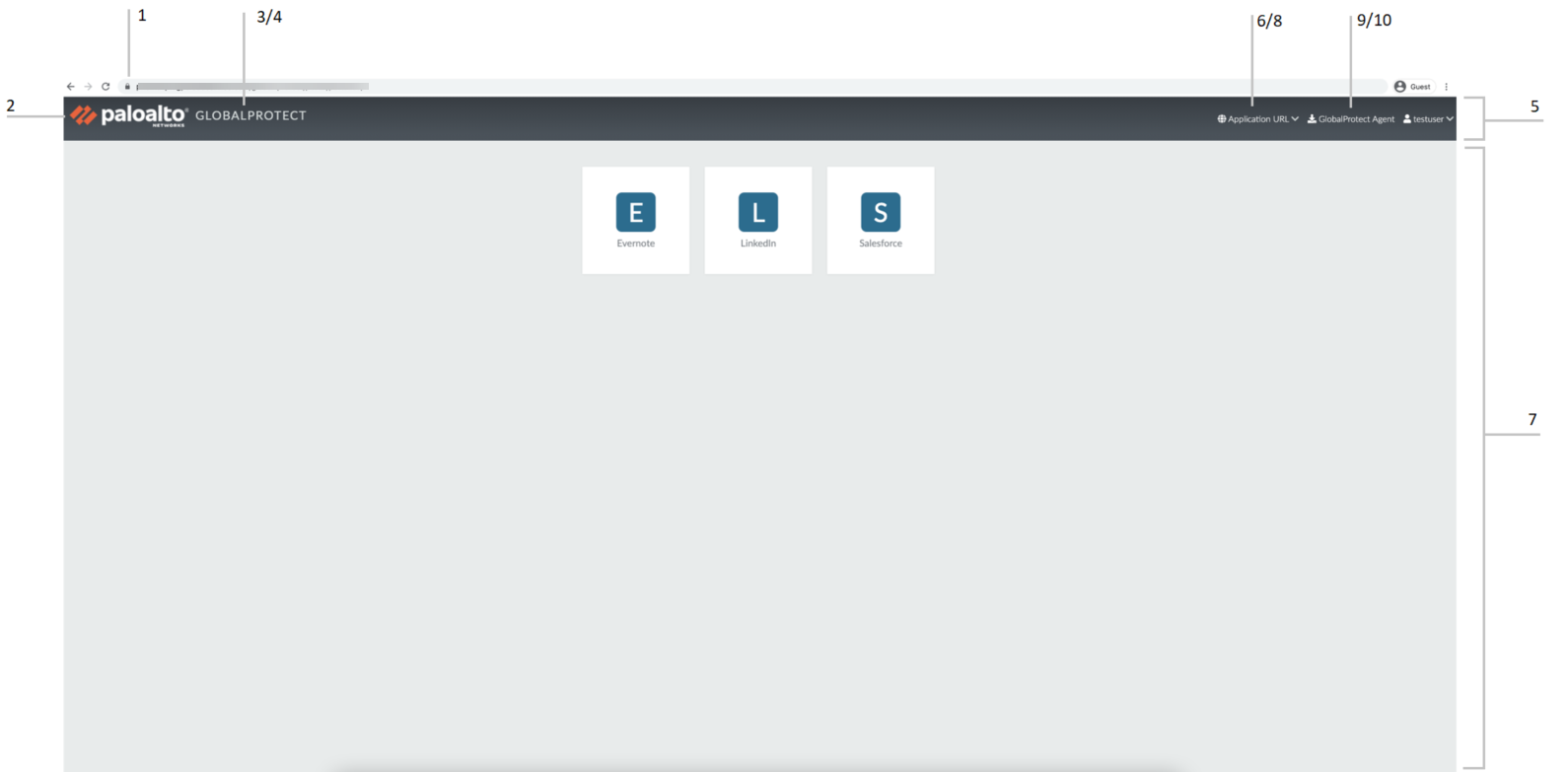

- GlobalProtect Portal Home Page:Label NumberVariableDescriptionExample1faviconURL of the icon displayed in the address bar of the web browser.var favicon = 'http:// cdn.slidesharecdn. com/logo-24x24. jpg?3975762018';2logoURL of the company logo.var logo = 'http:// cdn.slidesharecdn. com/logo-96x96. jpg?1382722588';3navbar_textNavigation bar text.var navbar_text = 'GlobalProtect';4navbar_text_colorNavigation bar text color.var navbar_text_ color = '#D3D3D3';5navbar_bg_colorNavigation bar background color.var navbar_bg_color = '#A9A9A9';6dropdown_bg_colorDrop-down menu background color.var dropdown_bg_ color = '#FFFFFF';7bg_colorHome page background color.var bg_color = '#D3D3D3';8label_custom_app_urlLabel for custom/internal application URLs.var label_custom_ app_url = 'Application URL';9display_globalprotect_agentOption to display or hide the GlobalProtect app download button. Enter1to display the download button. Enter0to hide the download button.var display_ globalprotect_agent = 1;10label_globalprotect_agentLabel for the GlobalProtect app download button.var label_ globalprotect_agent = 'GlobalProtect Agent';11gp_portal_nameText displayed under the company logo on the portal logout page.var gp_portal_name = 'GlobalProtect Portal';12gp_portal_name_colorColor of the text displayed under the company logo on the portal logout page.var gp_portal_name_ color = '#000000';13logout_text_arrayMessages displayed on the portal logout page after users log out of the portal.You can only modify the existing messages; you cannot add new messages or delete any existing messages.var logout_text_ array = ["You have successfully logged out of GlobalProtect portal.", "GlobalProtect Gateway is not licensed. Contact system administrator.", "User not authenticated to GlobalProtect portal.", "System error, contact system administrator.", "System error, failed to delete user session. Contact system administrator.", "Can not create user session. Max-capacity reached. Contact system administrator."];14logout_text_colorText color for messages displayed on the portal logout page after users log out of the portal.var logout_text_ color = '#000000';
- Save the edited page with a new filename. Make sure that the page retains its UTF-8 encoding.

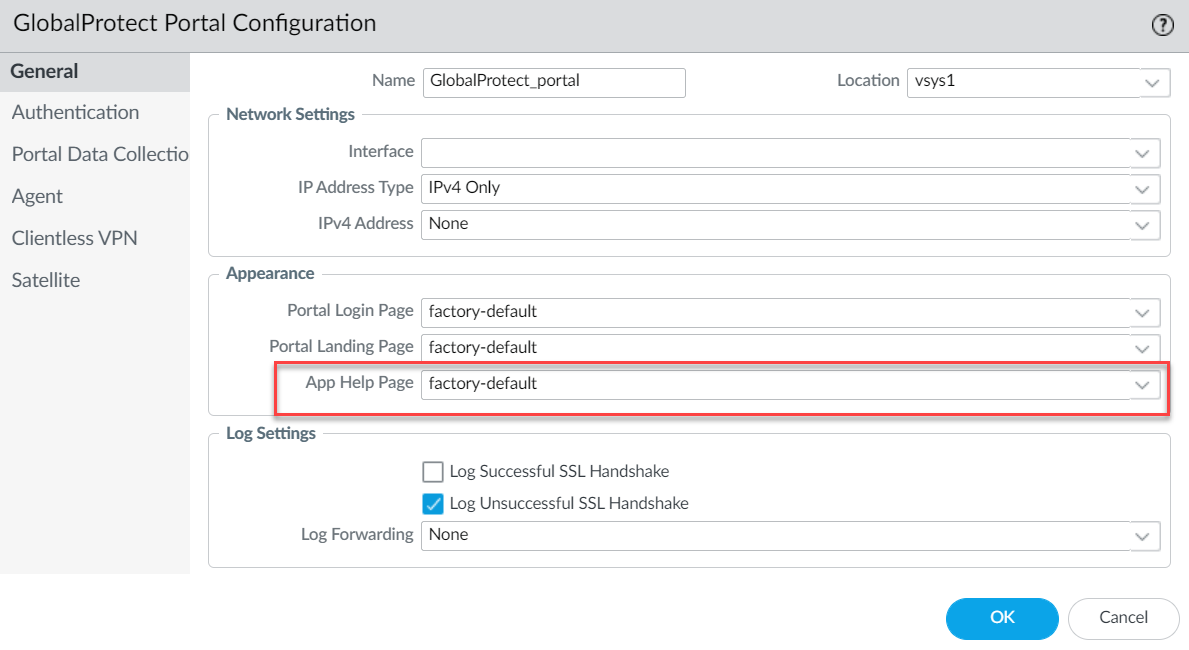

To set theGlobalProtect App Help Pageto provide assistance to users with the GlobalProtect app:- Select, and thenNetworkGlobalProtectPortalsAdda portal.
- SelectGeneral.
- In the Appearance area, select thefactory-defaulthelp page,Importa custom help page, or selectNoneto remove theHelpoption from theSettingsmenu of the GlobalProtect status panel.
- ClickOKandCommitthe changes.
- Import the new page(s).
- Select.DeviceResponse Pages
- Select the link for the corresponding GlobalProtect portal page.
- Importthe new portal page. Enter the path and filename in theImport Filefield orBrowseto locate and select the file.
- (Optional) Select the virtual system on which this page will be used from theDestinationdrop-down or selectshared(default) to make it available to all virtual systems.
- ClickOKto import the file.
- Configure the portal to use the new page(s).
- Portal Login Page,Portal Landing Page, andApp Help Page:
- Select.NetworkGlobalProtectPortals
- Select the portal to which you want to add the login, landing (home), or app help page.
- In the Appearance area of theGeneraltab, select the new page from the relevant drop-down.
- Custom Welcome Page:
- Select.NetworkGlobalProtectPortals
- Select the portal to which you want to add the welcome page.
- On theAgenttab, select the agent configuration to which you want to add the welcome page.
- On theApptab, select the new page from theWelcome Pagedrop-down.
- ClickOKto save the agent configuration.
- Save the portal configuration.ClickOKto save the portal configuration, and thenCommityour changes.
- Verify that the new page displays.
- Test the login page—Open a web browser and go to the URL for your portal (do not add the :4443 port number to the end of the URL or you will be directed to the web interface for the firewall). For example, enterhttps://myportalrather thanhttps://myportal:4443. The new portal login page will display.
- Test the home page—Open a web browser and go to the URL for your portal (do not add the :4443 port number to the end of the URL or you will be directed to the web interface for the firewall). For example, enterhttps://myportalrather thanhttps://myportal:4443. Enter yourUsernameandPassword, and thenLOG INto the portal. The new portal home page will display.
- Test the help page—Click the GlobalProtect system tray icon to launch the GlobalProtect app. When the status panel opens, click the settings icon (
) to open the settings menu. Select
Helpto view the new help page. - Test the welcome page—Click the GlobalProtect system tray icon to launch the GlobalProtect app. When the status panel opens, click the settings icon (
) to open the settings menu. Select
Welcome Pageto view the new welcome page.
