    User-Initiated Pre-Logon Connection

    Enable end users to initiate the GlobalProtect pre-logon connection manually on Windows 10 endpoints.
    Where Can I Use This?
    What Do I Need?
    • GlobalProtect
    • Supported only on Windows 10 or later endpoints
    • GlobalProtect app version 5.0.3 or later for Windows
    Enable end users to initiate the GlobalProtect Remote Access VPN with Pre-Logon connection manually on Windows 10 endpoints. User-initiated pre-logon requires that you
    Use Single Sign-On
     in your portal configuration. In this deployment, users can initiate the pre-logon connection only when their endpoint requires access to the corporate network before login, such as when new employees connect to the network remotely for the first time or when administrators must remotely connect and troubleshoot issues on the endpoint. To initiate the pre-logon connection, users must
    Start GlobalProtect Connection
     from the GlobalProtect credential provider logon screen after the endpoint boots up.
    If users are unable to establish the pre-logon connection using this option, the pre-logon connection status remains
    Disconnected
    .
    When users log out of their endpoint, the VPN tunnel is not renamed from the user tunnel back to the pre-logon tunnel. Instead, the tunnel disconnects.
    Use the following steps to enable users to initiate the pre-logon connection manually:
    You can configure this option only in the Windows Registry. This configuration can be done either manually after GlobalProtect is installed or pre-deployed as part of the Windows image that includes the GlobalProtect software.
    1. Configure remote access VPN with pre-logon.
      Use one of the following options to configure remote access VPN with pre-logon:
      • If your end user will be connecting to the GlobalProtect portal before using this feature (for example, an existing employee who has previously connected to GlobalProtect), you can configure remote access VPN with pre-logon in the portal configuration.
        To enable users to initiate the pre-logon connection manually, you must configure the following options in your portal configuration:
        • Specify a portal
          IP address
           (
          Network
          GlobalProtect
          Portals
          <portal-config>
          General
          ).
        • Set the GlobalProtect
          Connect Method
           to
          Pre-logon (Always On)
           or
          Pre-logon then On-demand
           (
          Network
          GlobalProtect
          Portals
          <portal-config>
          Agent
          <agent-config>
          App
          ).
        • Set the
          Use Single Sign-On
           option to
          Yes
           to enable GlobalProtect to use Windows login credentials to automatically authenticate users upon Active Directory login (
          Network
          GlobalProtect
          Portals
          <portal-config>
          Agent
          <agent-config>
          App
          ).
      • If your end user will not be connecting to the GlobalProtect portal before using this feature (for example, a new employee who is connecting to the network remotely for the first time), you must pre-deploy the pre-logon settings in the Windows Registry:
        1. From your Windows endpoint, launch the Command Prompt.
        2. Enter
          regedit
           to open the Windows Registry.
        3. In the Windows Registry, go to:
          HKEY_LOCAL_MACHINE\SOFTWARE\Palo Alto Networks\GlobalProtect\PanSetup\
          .

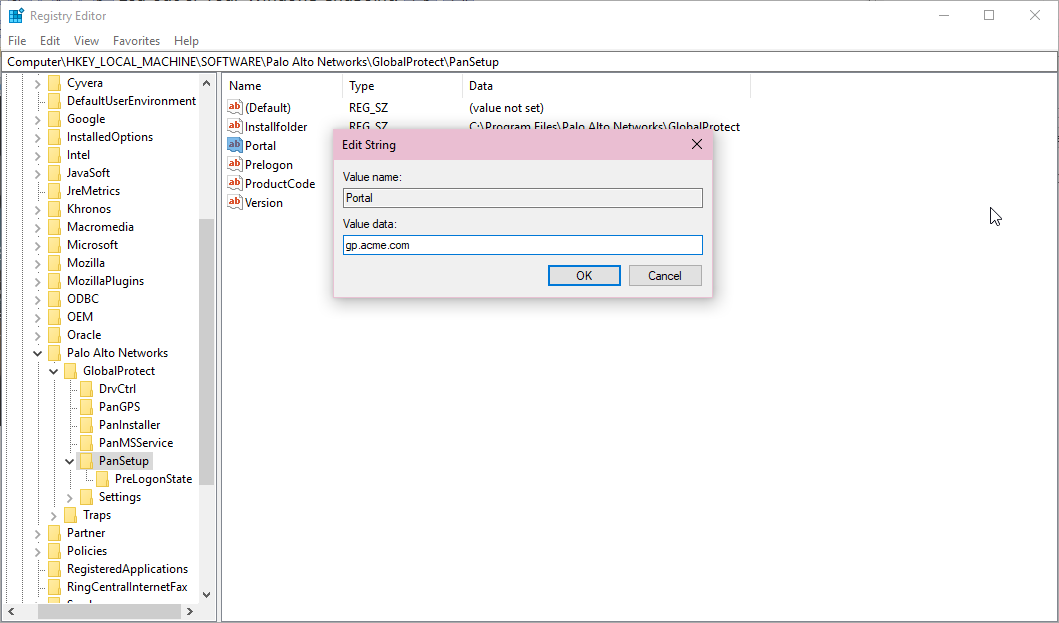

        4. Specify a portal address:
          1. From the list of PanSetup options, right-click
            Portal
             and then select
            Modify...
             to update the portal address.
          2. Enter the portal address in the
            Value data
             field.
          3. Click
            OK
             to save your changes.

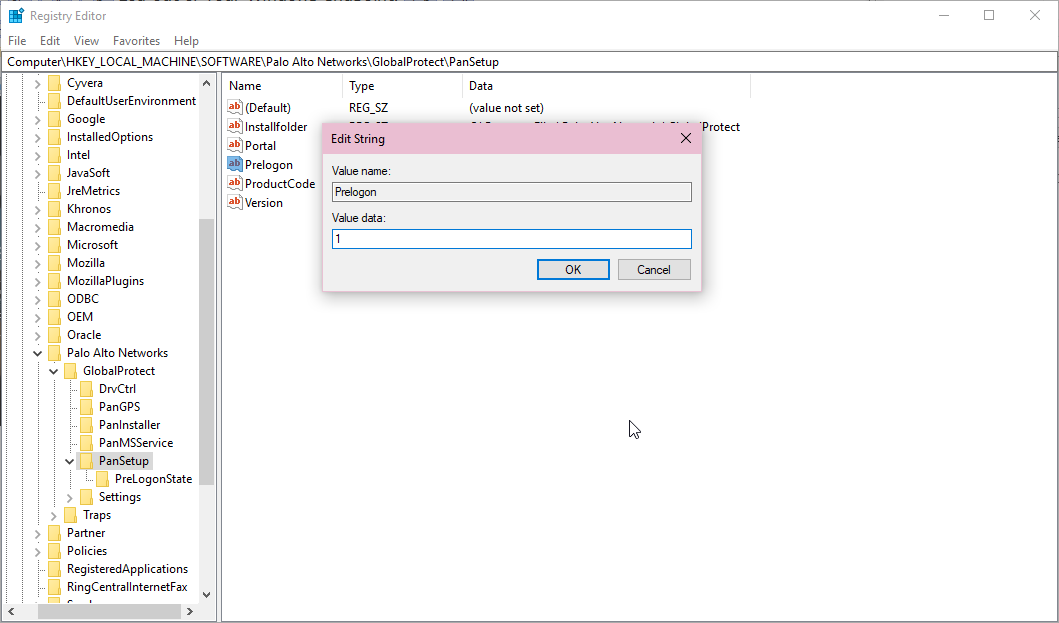

        5. Enable pre-logon:
          1. From the list of PanSetup options, right-click
            Prelogon
             and then select
            Modify...
            .
          2. To enable pre-logon, set the
            Value data
             to
            1
            .
            To disable pre-logon, set the
            Value data
             to
            0
            .
          3. Click
            OK
             to save your changes.

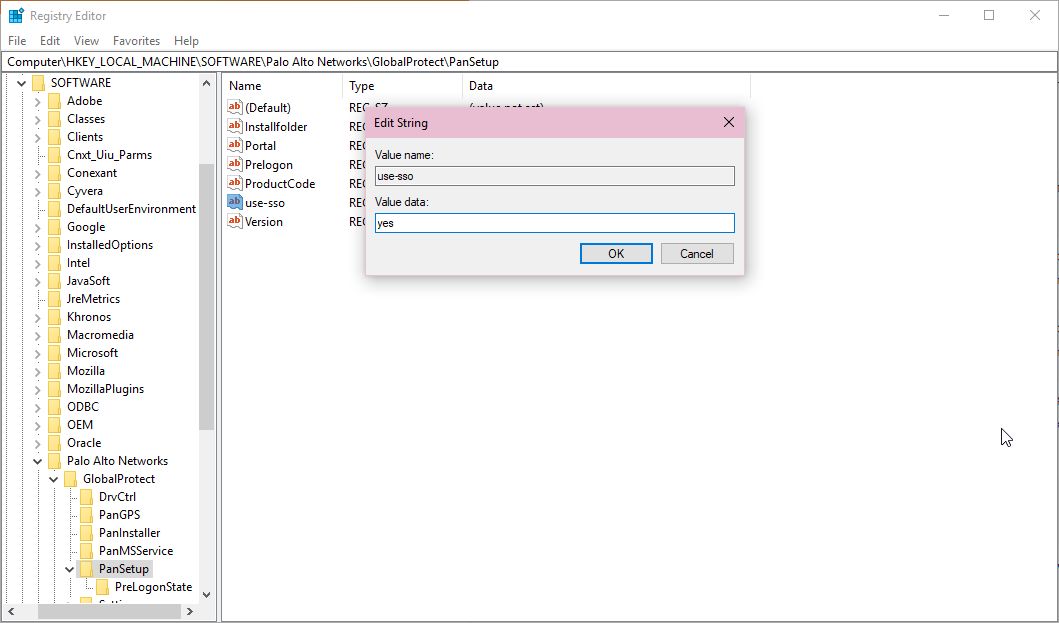

        6. Enable single sign-on (SSO):
          When you enable single sign-on, GlobalProtect uses Windows login credentials to automatically authenticate users upon Active Directory login.
          1. Select
            Edit
            New
            String Value
             to add the option to use single sign-on.
          2. When prompted, set the
            Name
             to
            use-sso
            .
          3. Right-click
            Use-SSO
             and then select
            Modify...
             to update the single sign-on settings.
          4. To enable single sign-on, set the
            Value data
             to
            yes
            To disable single sign-on, set the
            Value data
             to
            no
            .
          5. Click
            OK
             to save your changes.

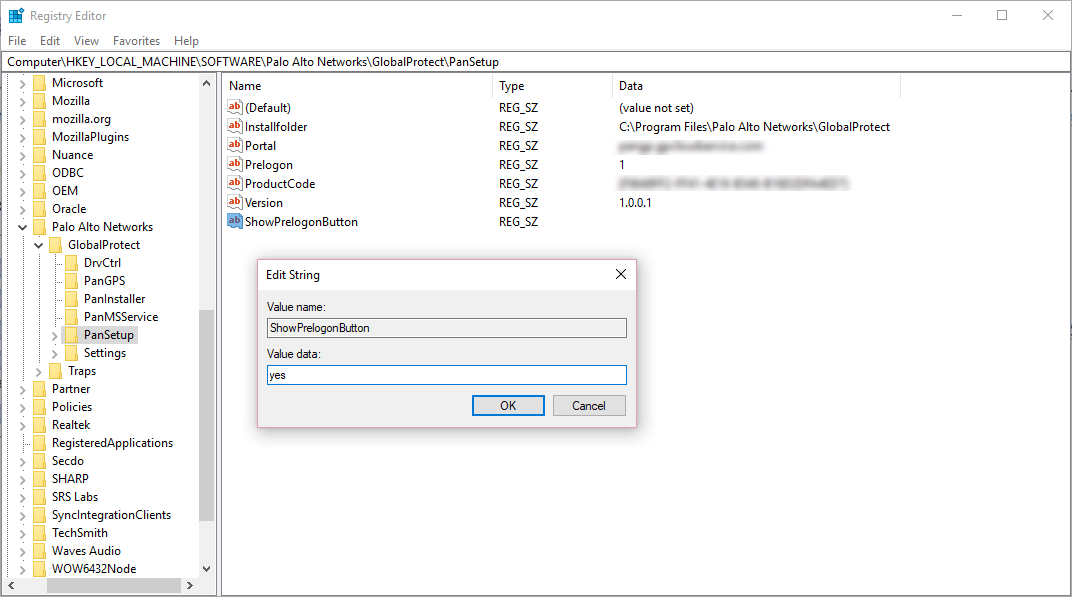

    2. From the Windows Registry, enable the option to display the
      Start GlobalProtect Connection
       button on the GlobalProtect credential provider logon screen.
      1. From your Windows endpoint, launch the Command Prompt.
      2. Enter
        regedit
         to open the Windows Registry.
      3. In the Windows Registry, go to:
        HKEY_LOCAL_MACHINE\SOFTWARE\Palo Alto Networks\GlobalProtect\PanSetup\
        .

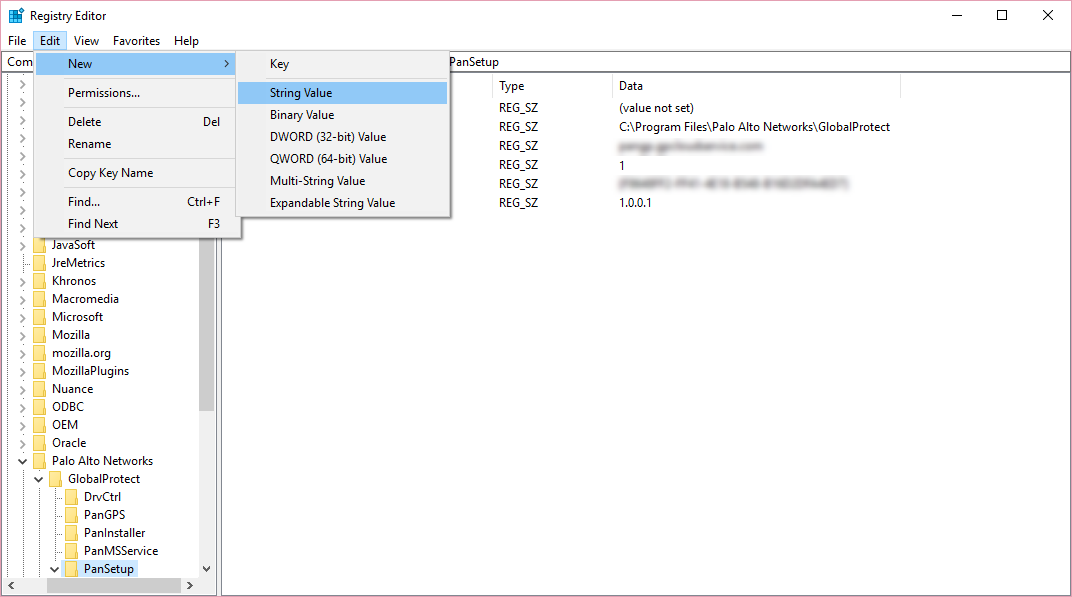

      4. Select
        Edit
        New
        String Value
         to add the button display option.
      5. When prompted, set the
        Name
         to
        ShowPrelogonButton
        .
      6. Right-click
        ShowPrelogonButton
         and then select
        Modify...
         to update the button display settings.
      7. To enable the GlobalProtect credential provider to display the
        Start GlobalProtect Connection
         button, set the
        Value data
         to
        yes
        .
        To disable the
        ShowPrelogonButton
         option, set the
        Value data
         to
        no
        . Alternatively, you can right-click
        ShowPrelogonButton
         to
        Delete
         the option.
      8. Click
        OK
         to save your changes.
    3. Verify that the GlobalProtect credential provider displays the
      Start GlobalProtect Connection
       button so users can initiate the pre-logon connection manually.
      Depending on which option you used to configure remote access VPN with pre-logon (step 1), use one of the following options to verify that the GlobalProtect credential provider displays the
      Start GlobalProtect Connection
       button:
      • If you configured remote access VPN with pre-logon on your firewall, use the following steps to verify that the button is displayed:
        1. From you Windows endpoint, launch the GlobalProtect app.
        2. Connect
           to GlobalProtect to download the portal agent configuration that you configured in step 1.
        3. Reboot your Windows endpoint.

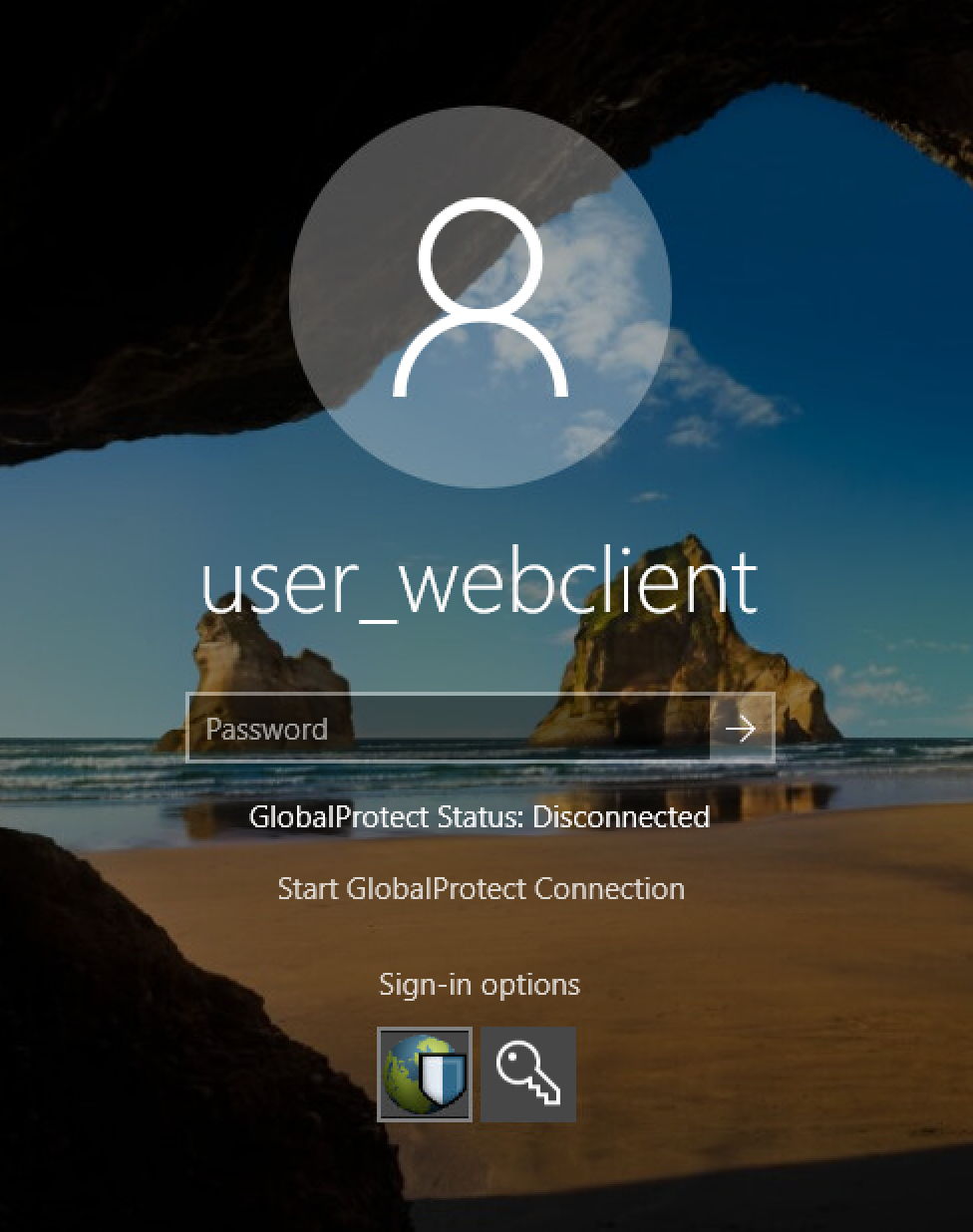

        4. When the GlobalProtect credential provider logon screen appears, ensure that the
          Start GlobalProtect Connection
           button is displayed and the pre-logon connection status is
          Disconnected
          .
      • If you pre-deployed the pre-logon settings in the Windows Registry, use the following steps to verify that the button is displayed:
        1. Reboot your Windows endpoint.
        2. When the GlobalProtect credential provider logon screen appears, ensure that the
          Start GlobalProtect Connection
           button is displayed and the pre-logon connection status is
          Disconnected
          .
