GlobalProtect
Enable Two-Factor Authentication Using a Software Token Application
Table of Contents
Enable Two-Factor Authentication Using a Software Token Application
Use a software token application for two-factor authentication
for GlobalProtect.
If your organization uses a software token
(soft token) application, such as RSA SecurID, to implement two-factor
authentication, users are required to first open their software
token app and enter their PIN to obtain a passcode, then enter the
passcode in their GlobalProtect app in the
Password
field.
This two-step process complicates the login process.To simplify
the login process and improve the users’ experience, GlobalProtect offers
seamless soft-token authentication. The user enters the RSA PIN
in the GlobalProtect
Password
field, and
GlobalProtect retrieves the passcode from RSA and proceeds with
the connection without the user taking the extra step of opening
the RSA application.This feature is supported for all three
RSA modes: PinPad Style (PIN integrated with token code), Fob Style
(PIN followed by token code) and Pinless mode. For PinPad and Fob
Style, the user enters the PIN in the
Password
field
and GlobalProtect retrieves the passcode. In Pinless mode, the Password
field is grayed out and users enter their username. This
feature is supported for Windows devices starting with GlobalProtect™
app 5.1.
- Change the registry keys on the client Windows devices to enable seamless soft-token authentication.You must change the Windows registry on the clients’ Windows devices before you can enable seamless soft-token authentication. GlobalProtect retrieves this registry entry only once, when the GlobalProtect app initializes.
- Open the Windows Registry Editor and select .
- Change theauth-apivalue toyes.Because auth-api is set asyesin the client machine, you should configure the portal and gateways with RSA-based authentication. No other authentication profile is supported because GlobalProtect will attempt to retrieve the passcode.Because the portal and gateway use RSA Authentication, we recommend that you enable cookie-based authentication on gateways. The token that is retrieved for the portal may still be active when GlobalProtect tries to get passcode for the gateway, and authentication may fail because the passcode was already used. Therefore, we suggest that you generate an Authentication Override cookie on the portal and Accept the cookie on the gateway.
- Configure the portal and gateway with RSA-based authentication.

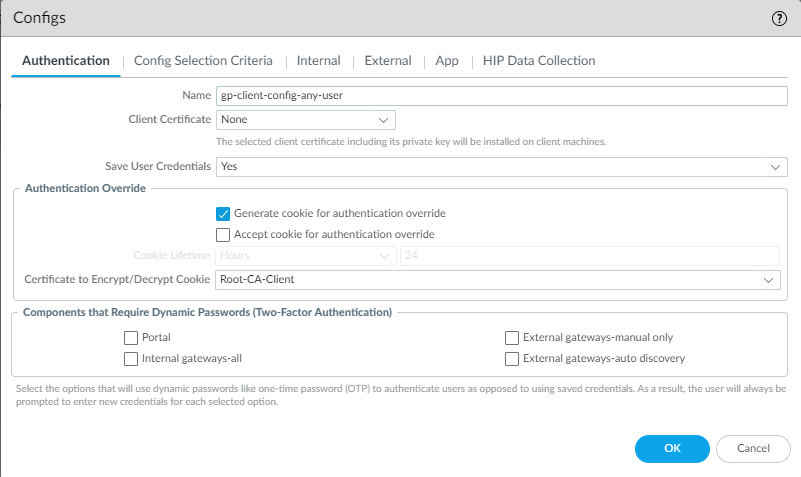

- Enable cookie-based authentication on the GlobalProtect portal.Specifying GlobalProtect to override an existing authentication allows GlobalProtect to overwrite an existing passcode with a newly-created passcode.
- Select ; then select theAgenttab.
- Addan Agent config or select an existing one.
- SelectGenerate cookie for authentication override.The authentication cookie includes the following fields:
- user—Username that is used to authenticate the user.
- domain—Domain name of the user.
- os—Application name that is used on the device.
- hostID—Unique ID that is assigned by GlobalProtect to identify the host.
- gen time—Date and time that the authentication cookie was generated.
- ip—IP address of the device that is used to successfully authenticate to GlobalProtect and to obtain the cookie.

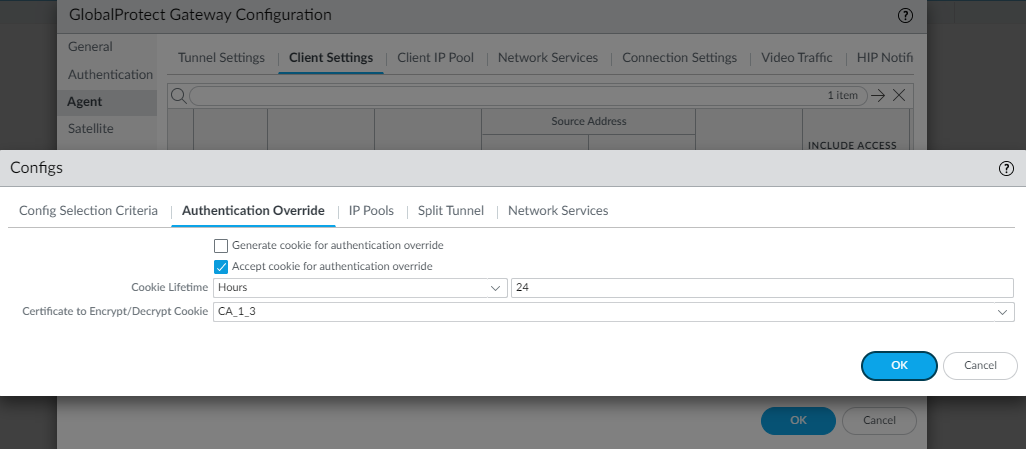

- Enable the GlobalProtect gateway to accept cookies for authentication overrides.
- Select and select theAgenttab.
- SelectClient Settings, then select the GlobalProtect client config or add a new one.
- SelectAuthentication Override; then, selectAccept cookie for authentication override.The authentication cookie includes the following fields:
- user—Username that is used to authenticate the user.
- domain—Domain name of the user.
- os—Application name that is used on the device.
- hostID—Unique ID that is assigned by GlobalProtect to identify the host.
- gen time—Date and time that the authentication cookie was generated.
- ip—IP address of the device that is used to successfully authenticate to GlobalProtect and to obtain the cookie.
- Select ; then select theAuthenticationtab.
- Adda new client authentication profile or select an existing one; then, selectAutomatically retrieve passcode from SoftToken application.
