PA-7050 Back Panel (DC)

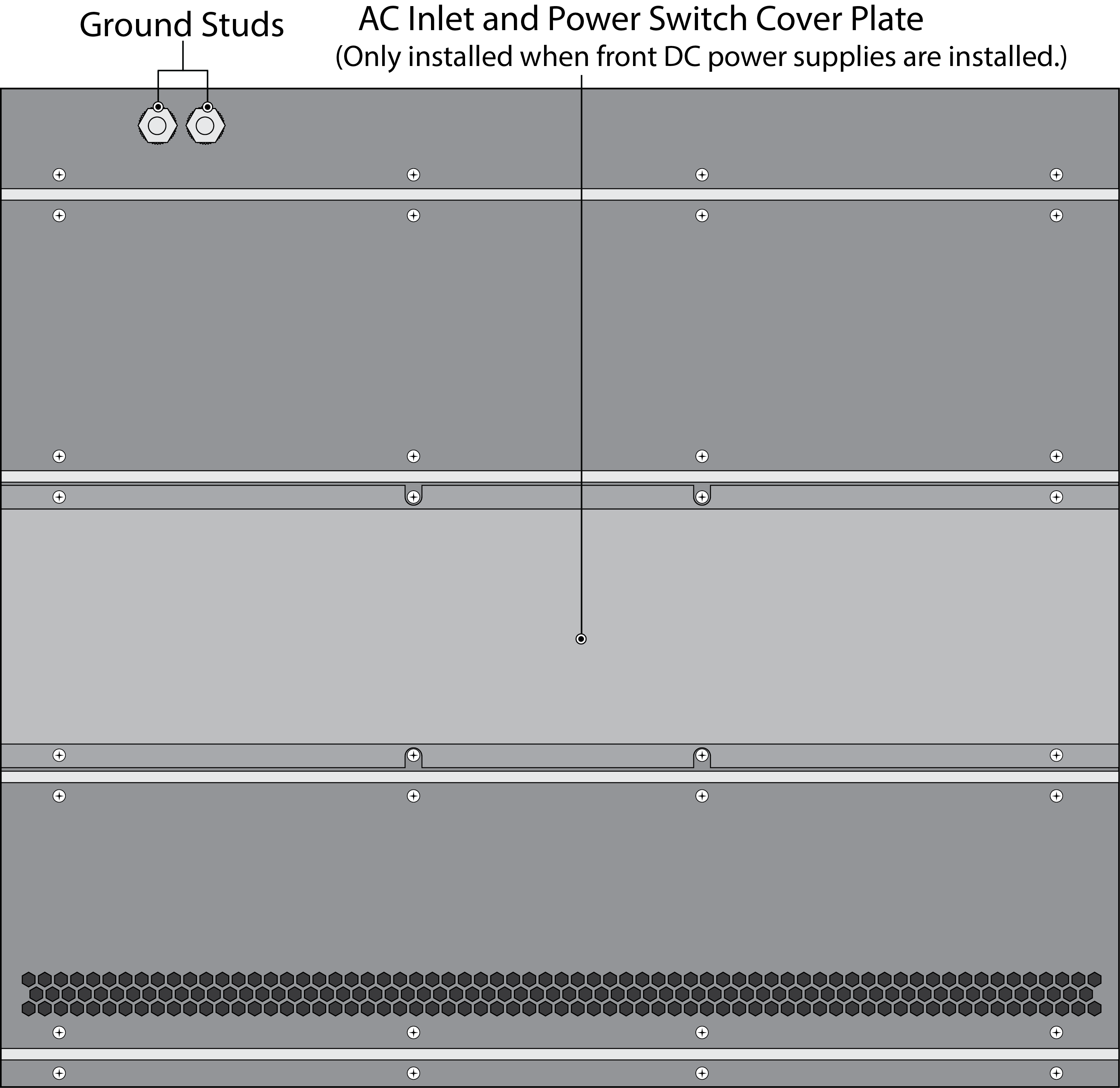

The following image shows the back panel of the PA-7050 firewall (with DC power supplies installed). The AC inlets and switches are not functional and must remain covered using the provided cover plate.
The only differences between the back panel of the AC model and the back panel of the DC model is that the DC model does not have a Power Entry Modules (PEM); the DC power source connects directly to the front of the power supplies. For descriptions of the back panel components, see PA-7050 Back Panel (AC).
