PA-7000 Series Firewall Hardware Reference

PA-7080 Power Supply LEDs

Table of Contents

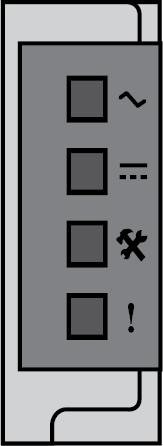

Use the following information to learn how to interpret the LEDs on the PA-7080 AC power supply.

LEDs	Description
	Input—Green indicates that the power supply input is within normal limits, blinking indicates power input is out of normal limits, and off indicates no power input. Output—Green indicates that the power supply DC output to the chassis components are within normal limits, blinking indicates power overload, and off indicates no DC output power. Warning—Yellow indicates that the power supply temperature is exceeded, blinking indicates that the power supply needs service and should be replaced, and off indicates no warning. Fault—Red indicates a power supply failure, blinking indicates that the management plane cannot communicate with the power supply, and off indicates no issues.

LEDs

Description

Input—Green indicates that the power supply input is within normal limits, blinking indicates power input is out of normal limits, and off indicates no power input.
Output—Green indicates that the power supply DC output to the chassis components are within normal limits, blinking indicates power overload, and off indicates no DC output power.
Warning—Yellow indicates that the power supply temperature is exceeded, blinking indicates that the power supply needs service and should be replaced, and off indicates no warning.
Fault—Red indicates a power supply failure, blinking indicates that the management plane cannot communicate with the power supply, and off indicates no issues.

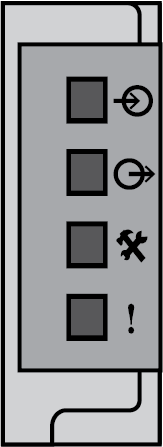

The following table describes the PA-7080 DC power supply LEDs.

LEDs	Description
	Input—Green indicates that the power supply input is within normal limits and off indicates no power input. Output—Green indicates that the power supply DC output to the chassis components are within normal limits and blinking indicates overload. Warning—Yellow indicates that the power supply temperature is exceeded and off indicates no warning. Fault—Red indicates a power supply failure and off indicates no issues.

LEDs

Description

Input—Green indicates that the power supply input is within normal limits and off indicates no power input.
Output—Green indicates that the power supply DC output to the chassis components are within normal limits and blinking indicates overload.
Warning—Yellow indicates that the power supply temperature is exceeded and off indicates no warning.
Fault—Red indicates a power supply failure and off indicates no issues.
