Install a PA-7000 Series Firewall DPC in a Single Chassis

Put the provided ESD wrist strap on your wrist ensuring that the metal contact is touching your skin. Then attach (snap) one end of the ground cable to the wrist strap and remove the alligator clip from the banana clip on the other end of the ESD grounding cable. Plug the banana clip end into one of the ESD ports located on the front of the chassis before handling ESD sensitive hardware. For details on the ESD port location, see PA-7050 Front Panel (AC) or PA-7080 Front Panel (AC).

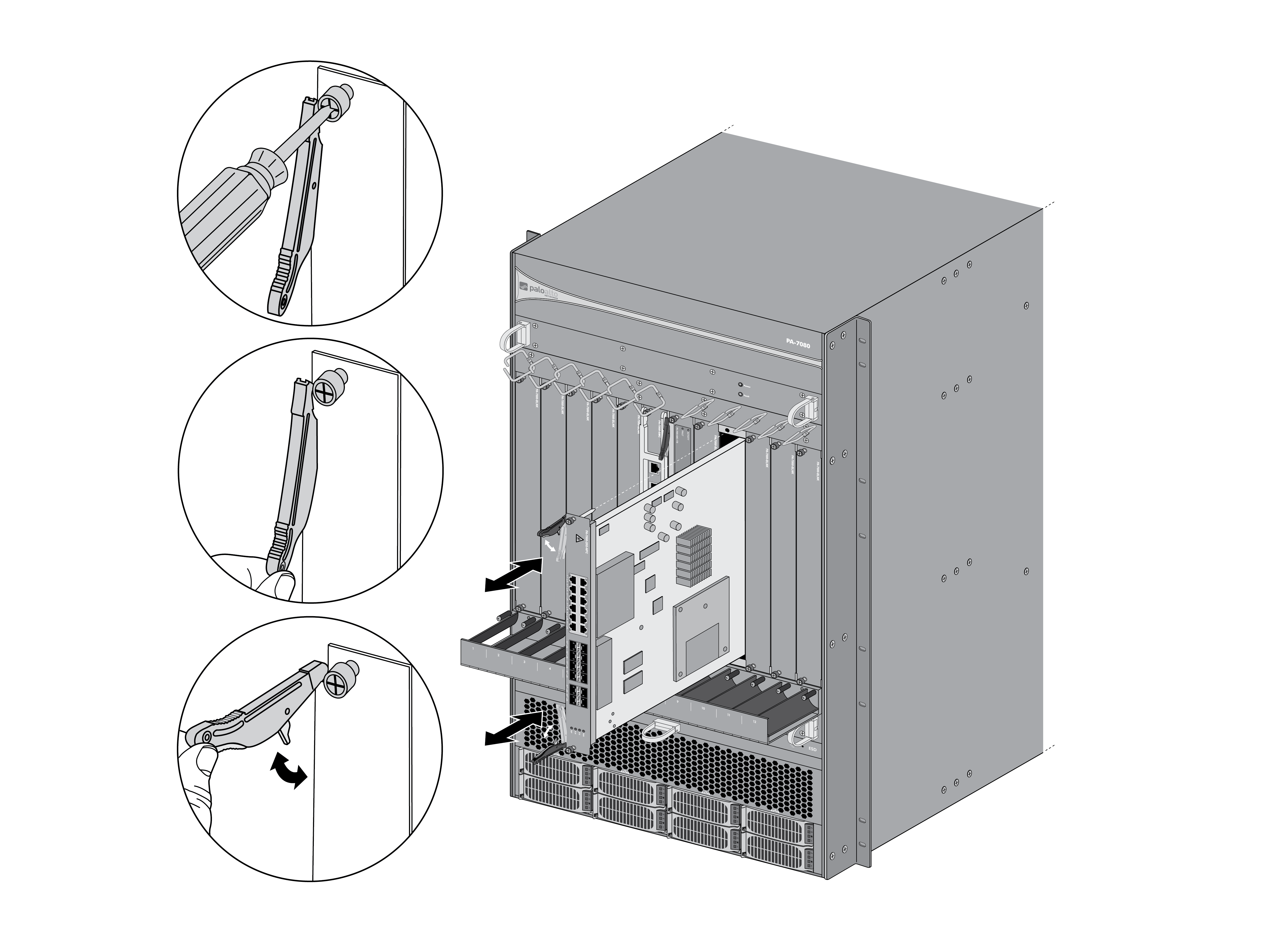

Remove the DPC from the antistatic bag and partially slide it into any of the available DPC slots, ensuring that the handles are in the open position. When the card is about 1/4-inch from being fully inserted, adjust the levers to align with the chassis and then close the levers to seat the card in place. The following images show how to install DPCs.


Tighten the thumb screws on each side of the card to secure the card to the chassis by hand or using a Phillips-head screwdriver.
Cover any empty slots with the provided blank slot covers. Each empty slot must be covered with the provided blank slot covers to ensure proper airflow and to prevent debris from entering the chassis.
Enable the DPC by running the following command using slot 3 as an example:
admin@PA-7050>
request chassis enable slot s3
It is recommended that you observe the enabled card for about two minutes to check for internal path monitoring failures. If there is no failure, proceed to the next step.
Check the status of the card in slot 3 on the chassis by running:
admin@PA-7050>
show chassis status slot s3
If the card is functioning properly, the status will show an output similar to the following:
Slot...Component........Card Status.....Config Status
3.......PA-7000-DPC ...Up..................Success
Ensure that the DPC's session distribution policy is set to
session-load
.
Run the following command to check the DPC's current distribution policy:
admin@PA-7050>
show session distribution policy
If the
Ownership Distribution Policy
reads as any value other than
session-load
, run the following command:
admin@PA-7050>
set session distribution-policy session-load
Running the
show session distribution policy
command should now read
Ownership Distribution Policy: session-load
.
