Identify PA-7000 Series NPC Port Activity and Link LEDs

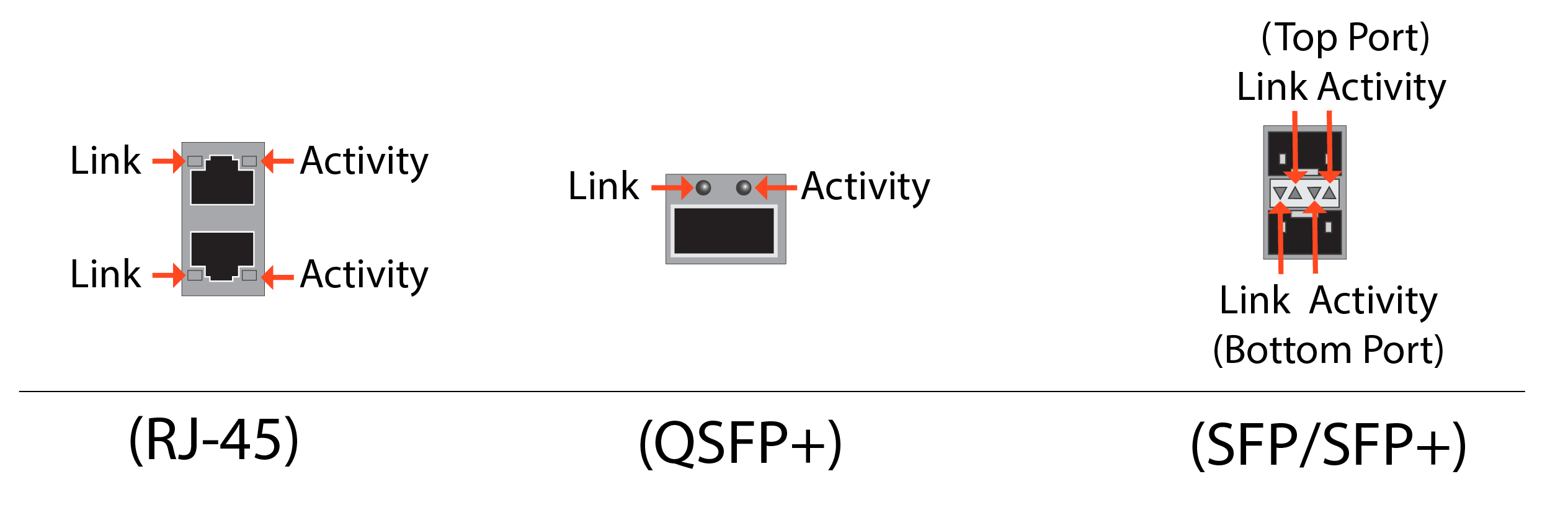

The following image shows how to identify the activity and link LEDs for the port types available on PA-7000 Series firewall NPCs. The image shows the port orientation if the NPC is in a horizontal position. For details on the functions and states of the LEDS, see PA-7000 Series Firewall Network Processing Cards (NPCs) for the NPC that you are using.
