    Set Up a Basic Security Policy

    Now that you defined some zones and attached them to interfaces, you are ready to begin creating your Security Policy. The firewall will not allow any traffic to flow from one zone to another unless there is a Security policy rule that allows it. When a packet enters a firewall interface, the firewall matches the attributes in the packet against the Security policy rules to determine whether to block or allow the session based on attributes such as the source and destination security zone, the source and destination IP address, the application, user, and the service. The firewall evaluates incoming traffic against the Security policy rulebase from left to right and from top to bottom and then takes the action specified in the first Security rule that matches (for example, whether to allow, deny, or drop the packet). This means that you must order the rules in your Security policy rulebase so that more specific rules are at the top of the rulebase and more general rules are at the bottom to ensure that the firewall is enforcing policy as expected.
    Even though a Security policy rule allows a packet, this does not mean that the traffic is free of threats. To enable the firewall to scan the traffic that it allows based on a Security policy rule, you must also attach Security Profiles—including URL Filtering, Antivirus, Anti-Spyware, File Blocking, and WildFire Analysis—to each rule (the profiles you can use depend on which Subscriptions you purchased). When creating your basic Security policy, use the predefined security profiles to ensure that the traffic you allow into your network is being scanned for threats. You can customize these profiles later as needed for your environment.
    Use the following workflow set up a very basic Security policy that enables access to the network infrastructure, to data center applications, and to the internet. This enables you to get the firewall up and running so that you can verify that you have successfully configured the firewall. However, this initial policy is not comprehensive enough to protect your network. After you verify that you successfully configured the firewall and integrated it into your network, proceed with creating a Best Practice Internet Gateway Security Policy that safely enables application access while protecting your network from attack.
    1. (
      Optional
      ) Delete the default Security policy rule.
      By default, the firewall includes a Security policy rule named rule1 that allows all traffic from Trust zone to Untrust zone. You can either delete the rule or modify the rule to reflect your zone-naming conventions.

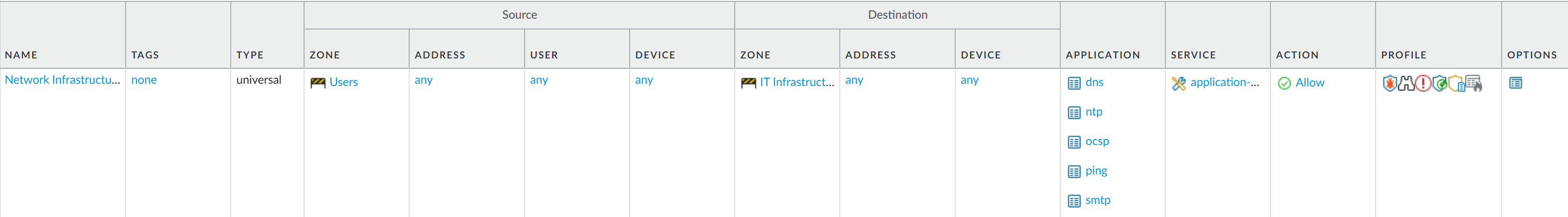

    2. Allow access to your network infrastructure resources.
      1. Select
        Policies
        Security
         and click
        Add
        .
      2. In the
        General
         tab, enter a descriptive
        Name
         for the rule.
      3. In the
        Source
         tab, set the
        Source Zone
         to
        Users
        .
      4. In the
        Destination
         tab, set the
        Destination Zone
         to
        IT Infrastructure
        .
        As a best practice, use address objects in the
        Destination Address
         field to enable access to specific servers or groups of servers only, particularly for services such as DNS and SMTP that are commonly exploited. By restricting users to specific destination server addresses, you can prevent data exfiltration and command and control traffic from establishing communication through techniques such as DNS tunneling.
      5. In the
        Applications
         tab,
        Add
         the applications that correspond to the network services you want to safely enable. For example, select
        dns
        ,
        ntp
        ,
        ocsp
        ,
        ping
        , and
        smtp
        .
      6. In the
        Service/URL Category
         tab, keep the
        Service
         set to
        application-default
        .
      7. In the
        Actions
         tab, set the
        Action Setting
         to
        Allow
        .
      8. Set
        Profile Type
         to
        Profiles
         and select the following security profiles to attach to the policy rule:
        • For
          Antivirus
          , select
          default
        • For
          Vulnerability Protection
          , select
          strict
        • For
          Anti-Spyware
          , select
          strict
        • For
          URL Filtering
          , select
          default
        • For
          File Blocking
          , select
          basic file blocking
        • For
          WildFire Analysis
          , select
          default
      9. Verify that
        Log at Session End
         is enabled. Only traffic that matches a Security policy rule will be logged.
      10. Click
        OK
        .

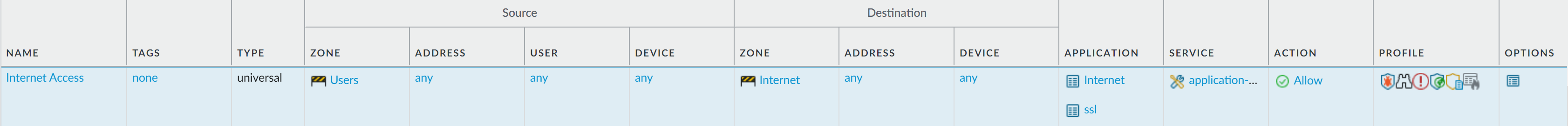

    3. Enable access to general internet applications.
      This is a temporary rule that allows you to gather information about the traffic on your network. After you have more insight into which applications your users need to access, you can make informed decisions about which applications to allow and create more granular application-based rules for each user group.
      1. Select
        Policies
        Security
         and
        Add
         a rule.
      2. In the
        General
         tab, enter a descriptive
        Name
         for the rule.
      3. In the
        Source
         tab, set the
        Source Zone
         to
        Users
        .
      4. In the
        Destination
         tab, set the
        Destination Zone
         to
        Internet
        .
      5. In the
        Applications
         tab,
        Add
         an
        Application Filter
         and enter a
        Name
        . To safely enable access to legitimate web-based applications, set the
        Category
         in the application filter to
        general-internet
         and then click
        OK
        . To enable access to encrypted sites,
        Add
         the
        ssl
         application.
      6. In the
        Service/URL Category
         tab, keep the
        Service
         set to
        application-default
        .
      7. In the
        Actions
         tab, set the
        Action Setting
         to
        Allow
        .
      8. Set
        Profile Type
         to
        Profiles
         and select the following security profiles to attach to the policy rule:
        • For
          Antivirus
          , select
          default
        • For
          Vulnerability Protection
          , select
          strict
        • For
          Anti-Spyware
          , select
          strict
        • For
          URL Filtering
          , select
          default
        • For
          File Blocking
          , select
          strict file blocking
        • For
          WildFire Analysis
          , select
          default
      9. Verify that
        Log at Session End
         is enabled. Only traffic that matches a security rule will be logged.
      10. Click
        OK
        .

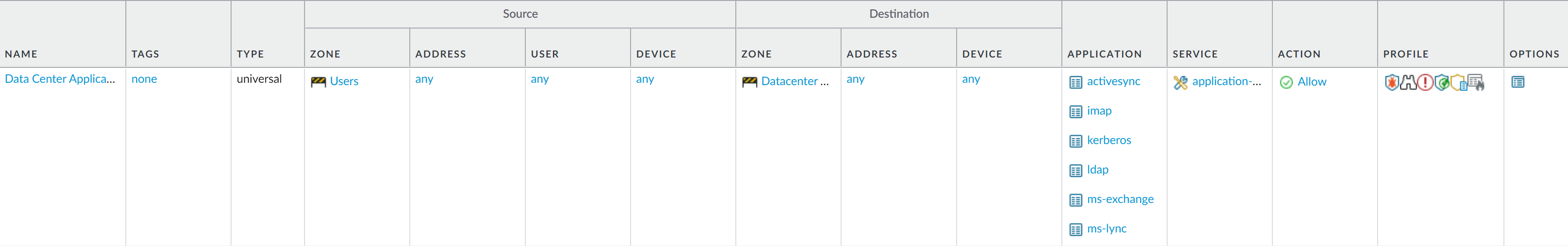

    4. Enable access to data center applications.
      1. Select
        Policies
        Security
         and
        Add
         a rule.
      2. In the
        General
         tab, Enter a descriptive
        Name
         for the rule.
      3. In the
        Source
         tab, set the
        Source Zone
         to
        Users
        .
      4. In the
        Destination
         tab, set the
        Destination Zone
         to
        Data Center Applications
        .
      5. In the
        Applications
         tab,
        Add
         the applications that correspond to the network services you want to safely enable. For example, select
        activesync
        ,
        imap
        ,
        kerberos
        ,
        ldap
        ,
        ms-exchange
        , and
        ms-lync
        .
      6. In the
        Service/URL Category
         tab, keep the
        Service
         set to
        application-default
        .
      7. In the
        Actions
         tab, set the
        Action Setting
         to
        Allow
        .
      8. Set
        Profile Type
         to
        Profiles
         and select the following security profiles to attach to the policy rule:
        • For
          Antivirus
          , select
          default
        • For
          Vulnerability Protection
           select
          strict
        • For
          Anti-Spyware
           select
          strict
        • For
          URL Filtering
           select
          default
        • For
          File Blocking
           select
          basic file blocking
        • For
          WildFire Analysis
           select
          default
      9. Verify that
        Log at Session End
         is enabled. Only traffic that matches a security rule will be logged.
      10. Click
        OK
        .
    5. Save your policy rules to the running configuration on the firewall.
      Click
      Commit
      .
    6. To verify that you have set up your basic policies effectively, test whether your Security policy rules are being evaluated and determine which Security policy rule applies to a traffic flow.
      For example, to verify the policy rule that will be applied for a client in the user zone with the IP address 10.35.14.150 when it sends a DNS query to the DNS server in the data center:
      1. Select
        Device
        Troubleshooting
         and select
        Security Policy Match
         (
        Select Test
        ).
      2. Enter the
        Source
         and
        Destination
         IP addresses.
      3. Enter the
        Protocol
        .
      4. Select
        dns
         (
        Application
        )
      5. Execute
         the Security policy match test.
