Dynamic DNS Registration Support for Remote Troubleshooting and Updates
Learn how you can use the dynamic DNS update service with GlobalProtect mobile users
to remotely troubleshoot issues.
Where Can I Use This? | What Do I Need? |
---|---|
|
|
When a mobile user connects remotely to
Prisma Access
using GlobalProtect Agent,
the GlobalProtect gateway assigns an IP address and endpoint FQDN to the user.
However, Prisma Access
does not update the DNS servers in your enterprise with
this information. Since DNS servers don't have the mobile user's assigned IP address
and FQDN information, your IT administrator and the apps in your network can't
identify and update remote endpoints using FQDN. Using dynamic DNS registration, you can integrate
Prisma Access
with IP Address
Management (IPAM) vendors to dynamically create A and PTR records in the DNS servers
using nsupdate, offering these benefits: - Direct integration with leading IPAM vendors such as InfoBlox, BlueCat, and Windows.
- DDNS updates are performed using either transaction signature (TSIG) or Kerberos as the authentication protocol, ensuring secure updates to the DNS database.
- Real-time DDNS updates are done fromPrisma Accessto the DNS server using batched nsupdate calls based on GlobalProtect connect and disconnect events. These updates use a DDNS service on the Mobile Users Security Processing Node (MU-SPN).
After you set this solution up, you can perform the following actions:
- You can use software tools such as Microsoft Endpoint Configuration Manager (MECM) to push software updates to GlobalProtect endpoints.
- IT and help desk staff can connect and manage the GlobalProtect endpoint using the FQDN of the device.
- You can implement customer applications (such as banking applications) that rely on DNS reverse lookups to allow access from approved GlobalProtect endpoints.
This DDNS solution isn't compatible with the Dynamic DNS Registration Support for Mobile
Users—GlobalProtect solution that uses
Strata Logging Service
to
push the DDNS updates to the server. If you have the existing solution using Strata Logging Service
implemented and then deploy this solution, Prisma Access
uses this solution and disables the existing solution using Strata Logging Service
. Dynamic DNS Registration Support Use Case
The following diagram illustrates a typical use case for the
Prisma Access
DDNS solution. In this example, you want to update GlobalProtect endpoints using
MECM or would like the IT help desk to be able to log in to the GlobalProtect
endpoint remotely for troubleshooting. - GlobalProtect establishes an SSL tunnel between the GlobalProtect endpoint thePrisma Accessgateway.
- GlobalProtect sends the mobile user device’s hostname, domain name, and tunnel IP address information through the tunnel to the on-premises orPrisma Accessgateway.
- Prisma Accessprovides DDNS updates of A and PTR records using nsupdate to the DNS server.Prisma Accessprovides these secure updates in real-time when it processes login and logout events.
- The IT administrator or an enterprise software uses these records through a DNS or RDNS lookup and resolves the endpoint name or IP address.
- The IT administrator or the endpoint management software uses this information to manage the endpoint or push software updates.
Network Connectivity Requirements
Before you implement this solution, make sure that your network has the following
requirements in place:
- You have added routes to ensure connectivity to the DNS server from the MU-SPN and fromPrisma Accessservice connections.Do do this, add routes from thePrisma AccessInfrastructure Subnet, which you can find inand the Mobile Users—GlobalProtect IP address pool, which you can find inWorkflowsPrisma Access SetupPrisma AccessInfrastructure Subnet.WorkflowsPrisma Access SetupGlobalProtectClient IP Pool
- You have established connectivity by creating a service connection betweenPrisma Accessand the IPSec termination device (for example, a next-generation firewall or router) that has connectivity to the DNS server.
- You have made sure that your DNS server is accessible over the service connection IPSec tunnel.
- You have verified that nsupdate commands sent fromPrisma AccessMobile Users—GlobalProtect security processing nodes (SPNs) are allowed and can reach the DNS server.The steps you perform to achieve this connectivity differ based on the location and the type of the DNS server that is used. For example:
- If the DNS server is in the data center, you can set up connectivity using IPSec tunnels from the Mobile Users—GlobalProtect SPN to service connections, and then from the service connection to the gateway router (for example, a next-generation firewall configured as a VM) behind which the DNS server exists.
- If the DNS server is in the cloud, you can achieve connectivity to the DNS server from the Mobile Users—GlobalProtect SPN using appropriate Security policy rules.
- You have configured forward and reverse lookup zones on the DNS servers.
- You have implemented an Infoblox, Bluecat, or Windows DNS server that supports nsupdate.
- If you maintain permissions for zones individually, make sure that you've created security policy rules to allow nsupdates from devices that have the correct TSIG or Kerberos key.
To configure this solution, use one of the following procedures, based on your
deployment type.
Configure Dynamic DNS Updates for Prisma Access (Managed by Strata Cloud Manager)
Prisma Access (Managed by Strata Cloud Manager)

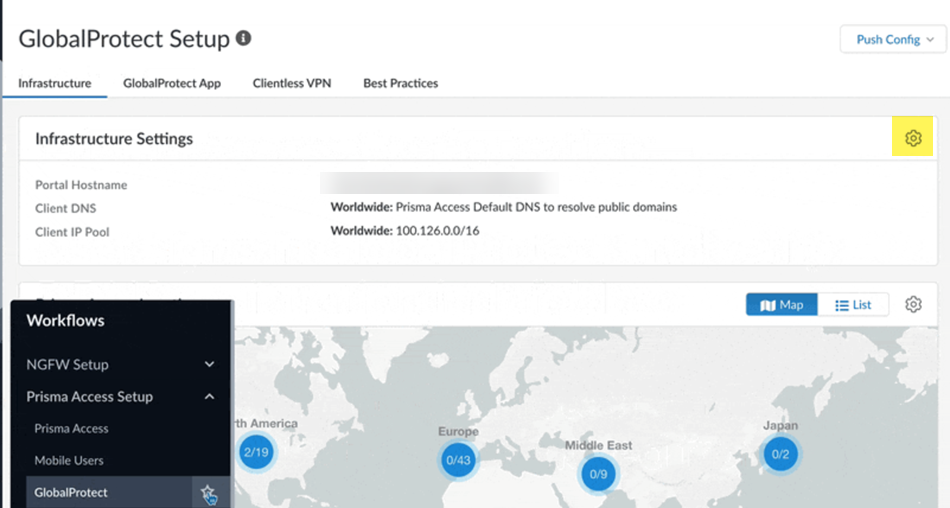

- FromStrata Cloud Manager, go toand click the gear to edit theWorkflowsGlobalProtectInfrastructure Settings.
- SelectAdvanced Settings.
- Configure theDynamic DNS Supportsettings.
- SelectDynamic DNS Support for GlobalProtect.
- Select theDomain Type.
- Fallback Domain—The domain used for the nsupdate events falls back to the domain you specify in theFallback Domainarea. Use this choice if the GlobalProtect clients are not joined to any domain, or if they are domain-joined to the same domain that the DDNS service uses to update the records on the DNS server.If you selectFallback Domainand users who are not connected to a domain log into GlobalProtect, their information is added under the fallback domain zone that's created on the DNS server.If GlobalProtect clients that are logging in to GlobalProtect belong to an unexpected domain that isn't configured on the DNS server, nsupdate might fail; in this case; selectOverride Domainto override the unknown domain with the domain that is known to the DNS server.
- Override Domain—Prisma Accessuses only the domain you specify to update the DNS server and overrides all other domains. If GlobalProtect clients log in to another domain, the DDNS service uses the domain you specify here to update the DNS A and PTR records.
- Select the domain that is used to update the PTR records for either fallback or override domains in theFallback Domainfield.
- Select theDNS Server IPaddress.
- Select theServer Type(eitherTSIGorKerberos).
- (TSIG Deployments Only) Select theTSIG Keyto use with TSIG.Make sure that the TSIG file is in the correct format and has a filetype of .key. The TSIG file should be in the following format:key "ddns-gp" { algorithm hmac-sha256; secret "aBCDEFGhiJklMNO89PQR+8stUVWX+YZAbcdeFgHI5J="; };(Kerberos Deployments Only) Specify the Kerberos options to use.
- Enter the IP address of theKerberos Domain Controller.
- Enter the IP address of theKerberos Admin Server.
- Enter theKerberos User Name.
- Enter theKerberos Key(the keytab) to use.Be sure that the Kerberos key is in the correct format.
- Saveyour changes.
- Set up forward lookup and reverse lookup zones on your DNS server.Refer to the documentation for your IPAM vendor to set up these zones. This step requires that you enter theInfrastructure SubnetandClient IP PoolfromPrisma Access.
- To find the infrastructure subnet, go toand make a note of theWorkflowsPrisma Access SetupPrisma AccessInfrastructure Subnet.
- To find the GlobalProtect mobile user IP address pool, go toand make a note of theWorkflowsPrisma Access SetupGlobalProtectClient IP Pool.
- Verify that DNS records are being updated on the IPAM DNS server.
- Open a client machine and connect to aPrisma AccessGlobalProtect gateway.
- Select GlobalProtectSettingsand verify the GlobalProtect IP address thatPrisma Accessassigned to the user.TheAssigned IP Address(es)(100.126.2.7) shows that the IP address comes from the GlobalProtect IP address pool (100.126.0.0/16).

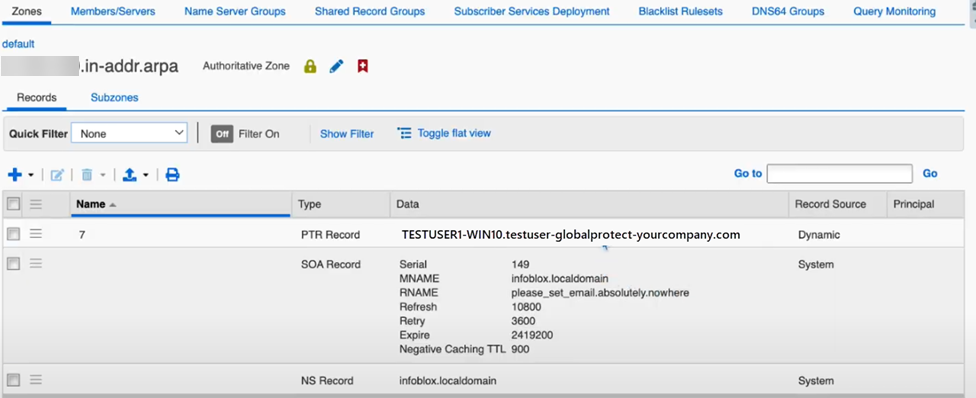

- From the IPAM DNS server, view the user's record.In this example, the user is namedtestuser1-win10.The DNS reverse lookup also displays the username in the PTR record.
- Log the user off from GlobalProtect and check the records to make sure that the DNS server has deleted the records for the user.
Configure Dynamic DNS Updates for Prisma Access (Managed by Panorama)
Prisma Access (Managed by Panorama)
To configure dynamic DNS updates for
Prisma Access (Managed by Panorama)
, complete these steps. - From Panorama, go toand click the gear to edit theCloud ServicesConfigurationMobile Users—GlobalProtectSettings.
- SelectDynamic DNS.
- Enable Dynamic DNS Support.
- You are prompted that, if you have the legacy Dynamic DNS support enabled, enabling the updated support permanently disables the legacy support. ClickOKto continue.
- Configure theDynamic DNSsettings.
- SelectEnable Dynamic DNS Support.
- Select theDomain Type.
- Ddns Fallback—The domain used for the nsupdate events falls back to the domain you specify in theDomain Namearea. Use this choice if the GlobalProtect clients are not joined to any domain, or if they are domain-joined to the same domain that the DDNS service uses to update the records on the DNS server.If you selectDdns Fallbackand users who are not connected to a domain log into GlobalProtect, their information is added under the Ddns Fallback zone that's created on the DNS server.If GlobalProtect clients that are logging in to GlobalProtect belong to an unexpected domain that isn't configured on the DNS server, nsupdate might fail; in this case; selectDdns Overrideto override the unknown domain with the domain that is known to the DNS server.
- Ddns Override—Prisma Accessuses only the domain you specify to update the DNS server and overrides all other domains. If GlobalProtect clients log in to another domain, the DDNS service uses the domain you specify here to update the DNS A and PTR records.
- Select the domain that is used to update the PTR records for either fallback or Domain Names in theDomain Namefield.
- Select theDNS Server IPaddress.
- Select theAuthentication Type(eitherTSIGorKerberos).
- (TSIG Deployments Only) Select theTSIG Keyto use with TSIG.Make sure that the TSIG file is in the correct format and has a filetype of .key. The TSIG file should be in the following format:key "ddns-gp" { algorithm hmac-sha256; secret "aBCDEFGhiJklMNO89PQR+8stUVWX+YZAbcdeFgHI5J="; };(Kerberos Deployments Only) Specify the Kerberos options to use.
- Enter the IP address of theKerberos Domain Controller.
- Enter the IP address of theKerberos Admin Server.
- Enter theKerberos User Name.
- Enter theKerberos Key(the keytab) to use.Use base64 encoding on the Kerberos key before uploading it.
- Saveyour changes.
- Set up forward lookup and reverse lookup zones on your DNS server.Refer to the documentation for your IPAM vendor to set up these zones. This step requires that you enter theInfrastructure SubnetandClient IP PoolfromPrisma Access.
- To find the infrastructure subnet, go to, click the gear to edit thePanoramaCloud ServicesConfigurationService SetupSettingsand make a note of theInfrastructure Subnet IPv4.
- To find the GlobalProtect mobile user IP address pool, go to, select thePanoramaCloud ServicesMobile Users—GlobalProtectHostname, selectIP Poolsand make a note of theIP Pool IPv4.
- Verify that DNS records are being updated on the IPAM DNS server.
- Open a client machine and connect to aPrisma AccessGlobalProtect gateway.
- Select GlobalProtectSettingsand verify the GlobalProtect IP address thatPrisma Accessassigned to the user.TheAssigned IP Address(es)(100.126.2.7) shows that the IP address comes from the GlobalProtect IP address pool (100.126.0.0/16).
- From the IPAM DNS server, view the user's record.In this example, the user is namedtestuser1-win10.The DNS reverse lookup also displays the username in the PTR record.
- Log the user off from GlobalProtect and check the records to make sure that the DNS server has deleted the records for the user.
