Configure Prisma Access to establish a trust relationship between Prisma Access and
your ADFS IdP for SAML 2.0 to enable authentication for your mobile users.
Before you begin, make sure that you can navigate to your AD FS namespace’s initiated
sign-on page. The URL is in the format
https://
<namespace>
<adfs-server-hostname>
/adfs/ls/idpinitiatedsignon.aspx
,
where <namespace>
is the namespace for the ADFS server (either
adfs.
or, if you use the Secure Token Service (STS), sts.
) and
<adfs-server-hostname>
is the host name for the ADFS
server. An example URL is
https://adfs.acme.com/adfs/ls/idpinitiatedsignon.aspx
.- Complete the steps for defining the Service Provider (SP) settings, including generating or importing the certificate that Prisma Access uses to sign SAML messages that it sends to the identity provider (IdP).
- Export the Prisma Access signing certificate so that you can import it onto your IdP.
- Add each Prisma Access portal and gateway as aRelying Party Trustto the Windows server.
- On the server running AD FS, start AD FS Management.
- In theNavigation Pane, expandTrust Relationships, and then selectRelying Party Trusts.
- On theActionsmenu located in the right column, selectAdd Relying Party Trust.

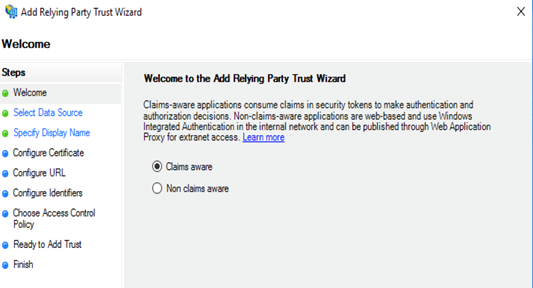

- In theAdd Relying Party Trust Wizardpage, selectClaims awareand clickStart.

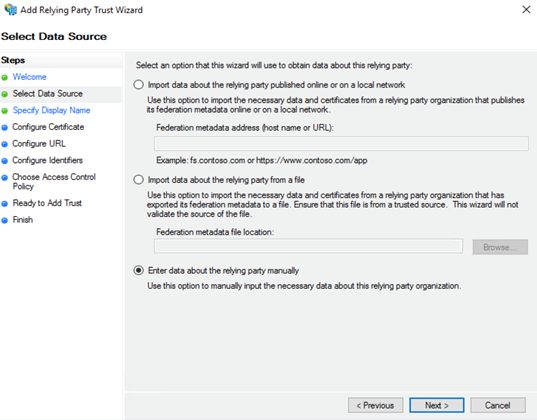

- In theSelect Data Sourcepage, selectEnter data about the relying party manuallyand clickNext.

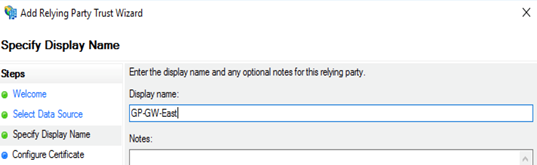

- In theSpecify Display Namepage, enter the name for the first relying party (one of the IP addresses in the list of security processing nodes you exported from Prisma Access) and clickNext.This example specifies one of the security processing nodes from Prisma Access as a relying party.

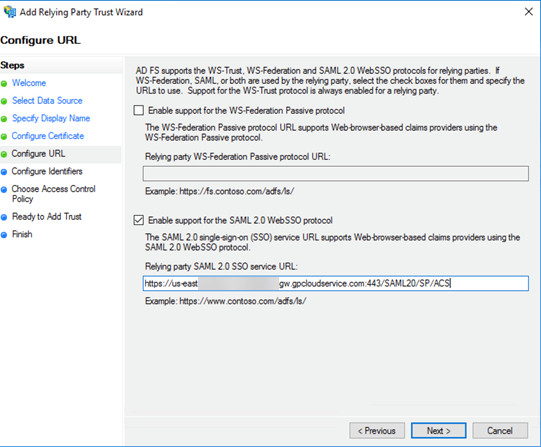

- In theConfigure URLpage, enter the SAML single sign-on URL you configured for Prisma Access and then clickNext.The URL is in the formathttps://<prisma-access-hostname>:433/SAML20/SP/ACS, where<prisma-access-hostname>is the name of the Prisma Access gateway you are configuring as a relying party trust.

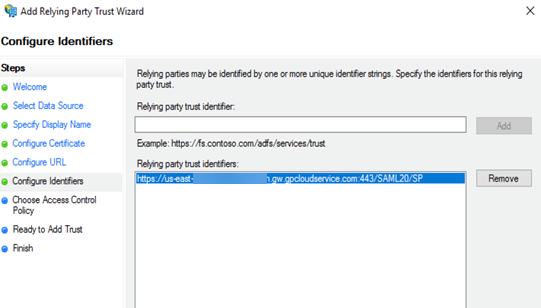

- In theConfigure Identifierspage, enter the relying party trust identifier for Prisma Access and then clickNext.The relying party trust identifier URL is in the formathttps://<prisma-access-hostname>:443/SAML20/SP, where<prisma-access-hostname>is the name of the Prisma Access security processing node you are configuring as a relying party trust.

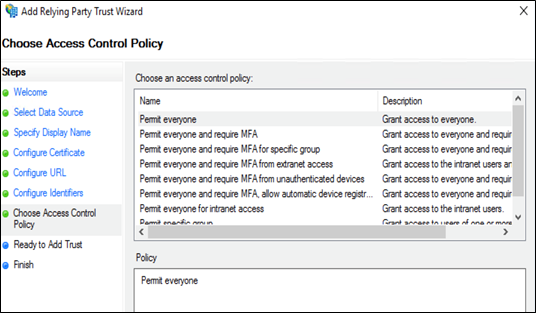

- In theChoose Access Control Policypage, leave thePolicyasPermit everyoneand clickNext.

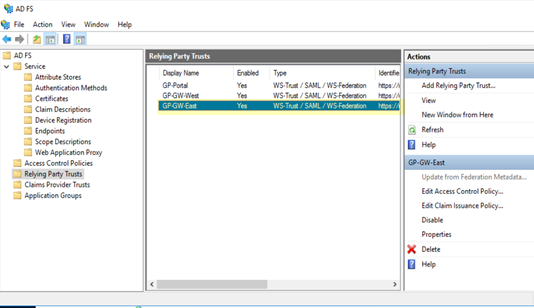

- ClickFinish.ADFS adds a newRelying Party Trustsentry.
- Add a rule to the relying party trust you created.

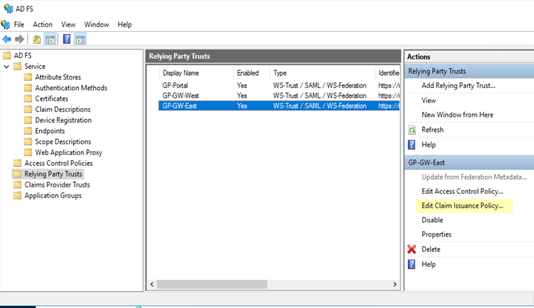

- In theRelying Party Trustspage, find the Prisma Access node you just added in the selections on the right, then selectEdit Claim Issuance Policy.

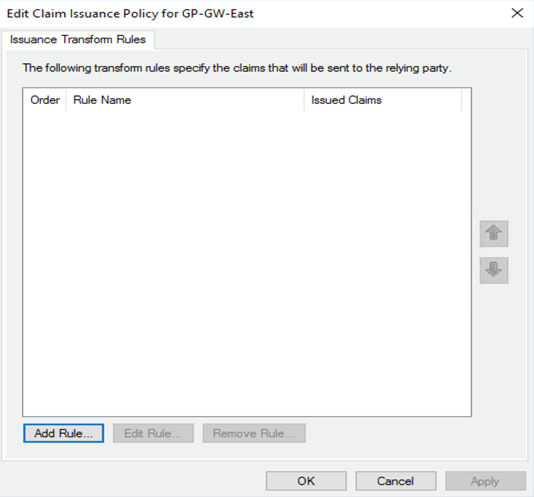

- In theEdit Claim Issuance Policypage, clickAdd Rule.

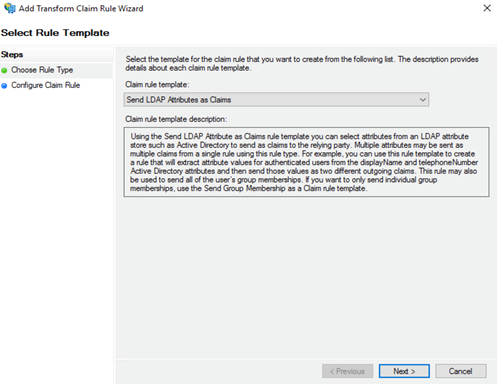

- In theSelect Rule Templatepage, selectSend LDAP attributes as Claimsas the Claim rule template and clickNext.

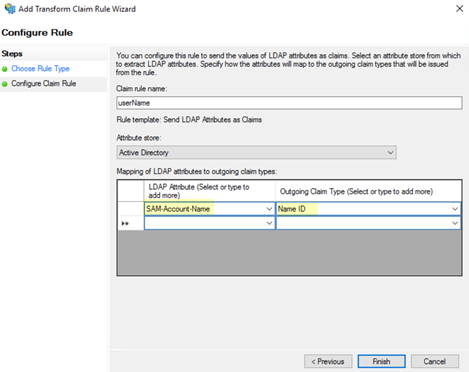

- In theConfigure Rulewindow, add anLDAP AttributeofSAM-Account-Nameand anOutgoing Claim TypeofName ID.By default, the Prisma Access security processing nodes expect theusernameattribute in the SAML response from the Identity Provider (IdP).

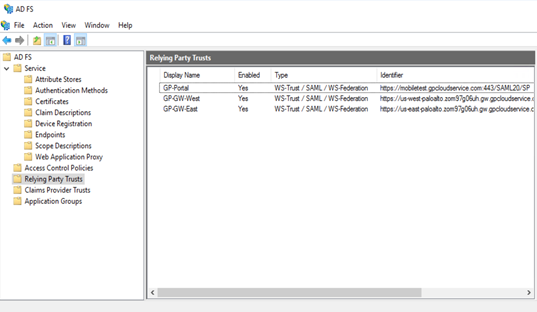

- ClickApplythen clickOK.The Prisma Access node displays in the list ofRelying Party Trusts.
- Add the remaining security processing nodes in Prisma Access as Relying Party Trusts.
- Download the federation metadata XML file and the ADFS CA certificate to a local machine for import into Prisma Access:

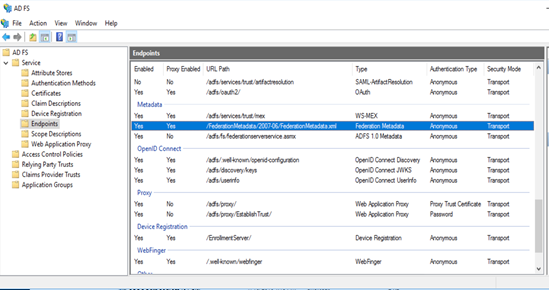

- To download the metadata file, start AD FS Management on the server running ADFS, then selectand find the URL to download the file. The URL is in the formatAD FSServiceEndpointshttps://<adfs-server-hostname>/FederationMetadata/2007-06/FederationMetadata.xml, where<adfs-server-hostname>is the host name for the ADFS server.
- If the certificate that the ADFS server uses to sign SAML responses is not signed by a well-known, third-party CA, export the CA certificate so that you can import it into Prisma Access.
- Import the metadata file and the CA certificate (if needed) from ADFS into Prisma Access.
- Log in to the Prisma Access app on the hub and selectandConfigureMobile UsersGo To SummaryEditthe Enterprise Authentication configuration.
- InSAML IdP ProfileclickAdd SAML IdP ProfileandImportthe metadata file you exported from the ADFS server.
- Savethe IdP profile.
