    Proxy mode on Remote Networks

    Table of Contents

    Proxy mode on Remote Networks

    Learn how to use multicast and unicast IP address to secure mobile users and devices at Remote Networks with an Explicit Proxy.
    Where Can I Use This?
    What Do I Need?
    • Prisma Access (Cloud Management)
    • Prisma Access (Panorama Managed)
    If you'd like to enable Private Source IP based visibility and enforcement on Explicit Proxy in your Prisma Access environment, get in touch with your account team to learn more.
    • Prisma Access
       license
      A Prisma Access Mobile Users license and a Prisma Access Remote Network license are required for Proxy mode for remote networks.
    Proxy Mode on Remote Networks helps to secure outbound internet traffic for users and servers in your branches which need PAC based connection method due to networking or compliance reasons.
    You can use Proxy mode for Remote Networks to:
    • Secure Internet-bound traffic from from branch sites that use non-default routes.
    • Secure Internet-bound traffic from your branches without backhauling it to a data center or HQ site.
    • Connect to Prisma Access Explicit Proxy over Private IP addresses.
      Prisma Access provides you with four anycast IP addresses globally, and one unicast IP address per Remote Network, that you use to forward traffic to Explicit Proxy.
    • Enforce security controls and get visibility based on Source IP for the Systems in the branch.
    • Skip authentication for servers based on the Source IP address.
    • Connect to Prisma Access from your branch through an IPSec Tunnel.
    • If you require more than 1000 Mbps of bandwidth, you can create a high-bandwidth remote network connection using multiple Remote Network connections and specify the Explicit Proxy anycast and unicast addresses in each connection.
    The following diagram shows a Remote Network that has been configured for a site that has no default route configured. To protect users and headless devices at the site using Explicit Proxy, the administrator has made the following configuration changes:
    • Onboarded Remote Networks and Explicit Proxy locations and have retrieved the anycast and unicast IP addresses that Prisma Access takes from its infrastructure subnet.
      You can also create a hostname for Explicit Proxy-directed traffic and add the Explicit Proxy unicast and anycast IP addresses to that hostname.
    • Configured the CPE to forward Explicit Proxy traffic to these anycast and unicast addresses.
      Use the anycast IP addresses in the PAC file to have Prisma Access select from any onboarded Remote Network tunnel to forward traffic to Explicit Proxy. Use the unicast address to have Prisma Access forward traffic through a specific Remote Network tunnel. In this example, you can use either anycast or unicast addresses, since the traffic is going only through one Remote Network IPSec tunnel.
    • Specified these IP addresses in the PAC files of the users’ endpoints and in the system proxy settings of the headless devices.
    After configuration is complete, Prisma Access forwards the traffic from the Remote Network tunnel to Explicit Proxy.

    Cloud Management

    Learn how to use multicast and unicast IP address to secure mobile users and devices at Remote Networks with an Explicit Proxy.
    To secure users at remote networks using Explicit Proxy in Cloud Managed Prisma Access, complete the following steps.
    1. Configure your Explicit Proxy setup and onboard the Explicit Proxy locations you want to add.
    2. Onboard your remote networks if you have not done so already.
      You must enable Prisma Access Remote Networks in the locations that are supported with Explicit Proxy.
    3. Push Config
      , being sure that
      Mobile Users—Remote Workforce
       and
      Remote Networks
       are selected in the
      Push
       scope.
      The push operation retrieves and Anycast addresses you need to integrated Explicit Proxy with the remote network.
    4. Get the anycast IP addresses you use for your Explicit Proxy/Remote Network deployment.
      1. Go to
        Manage
        Service Setup
        Explicit Proxy
        Advanced Security Settings
        .
        If you're using Strata Cloud Manager, go to
        Workflows
        Prisma Access Setup
        Explicit Proxy
        Advanced Security Settings
        .
      2. Enable Proxy Mode
        .
      3. To leverage the source IP addresses of the systems in your branch locations that are forwarding traffic to Explicit Proxy, select
        Source IP based visibility and enforcement
        .
        This functionality has these requirements:
      4. Add a policy to allow traffic bound to anycast and unicast IP on remote networks. If you have enabled
        Source IP visibility and enforcement
        , use the
        Source IP
         field in Security policies in Explicit Proxy to secure the traffic. You need additional policies in the remote networks.
      5. (
        Optional

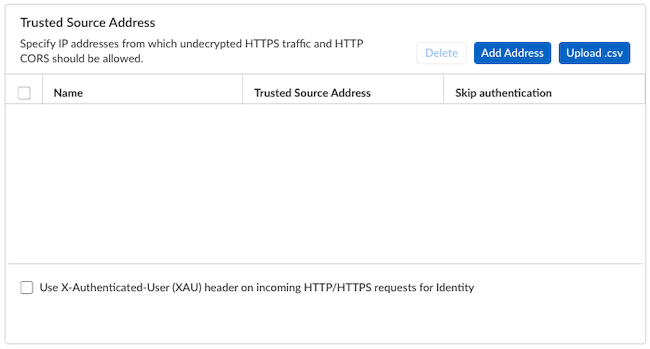

        ) To bypass authentication of any trusted source addresses you entered, specify IP addresses that should have authentication skipped in the
        Trusted Source Address
         area and select
        Skip authentication
        .
        You can use
        Skip authentication
         with
        Source IP based visibility and enforcement
         to Skip authentication of headless systems that can't authenticate, set up security policies, and get visibility of the traffic on Prisma Access Explicit Proxy.
        You can add either IP addresses or subnets. A maximum of 100,000 IP addresses are supported after expanding the subnets.
      6. Go to
        Manage
        Service Setup
        Remote Networks
        .
        If you're using Strata Cloud Manager, go to
        Workflows
        Prisma Access Setup
        Remote Networks
        .
      7. Push Config
        , being sure that
        Mobile Users—Remote Workforce
         and
        Remote Networks
         are selected in the
        Push
         scope.
      8. Go to
        Advanced Settings
         in your Remote Networks Setup and find the anycast IP addresses used to forward traffic to Explicit Proxy.
    5. (
      Optional
      ) Find the unicast address to use for your Explicit Proxy/Remote Network deployment.
      Use the unicast IP address in the PAC file only if you want to target a specific Remote Network to forward traffic to Explicit Proxy. If you want to use all deployed Remote Networks to forward traffic to Explicit Proxy, use the anycast addresses.
      1. Go to
        Manage
        Service Setup
        Remote Networks
        .
        If you're using Strata Cloud Manager, go to
        Workflows
        Prisma Access Setup
        Remote Networks
        .
      2. Make a note of the
        Loopback IP
         address.
        If you have IPv4 and IPv6 addresses, make a note of the IPv4 address.

    Panorama

    Learn how to use multicast and unicast IP address to secure mobile users and devices at Remote Networks with an Explicit Proxy.
    To secure users at remote networks using Explicit Proxy in Panorama Managed Prisma Access, complete the following steps.
    1. Configure your Explicit Proxy deployment and onboard the Explicit Proxy locations you want to add.
    2. Retrieve the anycast IP addresses you use for your Explicit Proxy/Remote Network deployment.
      1. Select
        Panorama
        Cloud Services
        Configuration
        Mobile Users—Explicit Proxy
        .
      2. Select the gear icon to edit the
        Settings
        .
      3. Select
        Enable Proxy Mode
        .
      4. To leverage the private IP addresses of the systems in your branch locations that are forwarding traffic to Explicit Proxy, select
        Source IP based visibility and enforcement
        .
        This functionality has these requirements:
        • A minimum Prisma Access dataplane of 10.2.4
        • A Panorama Managed Prisma Access deployment with a minimum Cloud Services plugin of 4.1
      5. Add a policy to allow traffic bound to anycast and unicast IP on remote networks. If you have enabled
        Source IP visibility and enforcement
        , use the
        Source IP
         field in Security policies in Explicit Proxy to secure the traffic. You need additional policies in the remote networks.
      6. (
        Optional
        ) Under
        Authentication Settings
        , enter any IP addresses from which undecrypted HTTP or HTTP Cross-Origin Resource Sharing (CORS) traffic should be allowed to the
        Trusted Source Address Auth Bypass
        .
        Add the IP addresses to IP address-based Address Objects and
        Add
         the address objects in the field.
        Enter a maximum of 100,000 addresses. Make sure that the address object uses IP addresses only.
      7. (
        Optional
        ) To bypass authentication of any trusted source addresses you entered, select
        Auth Bypass
        .
        You can use
        Auth Bypass
         with
        Source IP based visibility and enforcement
         to skip authentication of headless systems that can't authenticate, set up security policies, and get visibility of the traffic on Prisma Access Explicit Proxy.
        You can add either IP addresses or subnets. A maximum of 100,000 IP addresses are supported after expanding the subnets.
      8. Select
        Panorama
        Cloud Services
        Configuration
        Remote Networks
        .
      9. Onboard your Remote Network Locations if you have not done so already.
        You must enable Prisma Access Remote Networks in the locations that are supported with Explicit Proxy.
      10. Click
        Commit
        Commit and Push
        .
      11. Edit Selections
         and, in the
        Prisma Access
         tab, make sure
        Prisma Access for networks
         is selected in the
        Push Scope
        , then click
        OK
        .
      12. Commit and Push
         your changes.
        You must perform a commit and push for your Remote Networks for Prisma Access to retrieve the IP addresses used in an Explicit Proxy/Remote Network deployment.
      13. Return to the Explicit Proxy
        Settings
         (
        Panorama
        Cloud Services
        Configuration
        Mobile Users—Explicit Proxy
        Settings
        Advanced
        ) and make a note of the
        ALLOCATED ADDRESSES
         that display in under
        Remote Networks Configuration
        .
    3. (
      Optional
      ) Find the unicast address you use for your Explicit Proxy/Remote Network deployment.
      Use the unicast IP address in the PAC file only if you want to target a specific Remote Network to forward traffic to Explicit Proxy. If you want to use all deployed Remote Networks to forward traffic to Explicit Proxy, use the anycast addresses.
      1. Select
        Panorama
        Cloud Services
        Status
        Network Details
        Remote Networks
        .
      2. Make a note of the
        EBGP Router
         address.
        If you have IPv4 and IPv6 addresses, make a note of the IPv4 address.
        This address is also known as the loopback address. If you have made configuration changes that changed the EBGP router address, you can retrieve the loopback IP address using the Prisma Access legacy API.
    4. Ensure that the CPE in your network is set up correctly for endpoints to forward traffic to Explicit Proxy via the anycast and unicast IP addresses.
